To model columns for industrial steel structure using TSD

Q.No 1

Pedestal column members created

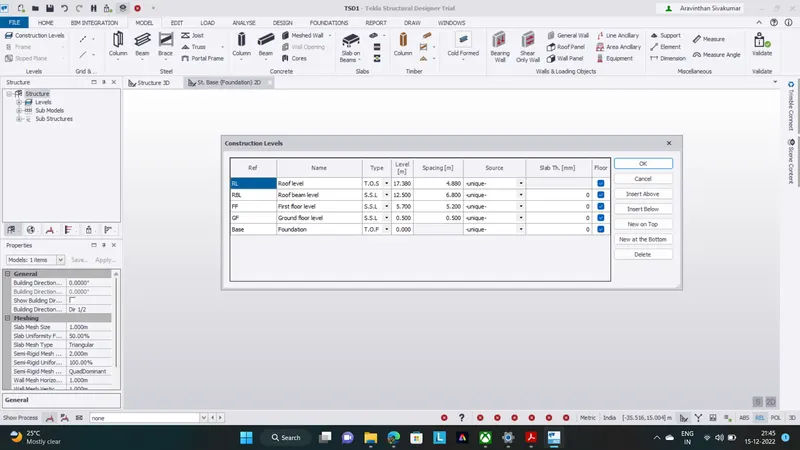

step 1 : construction level

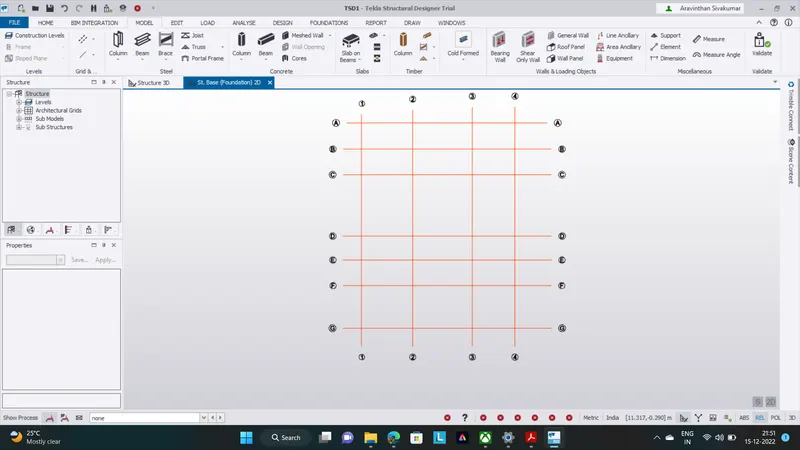

step 2: construction line

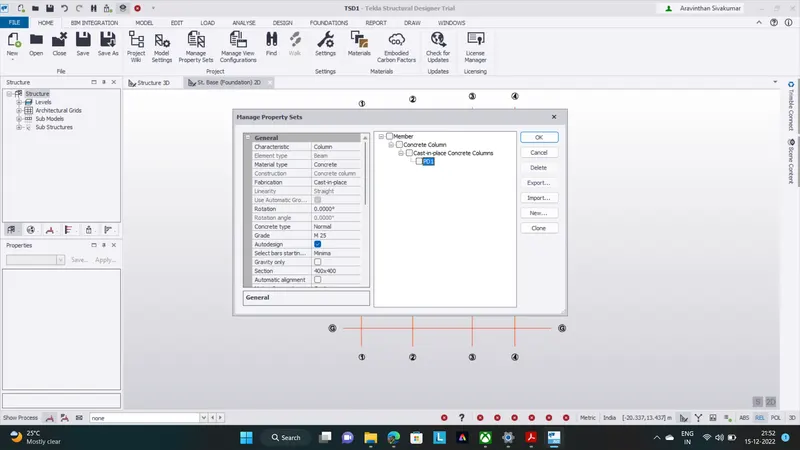

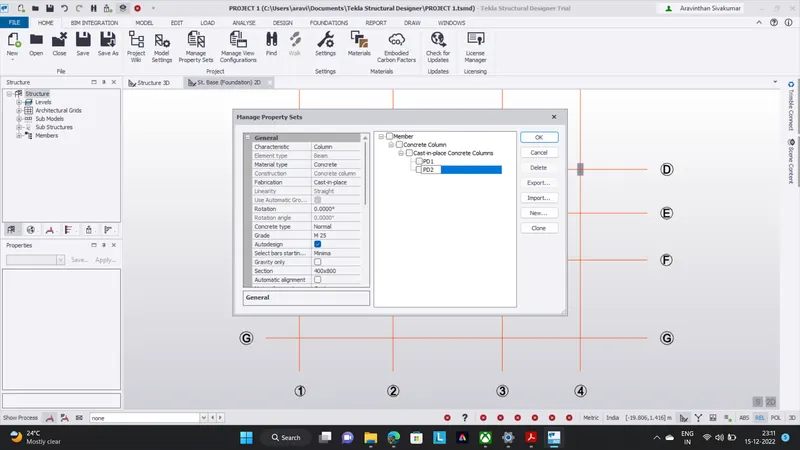

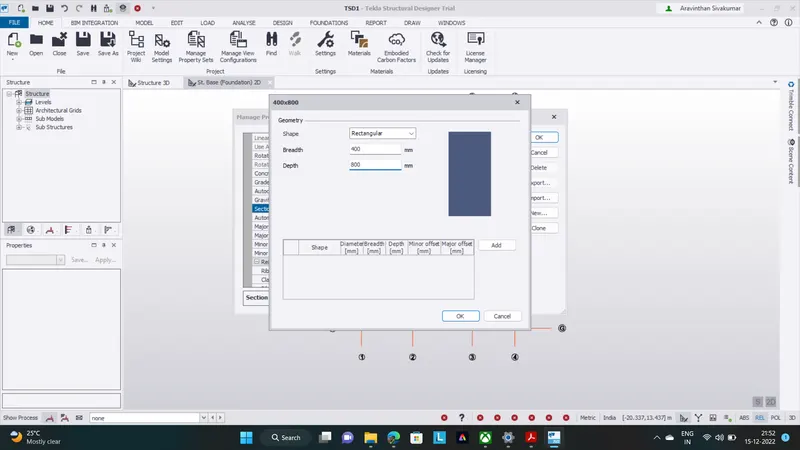

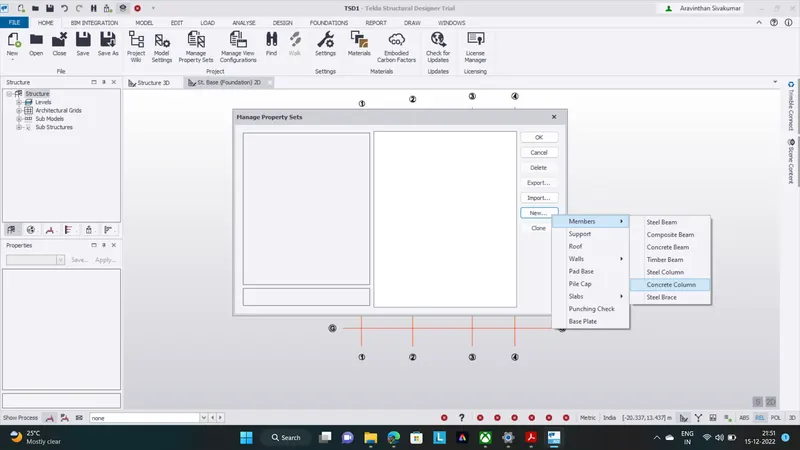

step 3: pedestal column manage property settings

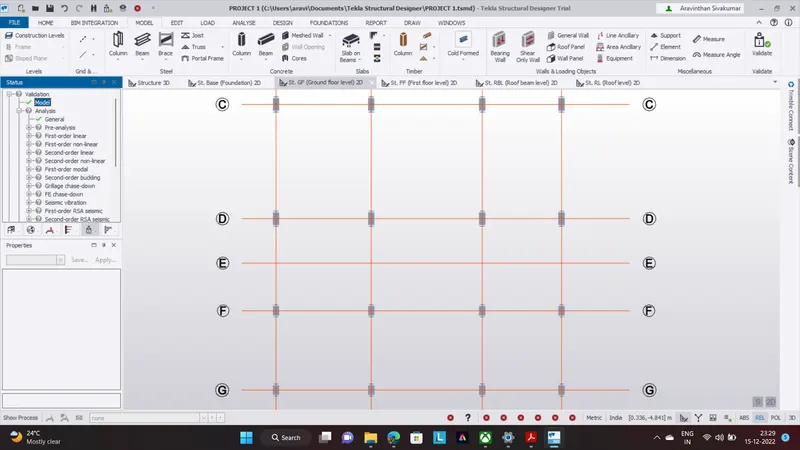

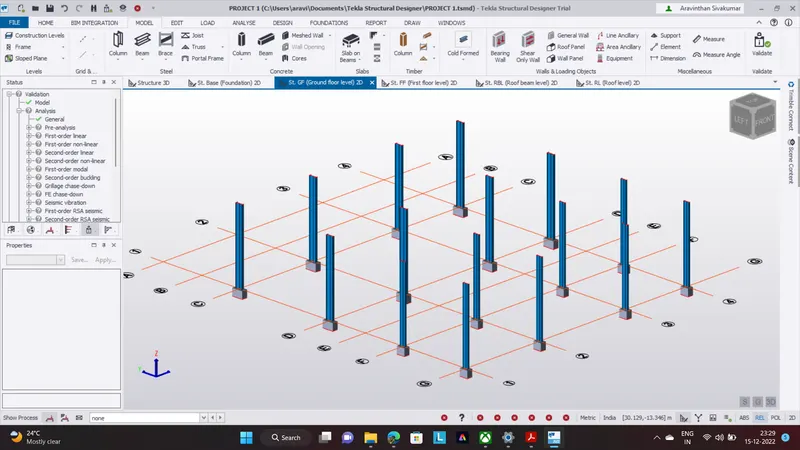

step 4 : pedestal column in grid

Q.NO 2

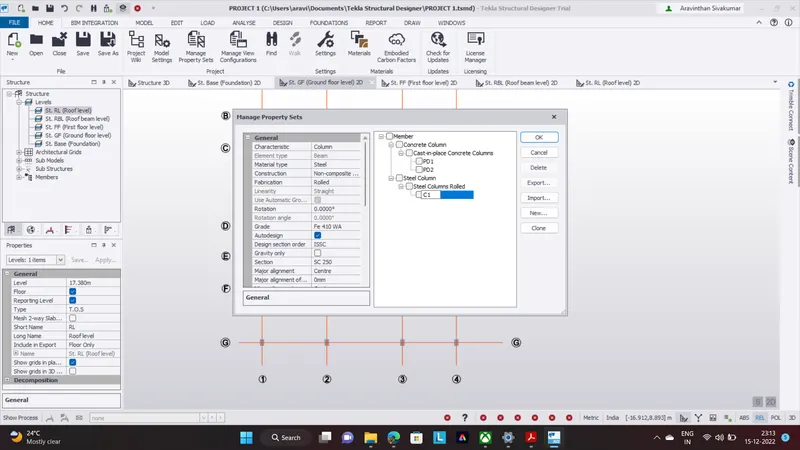

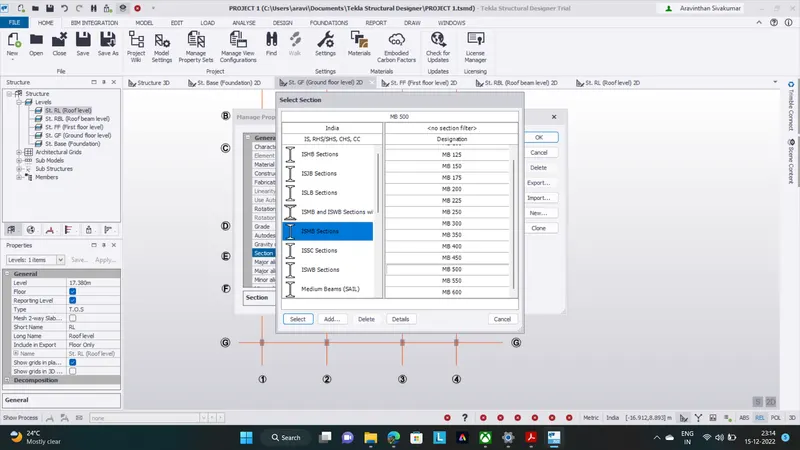

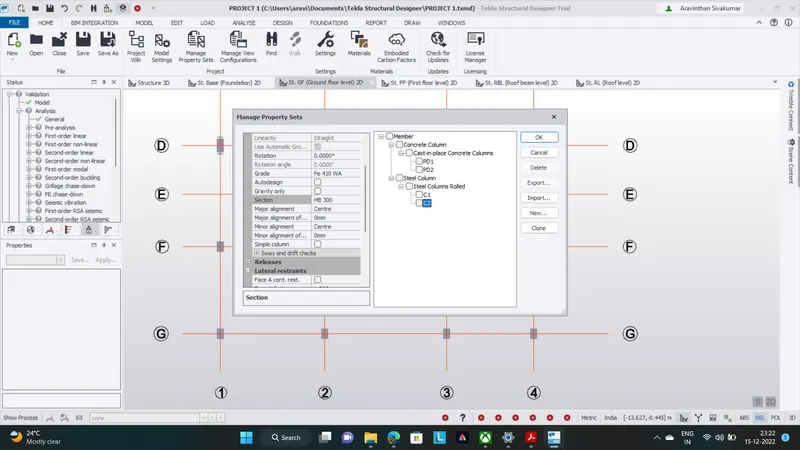

steel column property

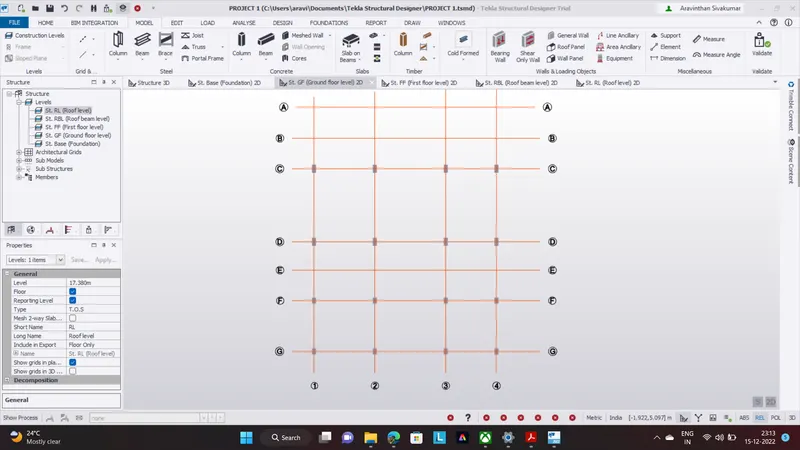

steel column in grid line

Q.NO 3

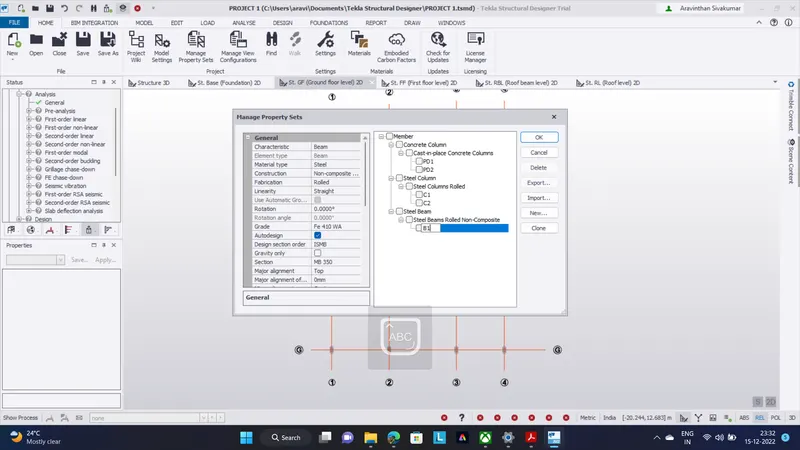

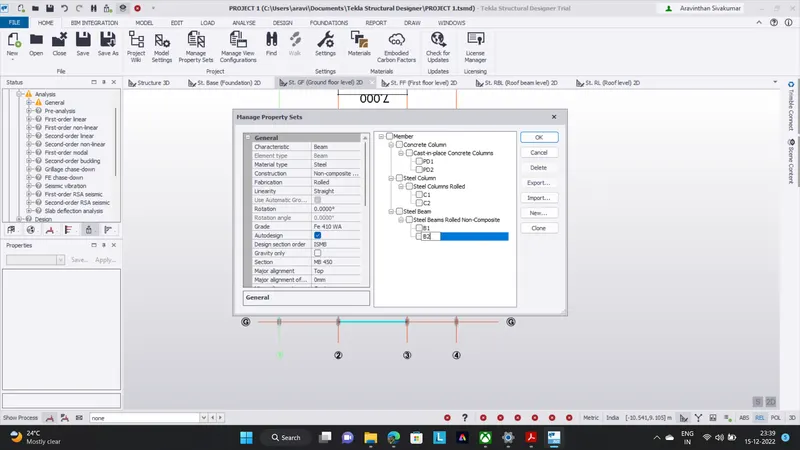

Steel beam property

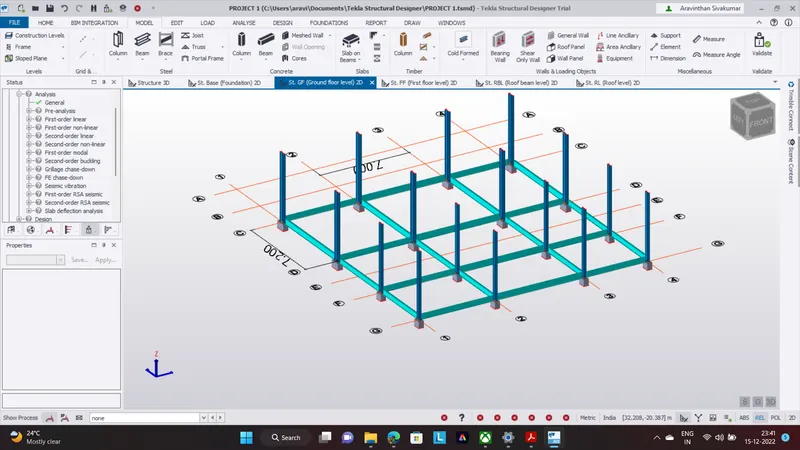

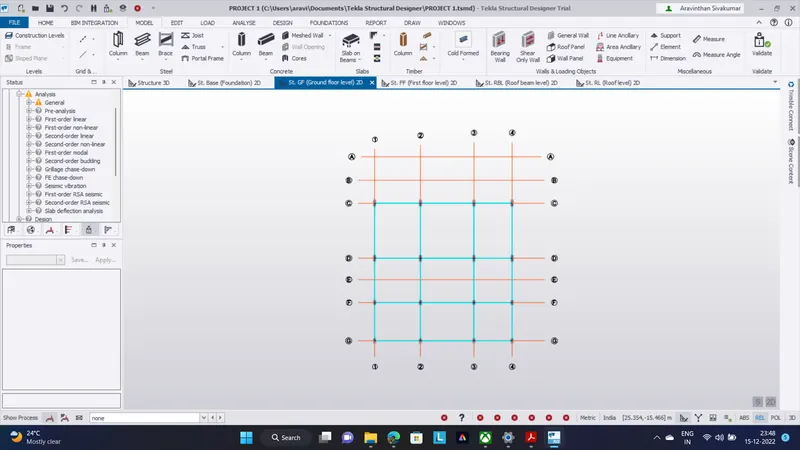

Steel beam grid line
