To Generate seismic loading based on IS code and to run the analysis using TSD
1.AIM:

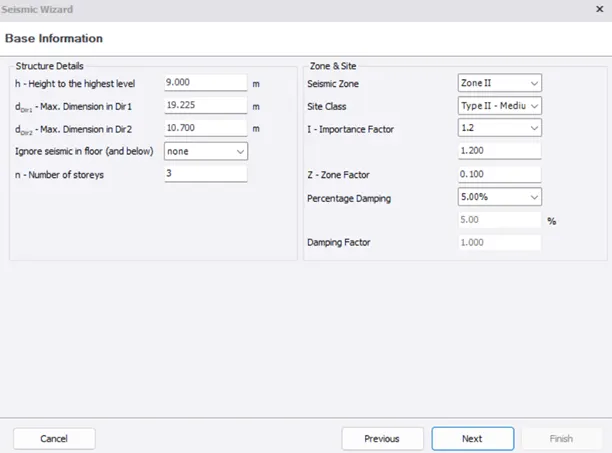

To Generate seismic loading based on IS codal provisions and zone II.
Procedure:

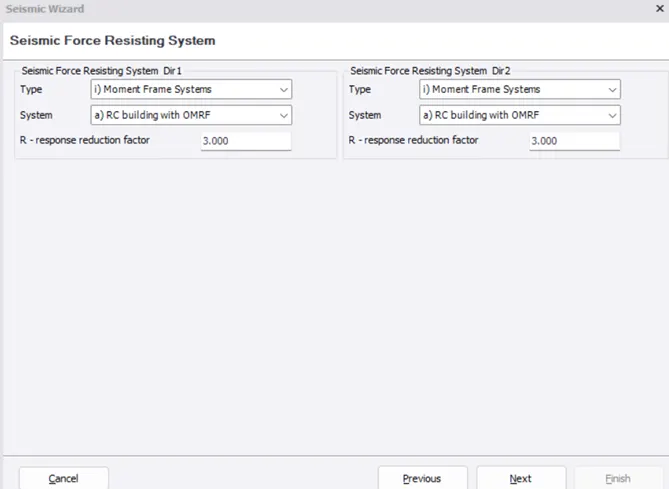

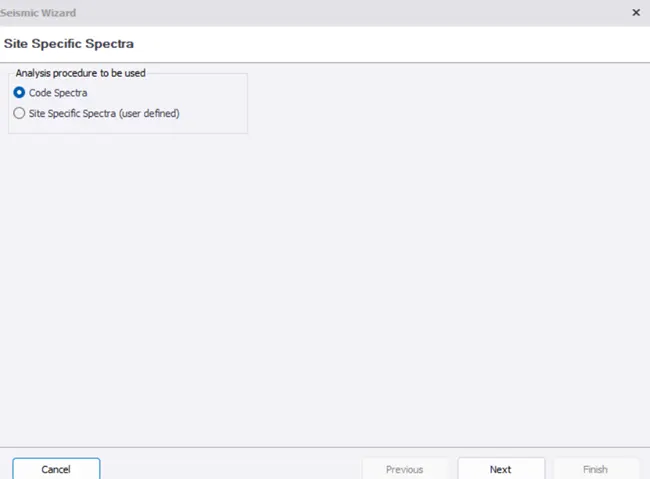

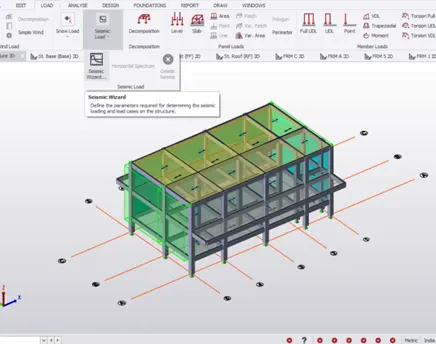

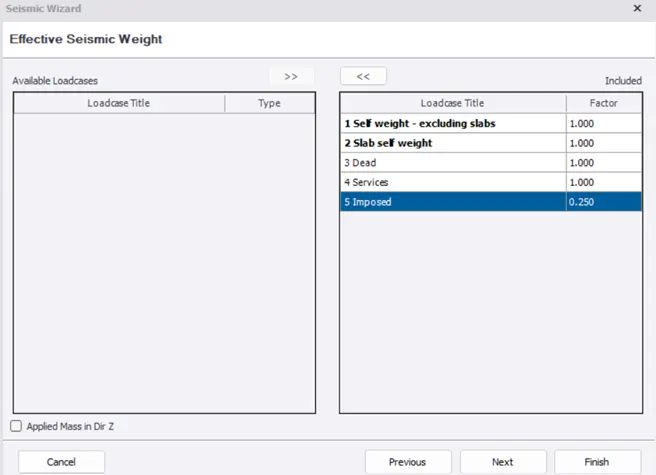

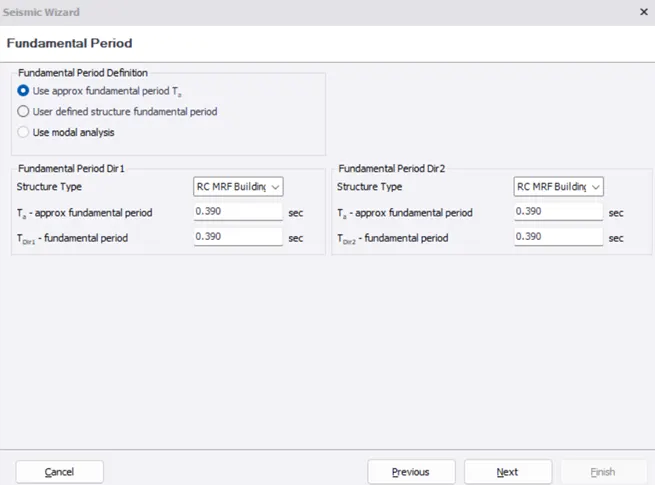

- Now go to Seismic Load – Seismic wizard
- Click Next and Finish to generate the load combinations

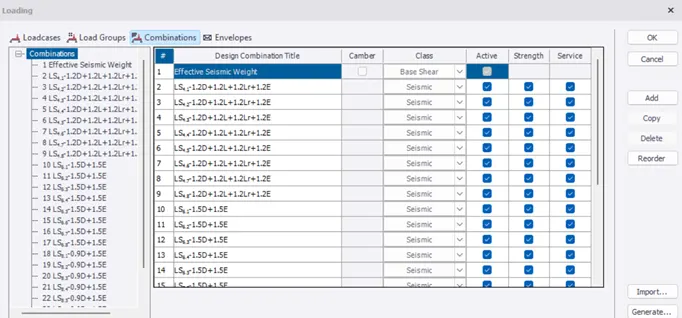

- Now we can see that all seismic load combinations are generated

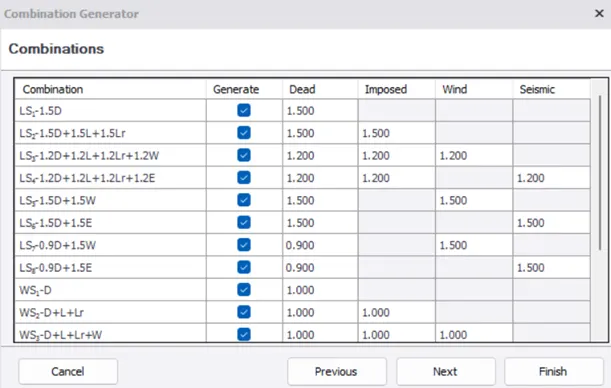

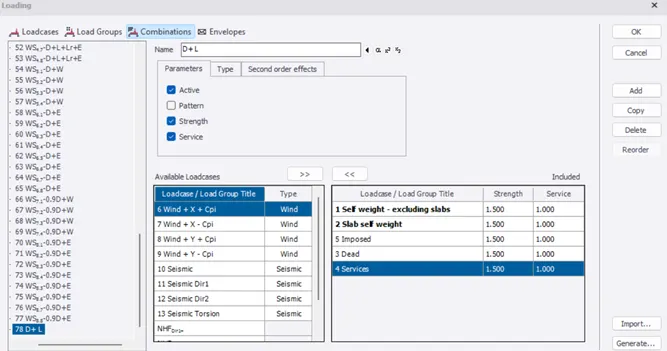

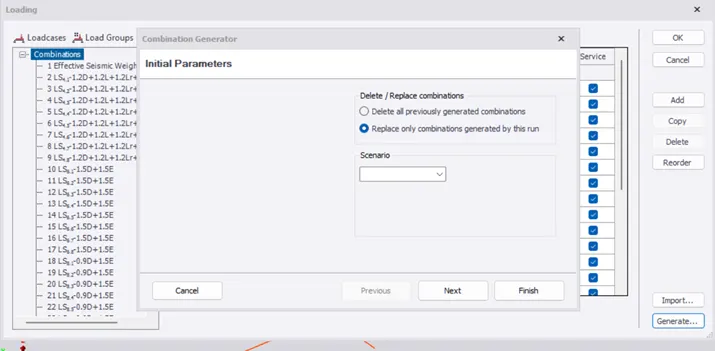

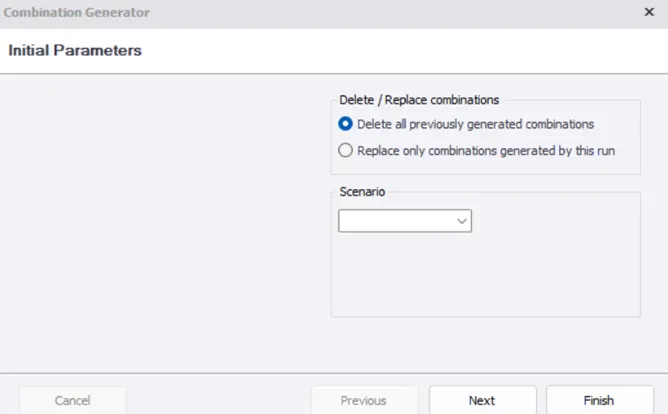

- For generating other combinations for gravity and wind loads, click on generate
- AIM:

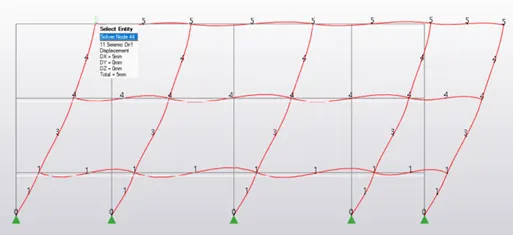

To run the analysis and summarize the understanding of the analysis results
Procedure:

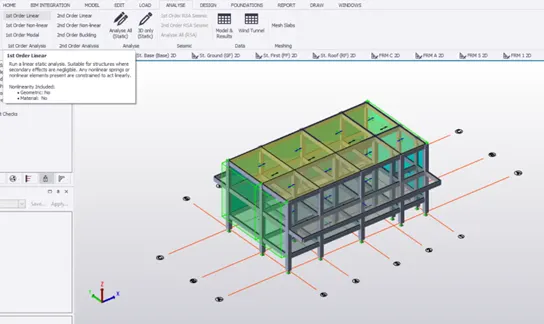

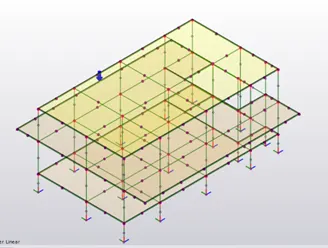

- Go to Analysis – First order linear analysis
