To Generate report for Steel Industrial and RC structures using TSD

1.

Aim:

To generate report for the steel building design.

Procedure:

• Open the saved Tekla model

• Now go to the report option from the Ribbon and select model report.

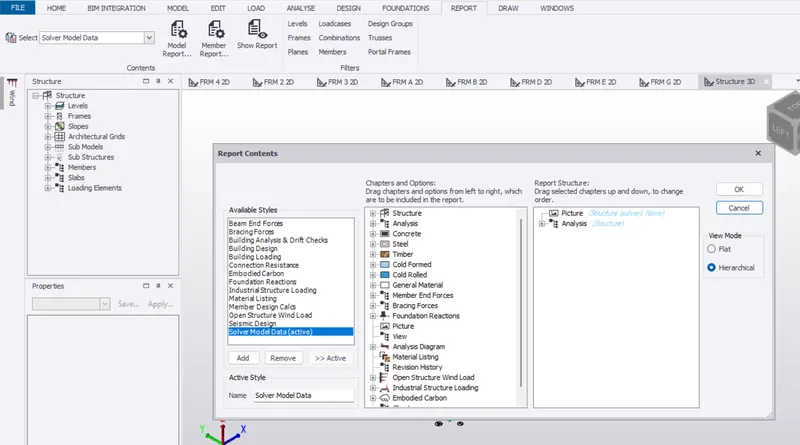

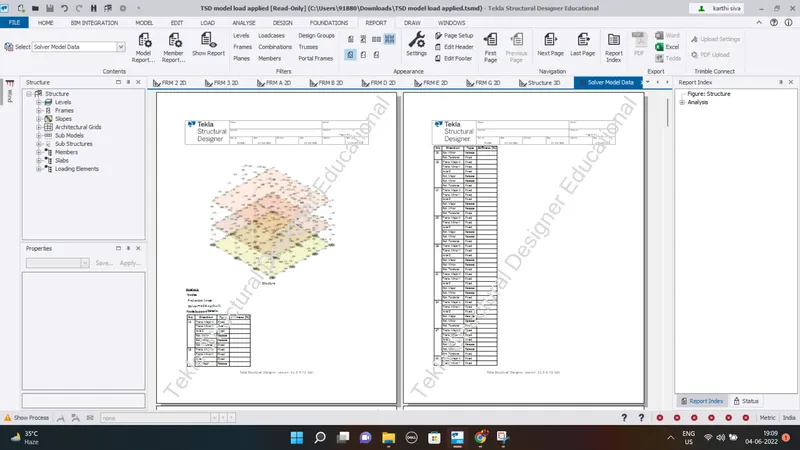

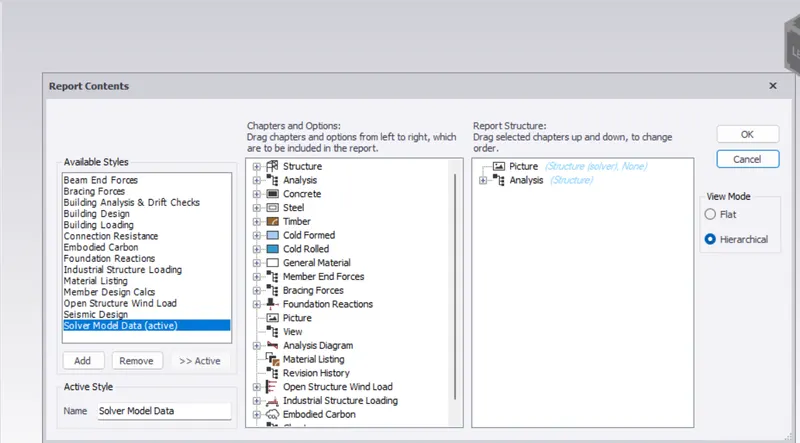

• Now select the load cases and combinations summary to obtain report and Click on the Show report to obtain the report
• We can change the project name, address etc, with the help of edit header option

• We can also convert this report in PDF, word etc as well.

Result

With this our objective is completed.

2.

Aim:

To generate the report for RC structure along with loading summary.

Procedure:

• Open the previously saved Tekla model ribbon and select model report.

Now select load cases andcombinations summary to obtain report.

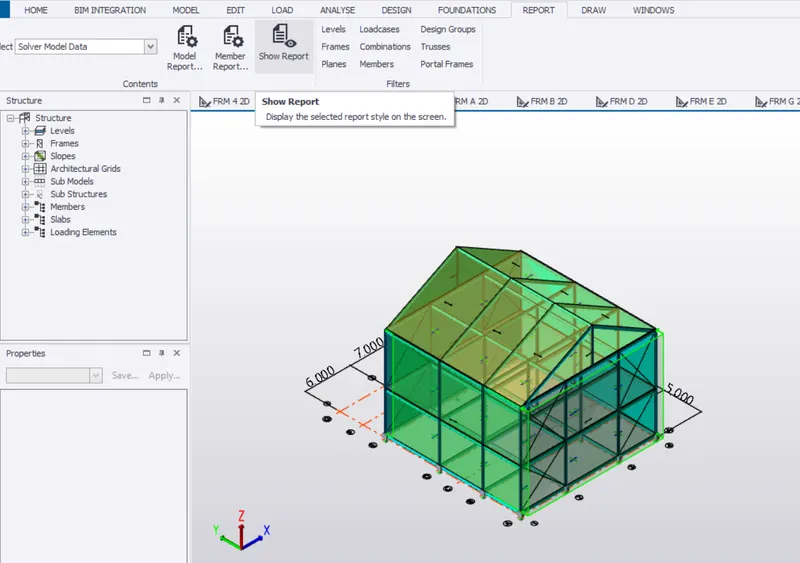

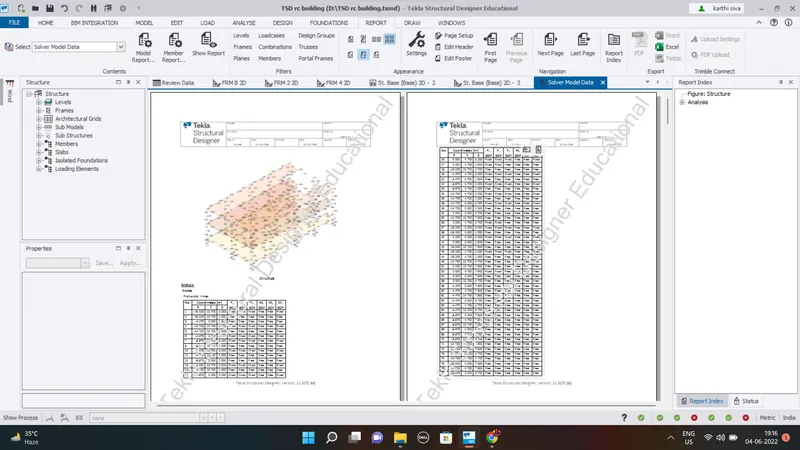

• Now click on show report option to the report.

• We can make changes in the settings, project name, type etc; using the Editheader

We can convert this report to PCF, word format etc.

Result:

With this our objective is completed.

3.

Aim:

To update the layers settings in the model and generate plan drawings and details from the model.

Procedure:

Go to the setting option from the ribbon.

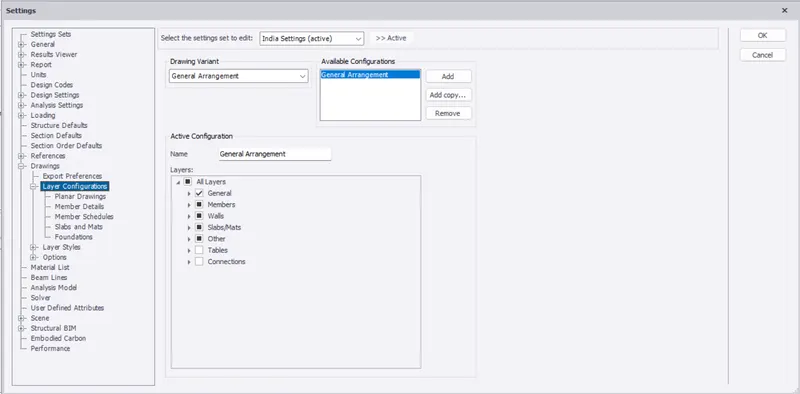

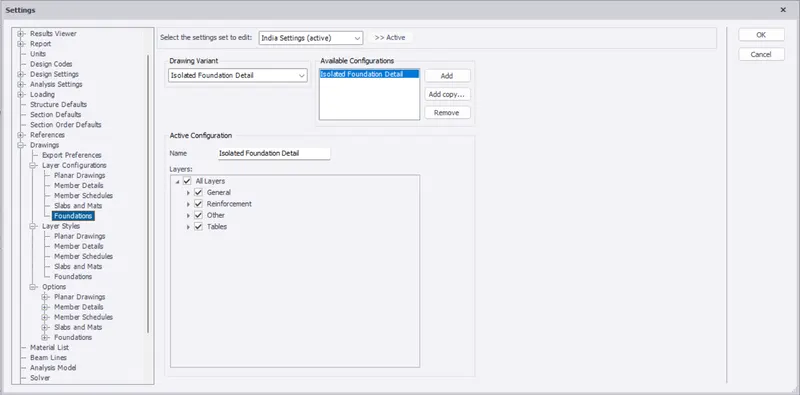

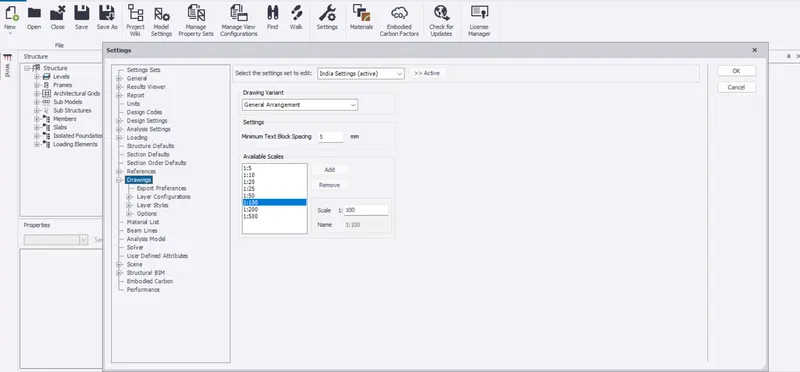

Now select the drawing option and adjust the scale and sub layer configuration.

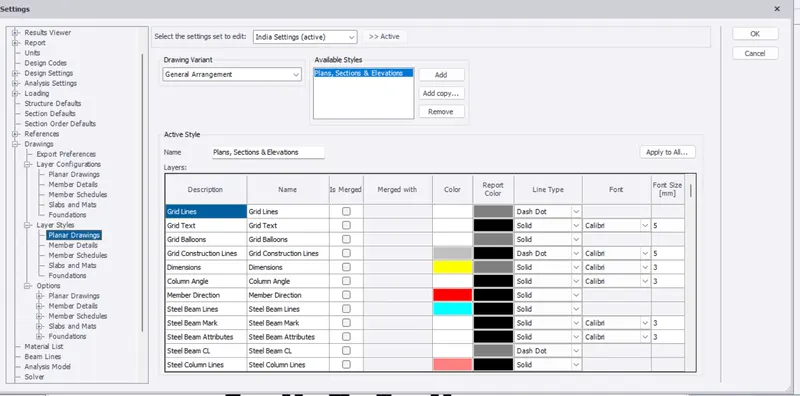

Now we have to select the layer style and we will get the list of colours od Course different members of the model, which is our choice.

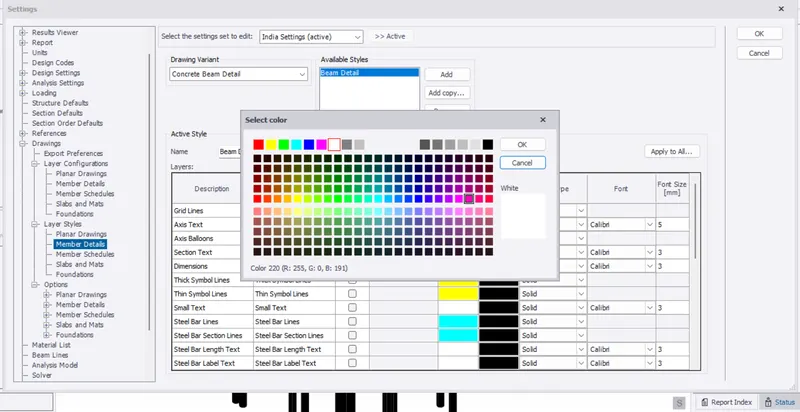

Click on a colour and then select the desired colour for our desired member.

Thus, we can make changes in the layer settings

Result:

With this our objective is completed.
