To Design slab and foundation for an RC residential building using TSD

AIM:

To design the slab and foundation for the RC residential building

PROCEDURE:

• Open the saved Tekla model last challange
• Generate the load combinations again.
• Analyse the model
• Check if it pass or fail
• Design the model

DESIGN OF SLAB:

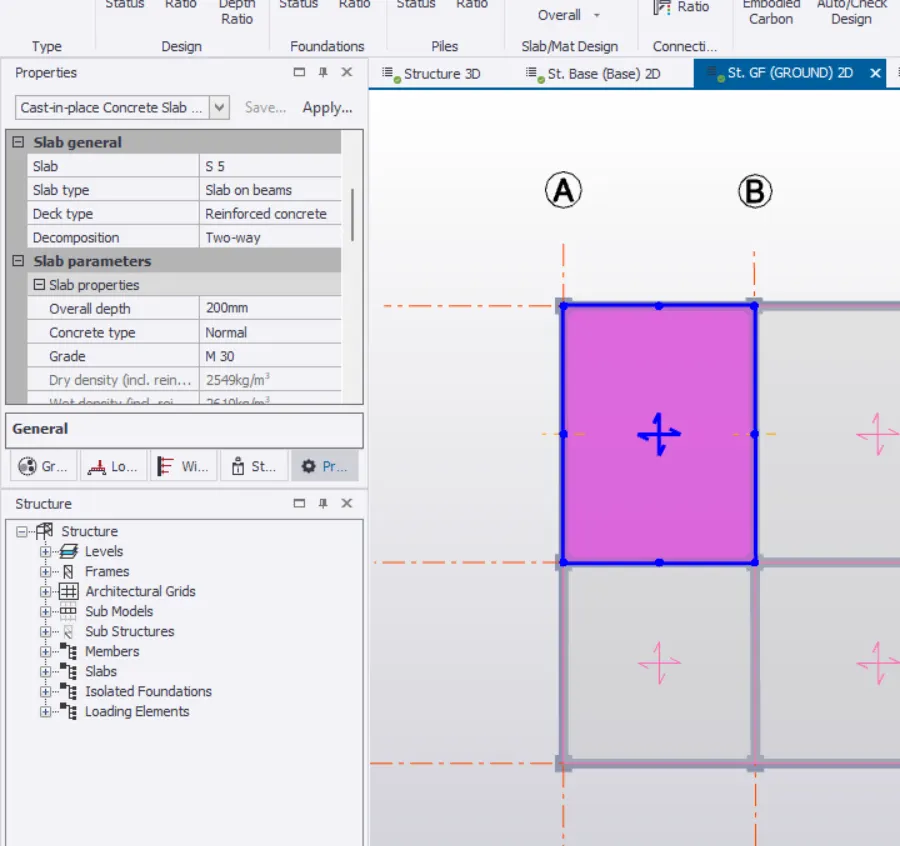

• Click any one slab and change its properties like rib type, type, bar spacing and bar size
• Now right click on any one slab and select the design member.

• If the member shows an error, the correct it according to the failure.

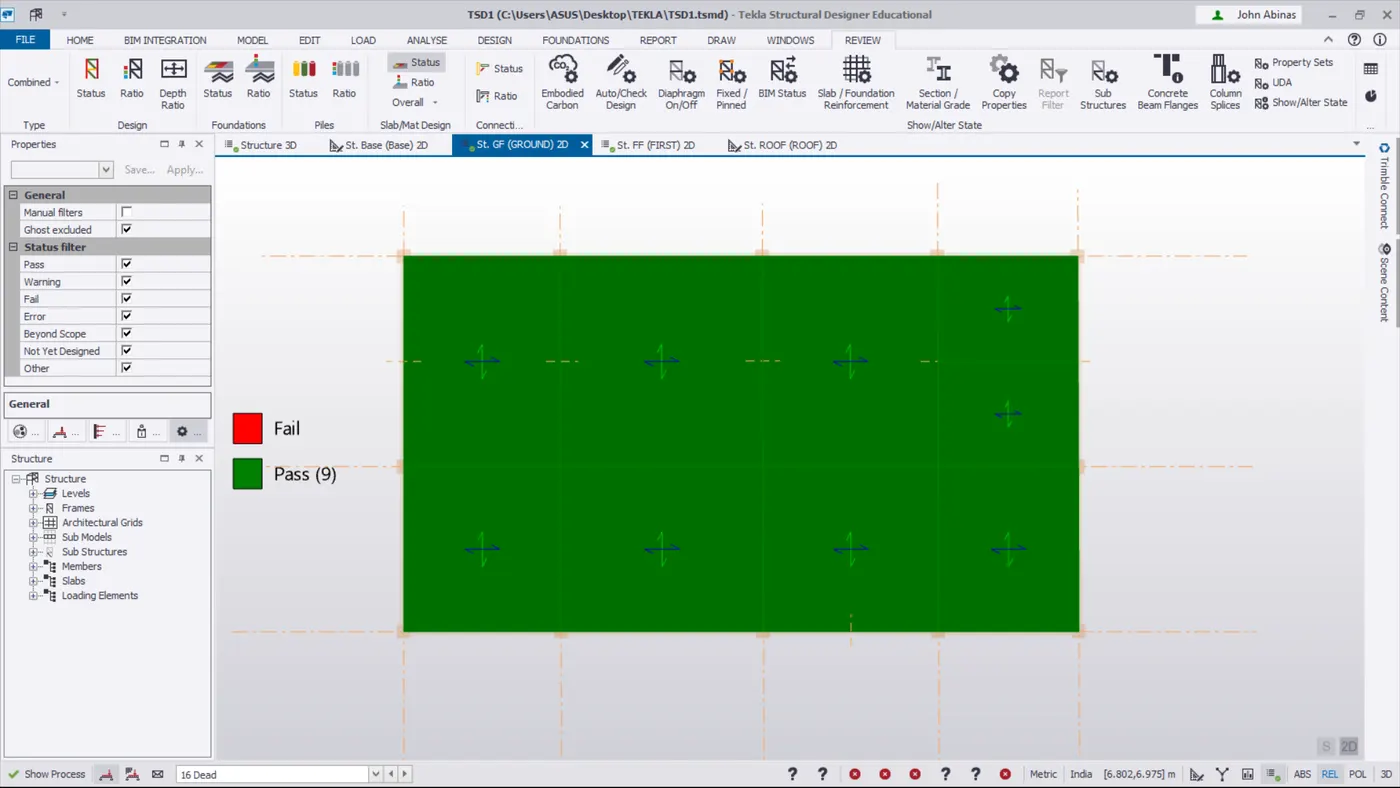

• If the member passes, it will show green, then proceed with the design.

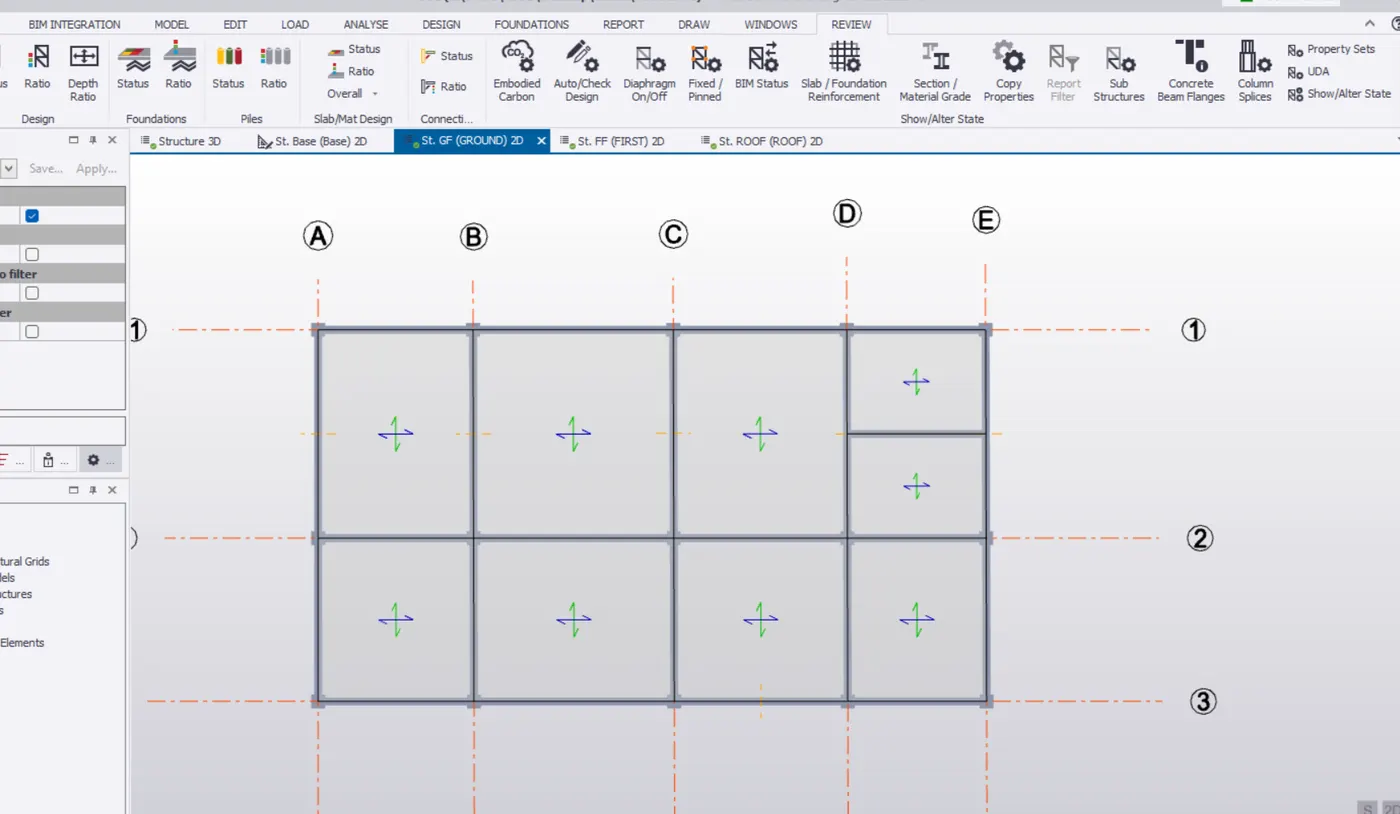

GROUND FLOOR:

• Its shows failng slab due to depth so we have to increase it

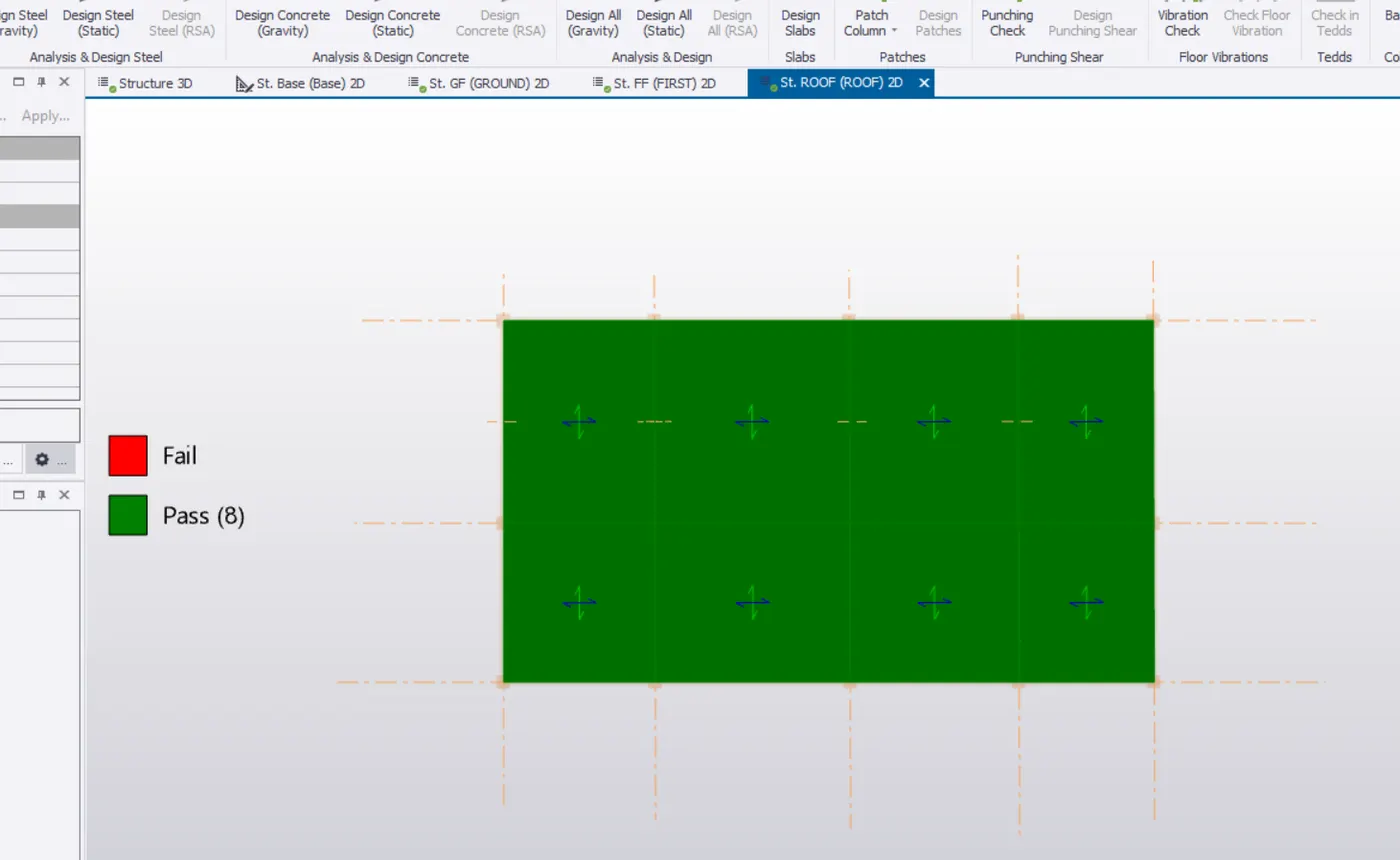

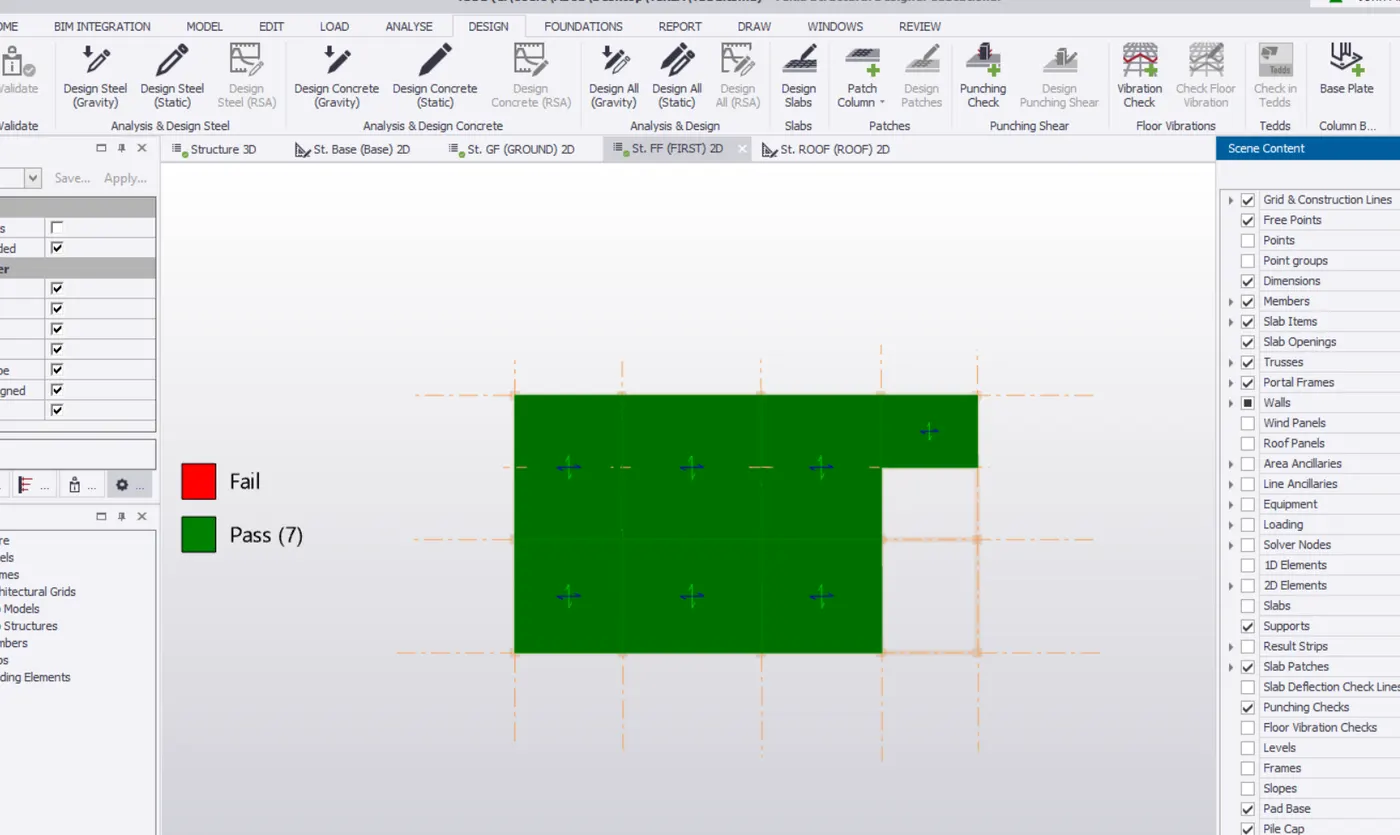

Similarlly do it for both FIRST FLOOR and ROOF:

RESULT:

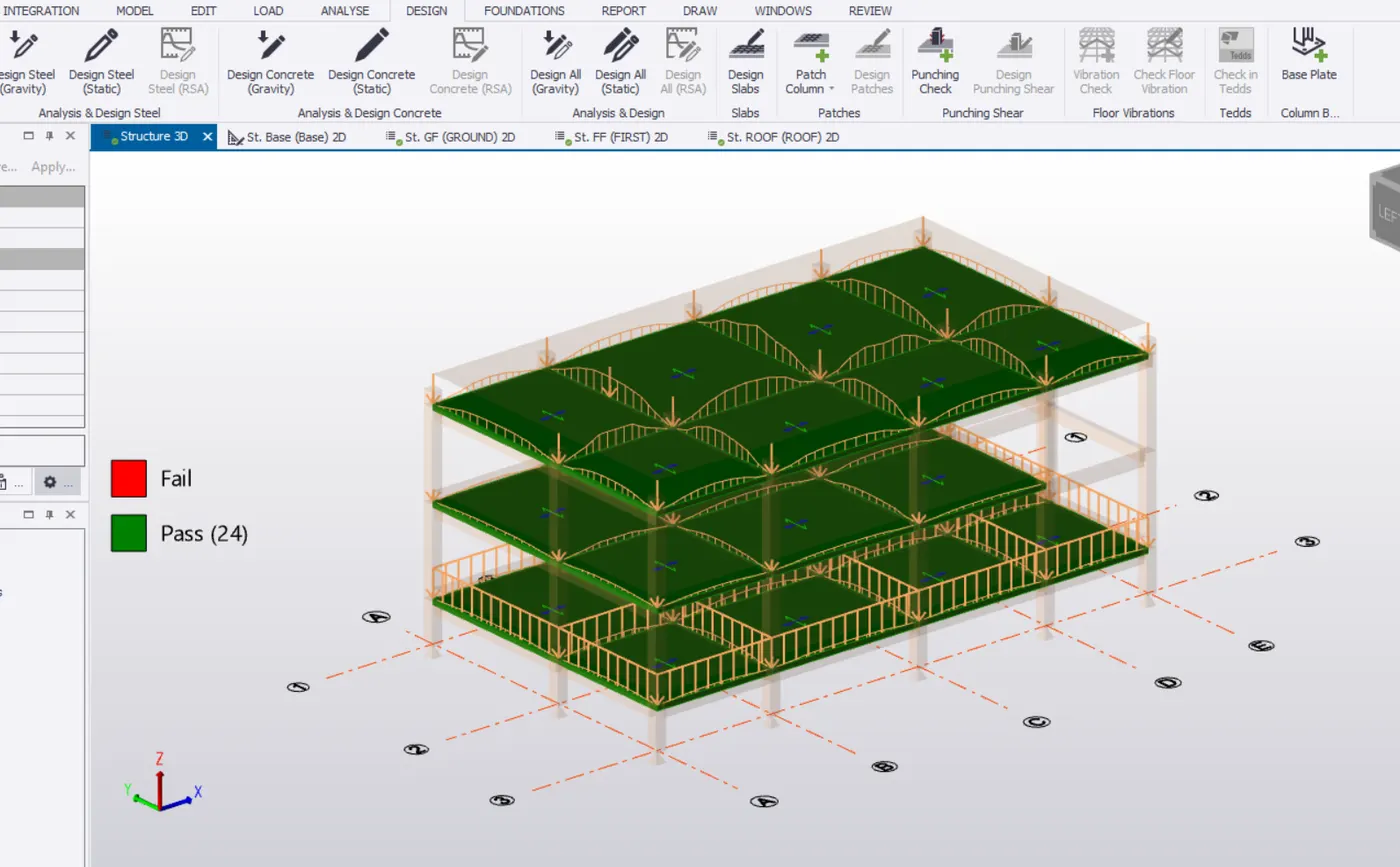

• The RC building slabs are designd and checked

•

Designing of Foundation

• Here, pile foundation is used.

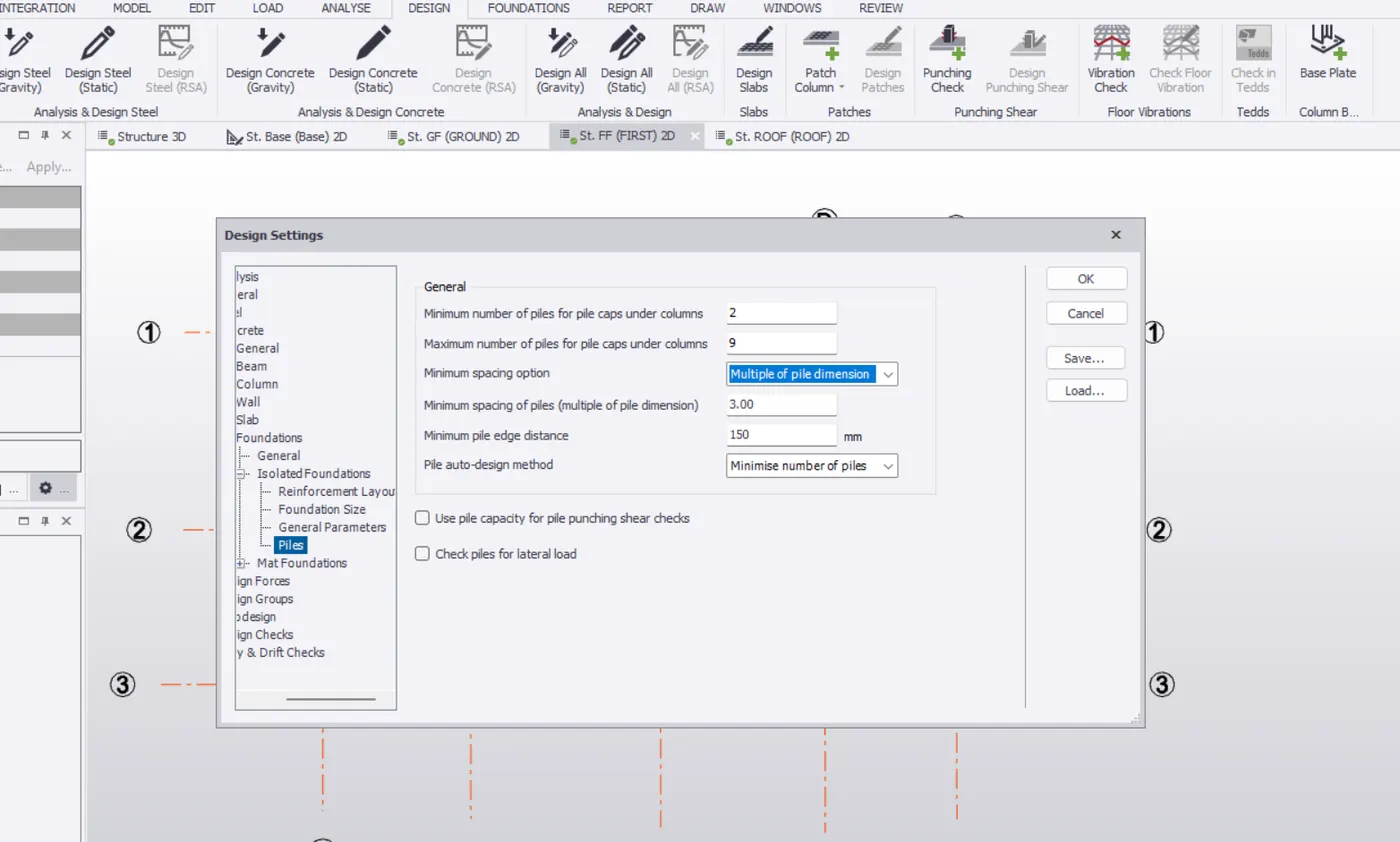

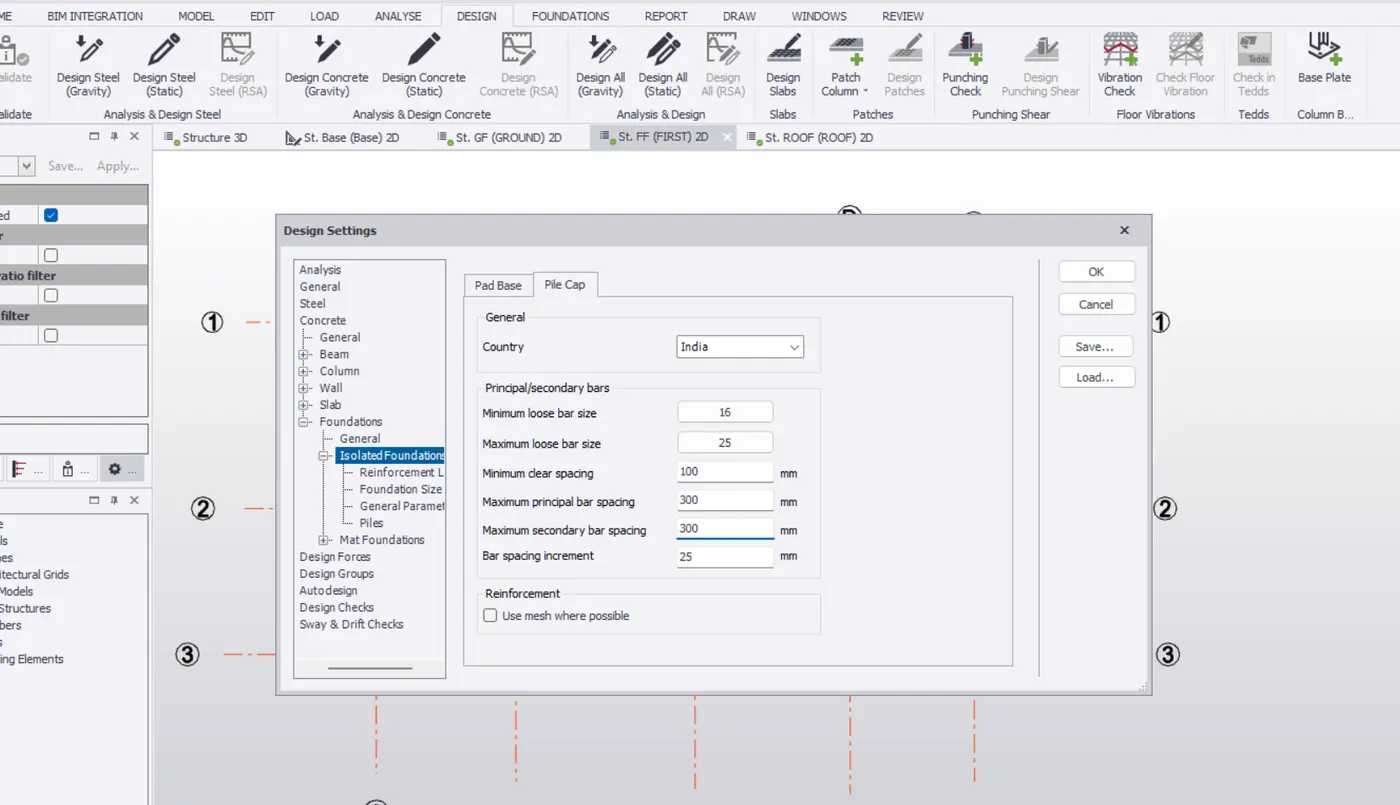

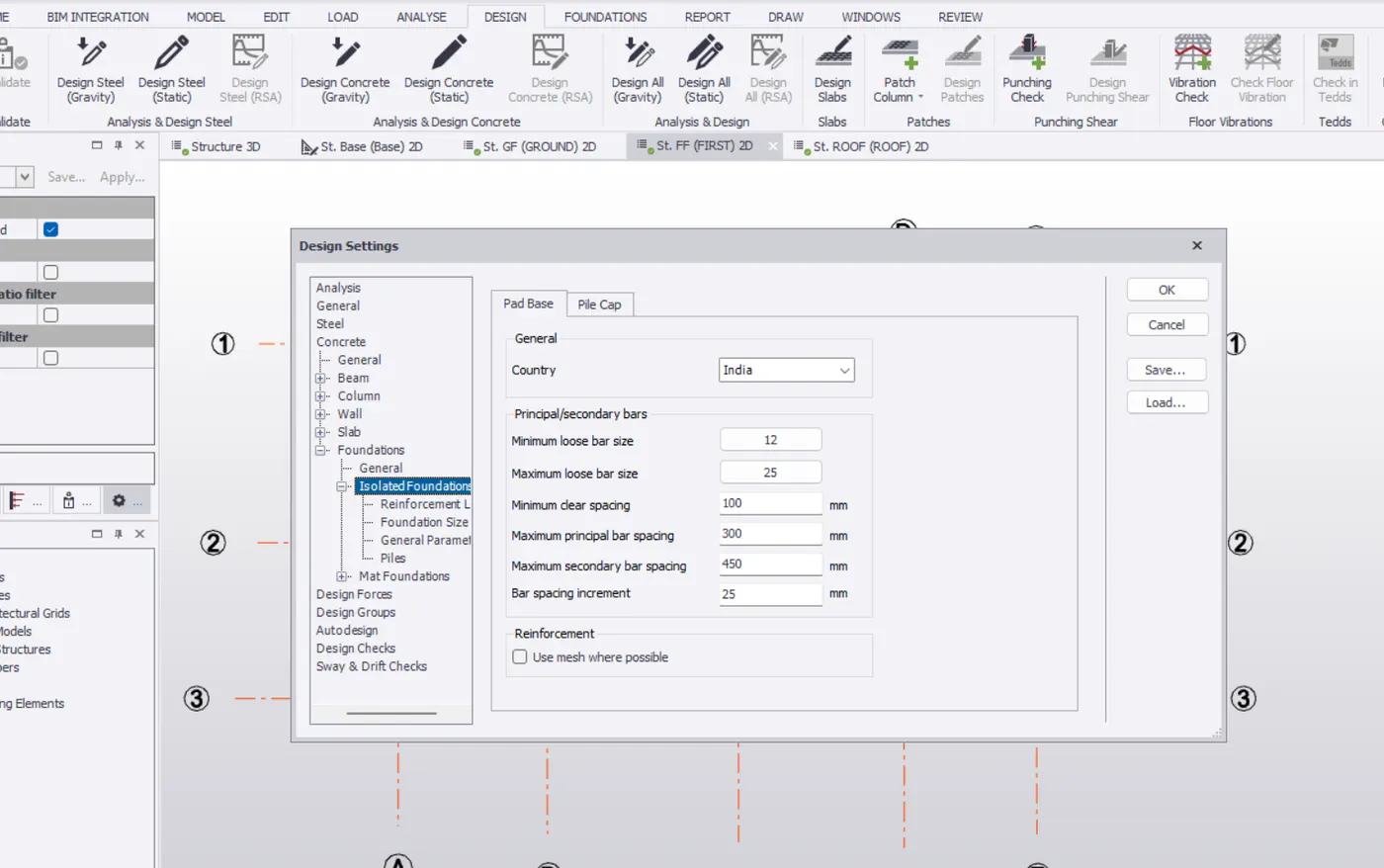

• Go to the settings and make changes in settings for foundation like for the reinforcement, foundation size , general parameters, etc.

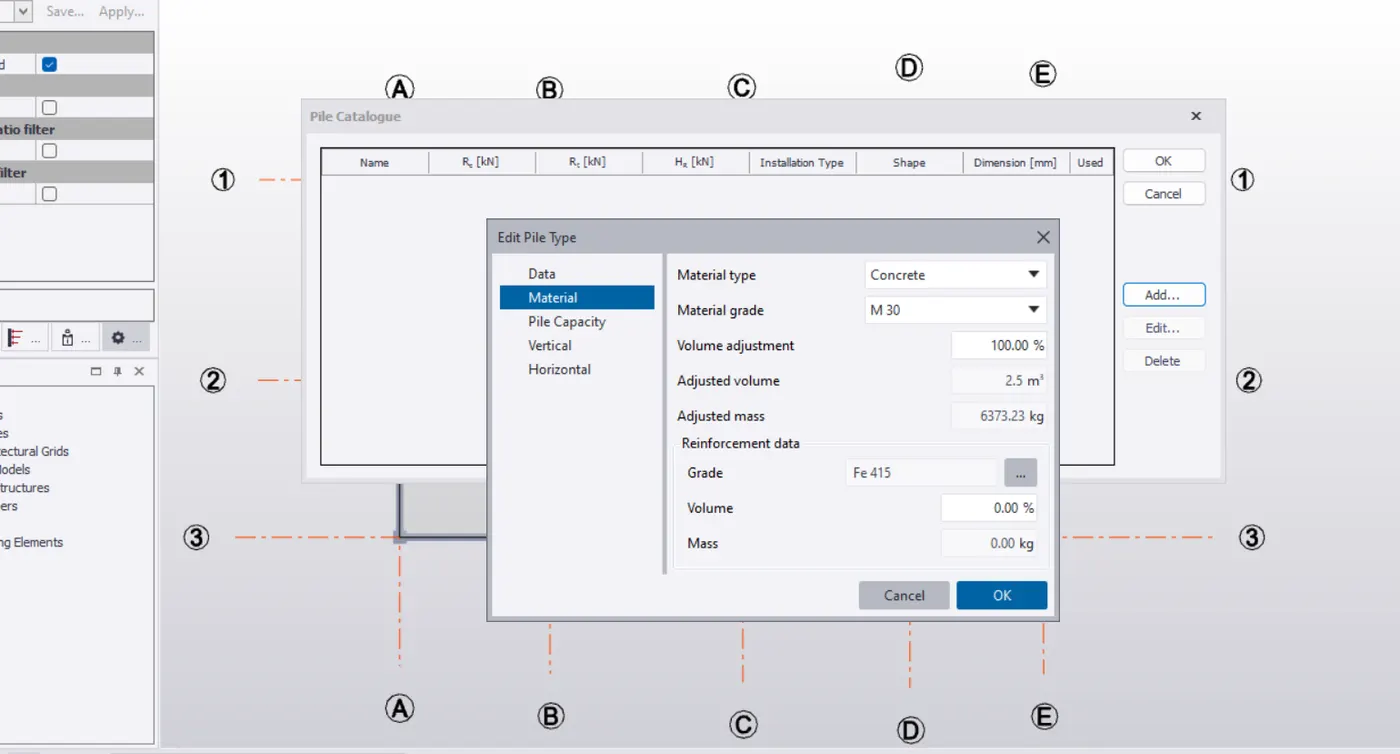

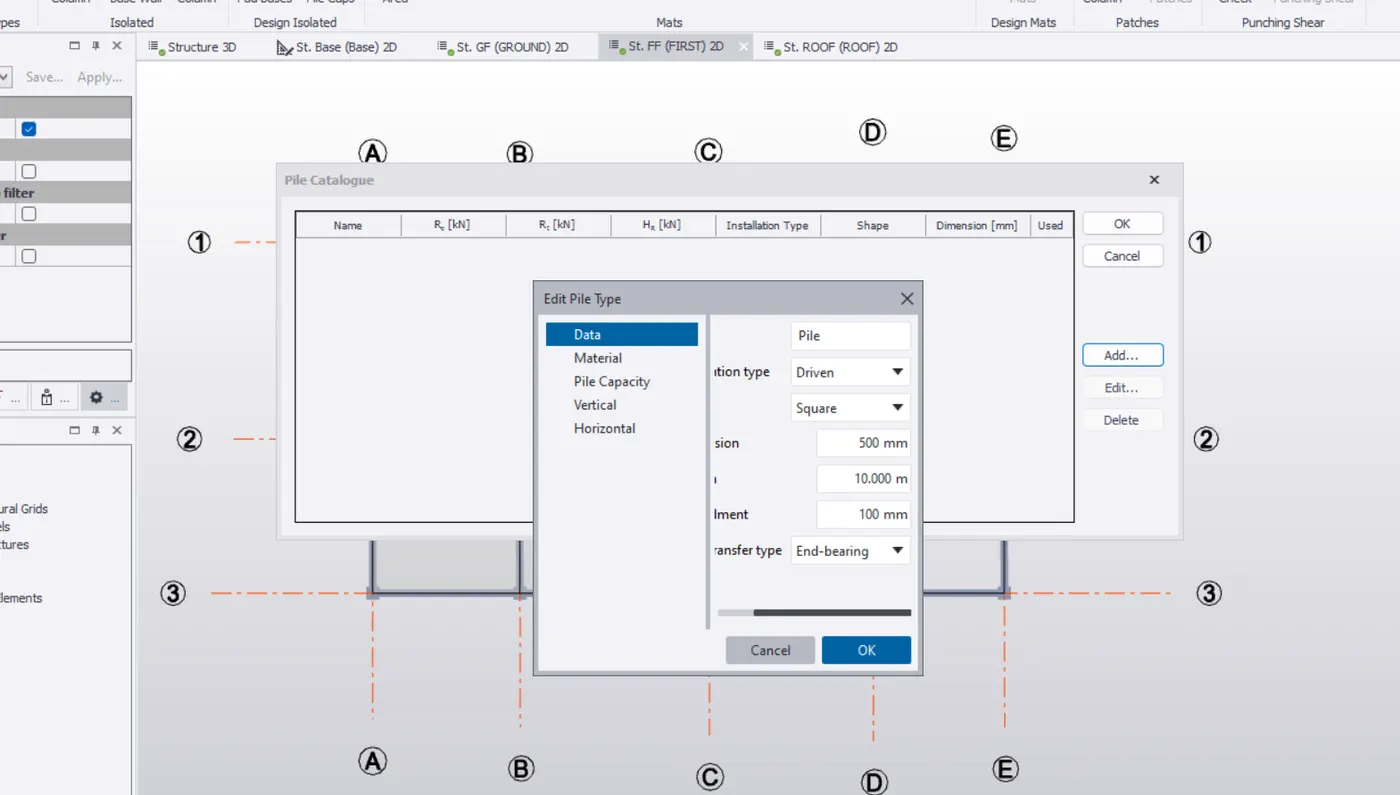

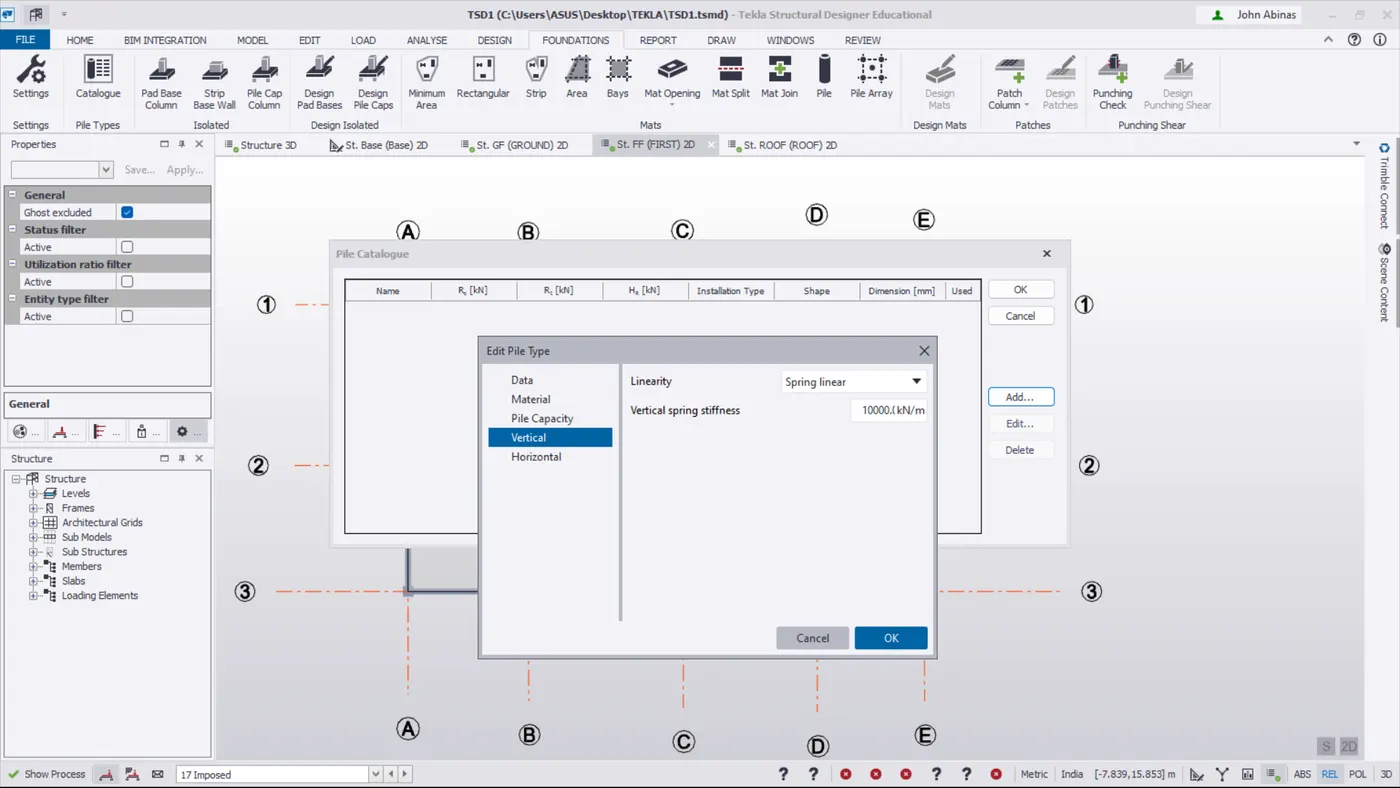

• Now we have to edit the pile type, shape and the load transfer type

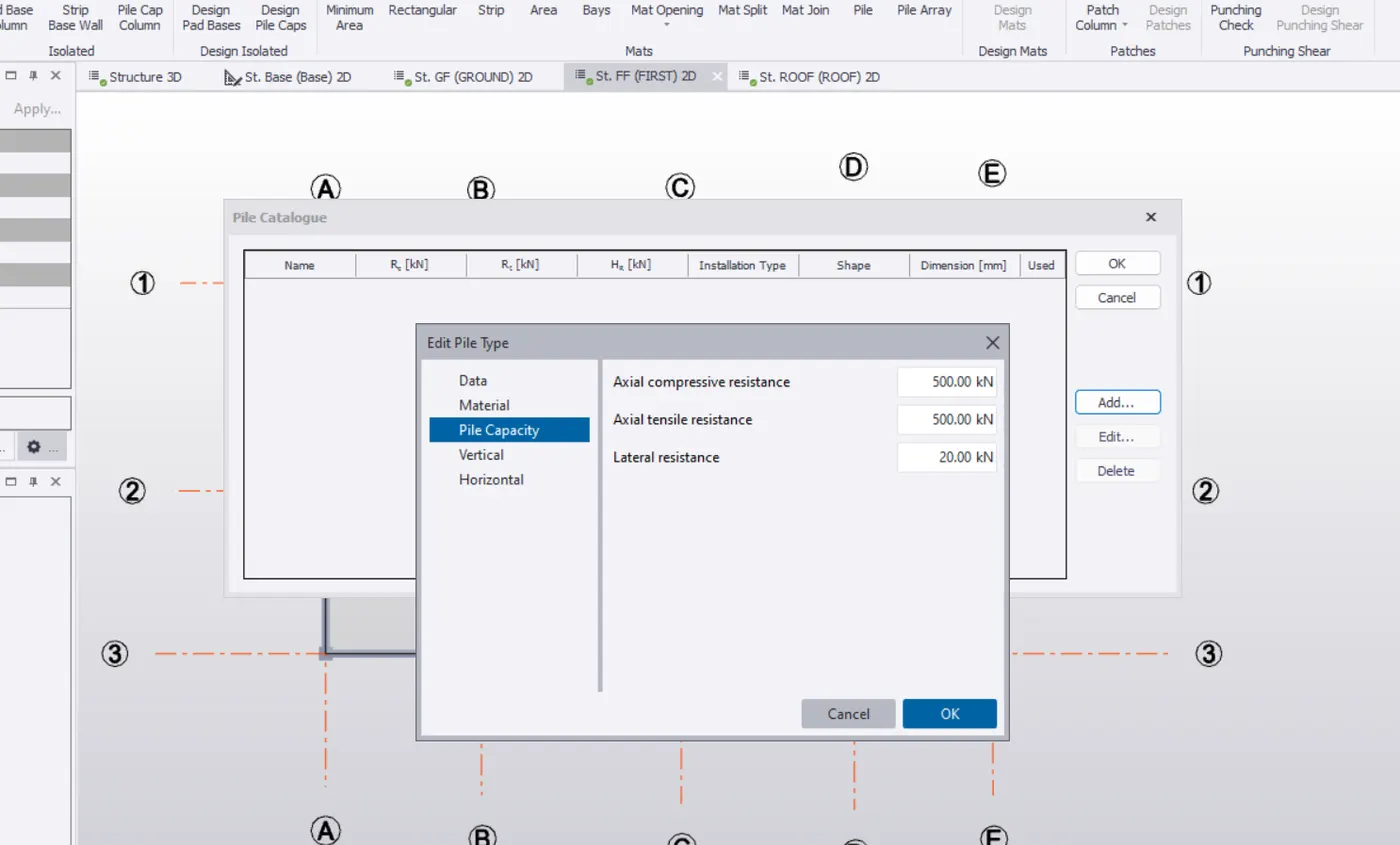

• Now we have to create a Gataloge for piles

• Now right click on the member we have to design and click on the design.

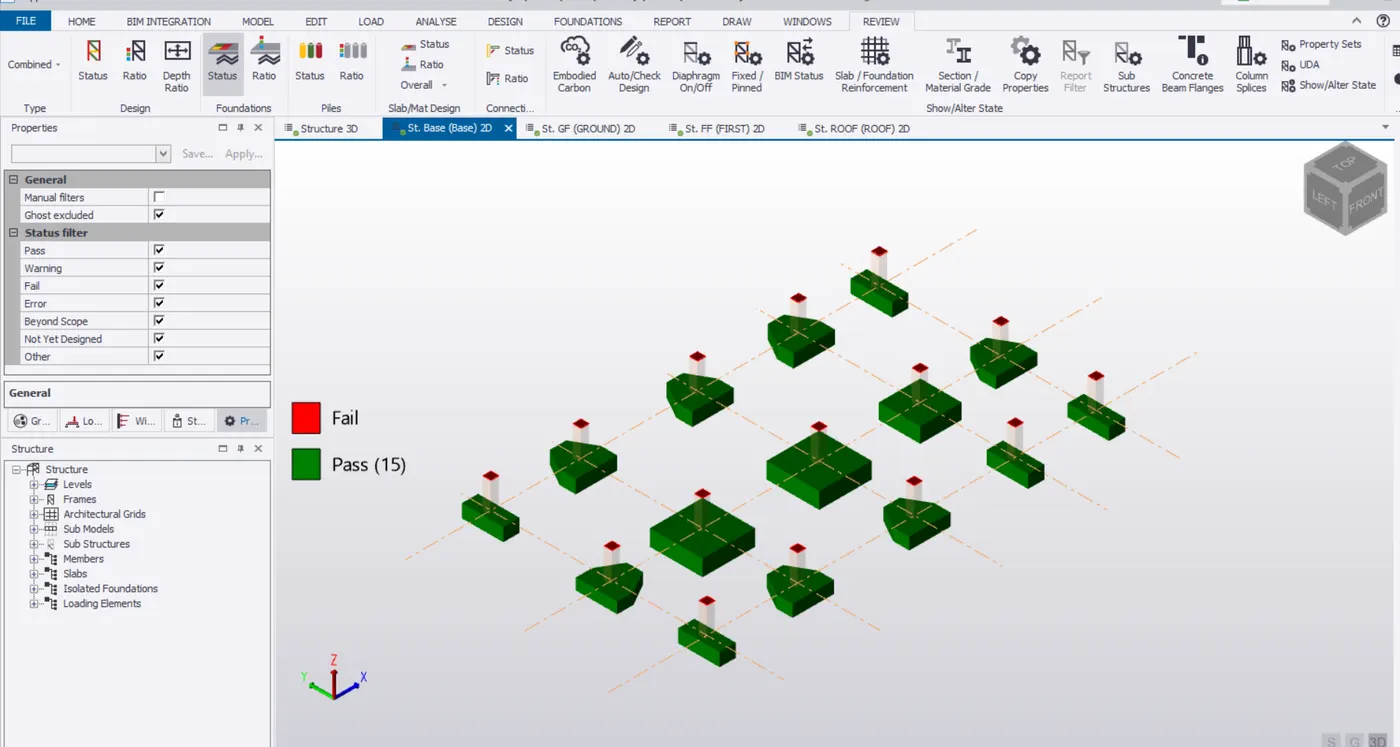

• If it shows in green, then the design is correct and we can proceed.

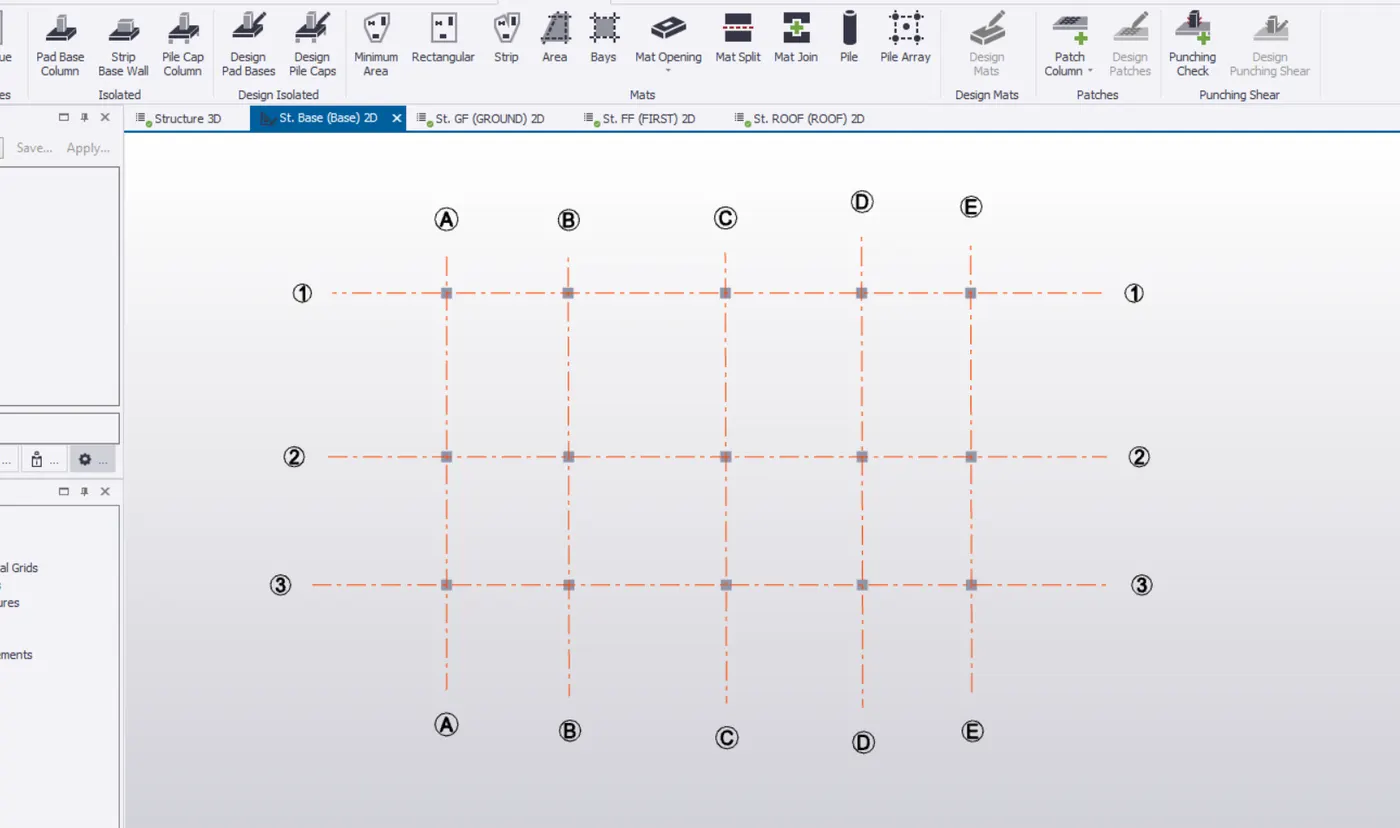

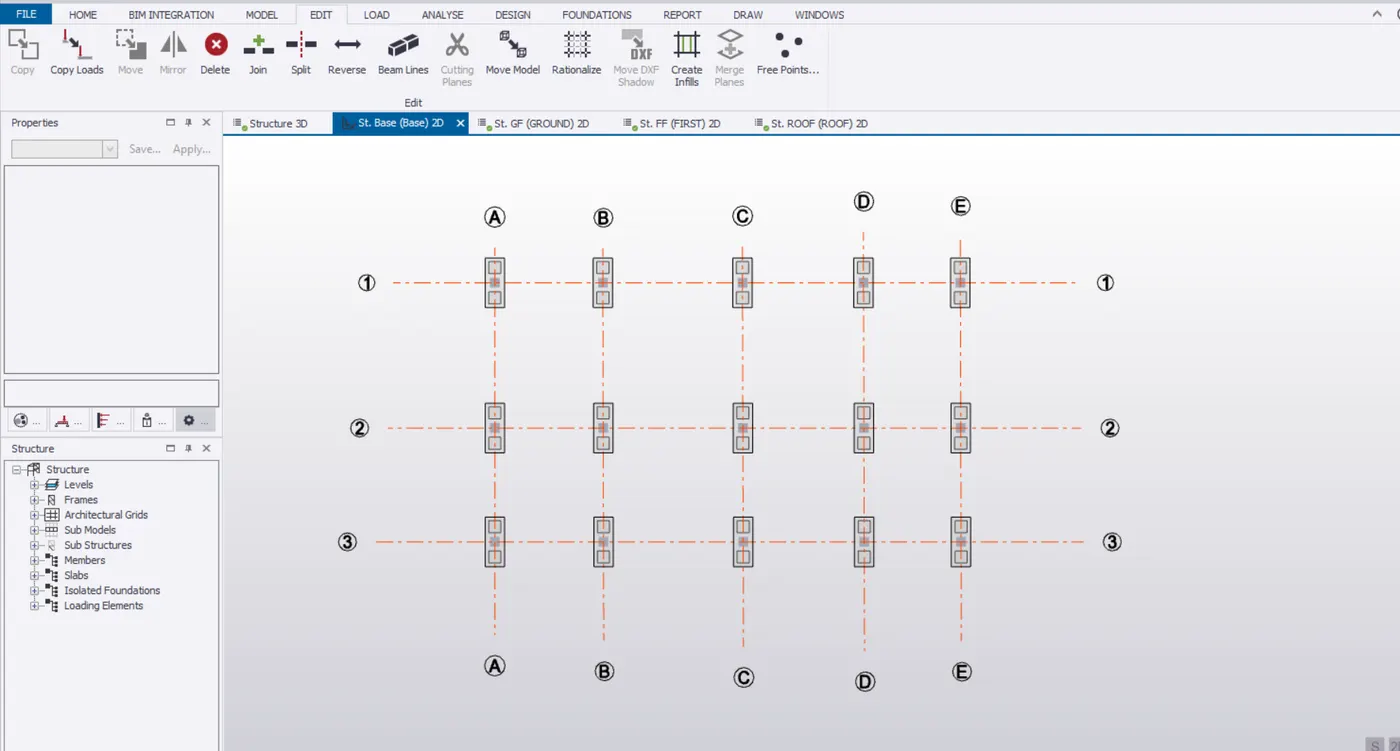

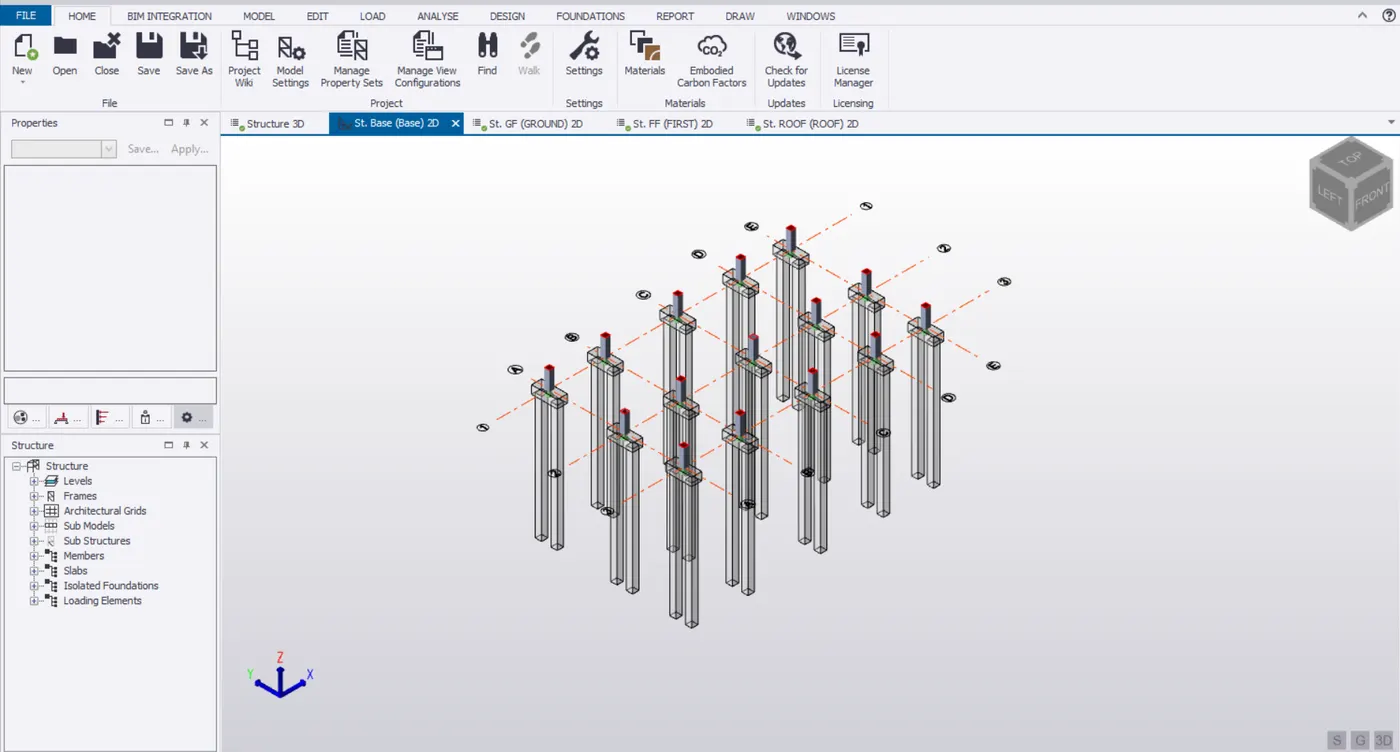

• Put pile pad for all column and check it

• Design the member of plie cap

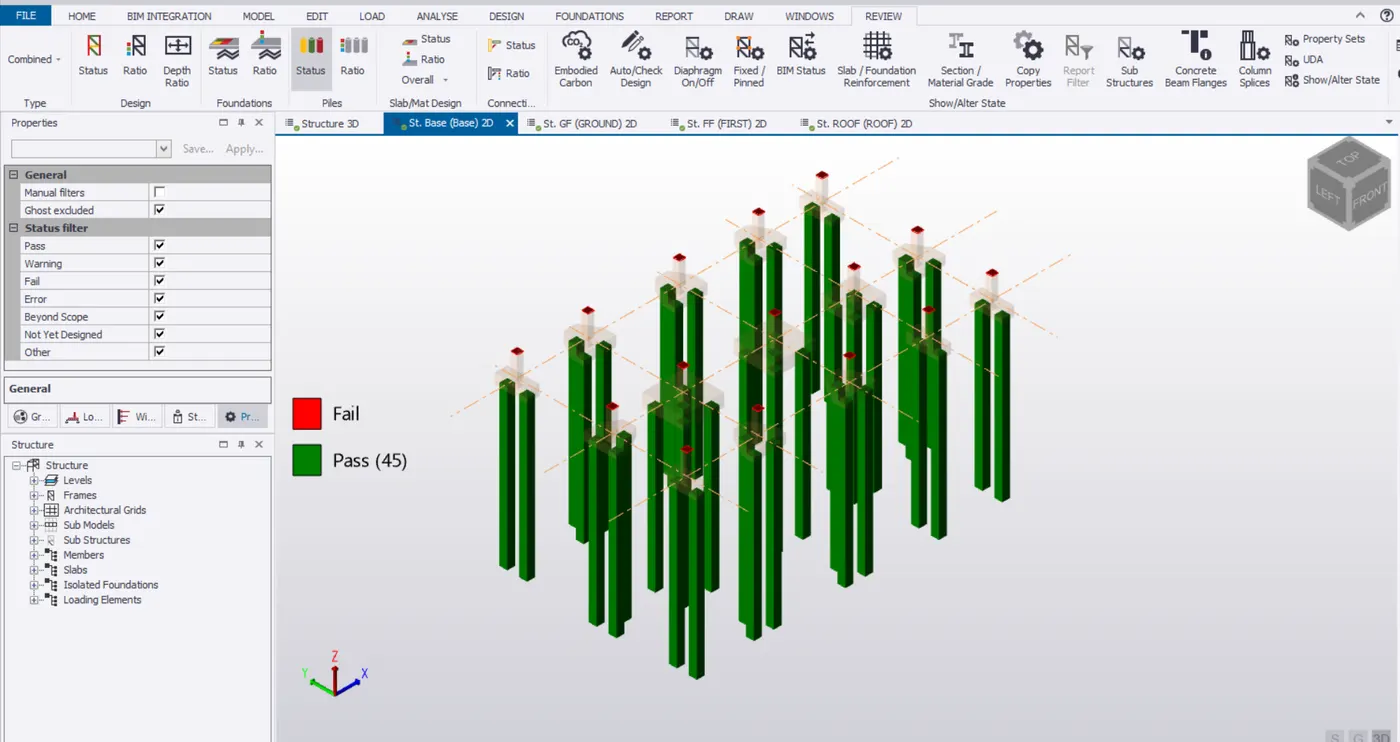

• And design piles

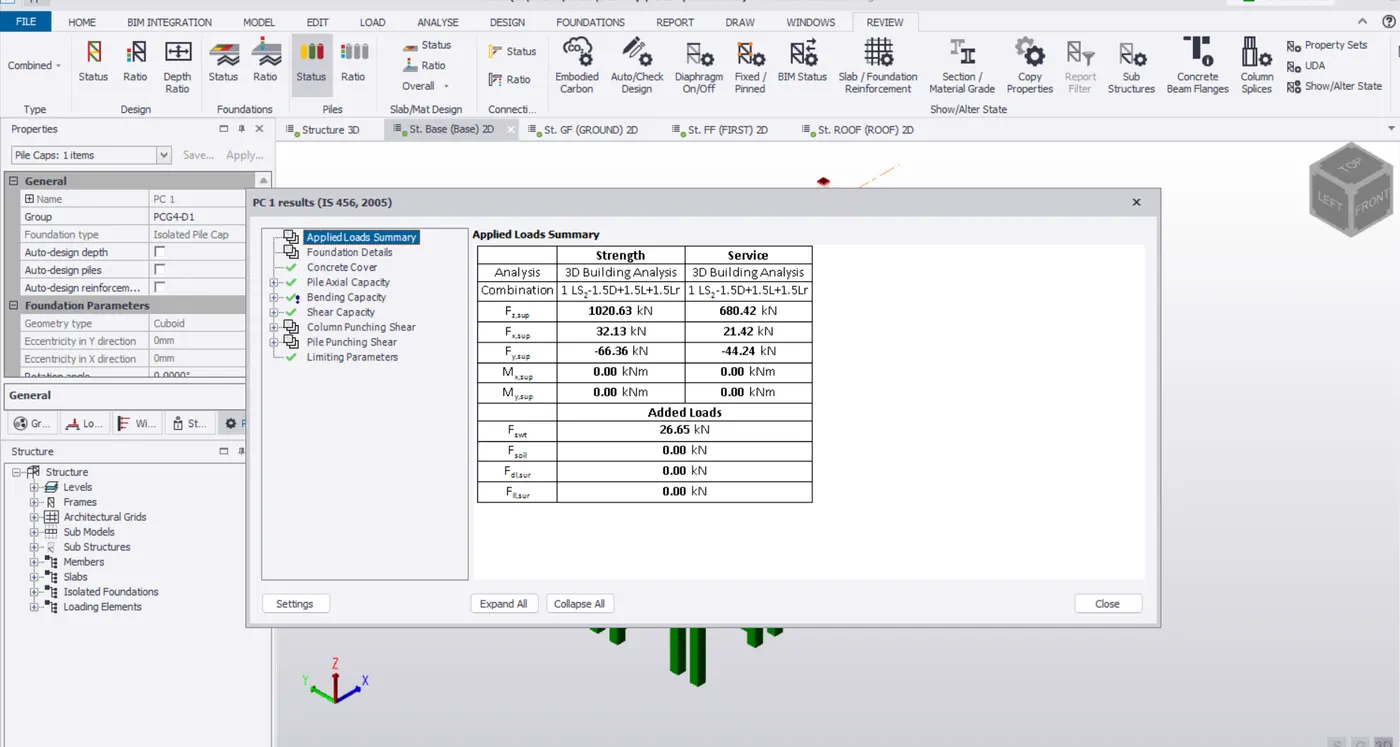

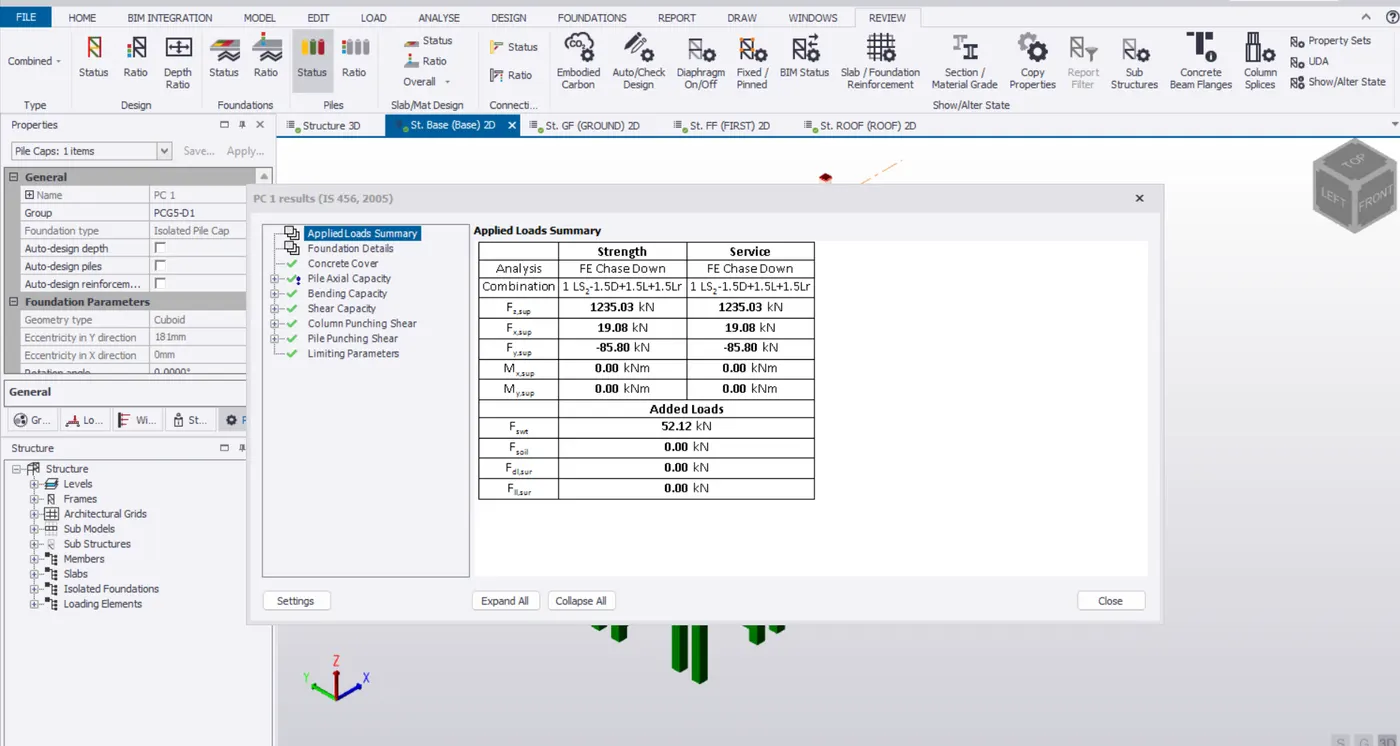

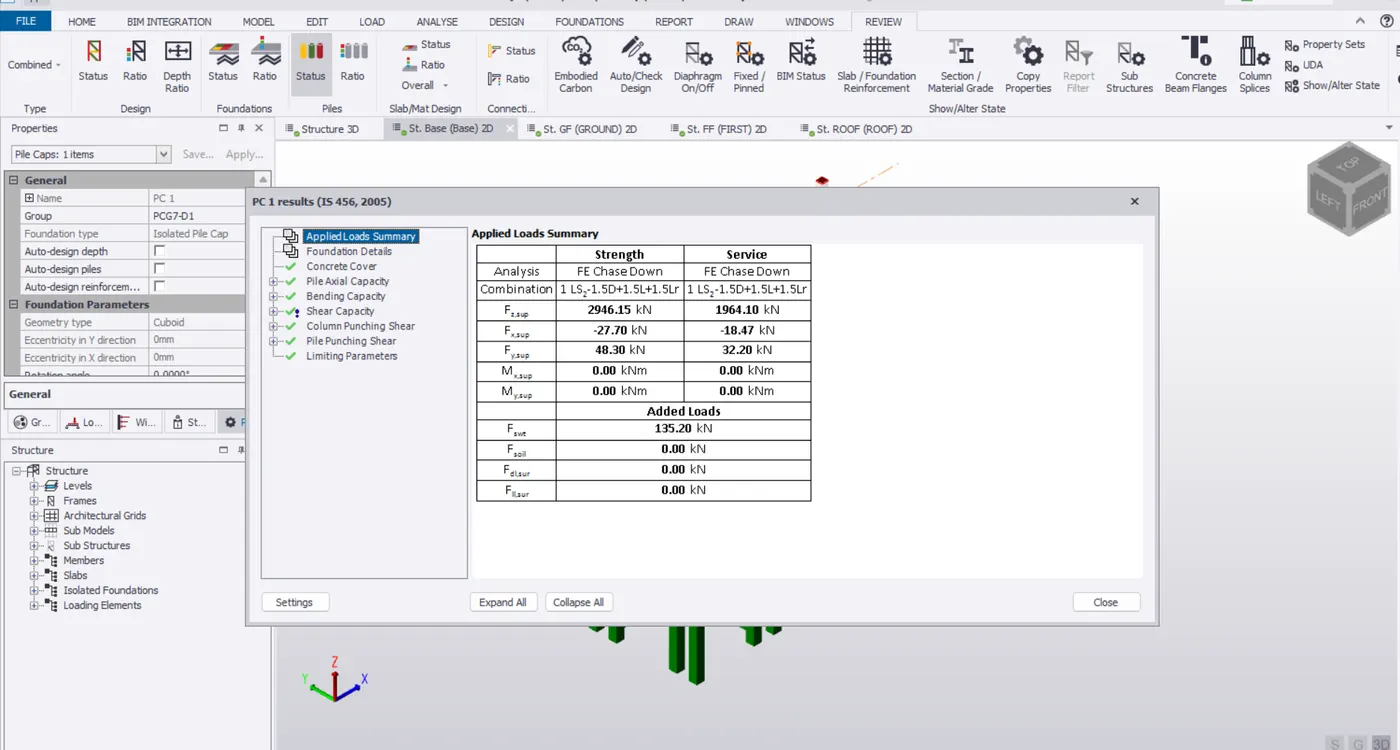

• The value of pile capacity

RESULTS:

• The Foundation of the building where checked and designed
