To Design slab and foundation for an RC residential building using TSD

Aim

To design the slab and foundation of Courses the model

Procedure -

Design of slab

Open the previously saved file and open 3d view

Click on 1st order analysis and run the analysis

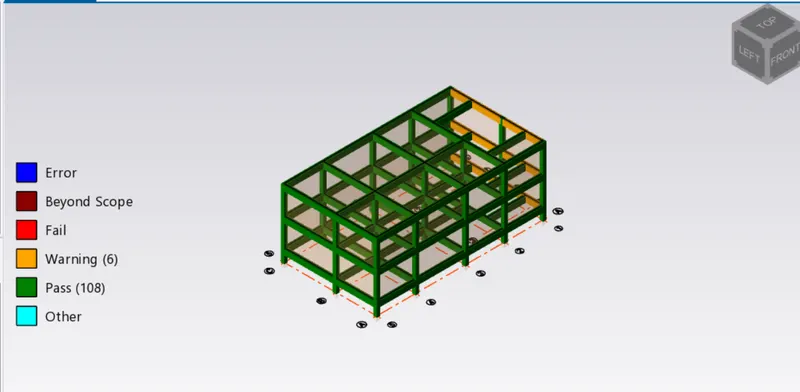

Also click on status view

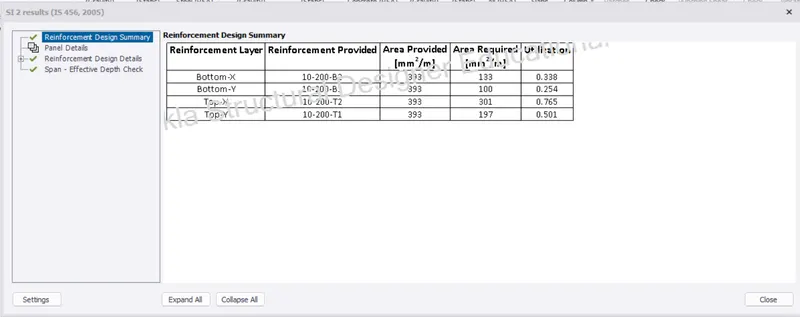

Select the slab and right click on it and click on check panel and it shows result

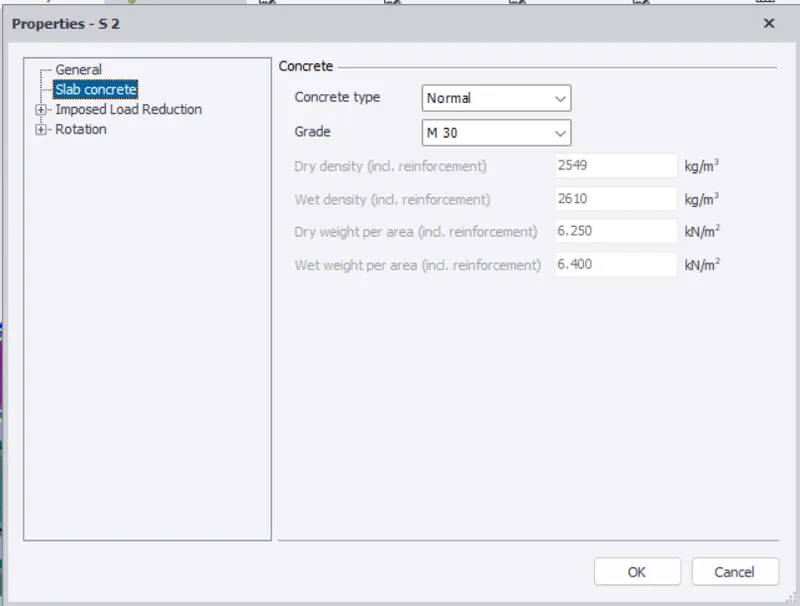

If the error is occured,change the property of slab i.e,change top and bottom reinforcement bar size,spacing,cover and again check the panel

If error is also occured, then edit the properties and check the panel again till the slab is passed

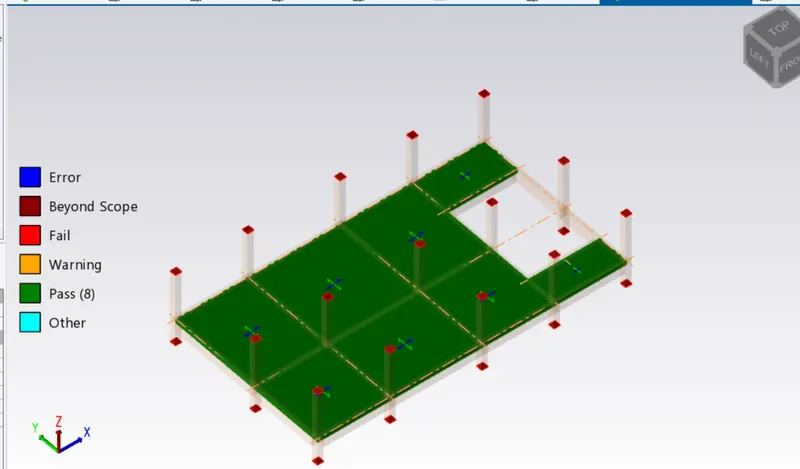

Continue the process for all the span of the slab

Design of Foundation

Select the foundation tab

In that, select setting and make changes in setting for foundation i.e, change reinforcement layout,foundation size,general parameter,piles and data etc

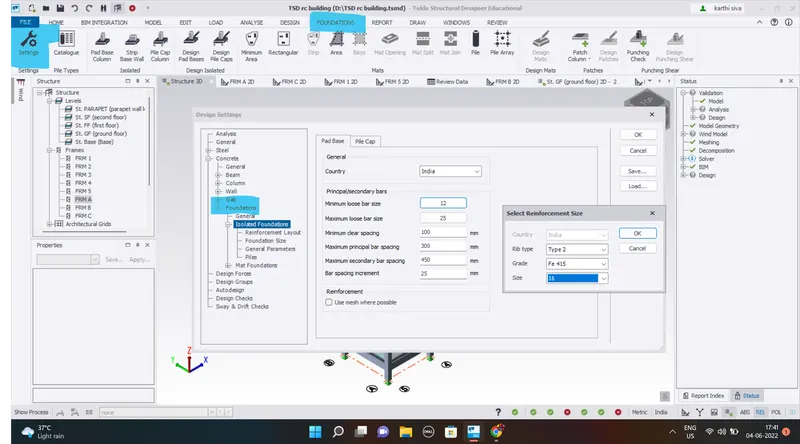

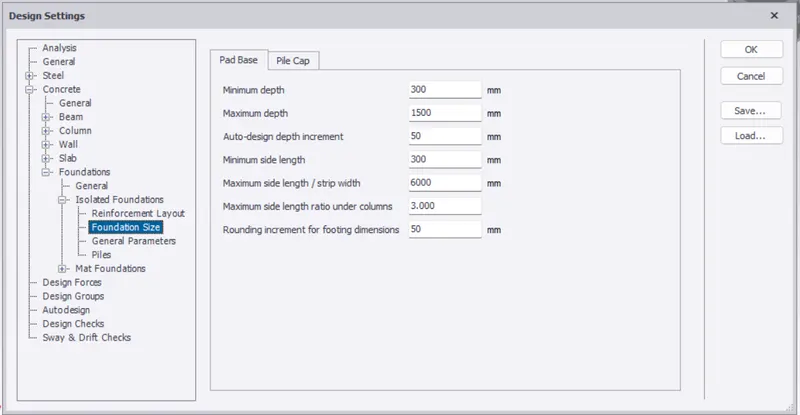

Change reinforcement layout a Change foundation size

Change foundation parameter

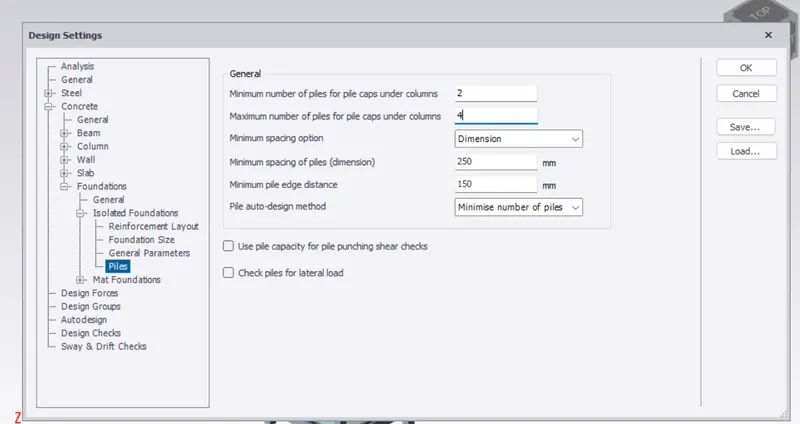

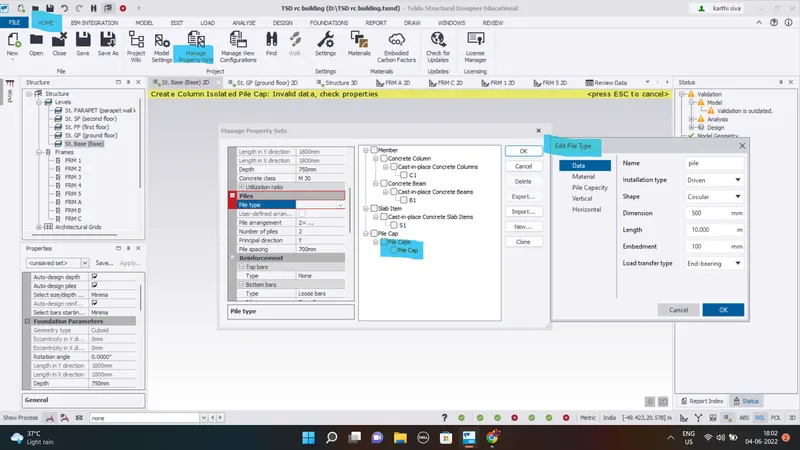

Change pile details

change the pile data

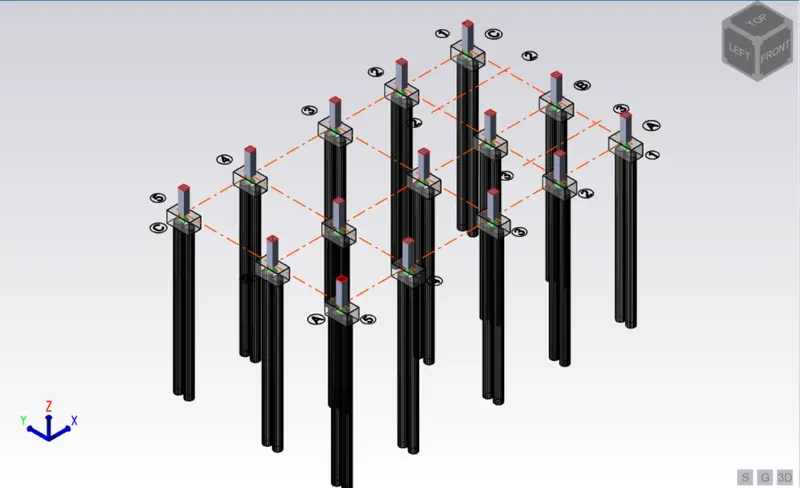

Now draw the pile cap using pile cap column option in foundation menu

Right click on the foundation and design the member

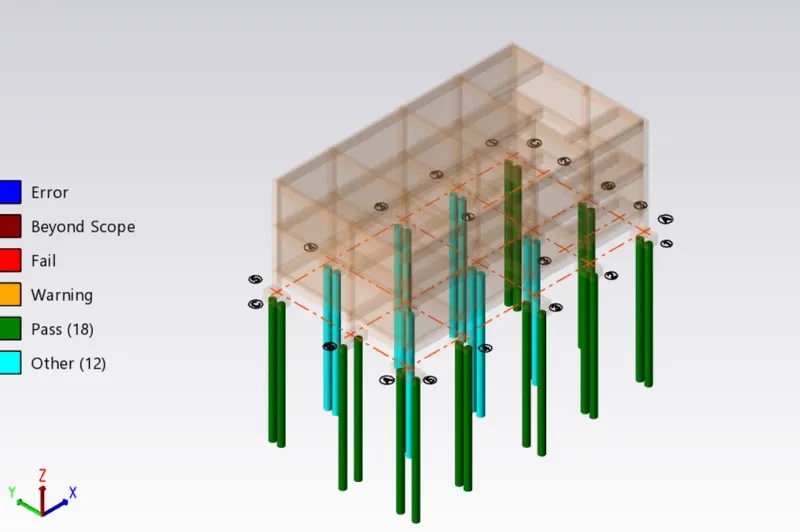

Using review tab check the status

If the founadtion is failed in bending and shear,in that case increase the depth of foundation and also change the bar size and spacing
