To Design slab and foundation for an RC residential building using TSD
- Que no.1
- Ans -
- Aim -
- To Design the slab and foundation of the model. Outline the thought process for designing of the elements (column, beam, slab and foundations)
- Tools Required -
- Tekla model.
- Slab
- Foundations
- Check Panel
- Catalogue
- Design pile cap foundation
- Validate
- Design
- Settings
- Properties
- Process -
- Firstly open the model that is created previosly.

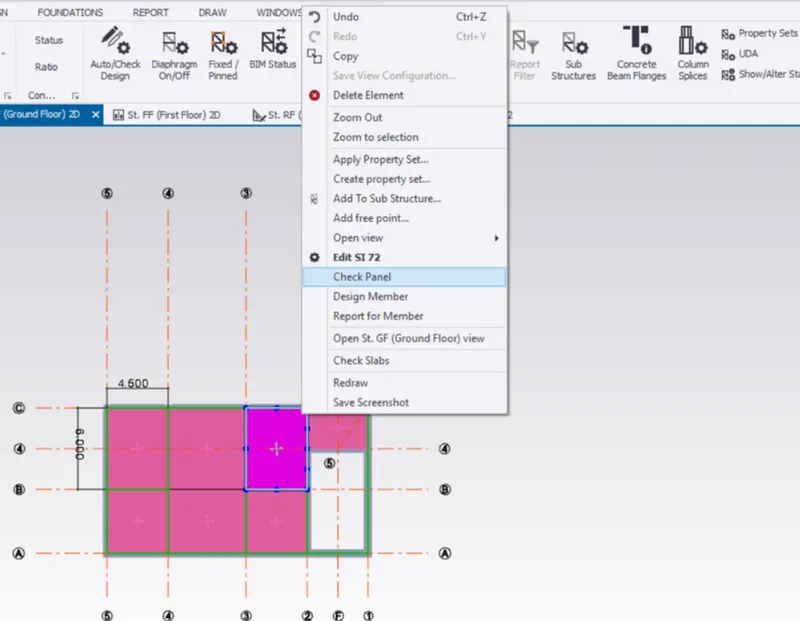

- Now select slab and give a right click they you can notice a dialogue box.
- Now in that dialog box select check panel.

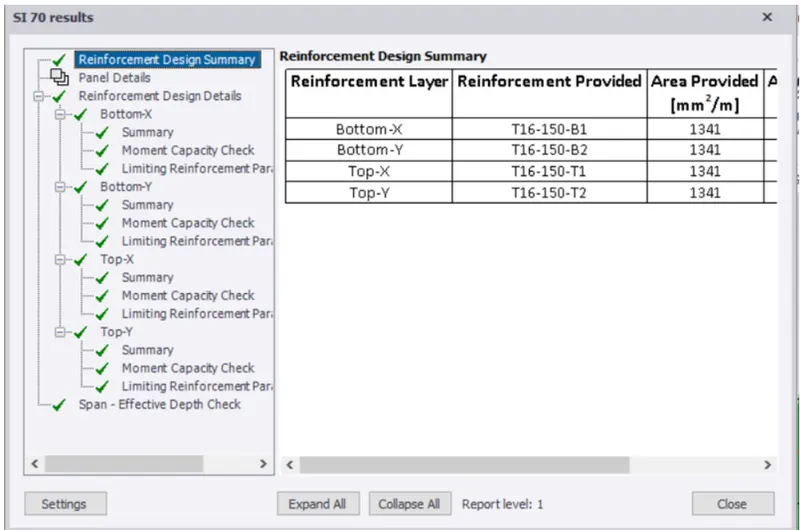

- Now a dialogue box appears about that properties of slab that you select

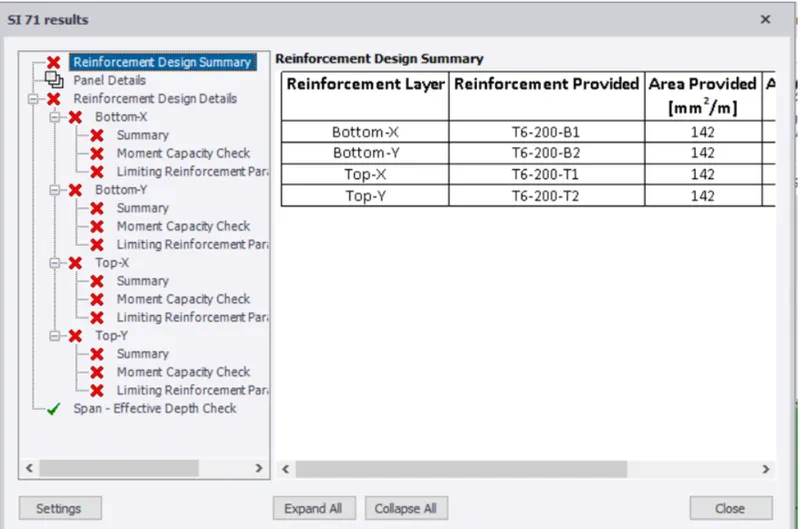

- There it will be showing few errors.

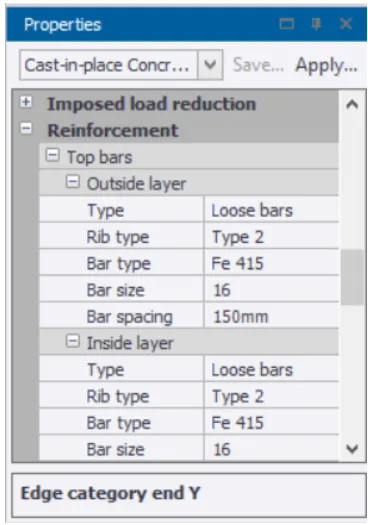

- We correct the errors by changing properties under property slab.

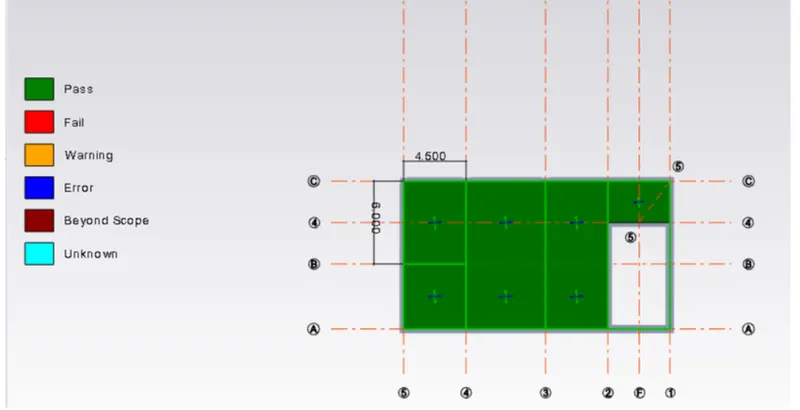

- Once the follow same is to design all the slabs.
- Now foundations select the foundation icon

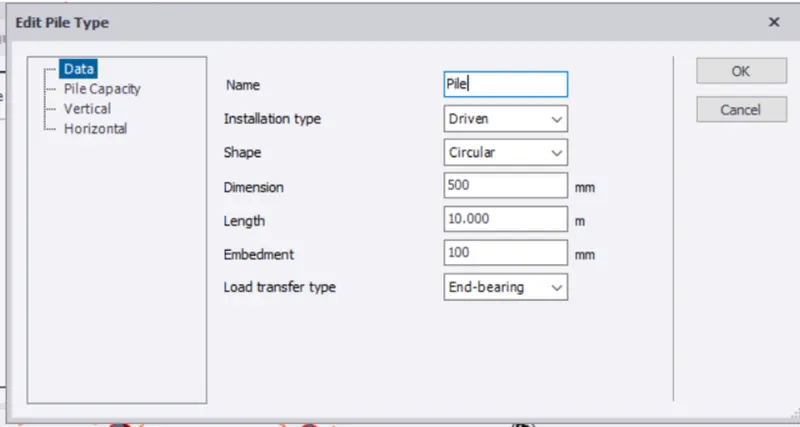

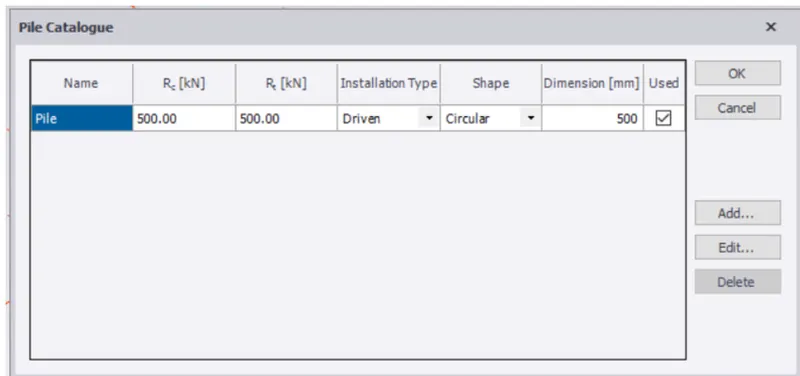

- Now you need to select catalogue option and add desire foundations.
- Now you can select pile cap column foundation option.

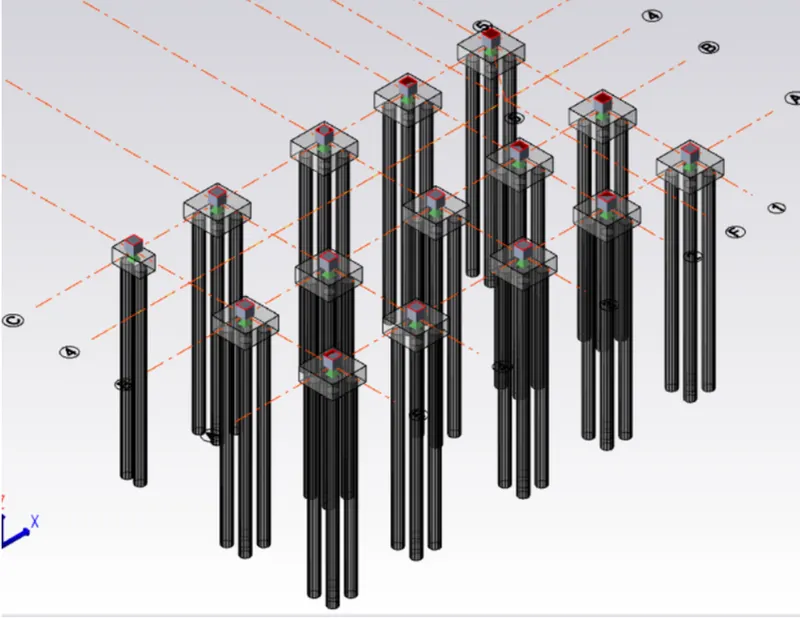

- Assign foundations for the structure.

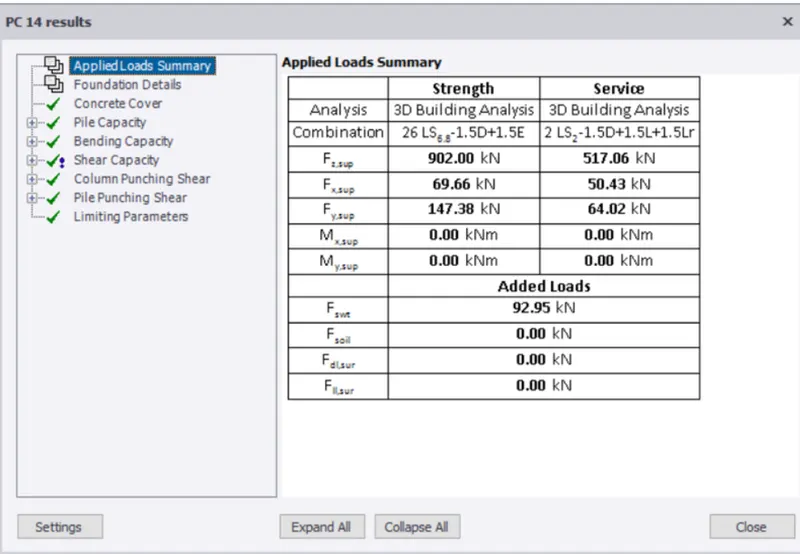

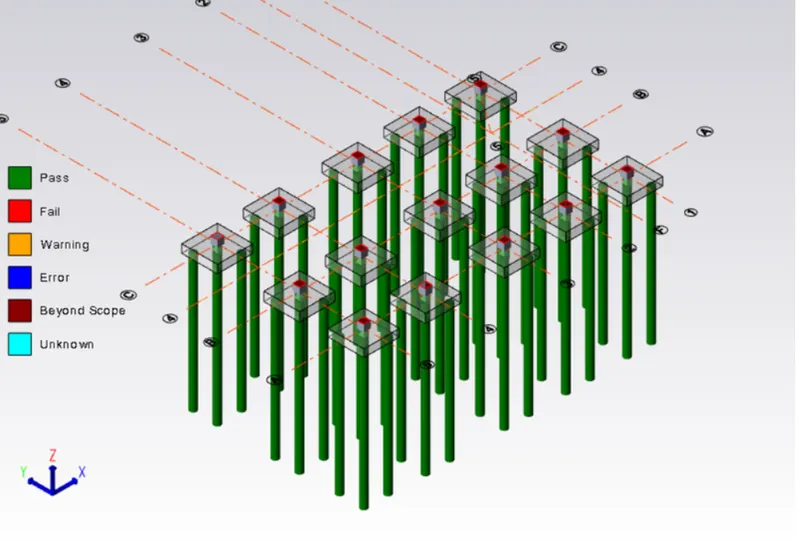

- Now design foundation with the help of design pile cap option under design the isolated.
- Check errors found.

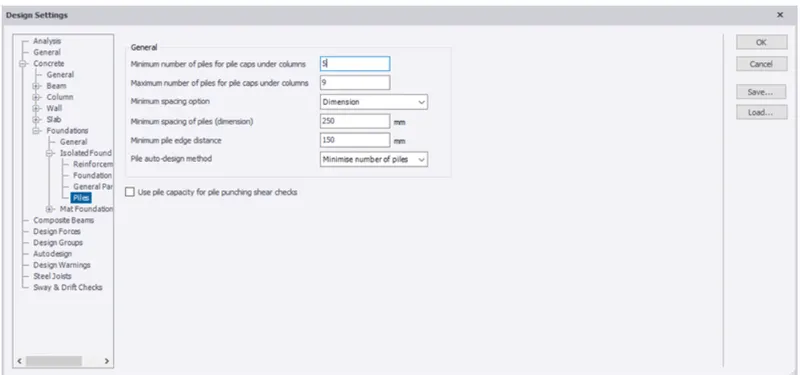

- Go to settings option under that select the foundation option and do the required changes.

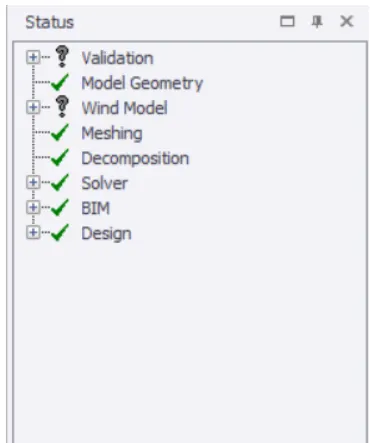

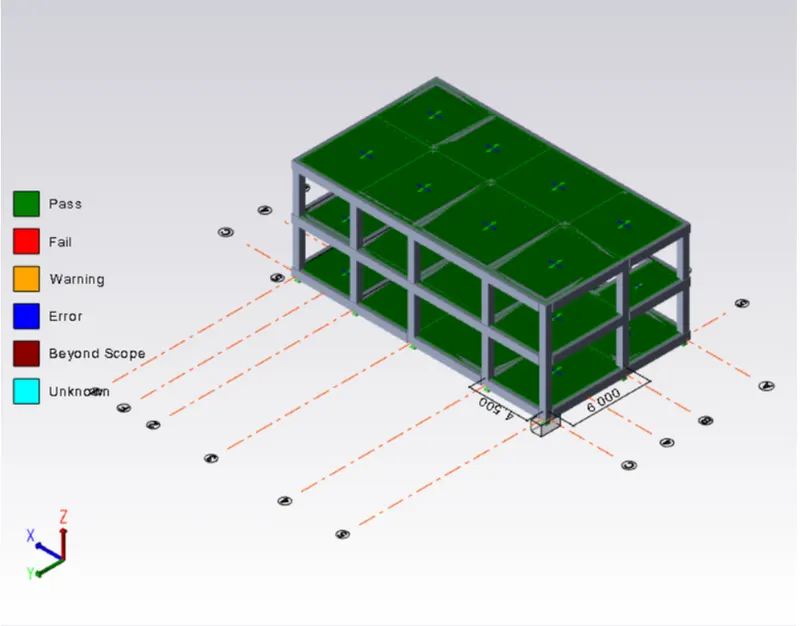

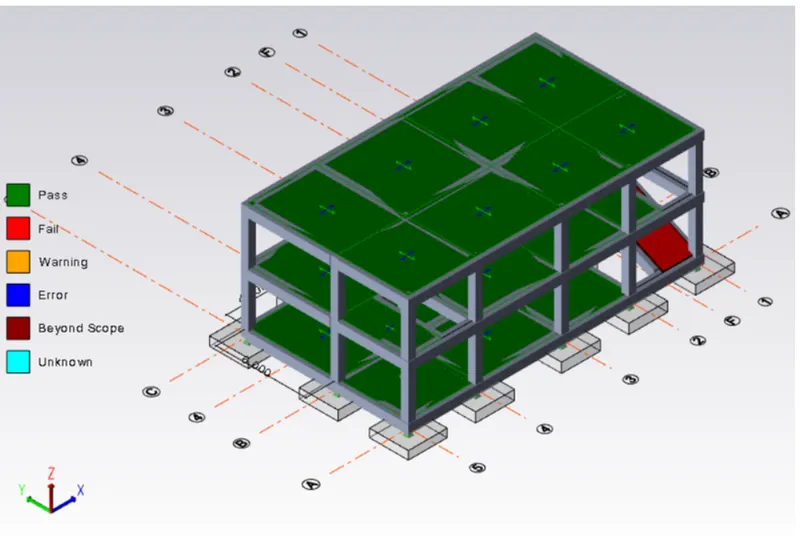

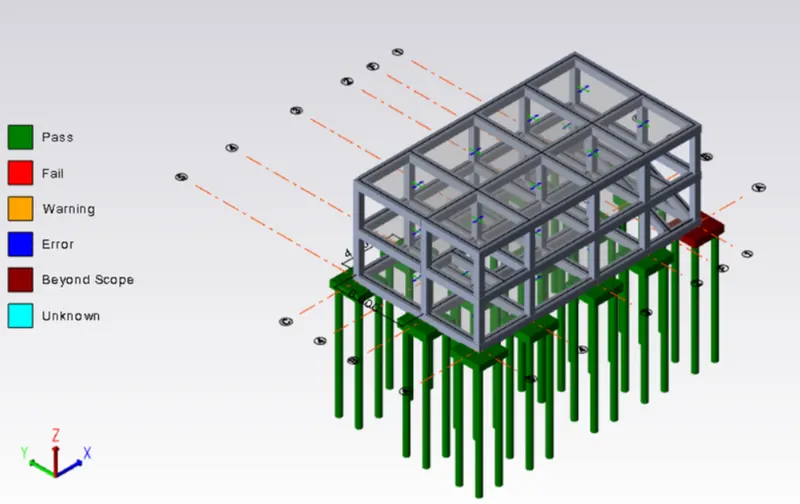

- Now you can see the structure is error free.
- Result -
- Hence following above Process we were able to design the slab and foundation of the model.
