To Design RC column and beam for RC residential structure using TSD

Aim:- to run the analysis of the structure and design reinforced concrete beam and column

procedure:-

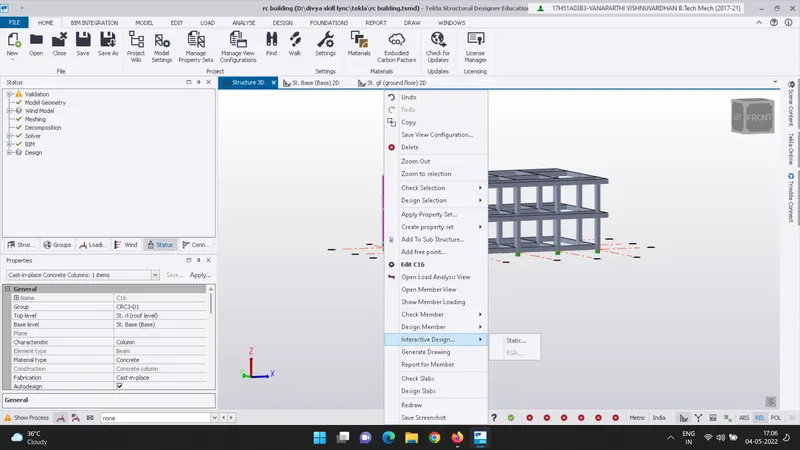

• open the tekla model and run the analysis
•  now select any of the column member and right click on it
• then select the interactive design from the given option

• check whether the member is passing through all the design checks

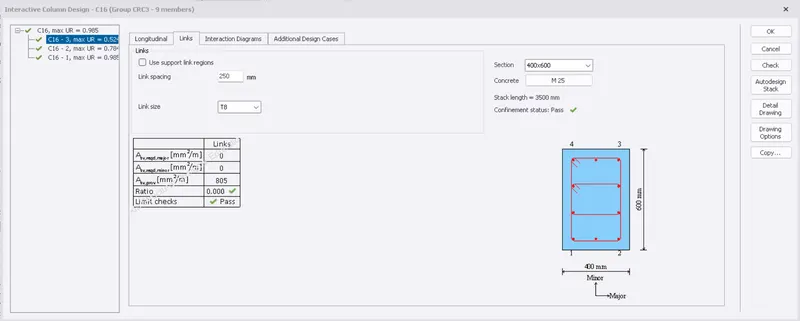

COLUMN NO: 16

• here we can see that the column is safe in design and consider the reinforcement details

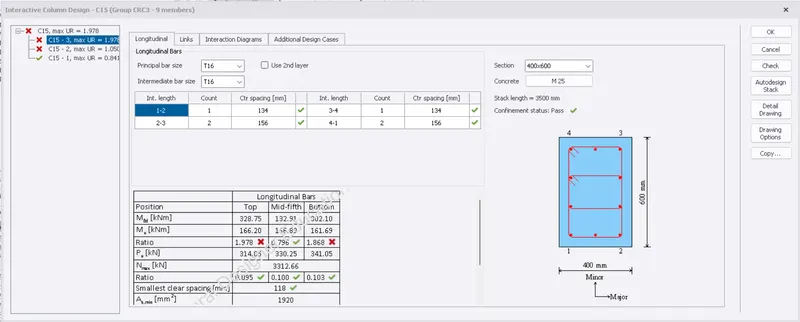

COLUMN NO :15

• here we can see that the ratio of longitudinal bars is greater than 1

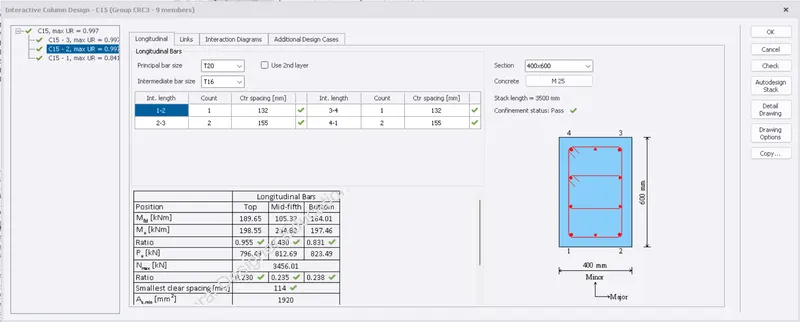

• edit the rebar details to obtain the ratio of longitudinal bars as 1
• try to change the rebar details of the top reinforcement and bottom reinforcement

RESULTS:- the design of the columns is done and verified with the design checks

Aim:- to design the beam member and verify it for the design checks

procedure:-

• open the tekla model and run the analysis
•  now select any of the beam member and right click on it
• then select the interactive design from the given option

• verify for the design checks

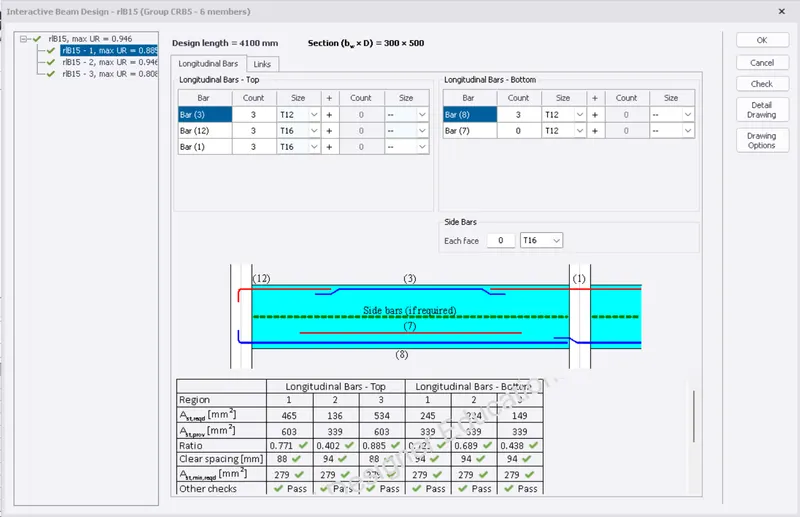

BEAM NO: 15

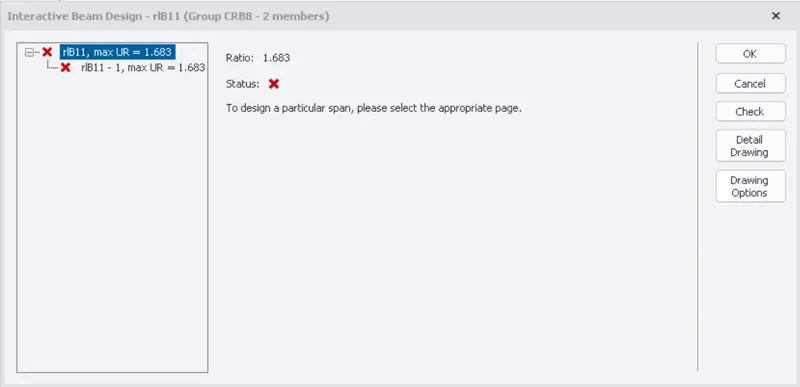

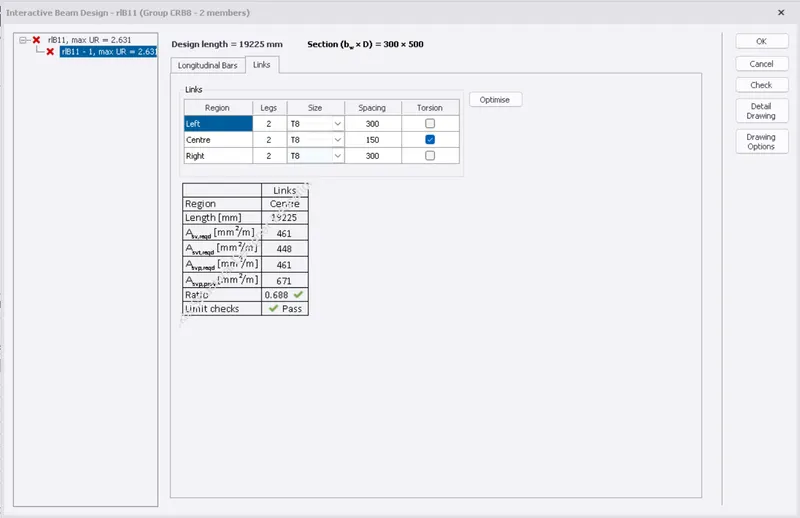

 BEAM NO: 11

•  the above beam is not satisfied with the deflection check
• to verify the beam for deflection increase the depth of the beam section

RESULTS:- the beam design is checked and necessary correctopns have been done
