To calculate wind load for industrial steel structures and to apply it by using TSD

Aim : Generate manual wind loading in the design report based IS code as per the following input

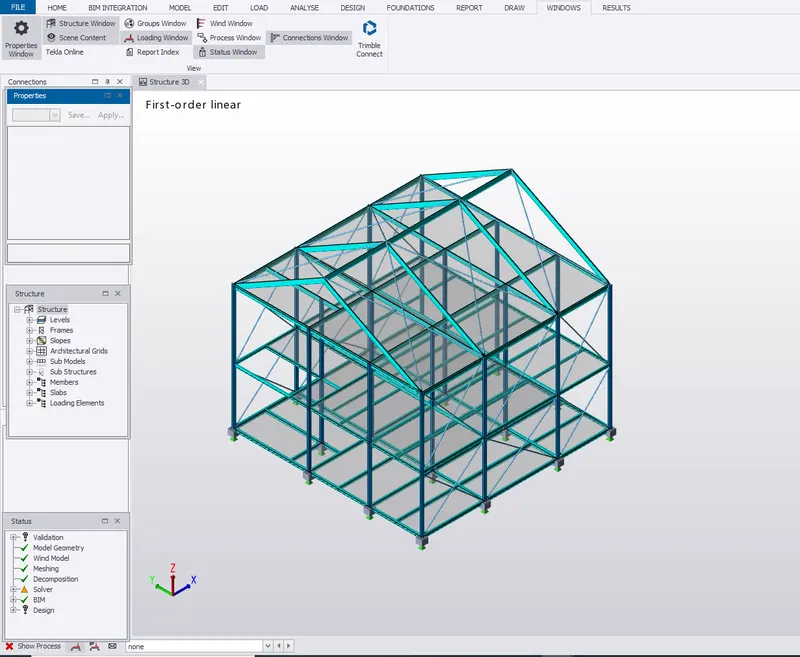

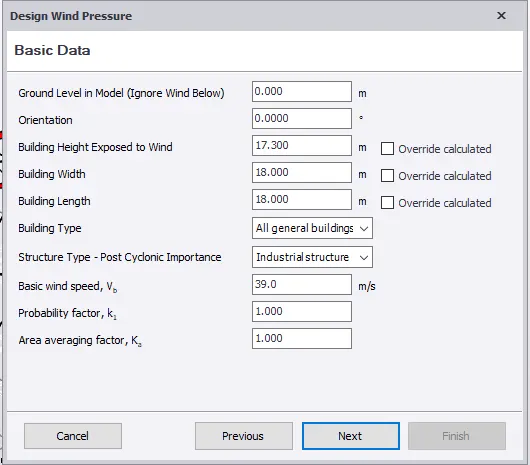

• Basic wind speed = 39m/s
• Terrain category 2

2. Based on the above calculation apply the loadings on the model

3. On a separate model generate wind loading using wind wizard

Procedure :

Adding the Wind Loads:

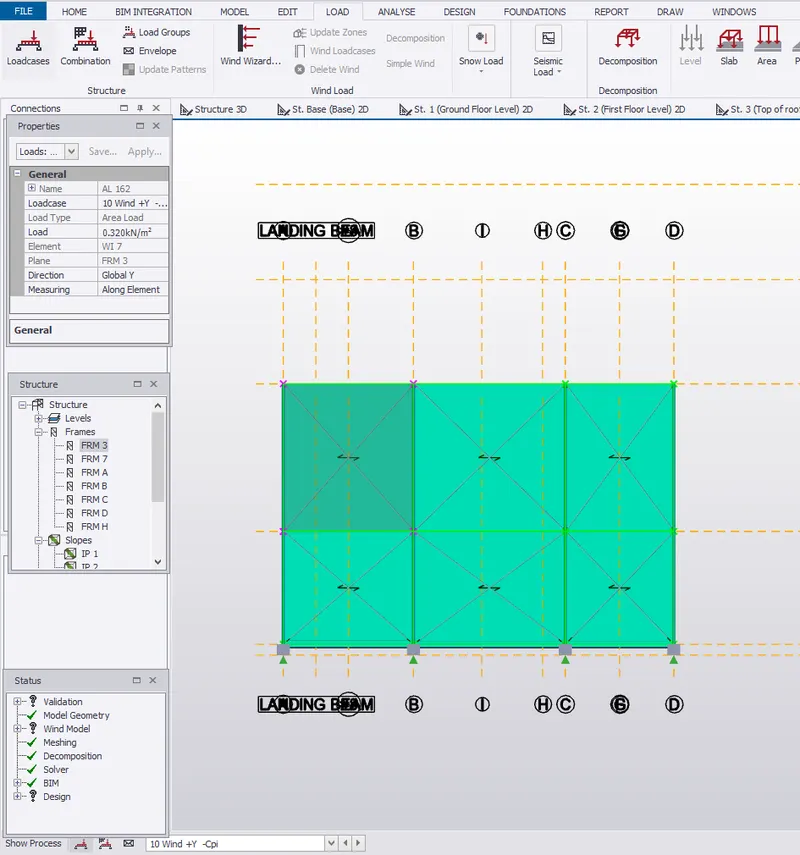

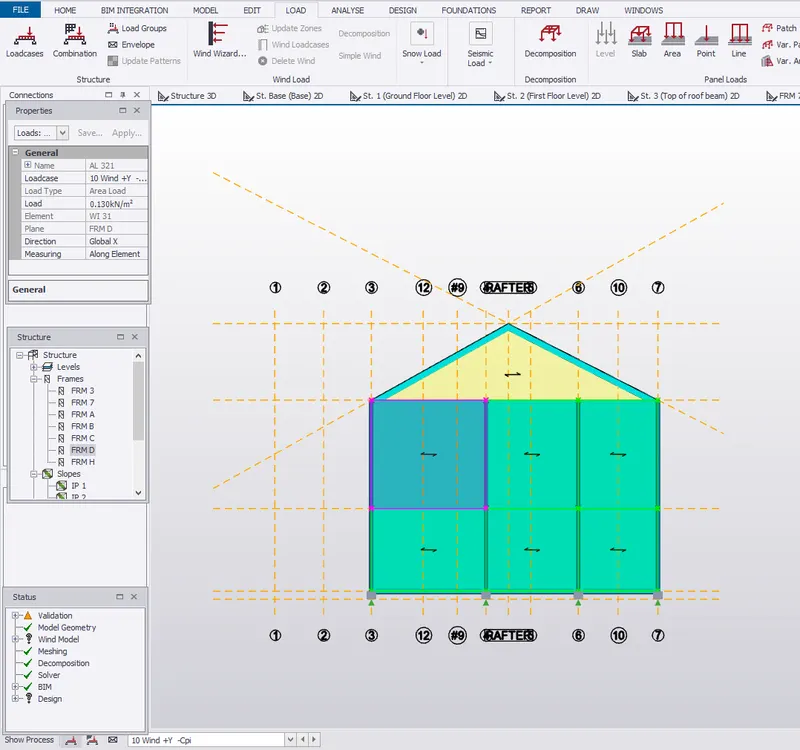

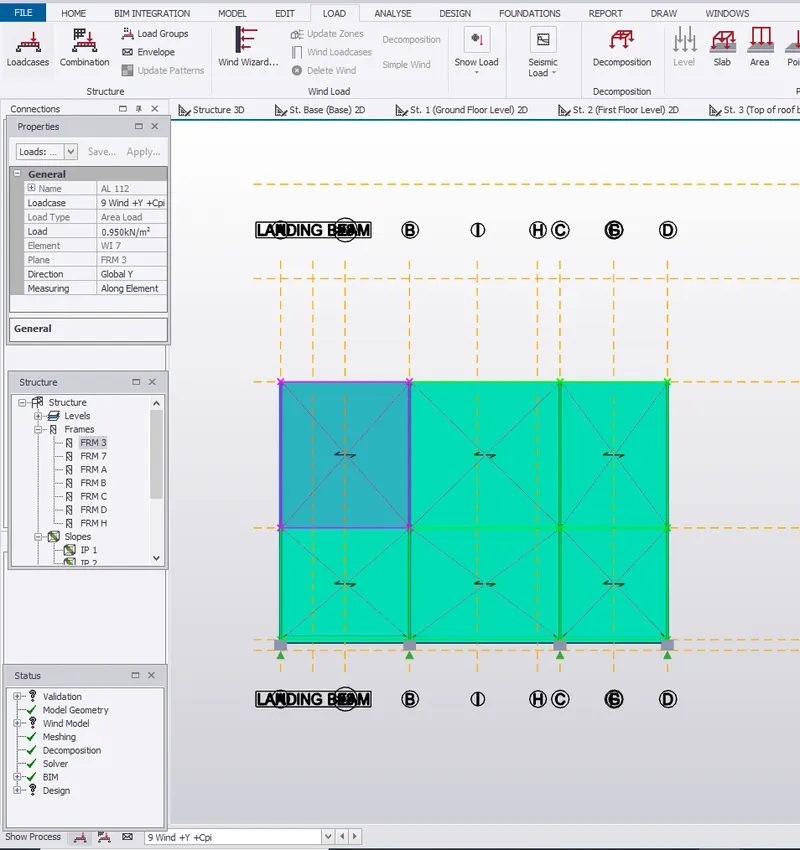

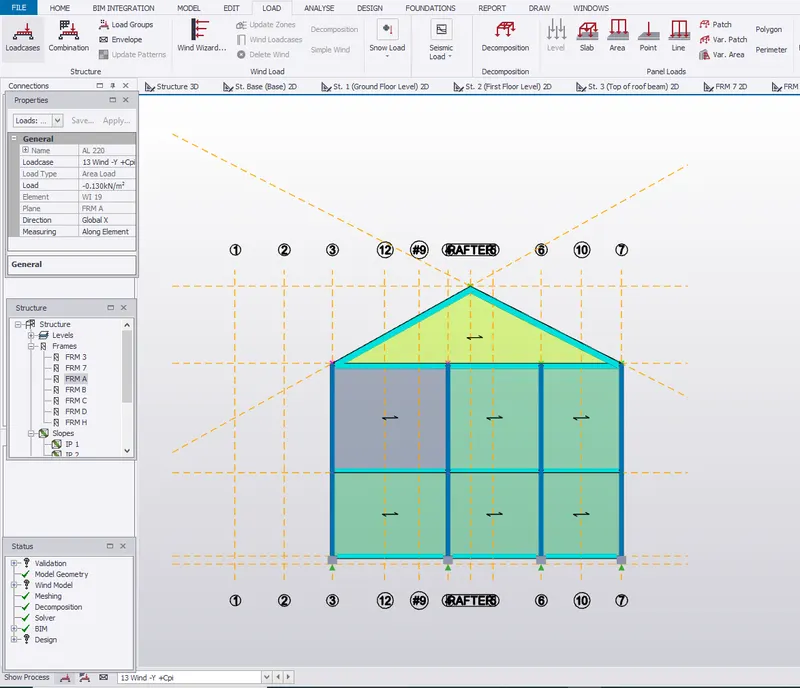

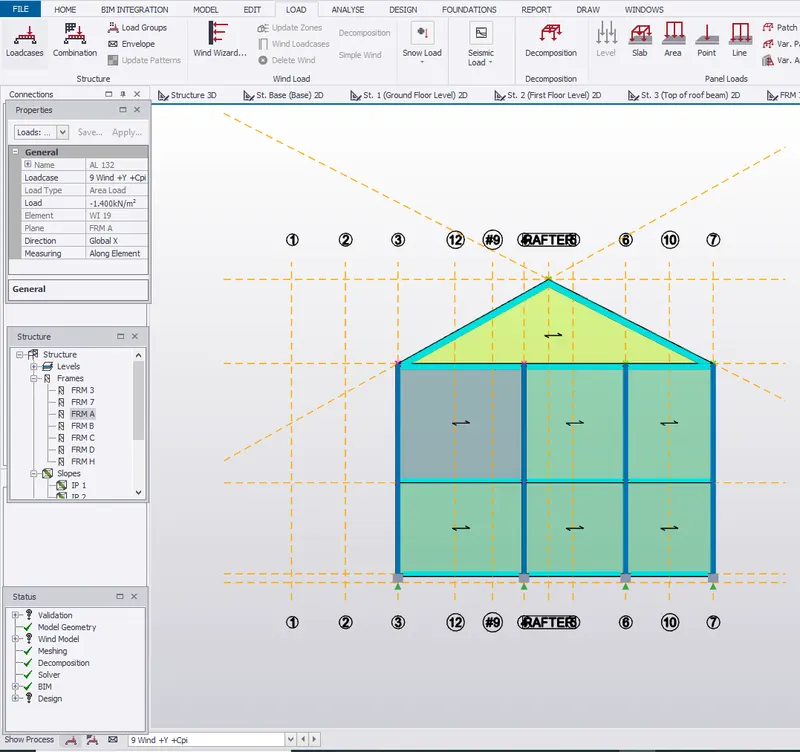

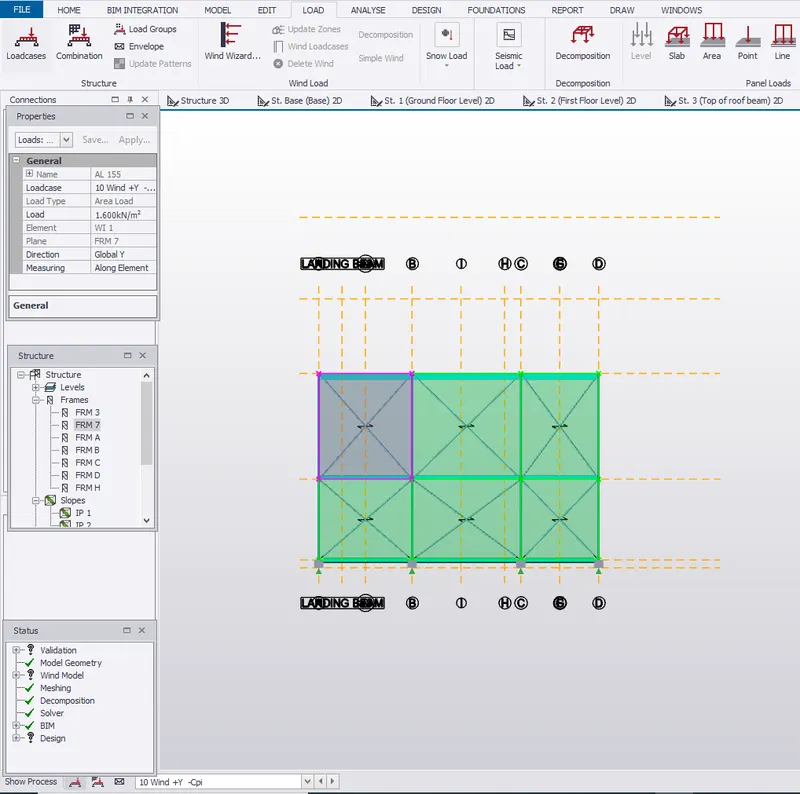

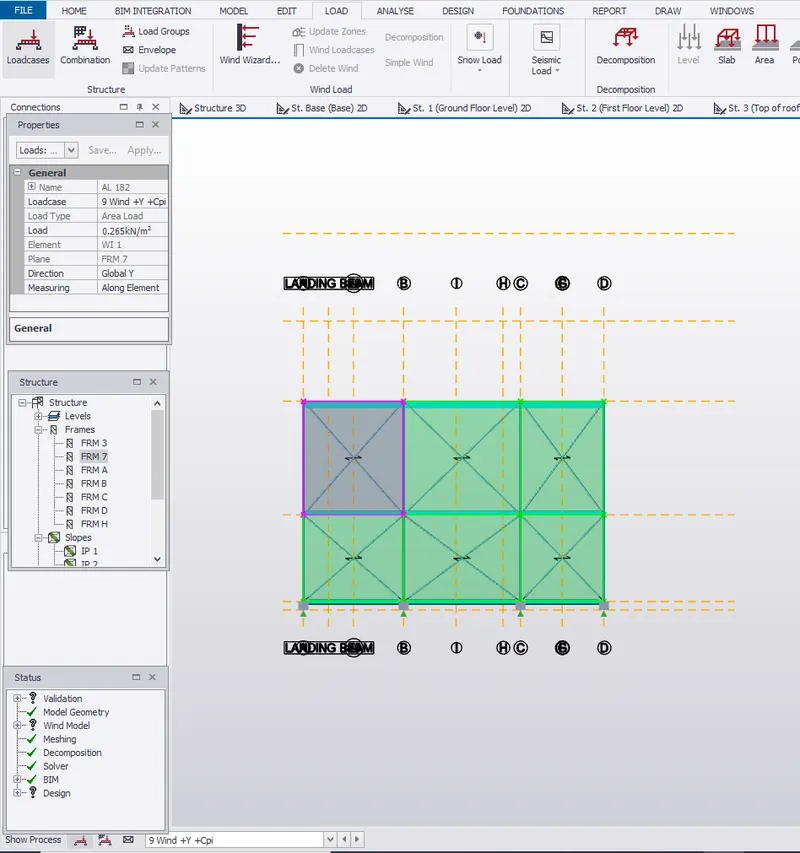

Wind +Y +Cpi for face B= Frame 3

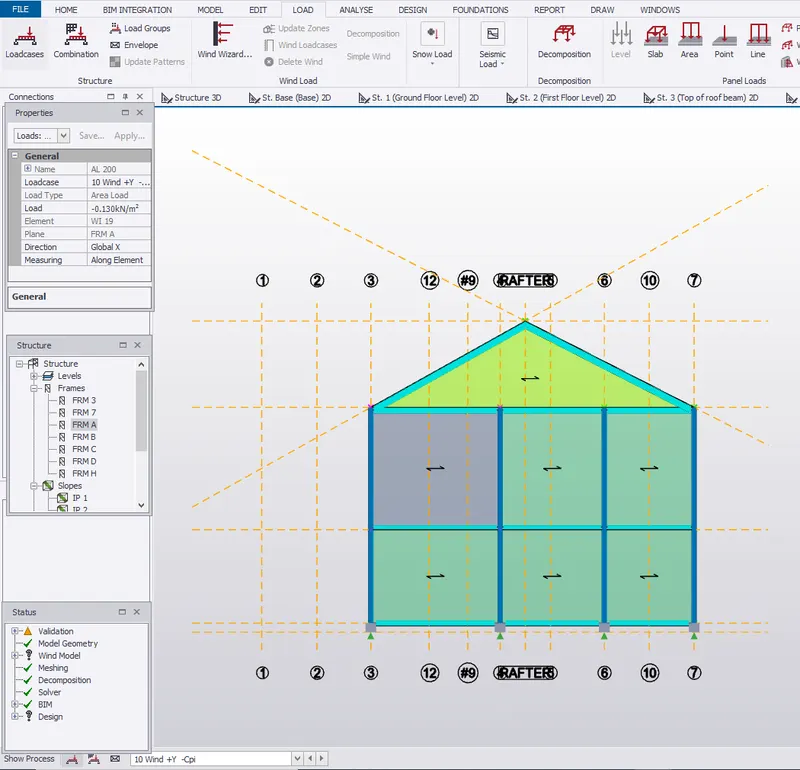

Wind +Y +Cpi for face C= Frame A

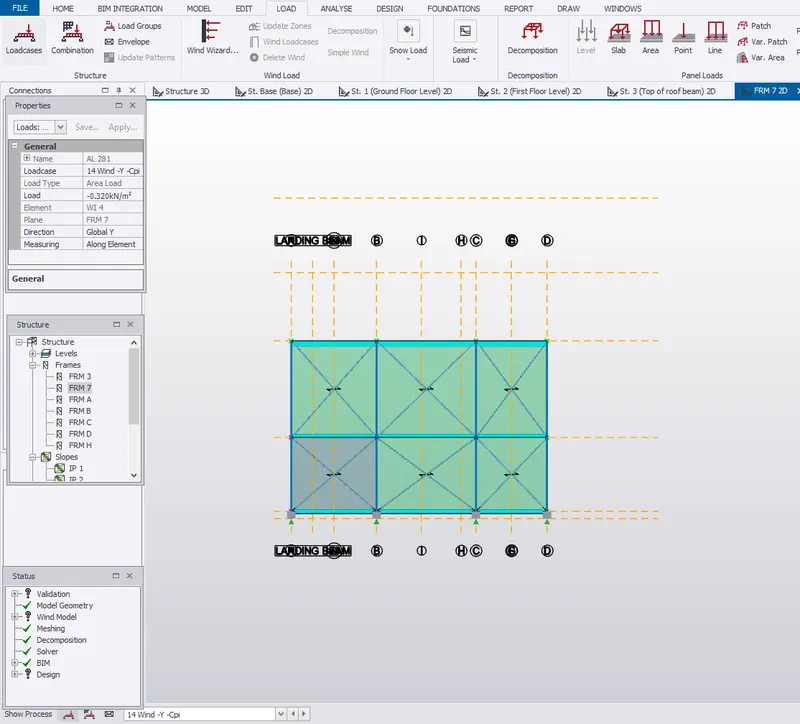

Wind +Y -Cpi for face A= Frame 7

Wind +Y -Cpi for face B= Frame 3

Wind +Y -Cpi for face C= Frame A

Wind +Y -Cpi for face D= Frame D

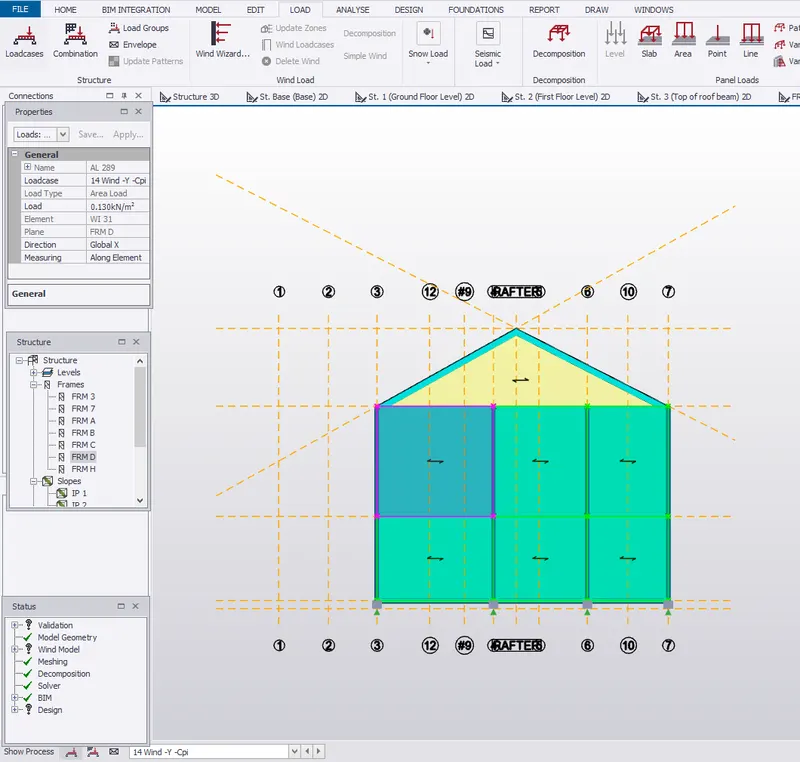

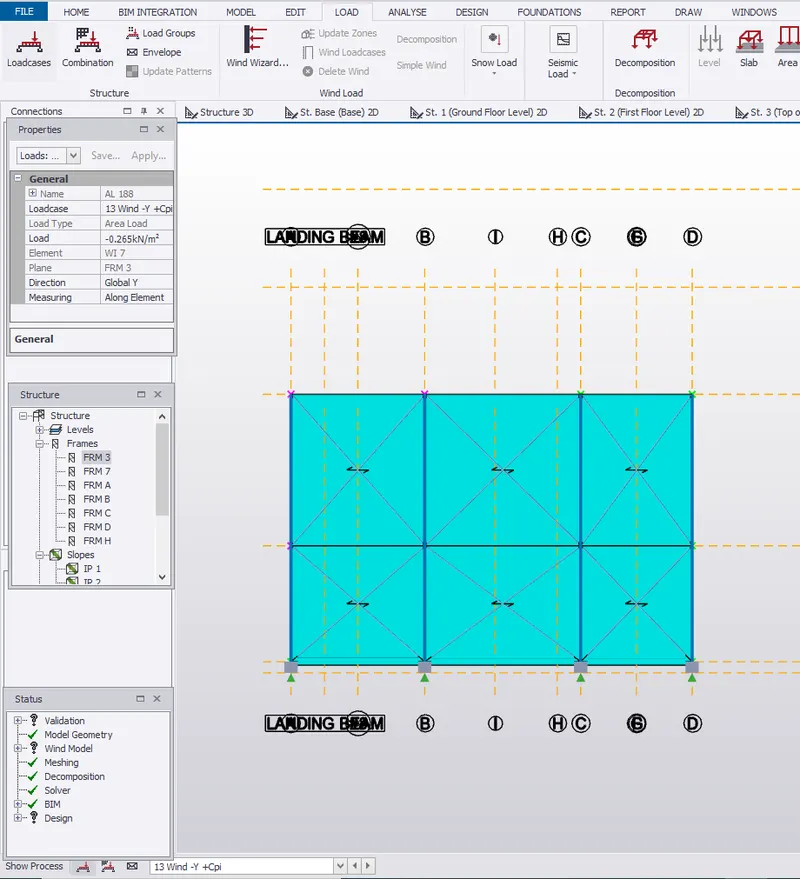

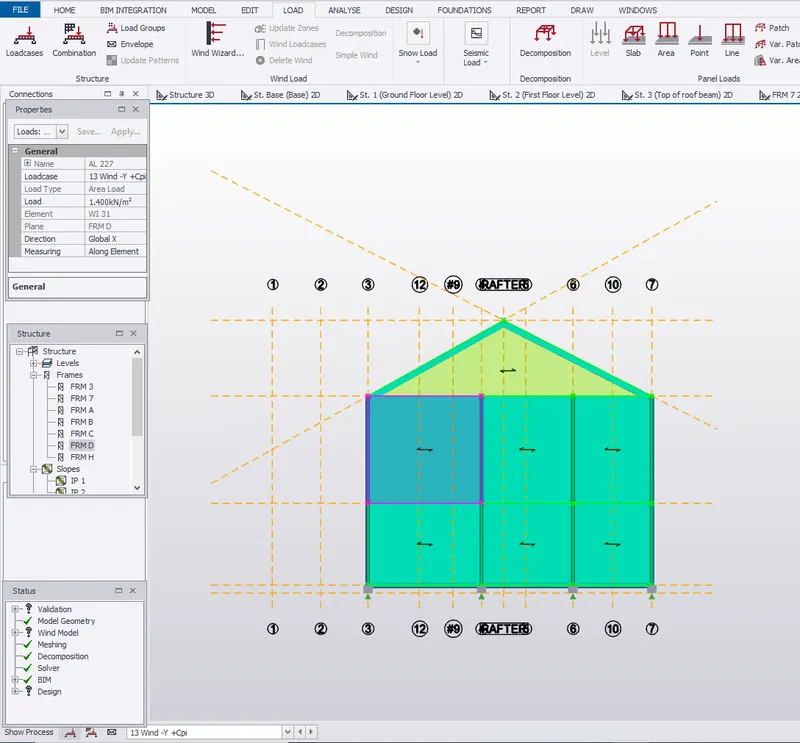

Wind -Y +Cpi for Face A= Frame 3

Wind -Y +Cpi for Face C= Frame D

Wind -Y +Cpi for Face D= Frame A

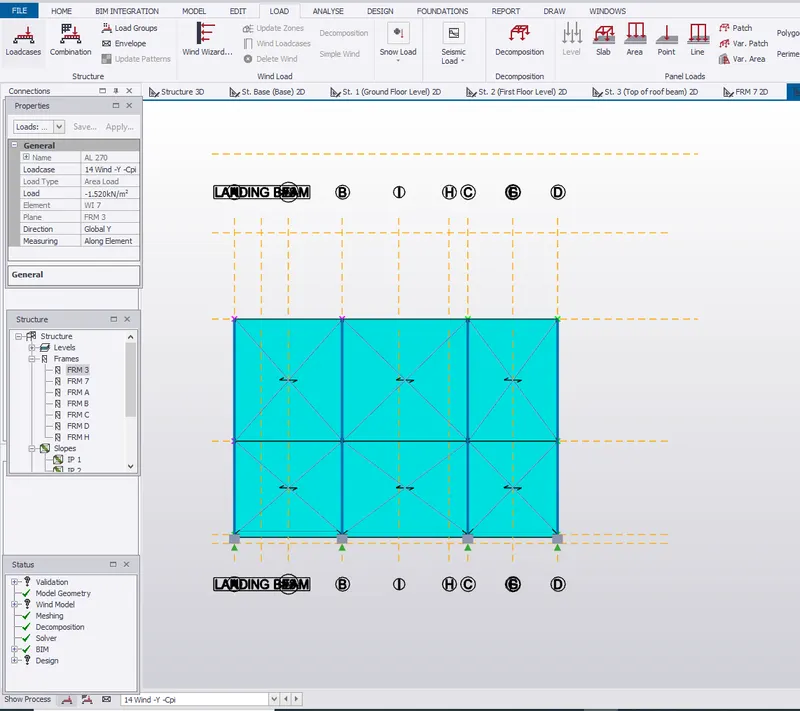

Wind -Y -Cpi for Face A= Frame 3

Wind -Y -Cpi for Face B= Frame 7

Wind -Y -Cpi for Face C= Frame D

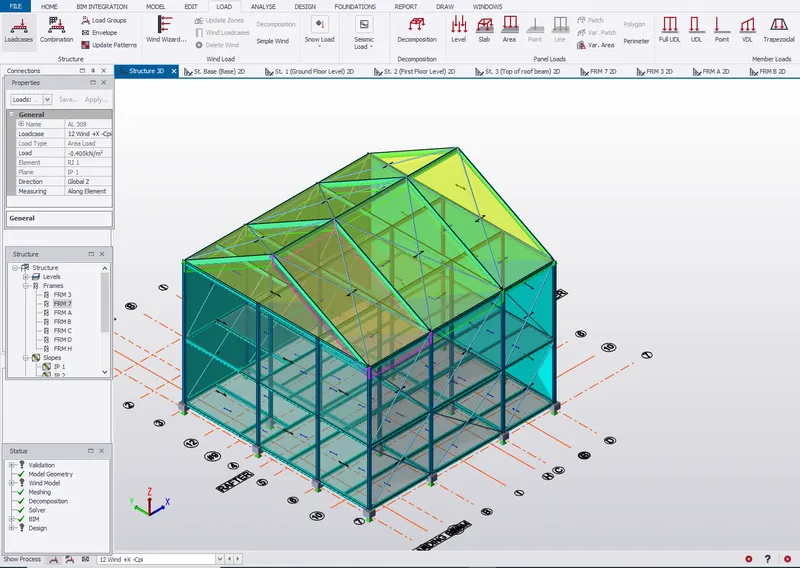

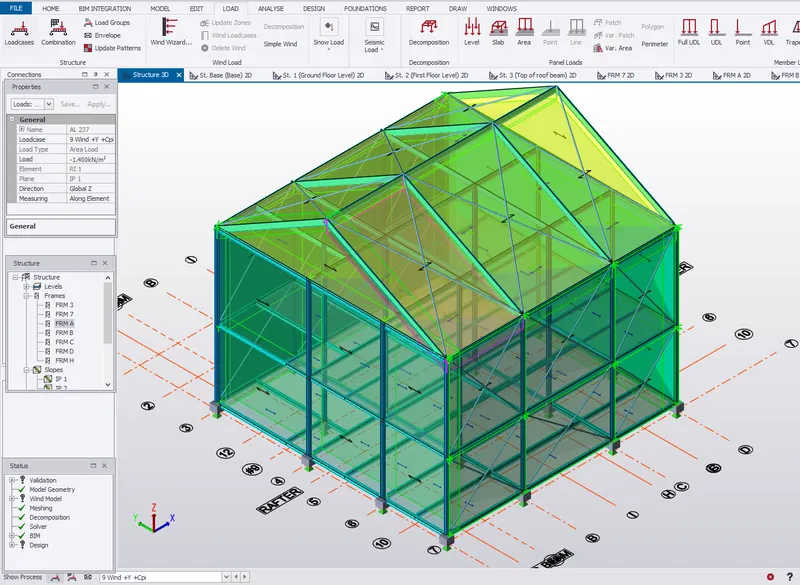

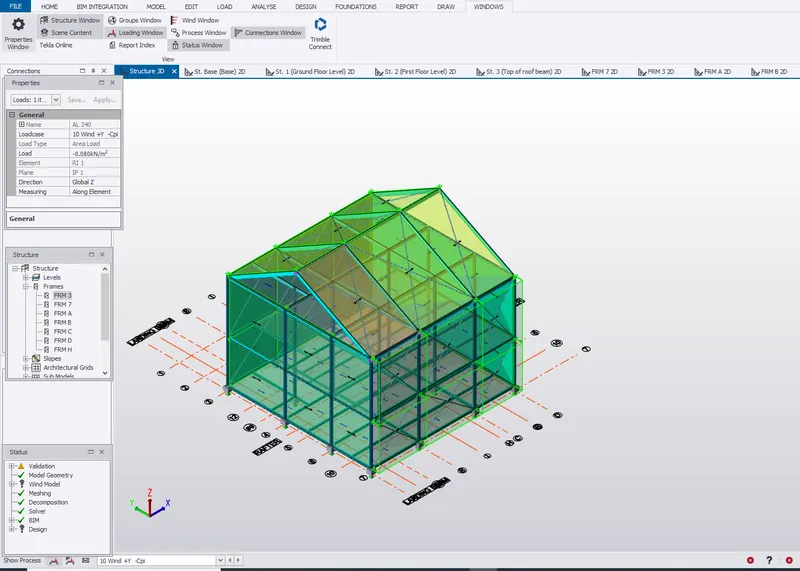

Roof Loading:

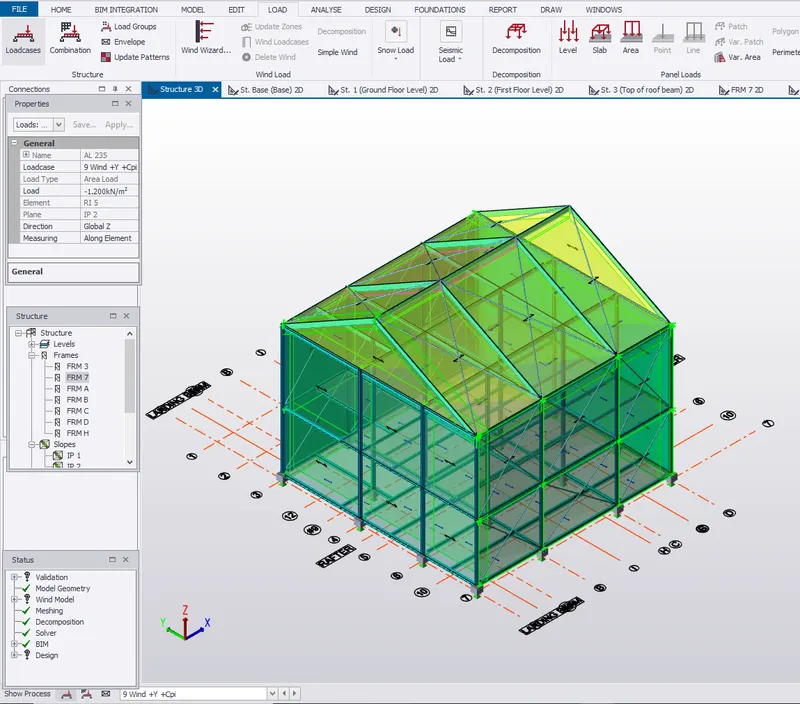

Wind +Y +Cpi for one side

Wind +Y +Cpi for other side

Wind +Y -Cpi for one side

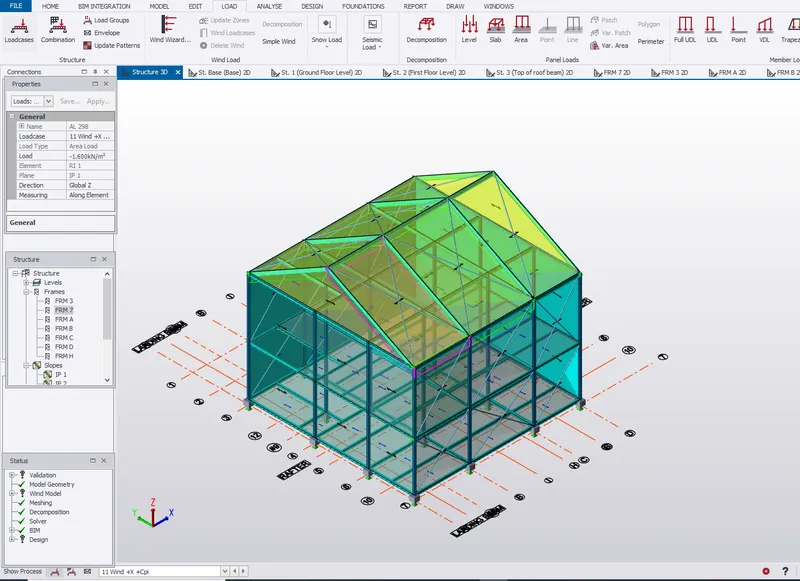

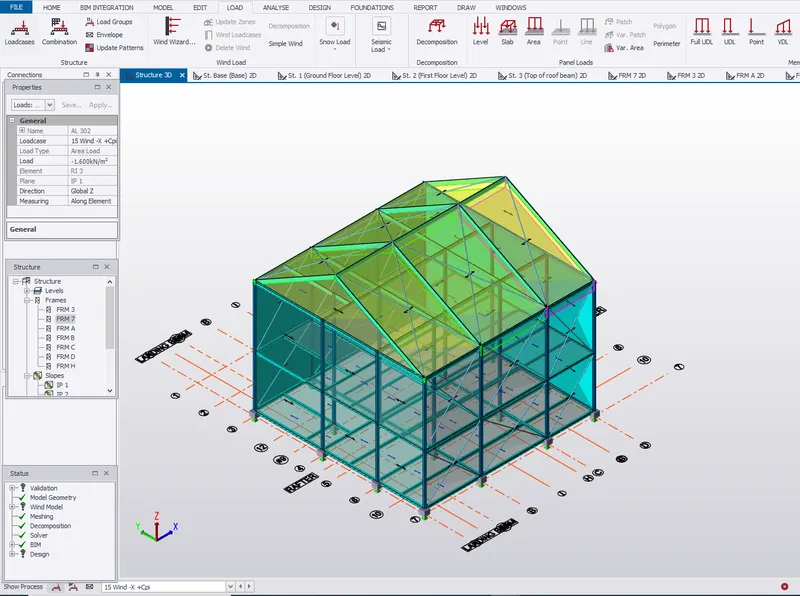

Wind +X + Cpi

Wind -X -Cpi

Wind +X -Cpi

• Apply wind wizard from the Ribbon pallet

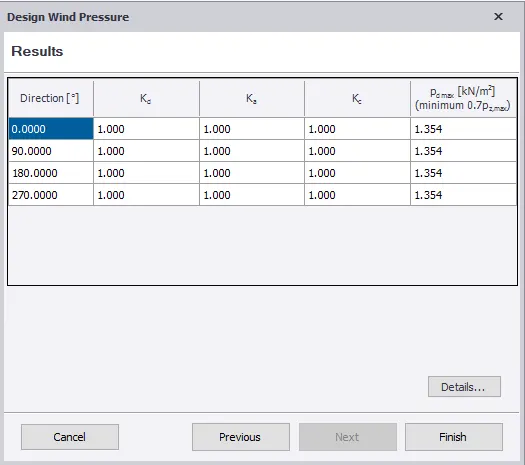

• Design Wind Pressure

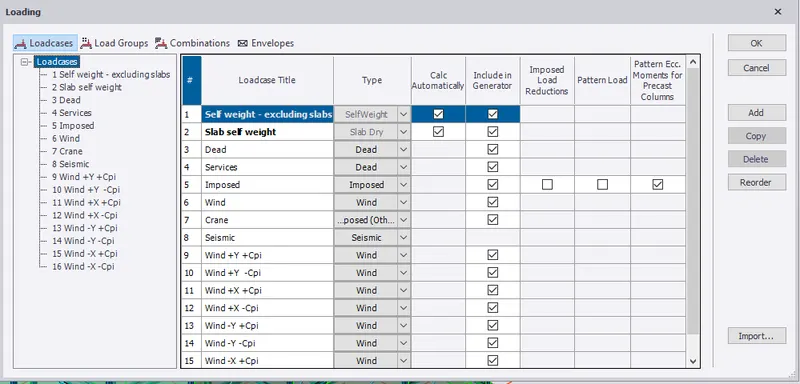

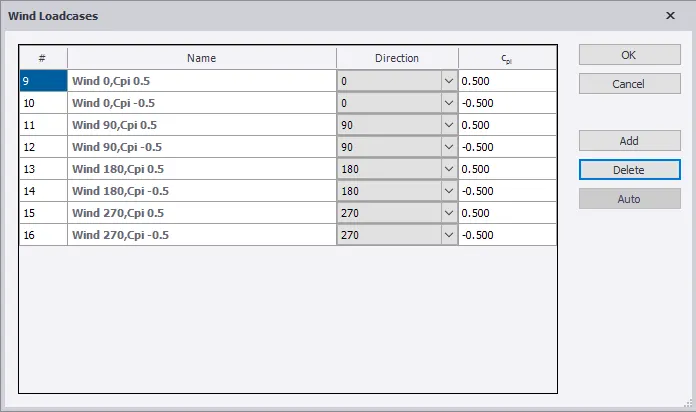

• Wind Load Cases

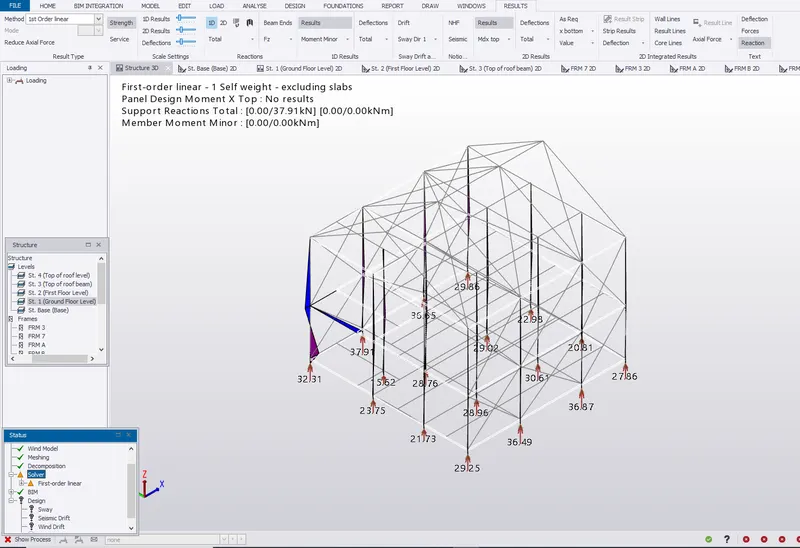

• After analysis go to Results view

• Go to Results tab from the ribbon and select 1D results.

Results:

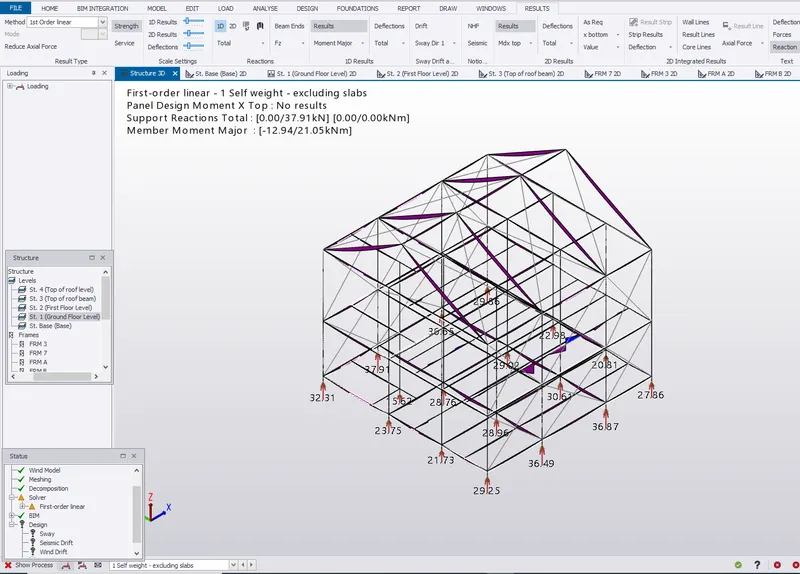

Moment Major

Moment Minor

Conclusion : Week 5 challenge is completed.
