To calculate wind load for industrial steel structures and to apply it by using TSD

1.Aim -

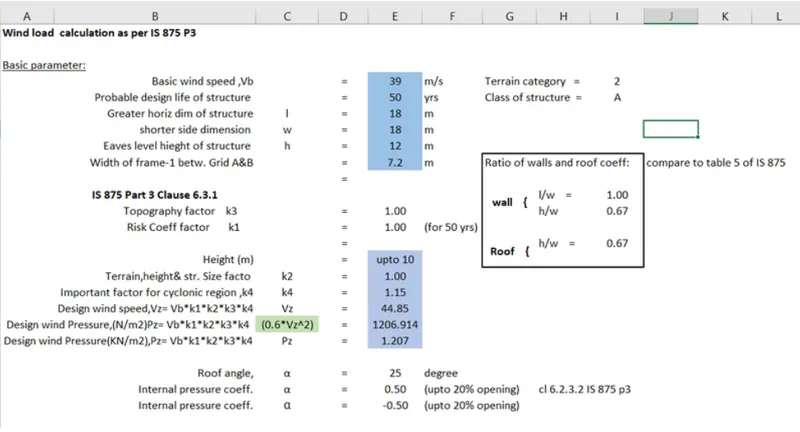

Generate manual wind loading in the design report based IS code as per the following input

Basic wind speed = 39 m/s

Terrain category = 2

Procedure -

First calculate load combination

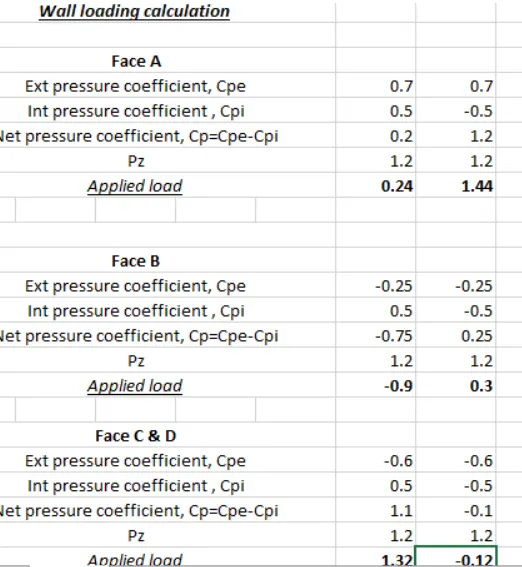

Result - Calculations are done for the wall panel

2)

Aim -

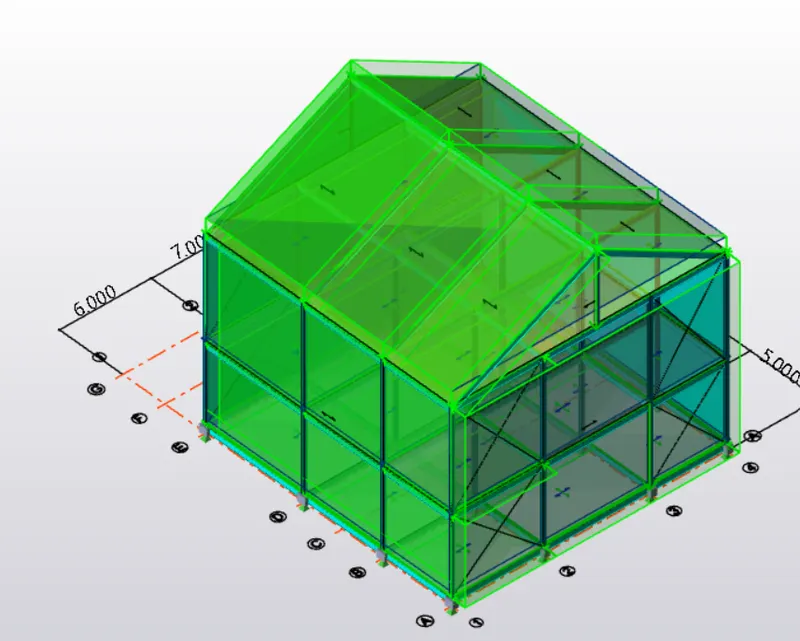

Based on the above calculation apply the loading on the model

Procedure -

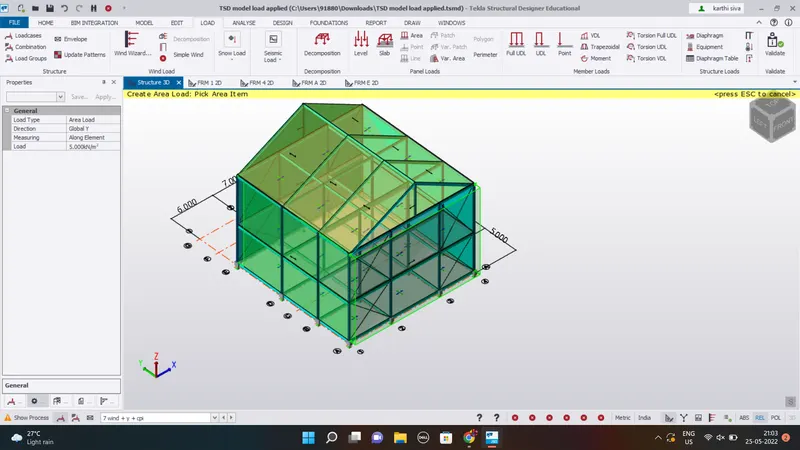

Open tekla structural software andopen week 4 file

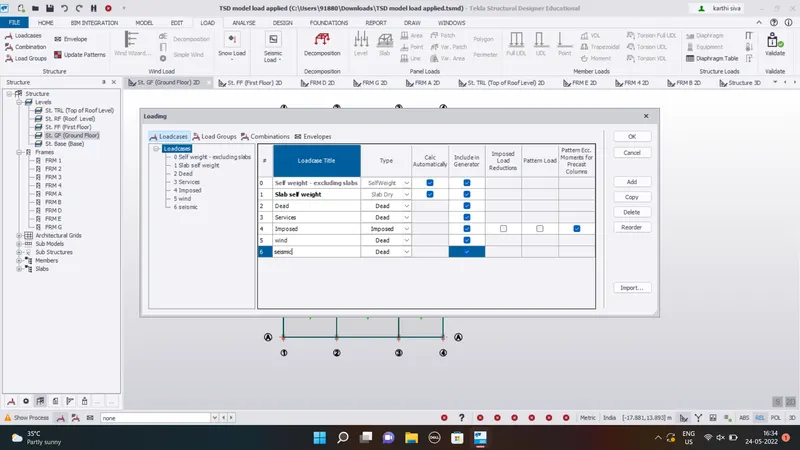

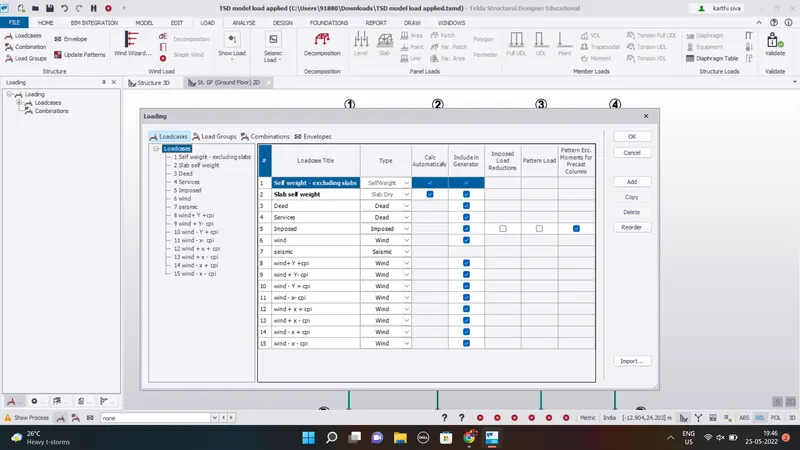

Select load tab, in that select loadcases and add new load cases

Now as per value apply the load

Frame1= Wind+y+cpi = 0.253 kn/m^2
Apply load on Frame 5 = Wind +y+cpi =-0.95l kn/m/2

Negative value means wind acting away from the wind panel

Apply load on face 1 = wind y - cpi = 1.52 kn/m^2

Apply load on face 5= wind+y-cpi =0.317 kn/m^2

Apply load on face C =wind+y+cpi = -1.394 kn/m^2
Apply load on face D=wind+y-cpi = -0.127 kn/m^2

Now we will apply load of-y

All loading will be similar just the direction of wind is changed

Frame 5 = wind-y+cpi = -0.253kn/m^2

Apply load on Frame - wind-y+cpi = 0.951 kn/m^2

Apply load on Frame 5= wind-y-cpi =-1.521 kn/m^2

Apply load on Frame1= wind-y-cpi =-0.317 kn/m^2
Apply load on frame D = wind-y+cpi =1.394kn/m^2 on global X axis

Apply load on frame1=wind+y-cpi = 0 kn/m^2

Courses

Apply load on frame A=wind-y-cpi = 0.127 kn/m^2 on global X axis
Apply load on face C = wind+y-cpi = 0.317kn/m^2

Now apply wind load on roofs and take roof angle as 25 degree

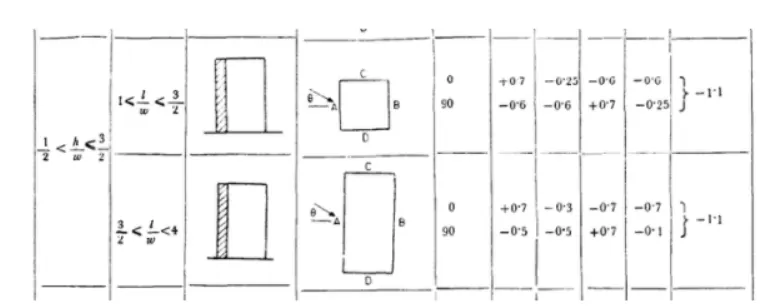

From IS 875 part 3 table 3 clause 6.2.3.2

Now apply roof load on PQ

Frame 2 =wind+y+cpl = -1.204 kn/m^2

Apply load on frame 2= wind+y-cpi = 0.063kn/m^2

Roof XY

Apply load on frame1=wind+y-cpi = 0 kn/m^2

Roof PQ

Apply load on frame 1=wind-y+cpi = 1.204kn / (m ^ 2)

Apply load on frame 1=wind-y-cpi= =0.063 kn/m^2 on roof PR
Apply load on frame 2 of roof XY = wind -y+cpi = 1.267 kn/m^2

Apply 0 kn/m^2 on roof XY of frame 2

Result -

3)

Aim -

On a separate model generate wind loading using wind wizard

Procedure -

Open the file

Open load cases in load tab

Delete all load cases and set only default load cases

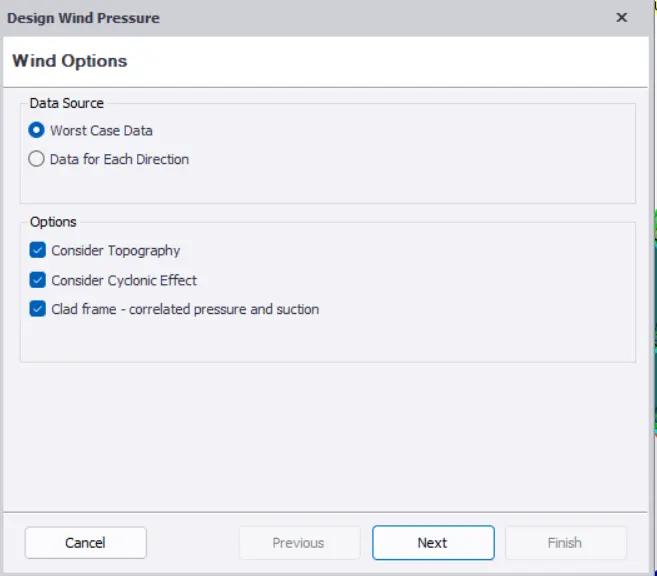

On load panel select wind wizard and select the cyclonic effect

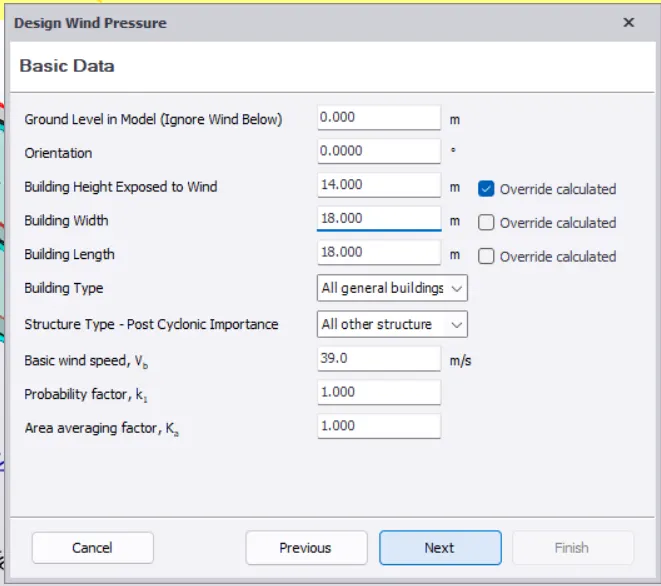

Check all the details of the building like wind speed,height of building affected by wind and also kl and k2 factor

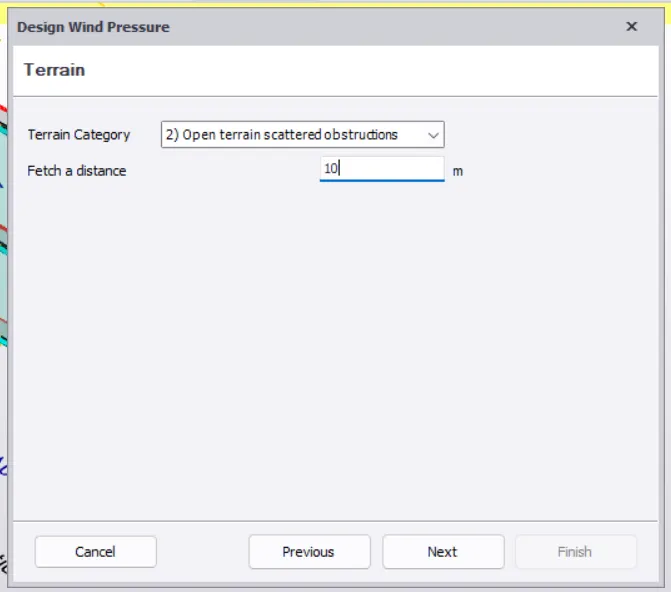

Select terrain category as open terrain scattered obstructions

Fetch distance is 10

Click next then select topography andmthen next

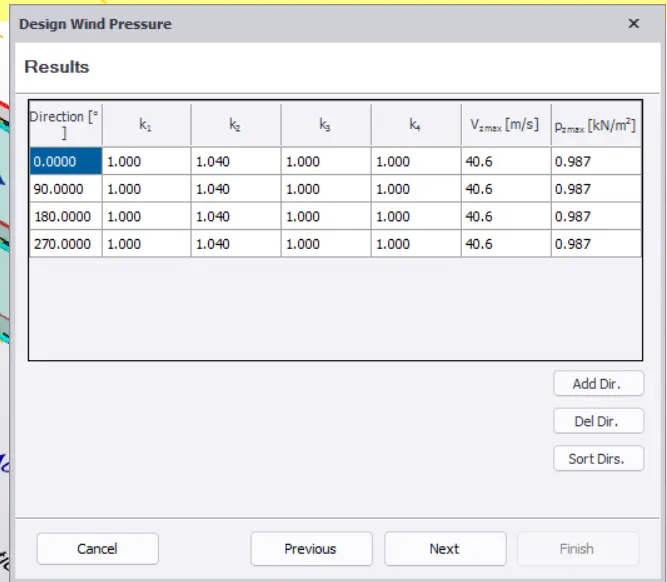

After that, it shows resultant wind pressure

Click on Finish

Now click on wind load cases

Now all the loads are applied.and click on validation to check for errors.

Result -
