Structural Modelling using Etabs 2018

AIM-

To model a G+7 residential building from the given architectural floor plan drawing using ETABS 2018.

PROCEDURE -

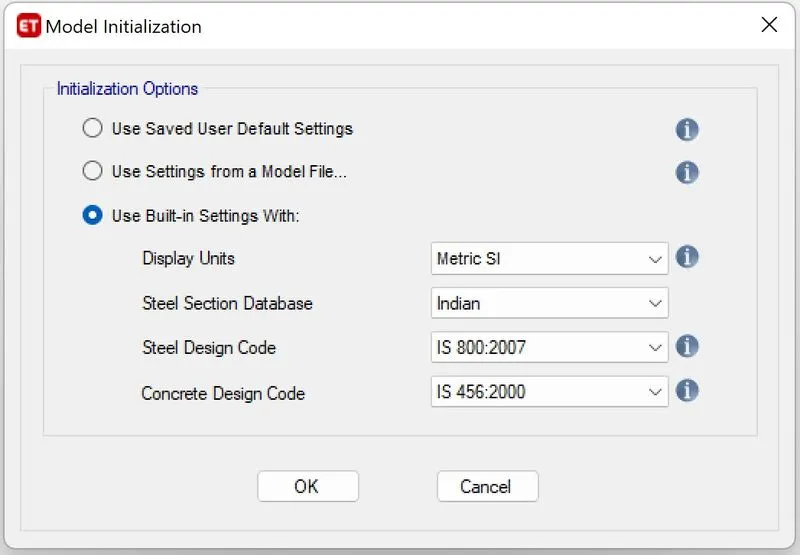

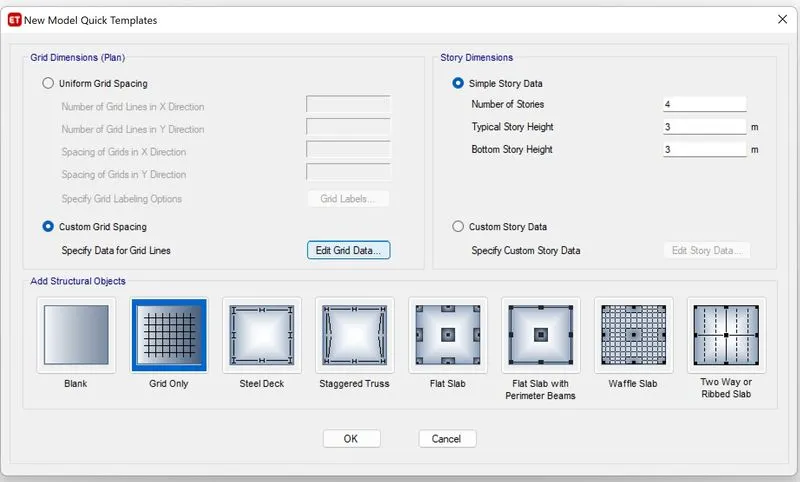

1. Open ETABS and start a New Model. Enter the following settings:

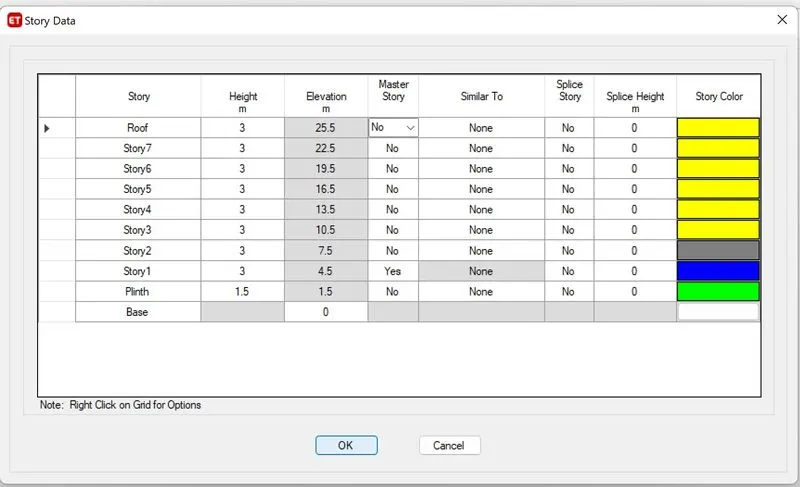

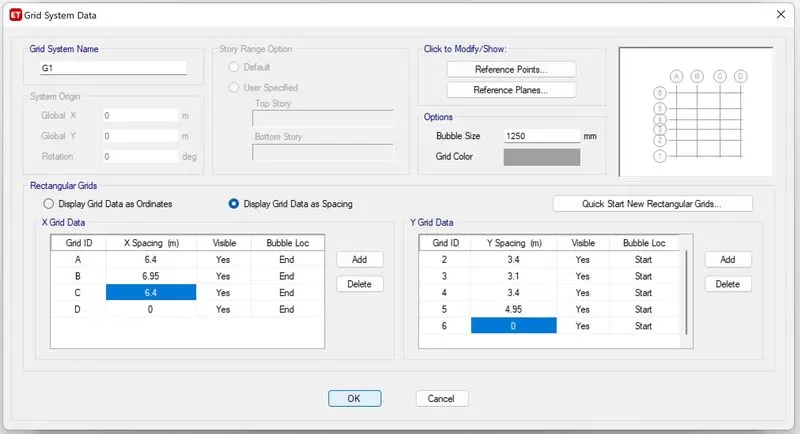

2. Custom the grid settings and story settings according to the given plan :

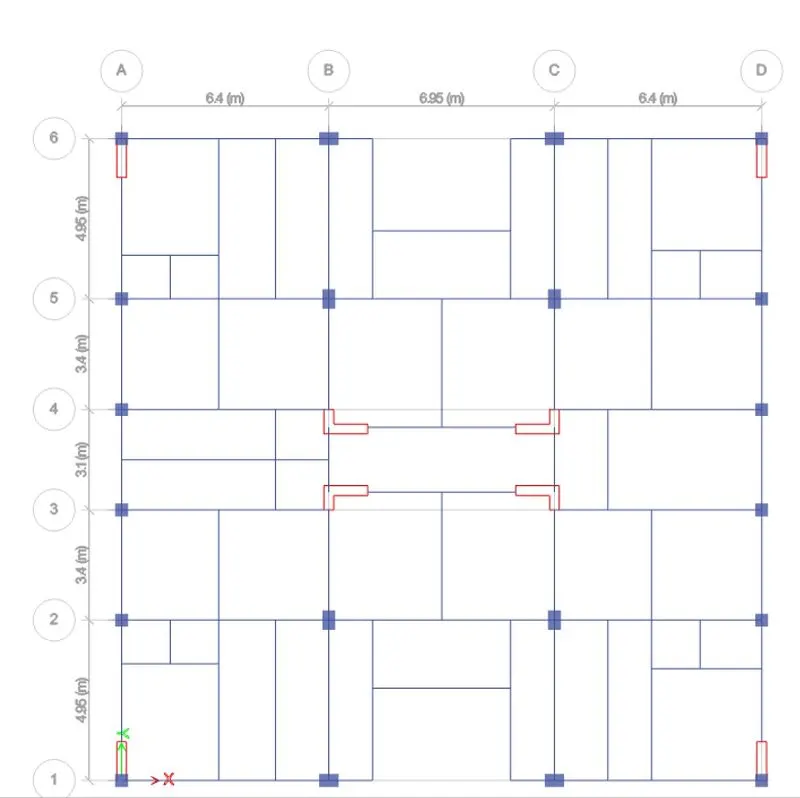

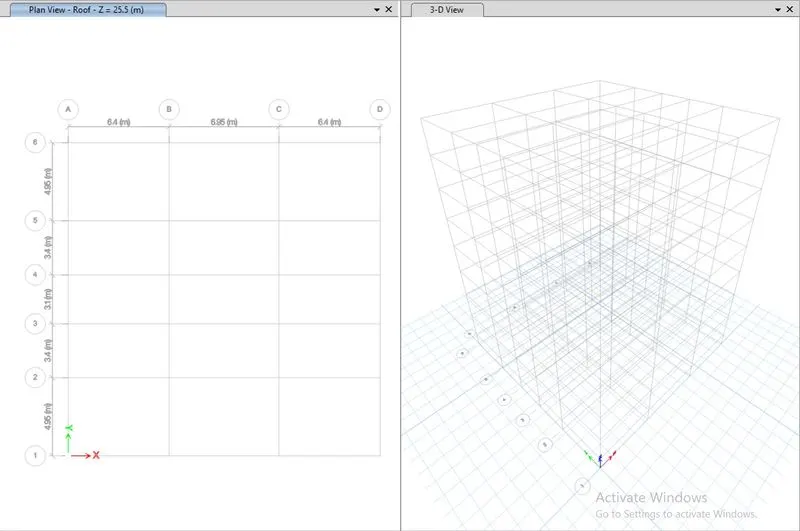

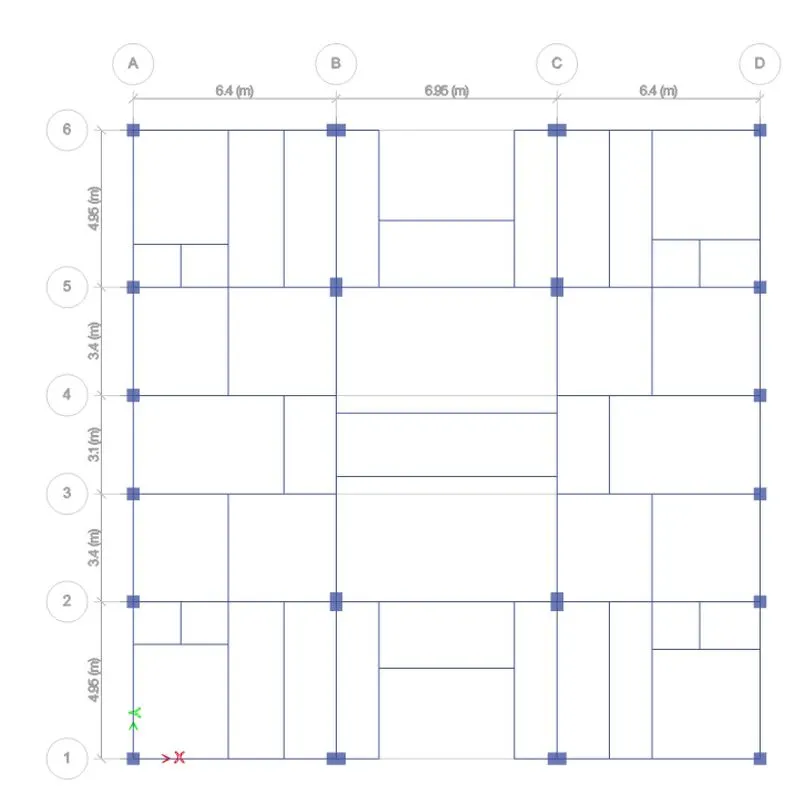

The plan is now shown as per the given details in ETABS as follows :

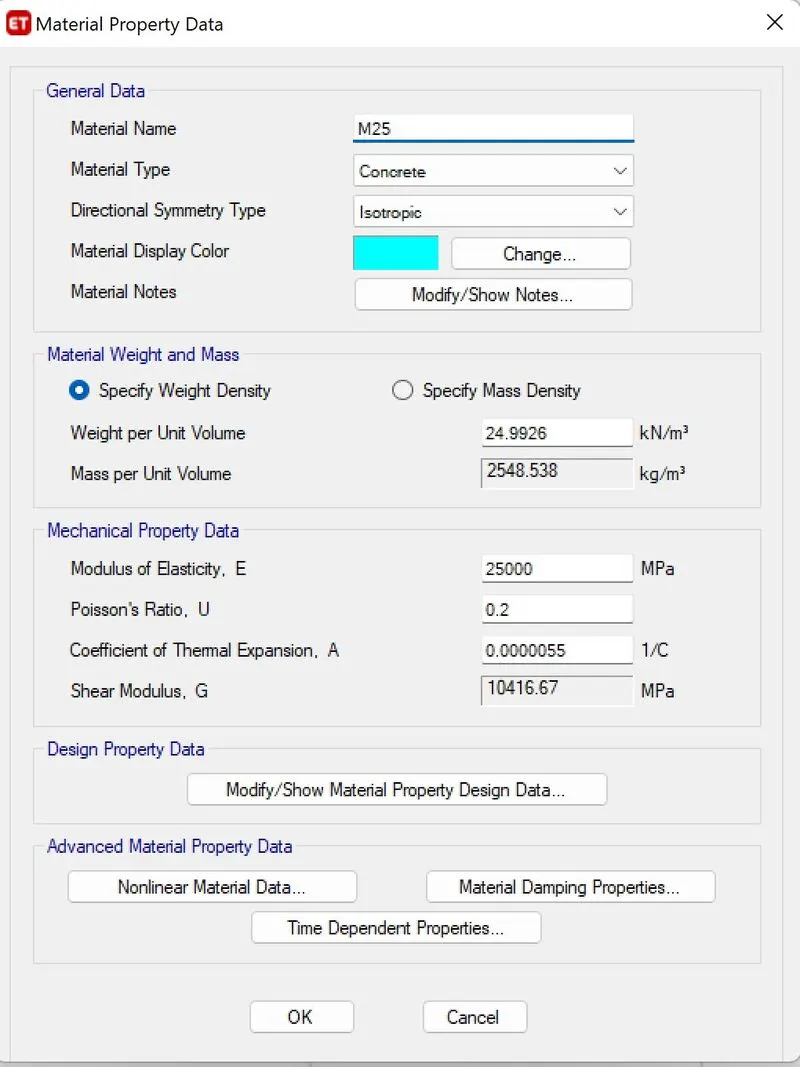

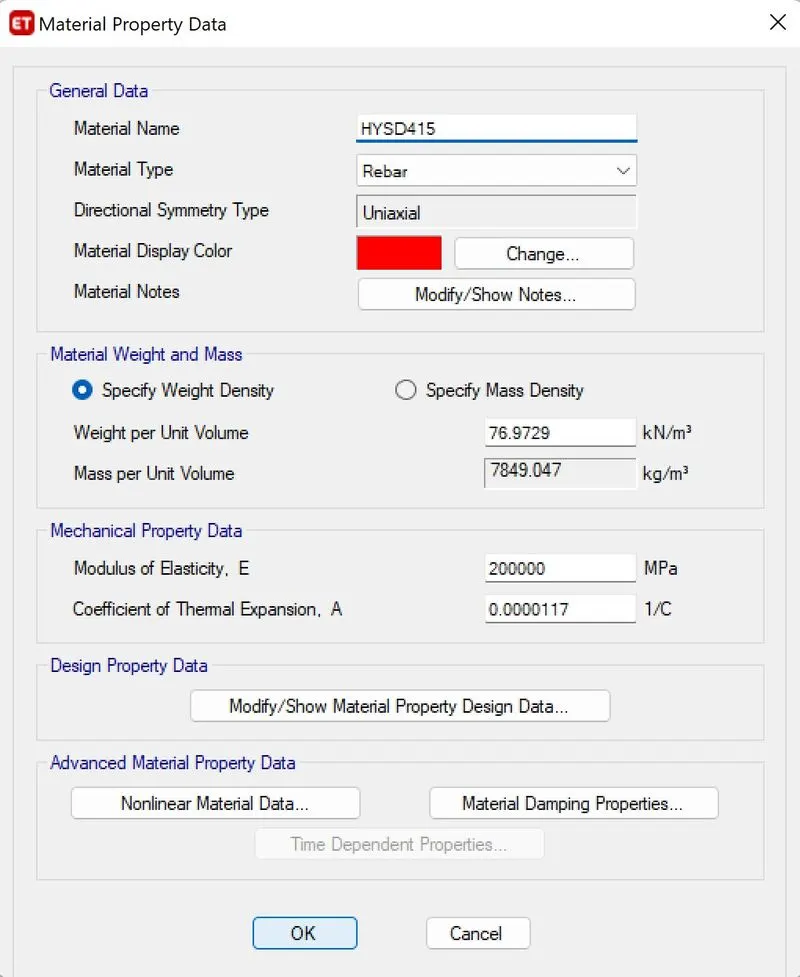

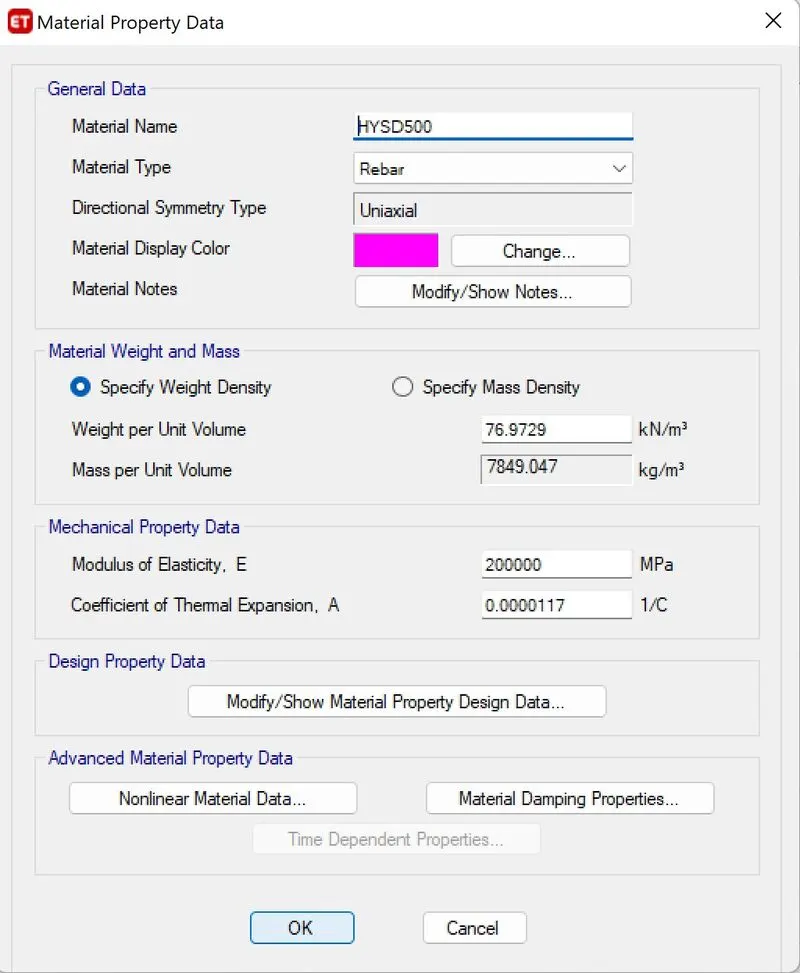

3. Define > Material properties for Concrete M25, Rebar 415 and 500 :

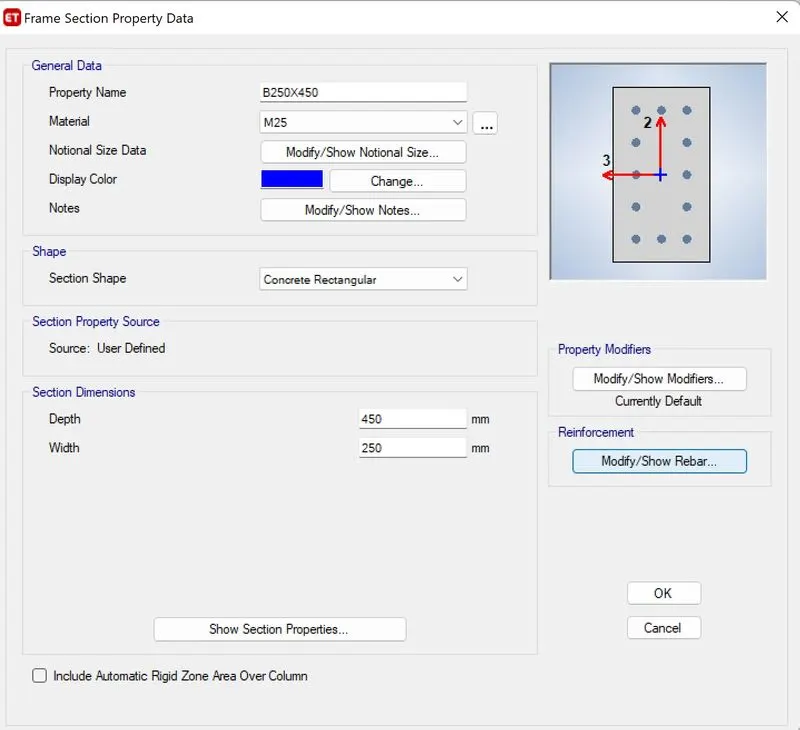

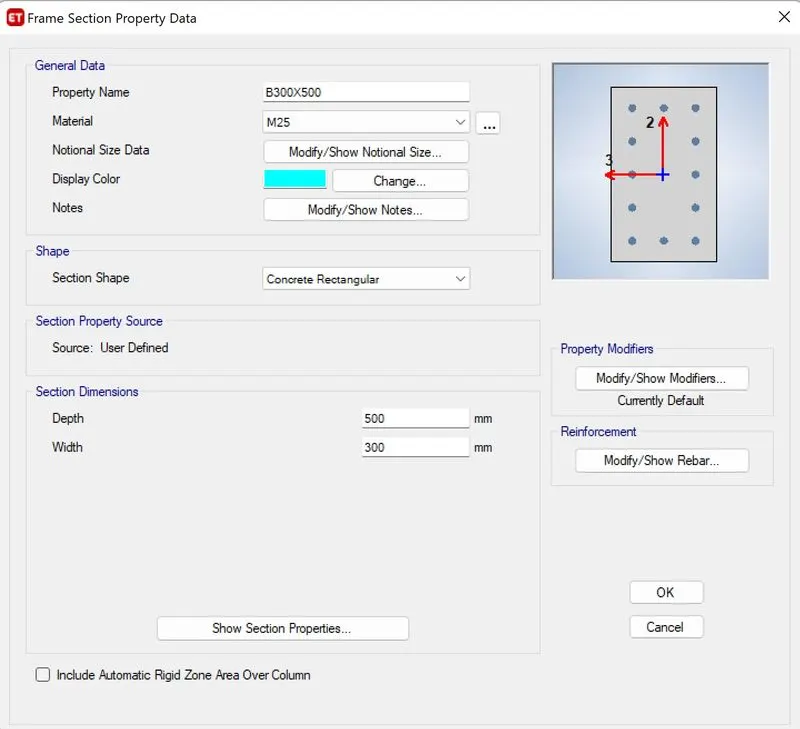

4. Define > Section Properties > Frame sections > Add 2 types of beams

a) B250X400

b) B600X400

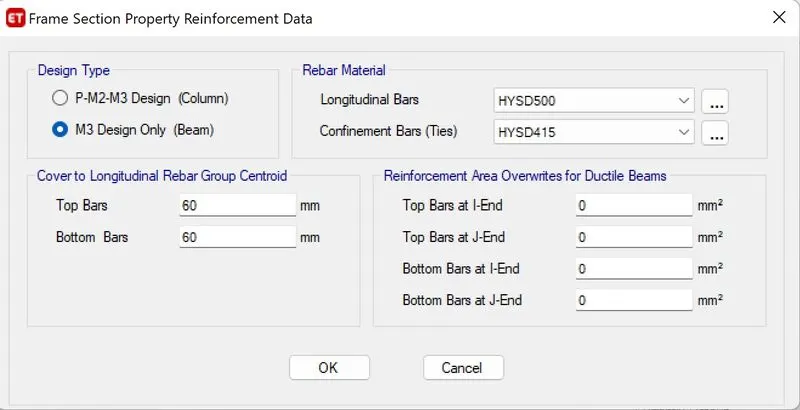

Add the following Reinforcement details to beam design :

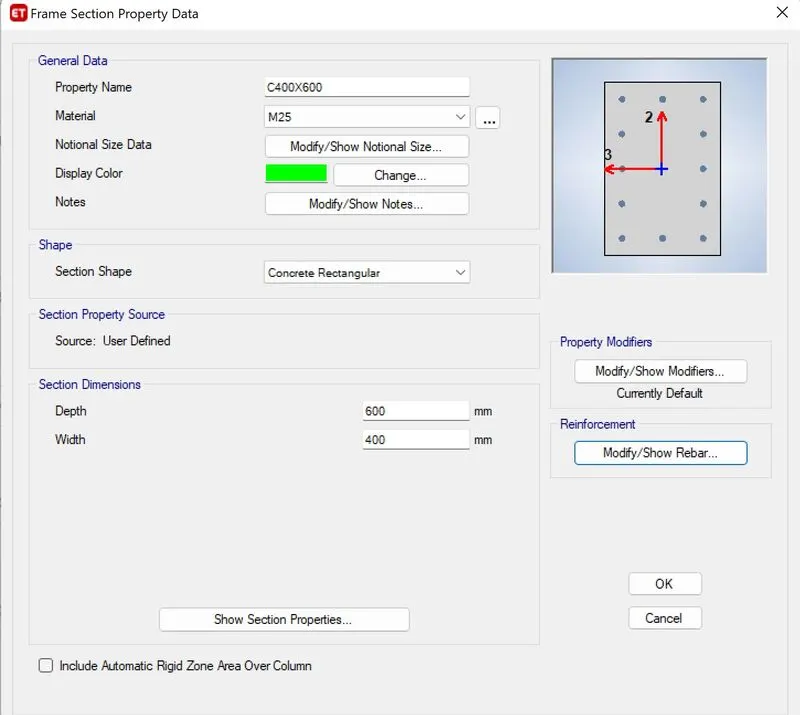

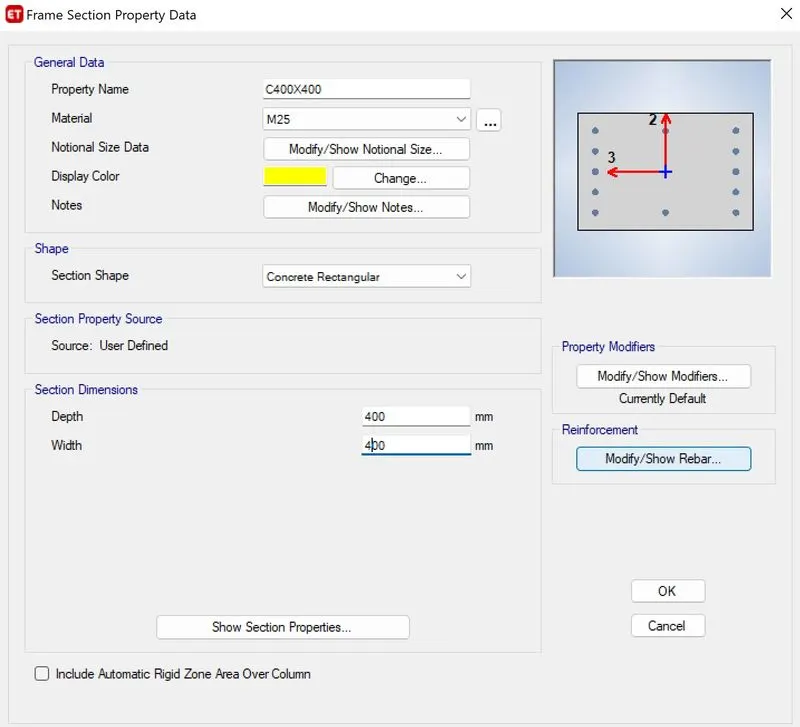

5.Define > Section Properties > Frame sections > Add Columns

a) C400X400

b) C400X600

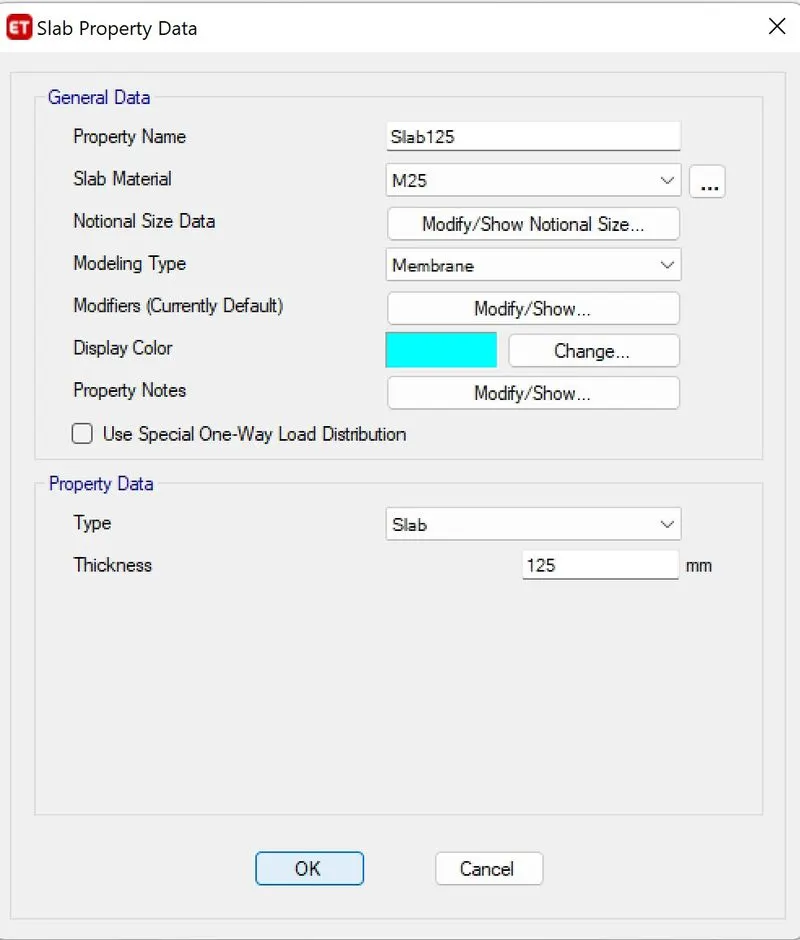

6. Define > Section properties > Slab section :

a) Slab - 125mm thickness

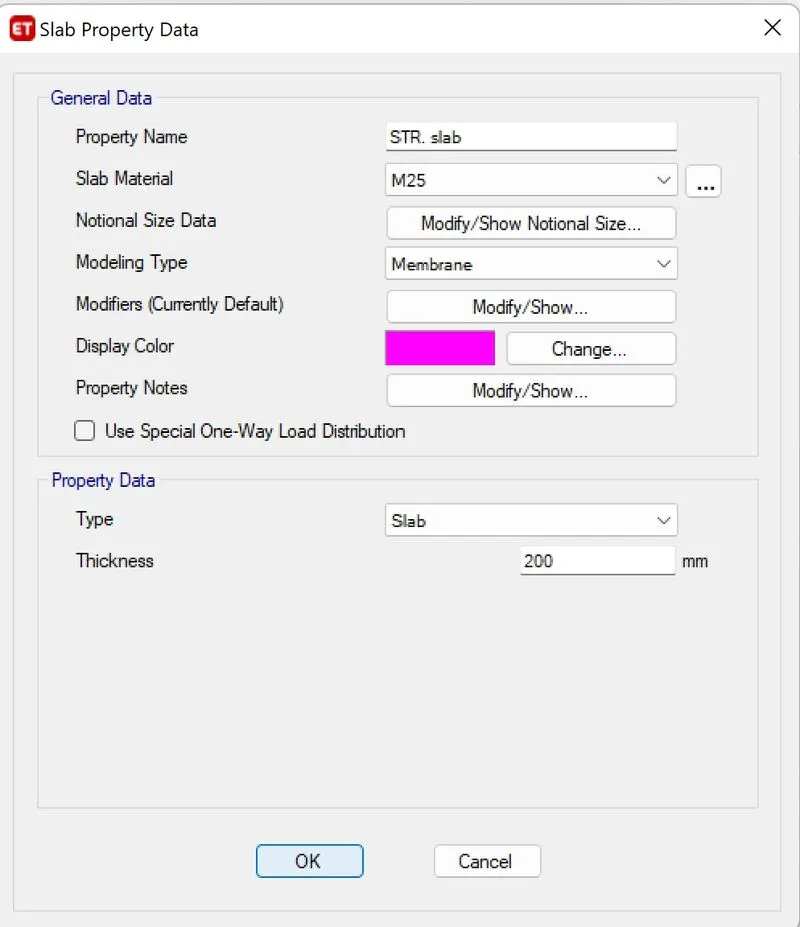

b) Staircase- STR slab- 200mm thickness:

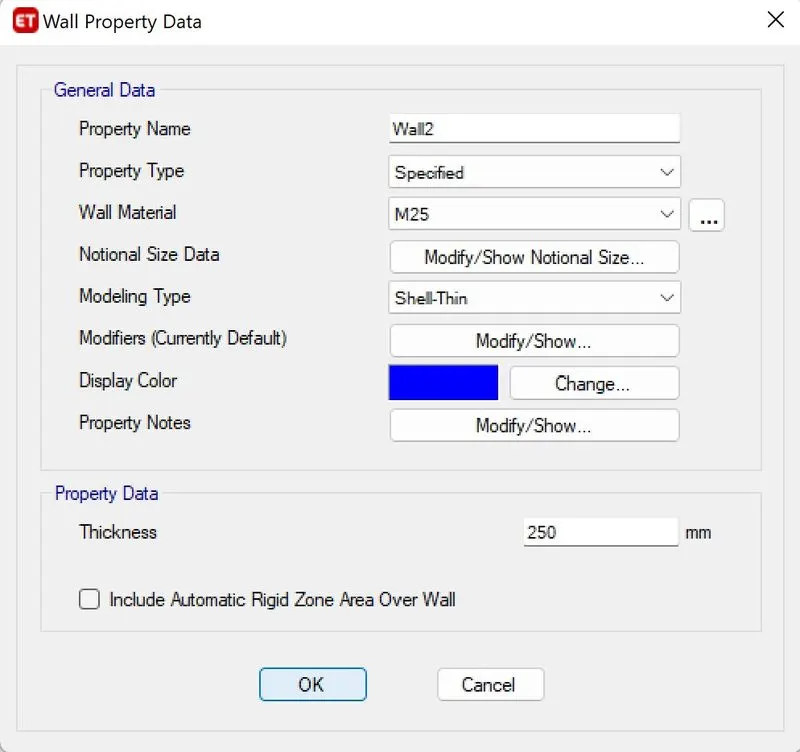

7. Add wall properties as shown as following :

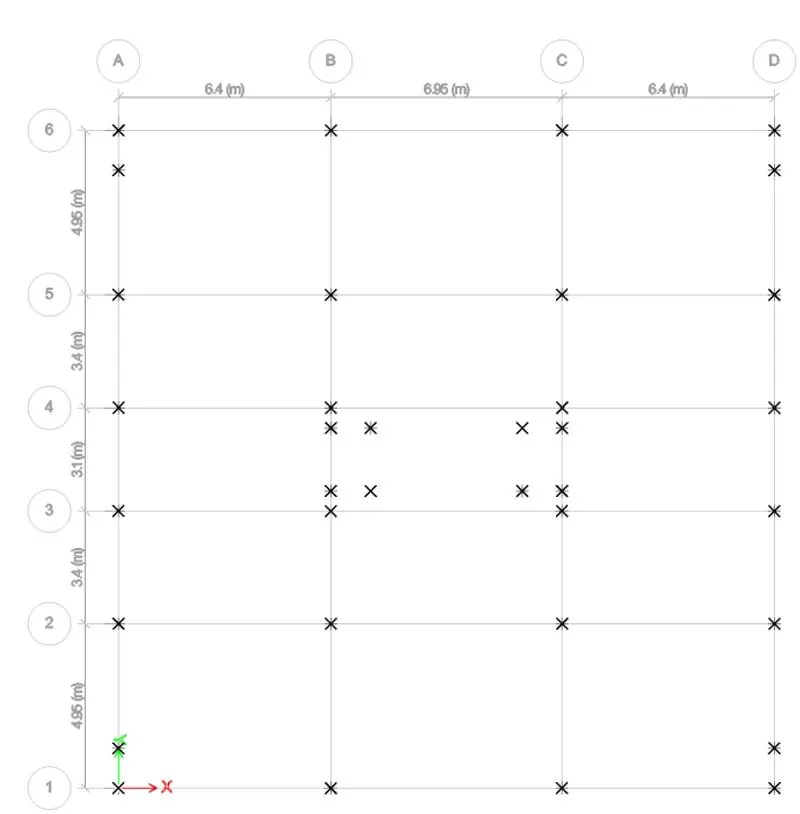

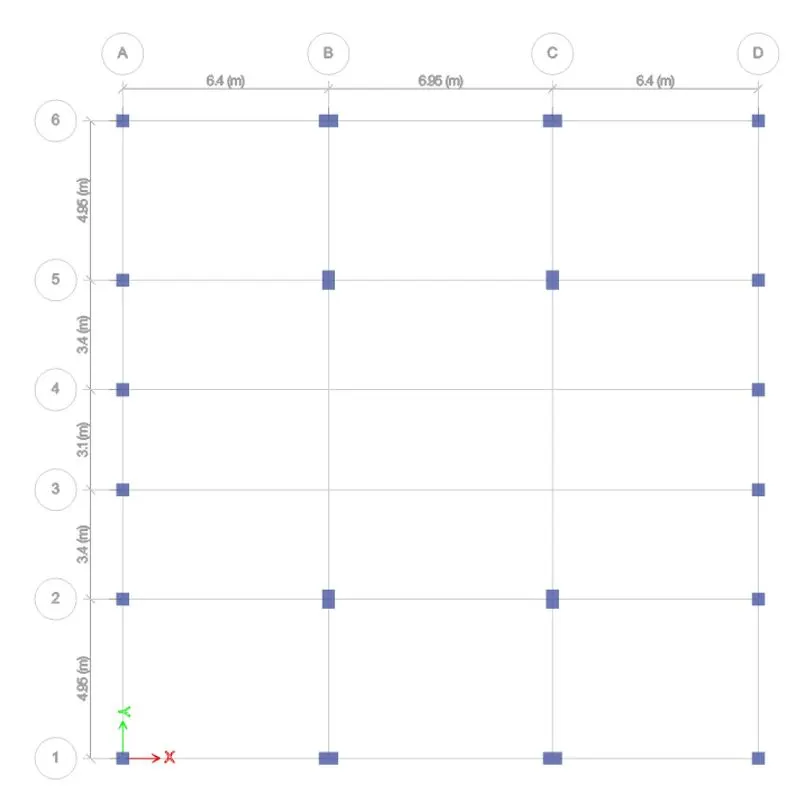

8. Now add columns through the Quick draw Columns tool :

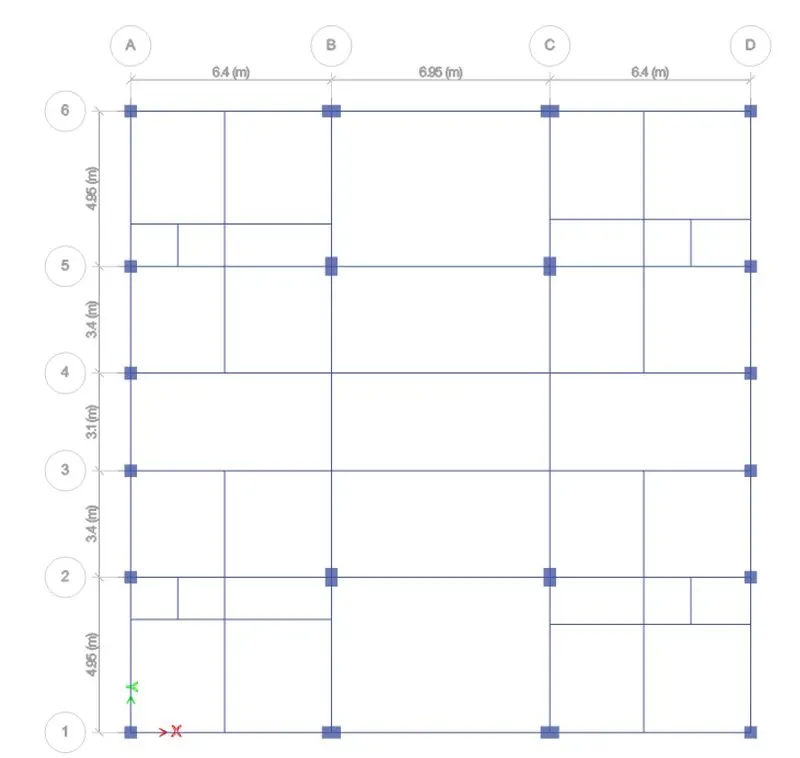

9. Add beams through Quick draw beams tool:

10. Now add Secondary beams on the required places :

11. Add shear walls to requires locations :

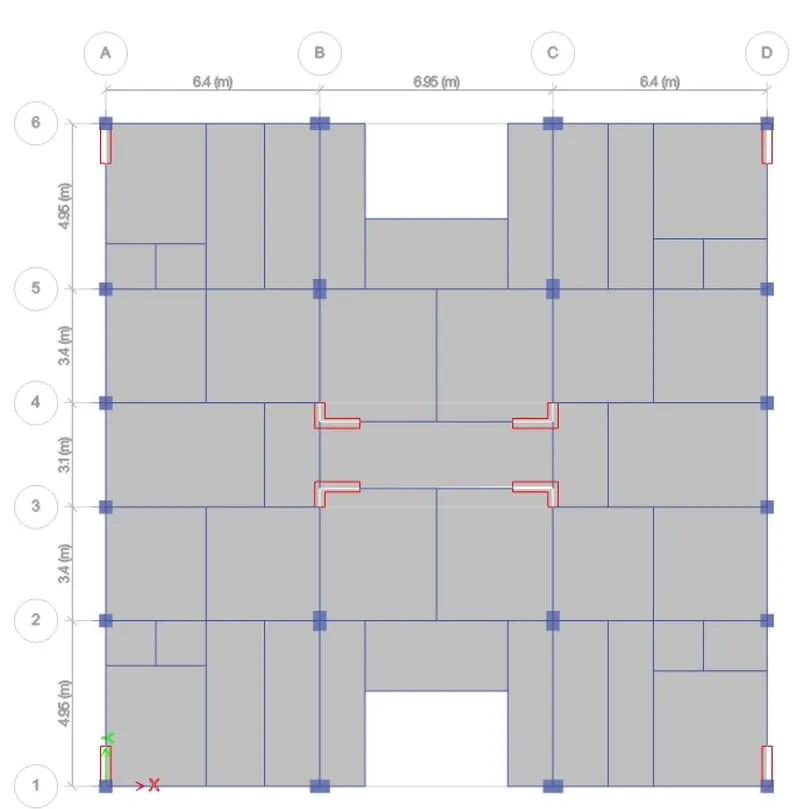

12. Add slab sections through Quick draw tool :

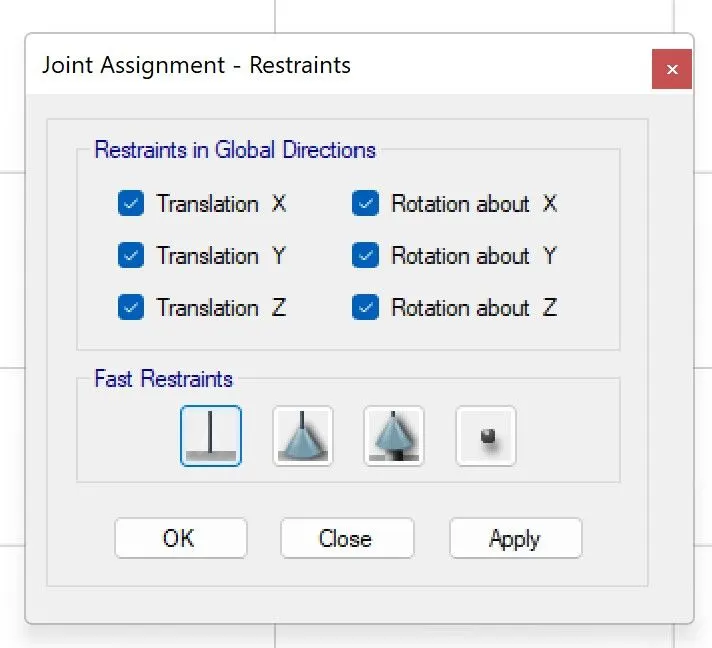

13. In Plan from Base , Select joints and then Assign > Joint > Restraints > Fixed and add fixed connections :

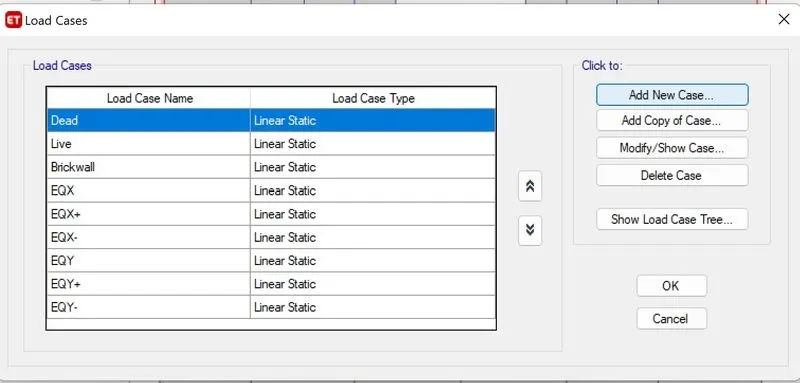

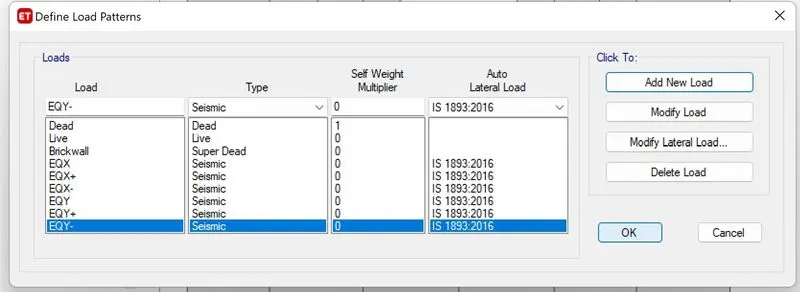

14. Define > Load patterns > Add live load, brickwall and Earthquake loads as follows :

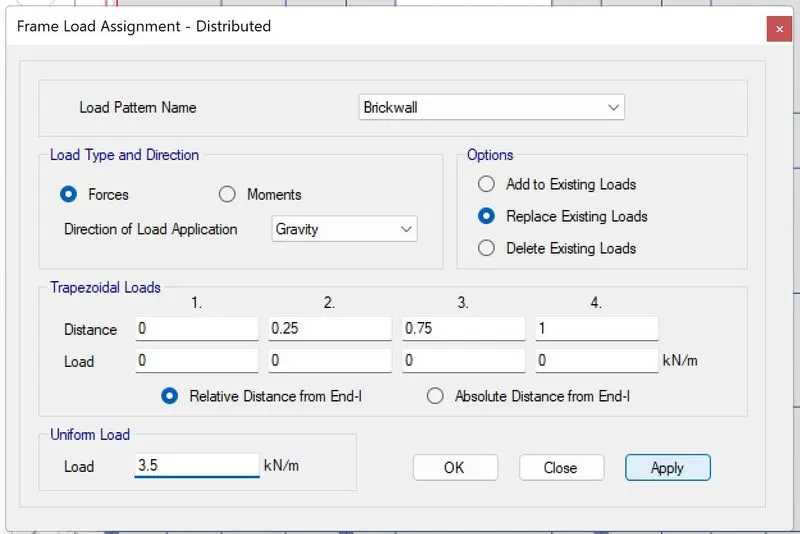

a) Assign> Frame loads > distributed

Add 3.5 kN/m brickwall and apply .

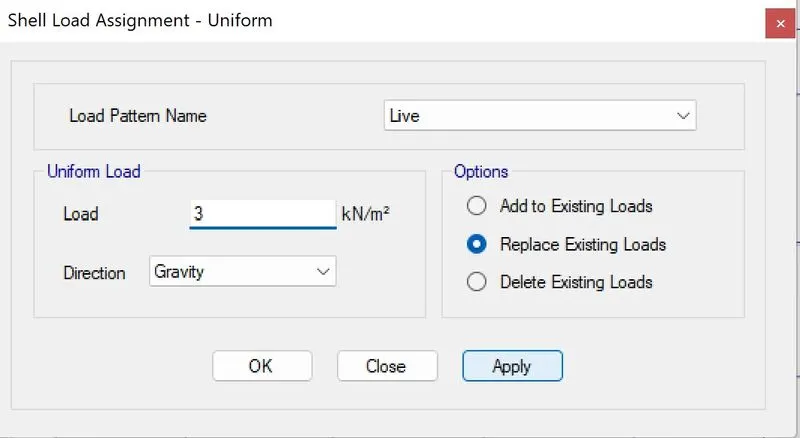

b) Assign > Shell loads > Uniform

Add 3kN/m load for staircase, lift core and passage :

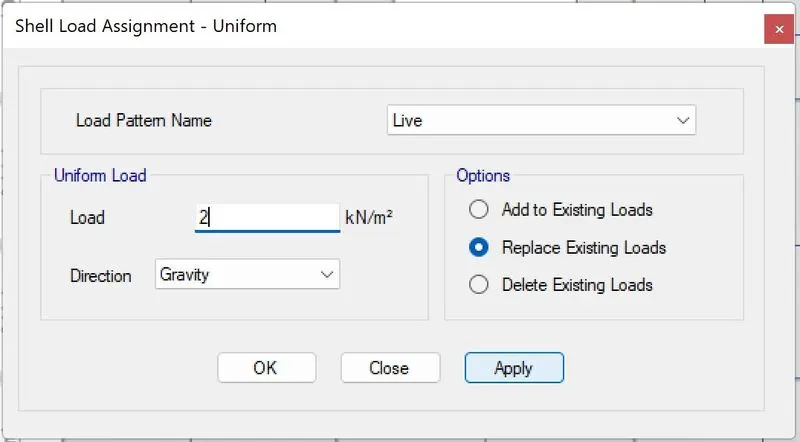

c) Assign> Shell loads > Uniform

Add 2kN/m live loads to rest portions in accordance with IS 857 Part 2 (Residential Buildings) :

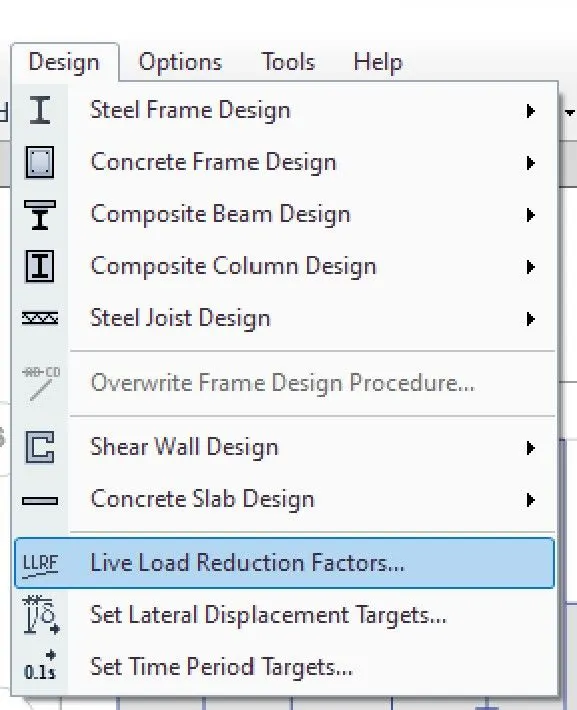

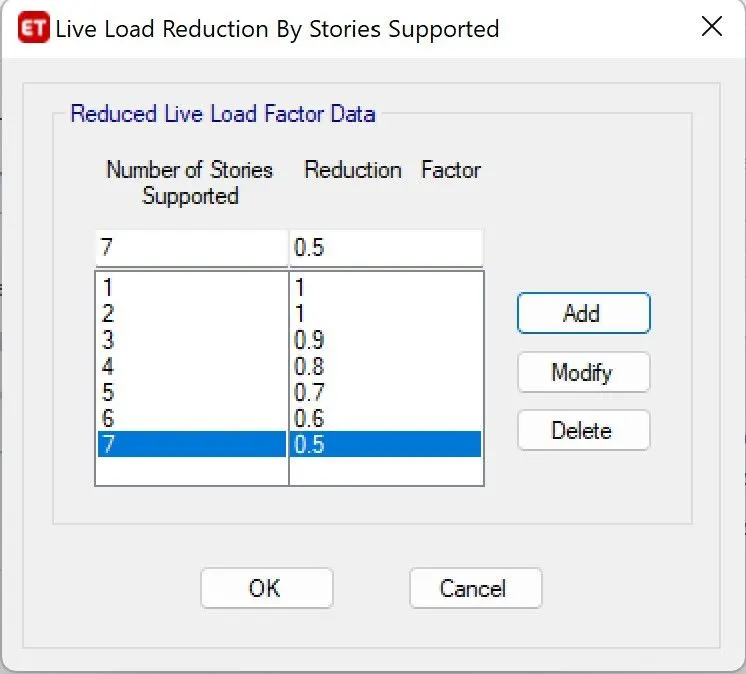

15. Design > Live Load Reduction Factor :

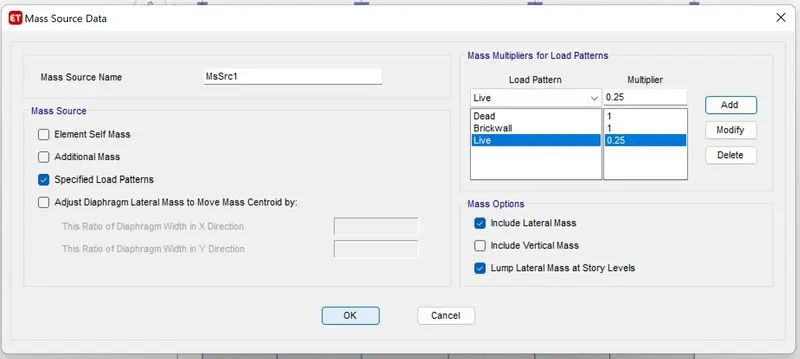

16. Define > Mass source :

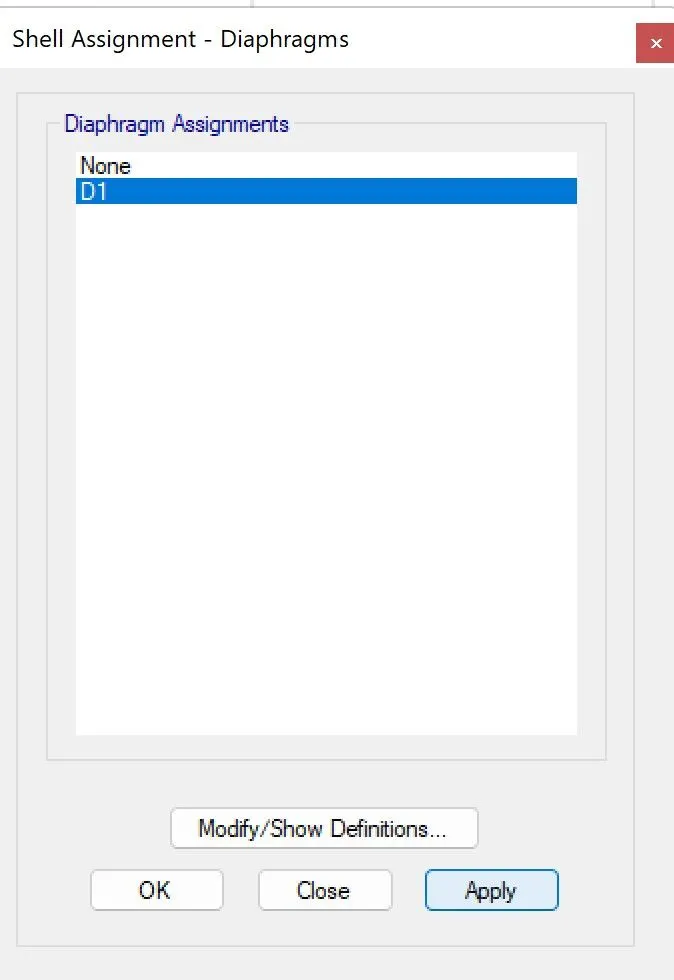

17. Select > Object type > Floors and then Assign > Shell > Diaphragms

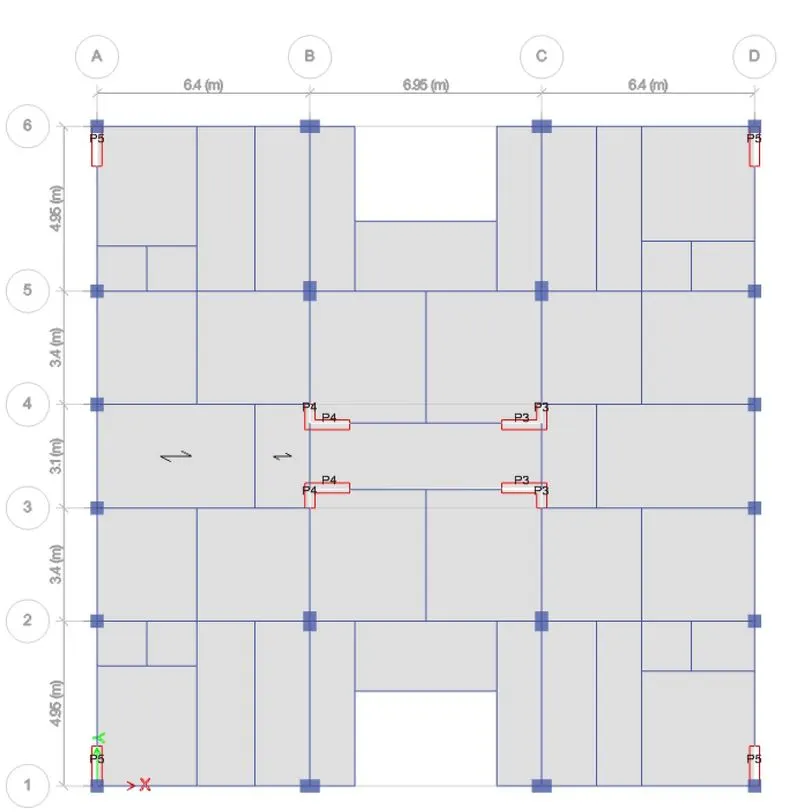

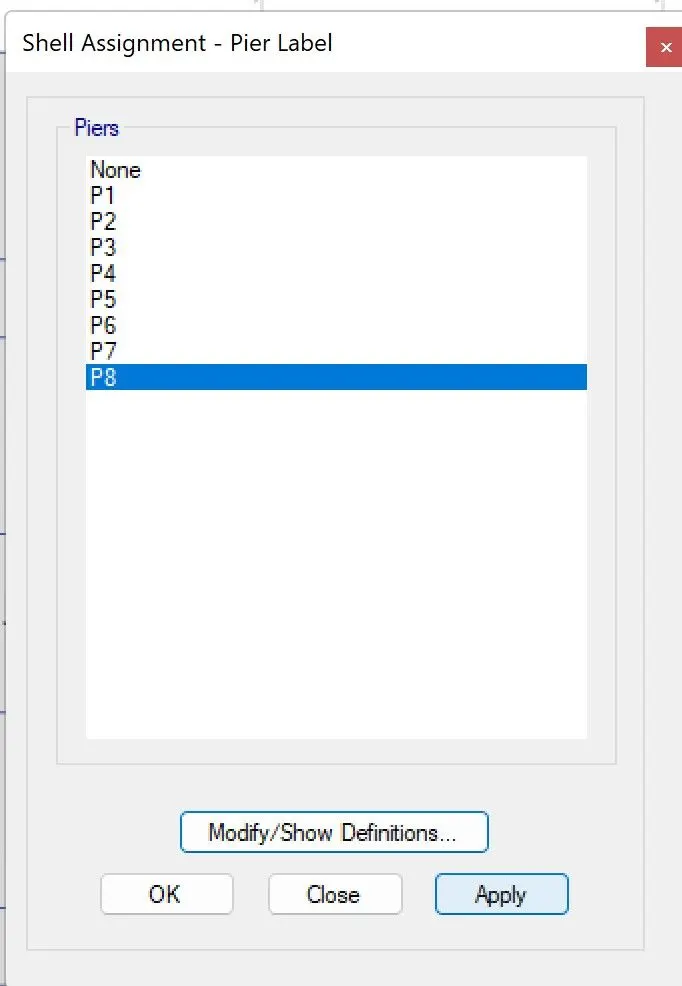

18. Assign > Shell > Pier label :

Before designing shear walls , we assign labels to them :

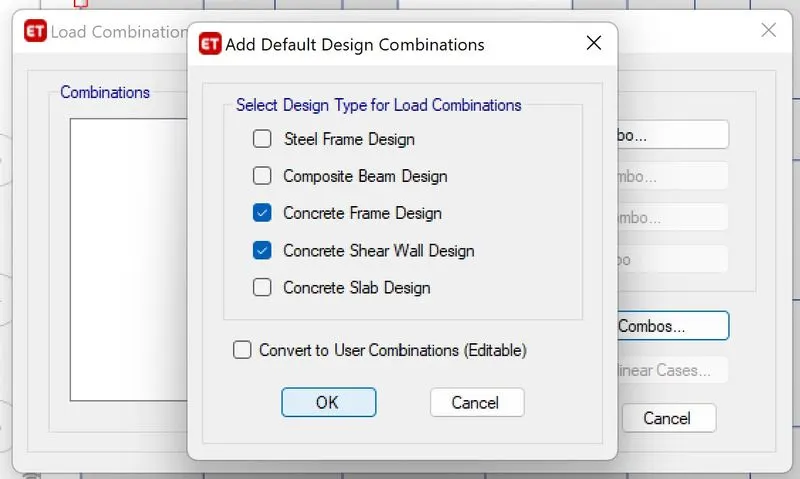

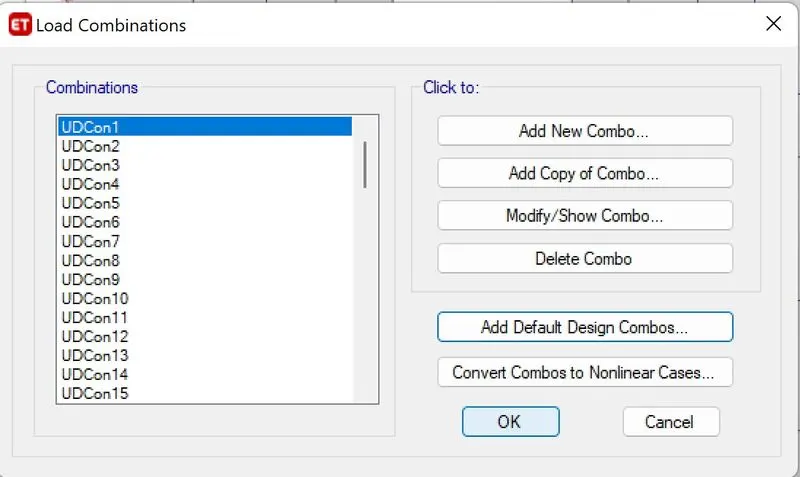

19. Define > Load Combinations

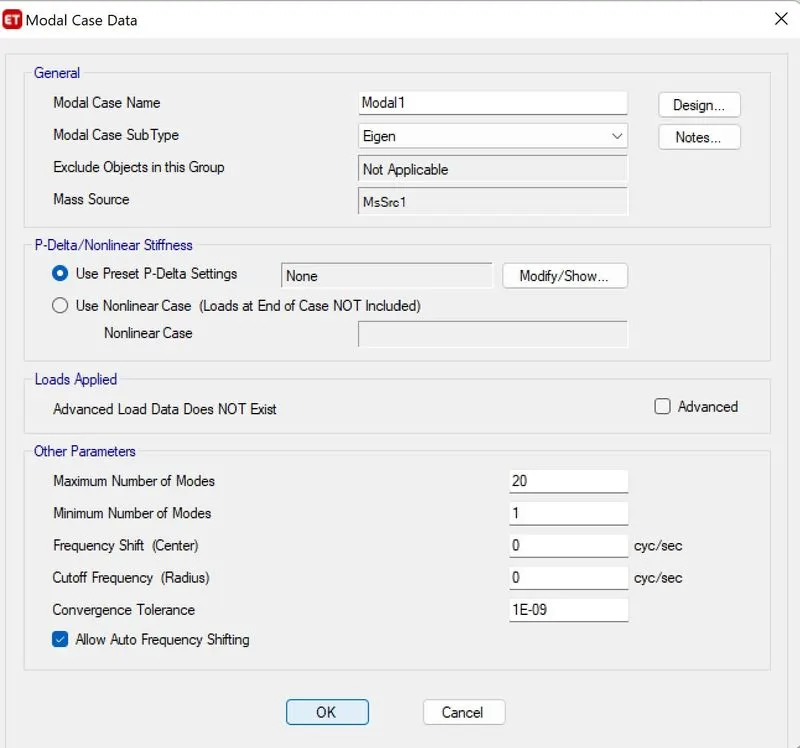

20. Define > Modal cases :

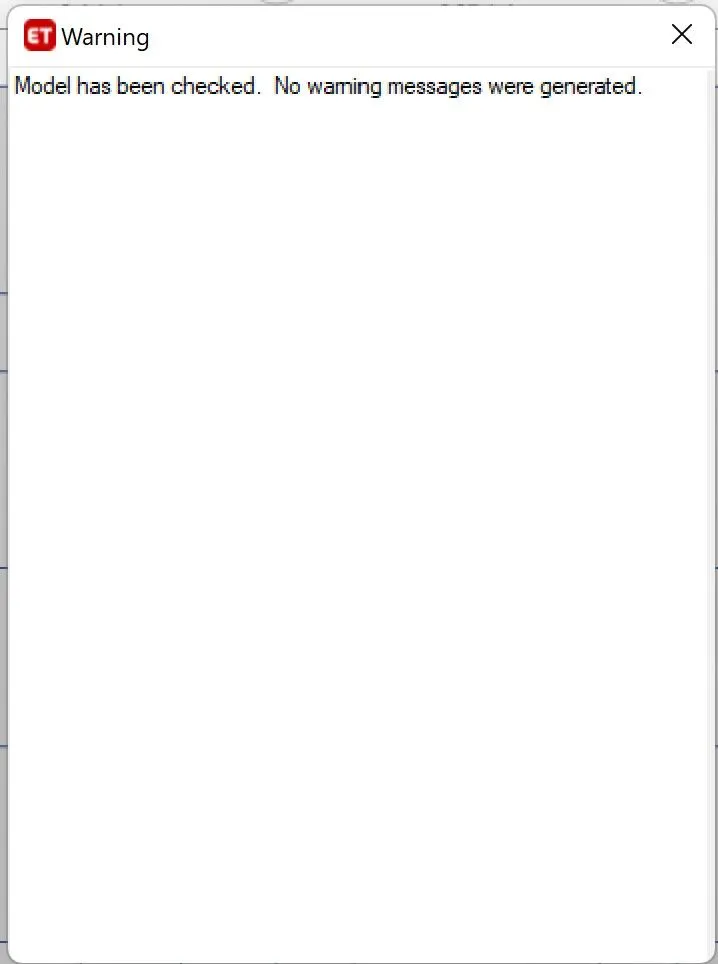

21. Analyse > Check model :

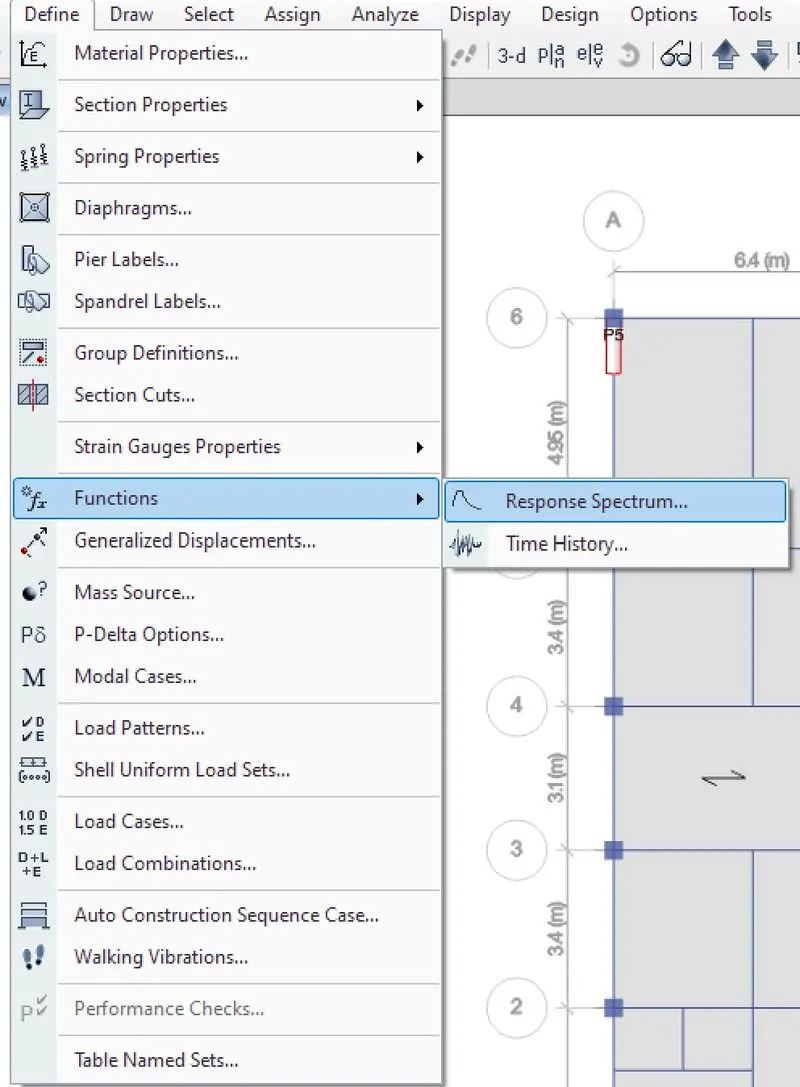

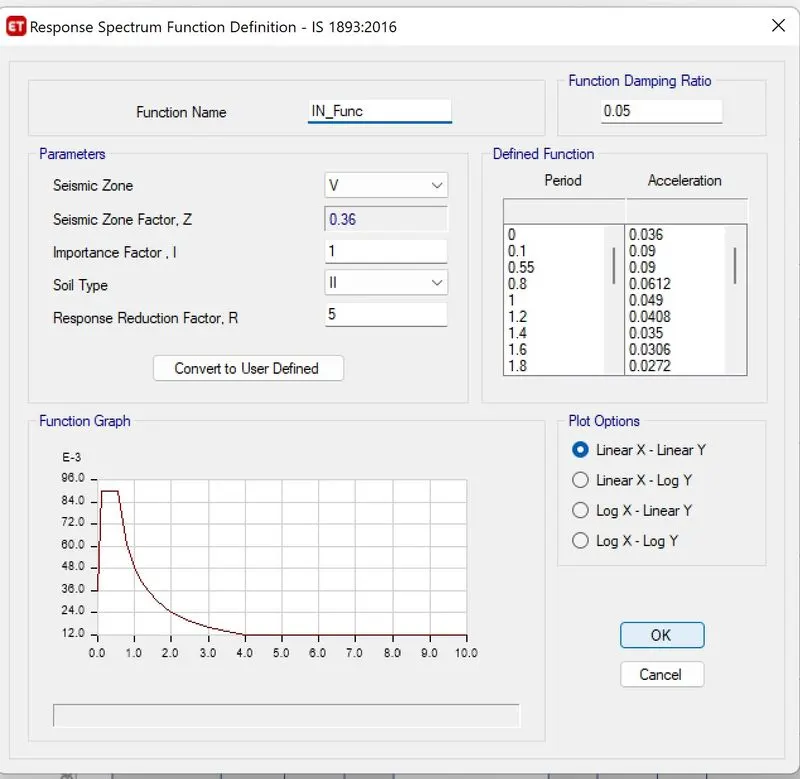

22. Define > Functions > Response Spectrum :

Here, we choose IS 1893:2016 and add Fucntion name as IN_Func :

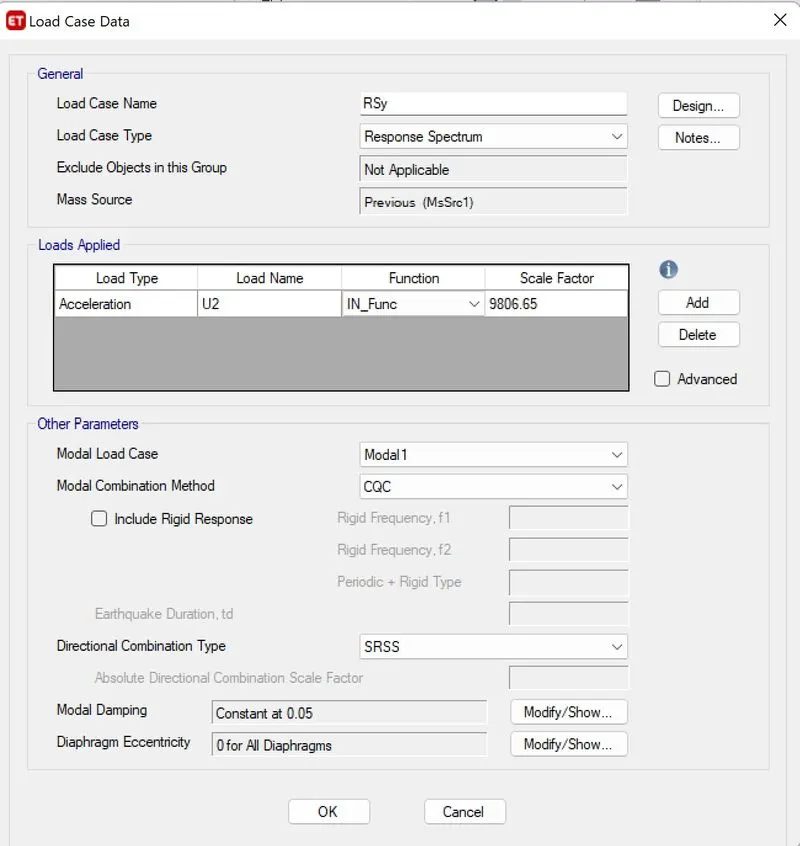

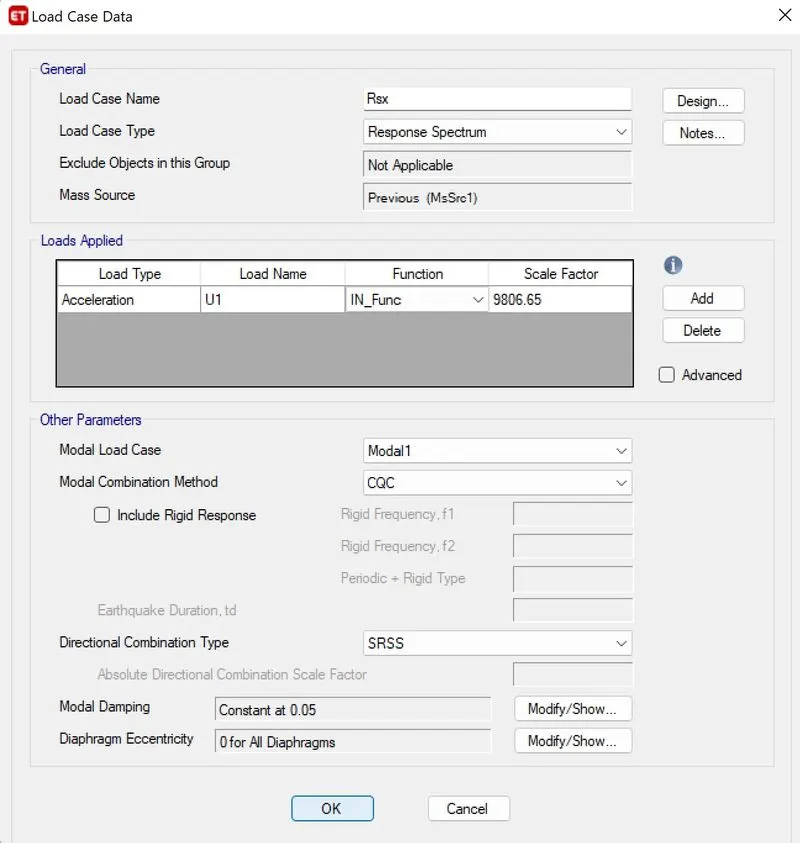

23. Define > Load Cases :

Add the two Load case Data :-

24. RUN ANALYSIS :

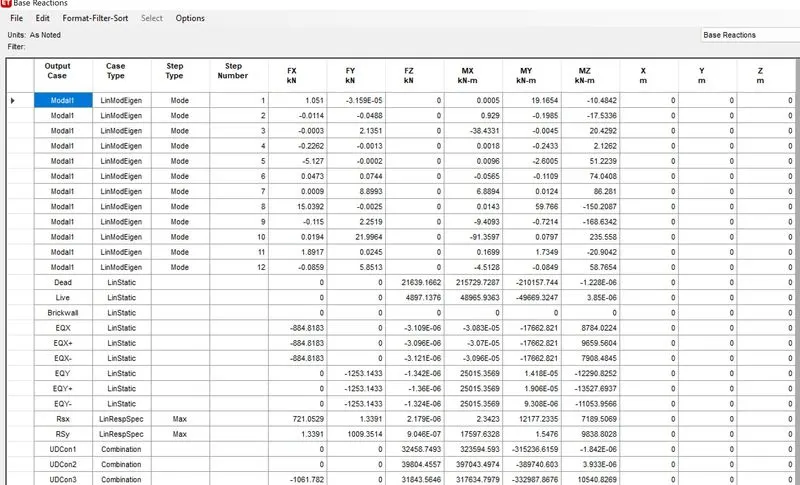

25. Display > Show Tables > Analysis result > Structure output > Modal cases > Base reactions :

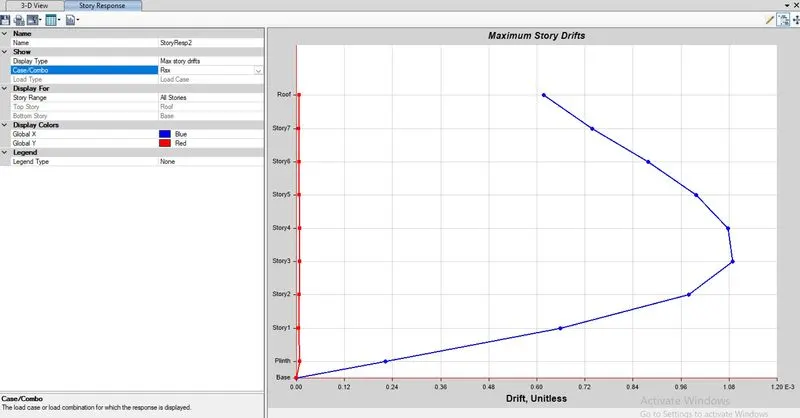

26. Display > Story Response factor :

Maximum story drifts at X and Y directions should be less than 4%

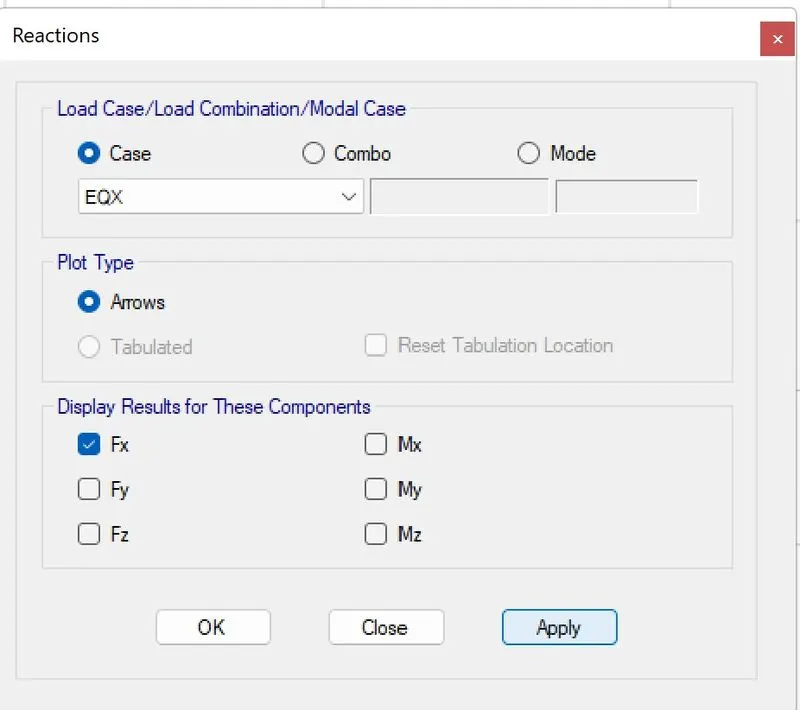

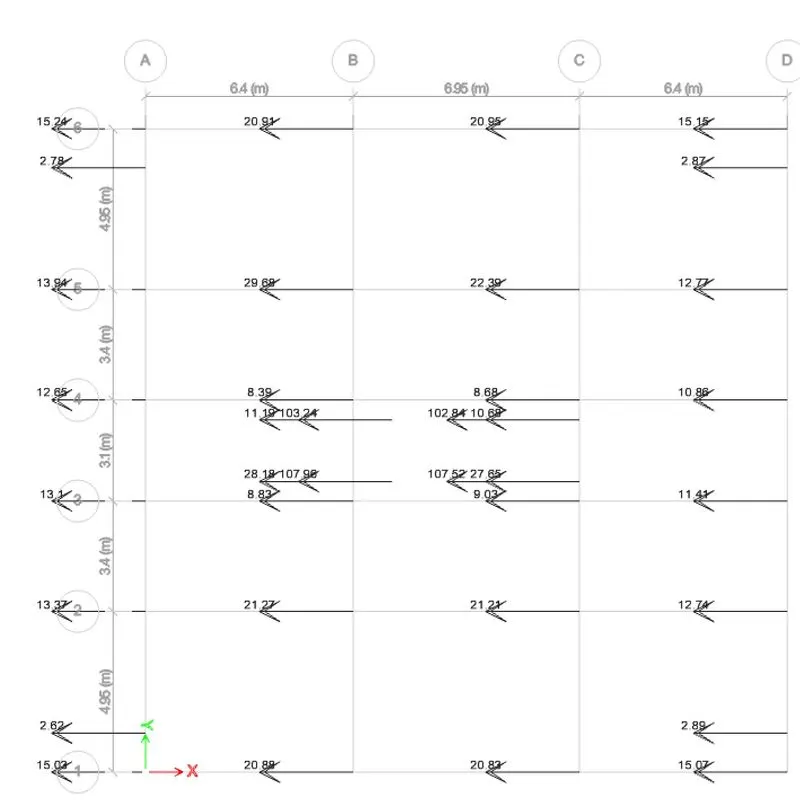

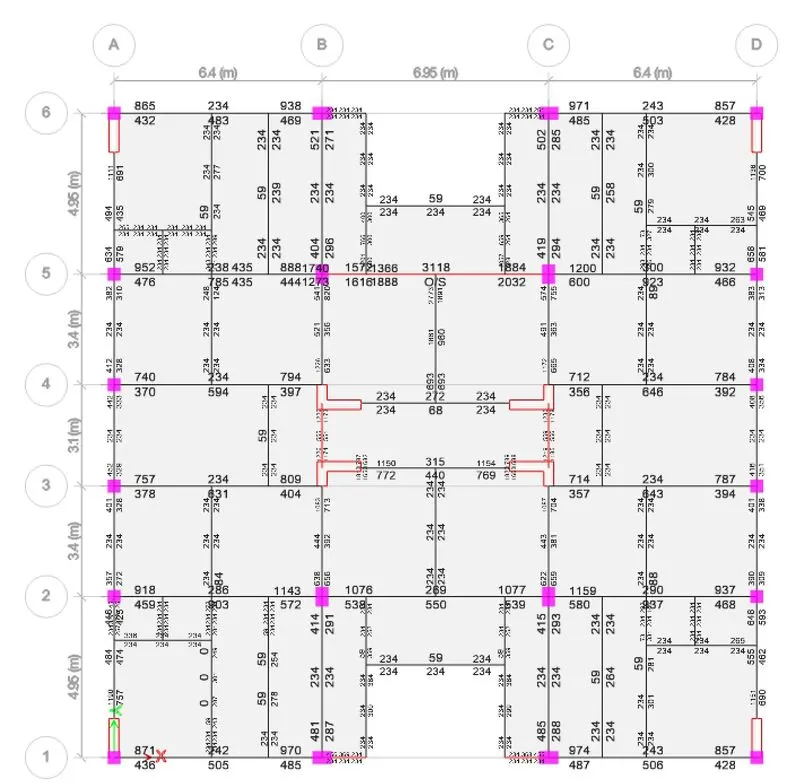

27. Plan view > base > select all joints at base > reactions :

• We can see all the base shear reactions.
• When we divide the base shear taken up by wall by the total base shear of building, we get % shear forces .
• If this % is less than 80%, we may need to add more shear to the structure.

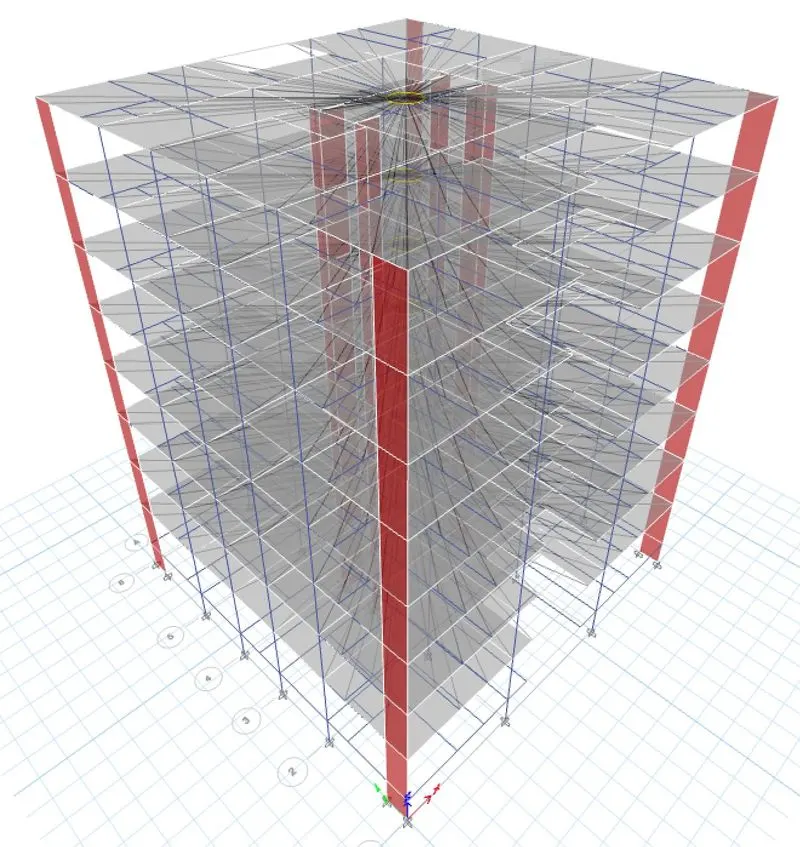

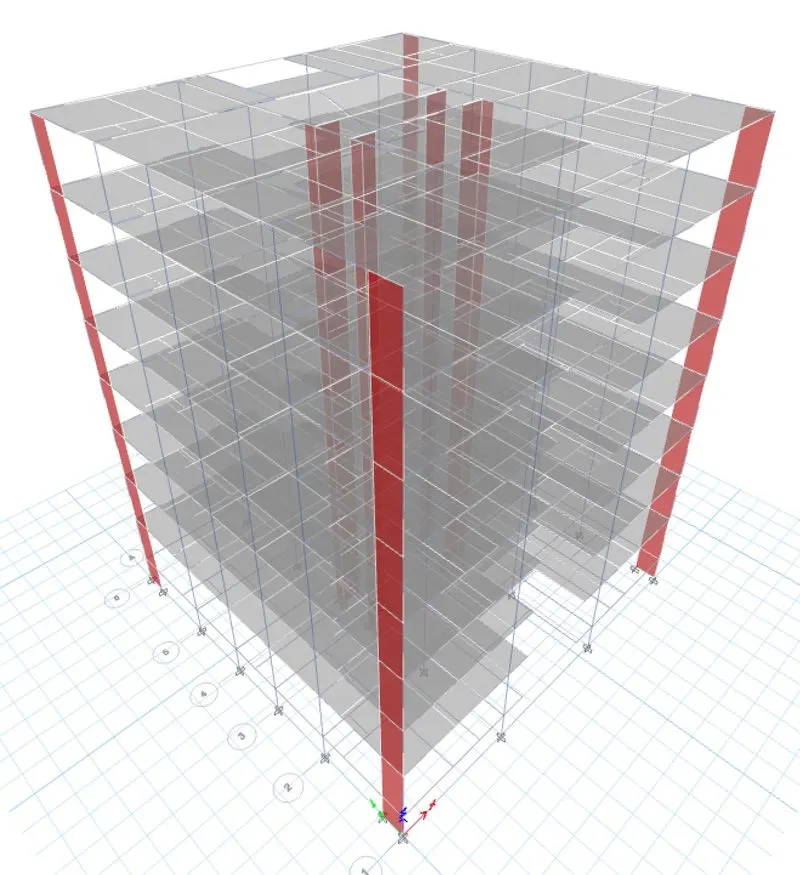

28. We get the G+7 designed building in ETABS 18
