Structural Modelling using Etabs 2018

aim

to model and analyse the G+7 residential building given drawing using etabs 2020

procedure

• open the etab software

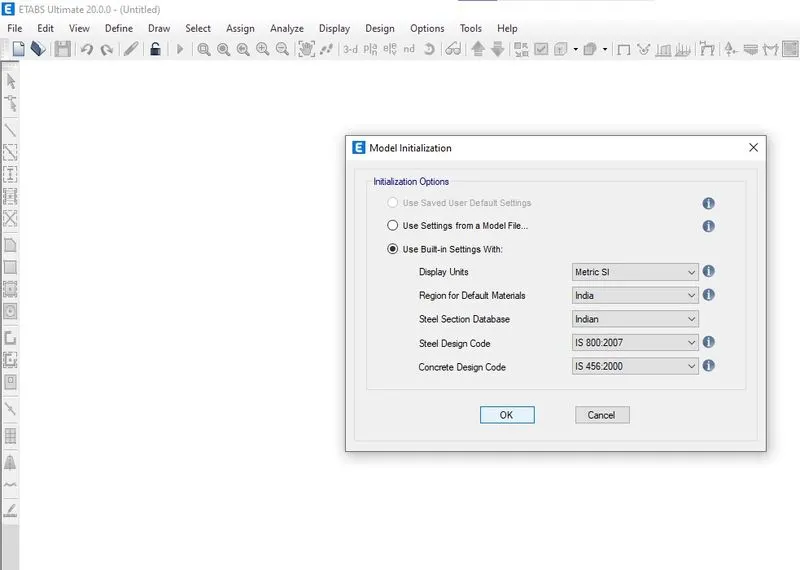

• give new model
•

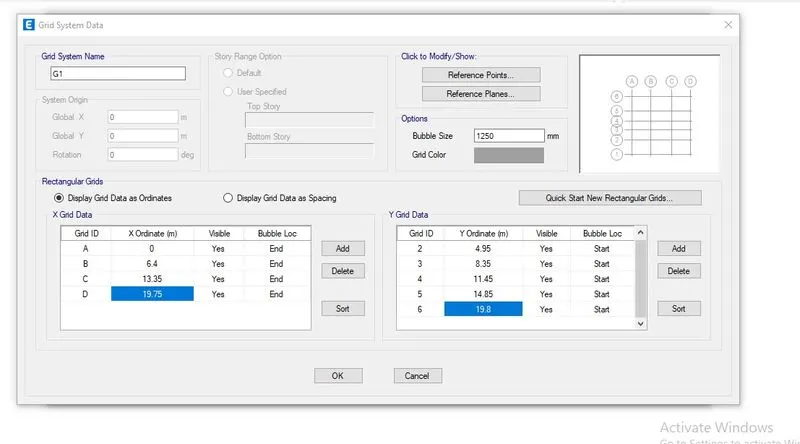

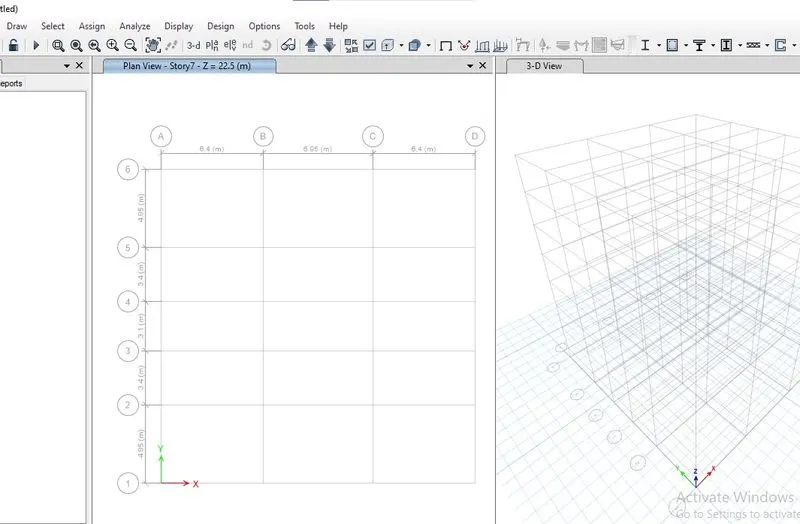

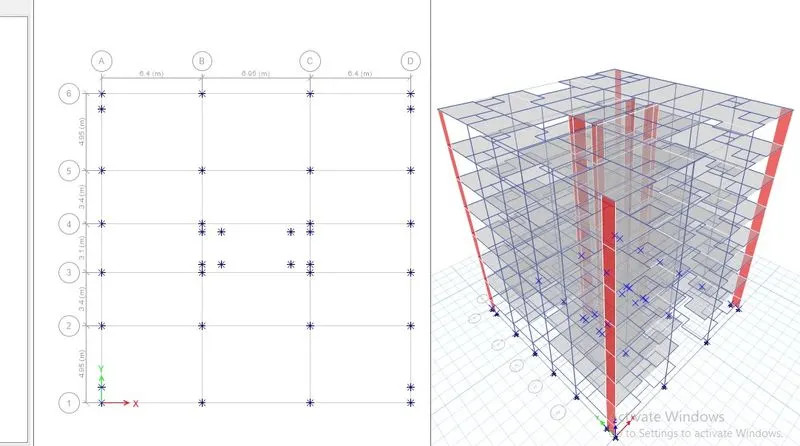

• form the grid data
•
•

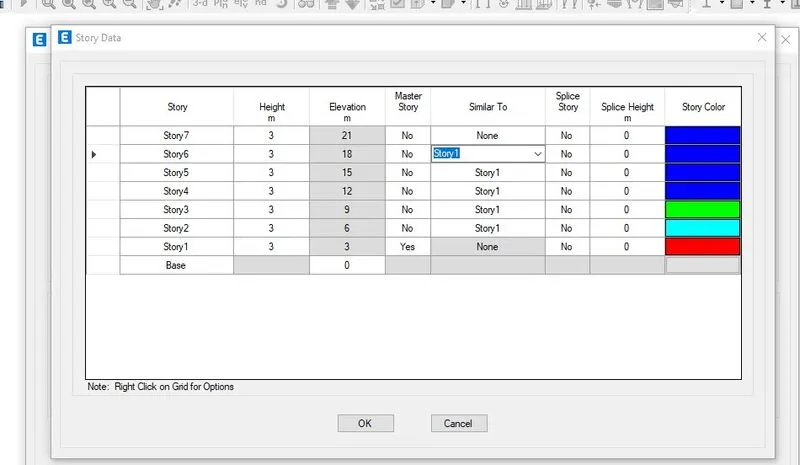

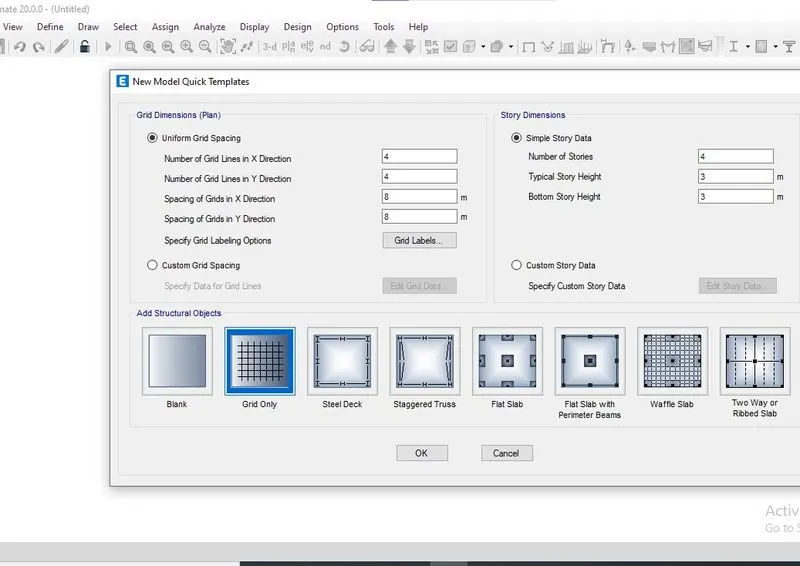

• add storys
•
•

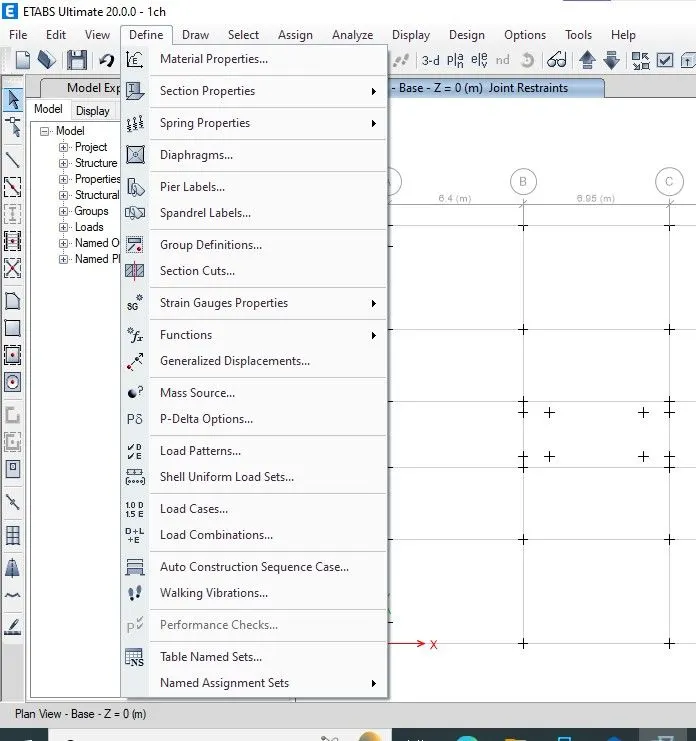

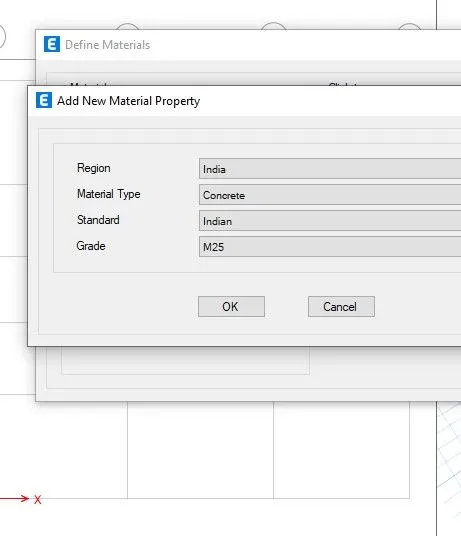

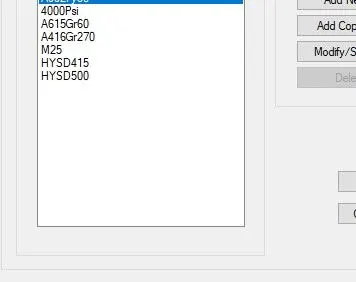

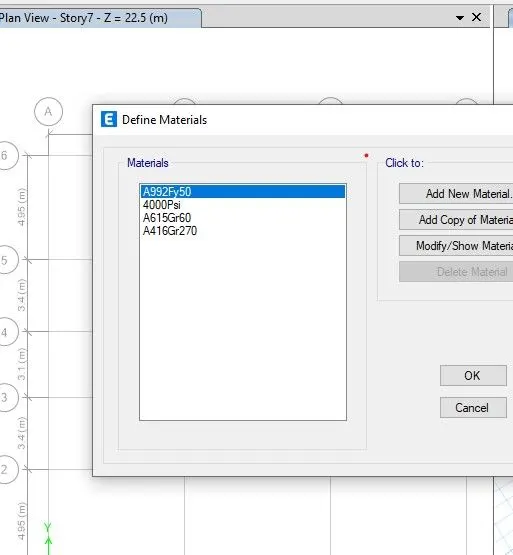

• define the material properties
•

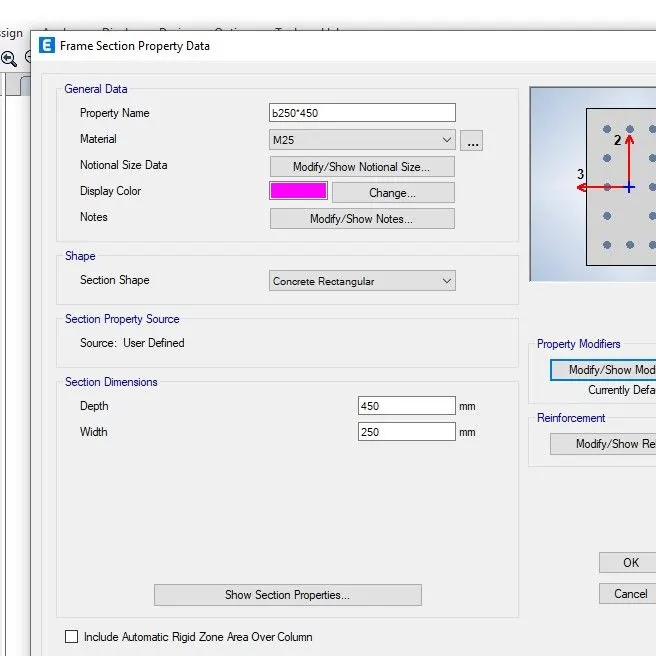

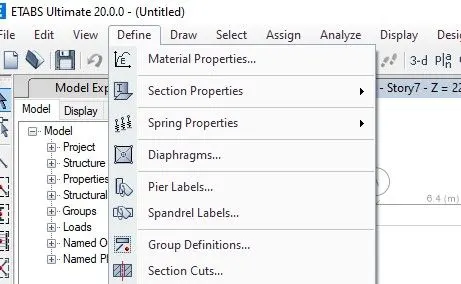

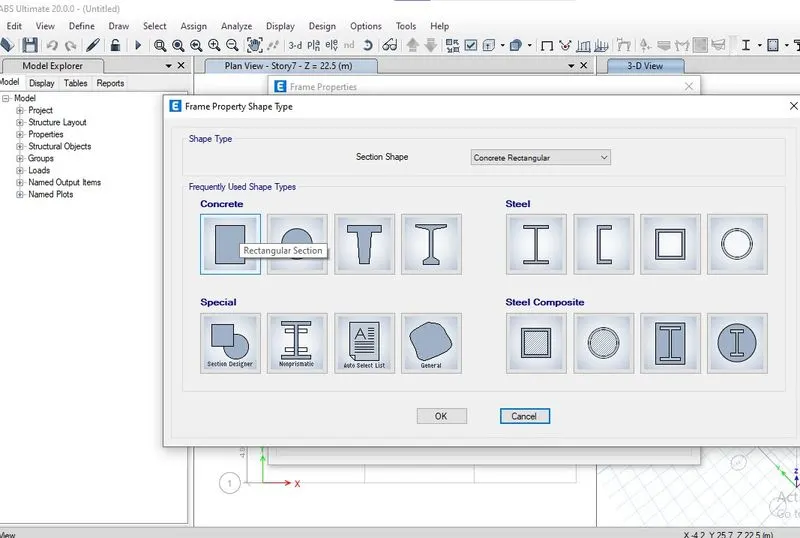

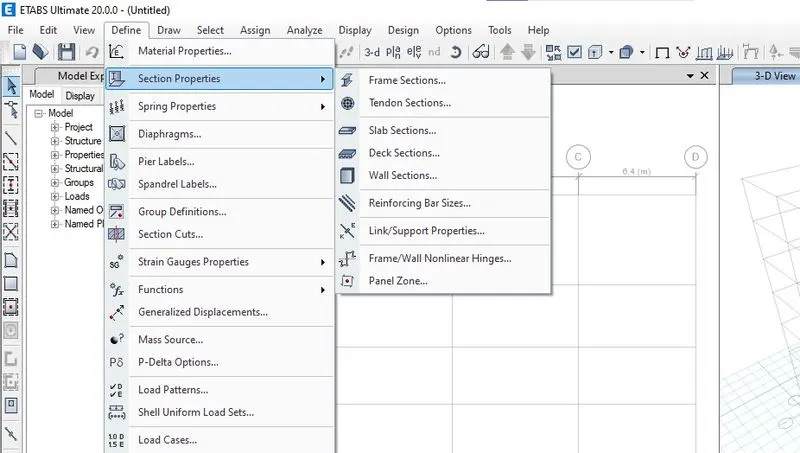

• go to define and add the section properties
•

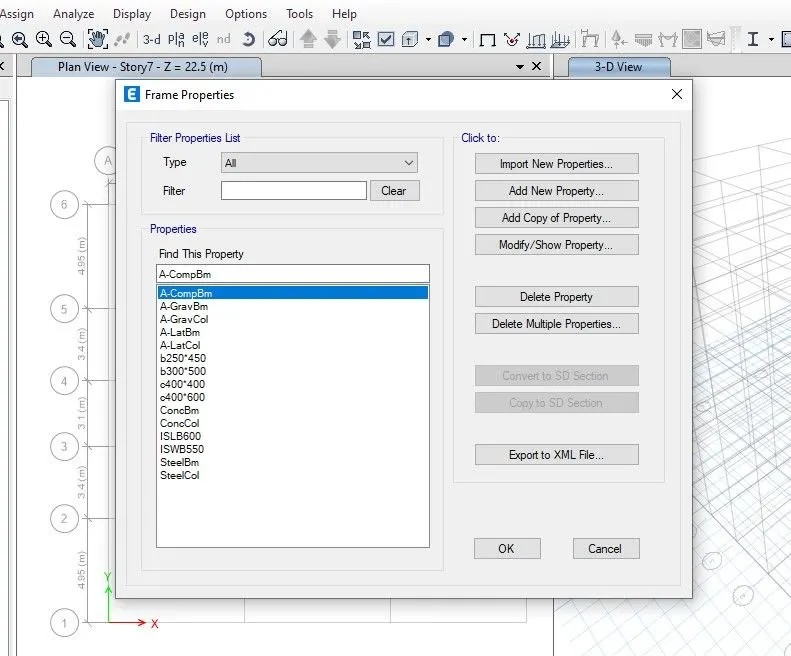

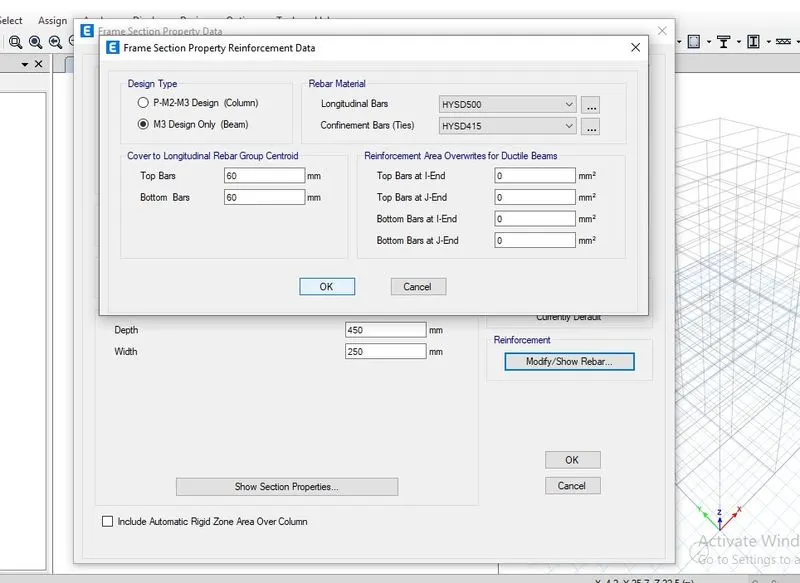

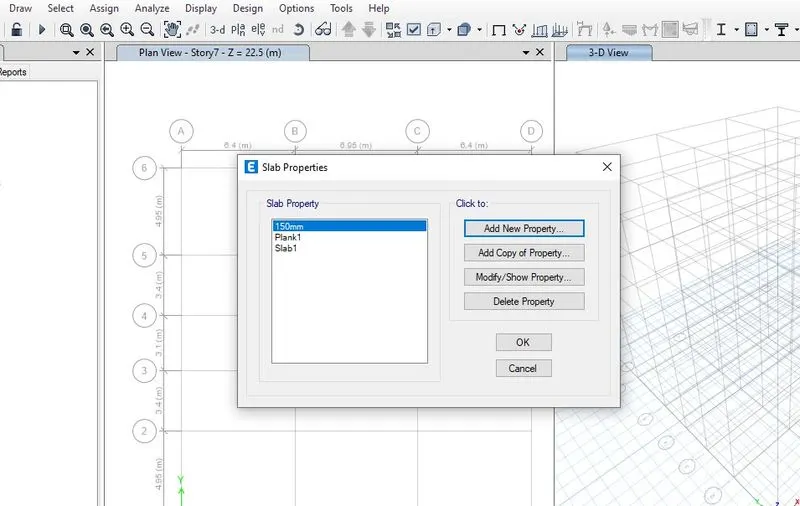

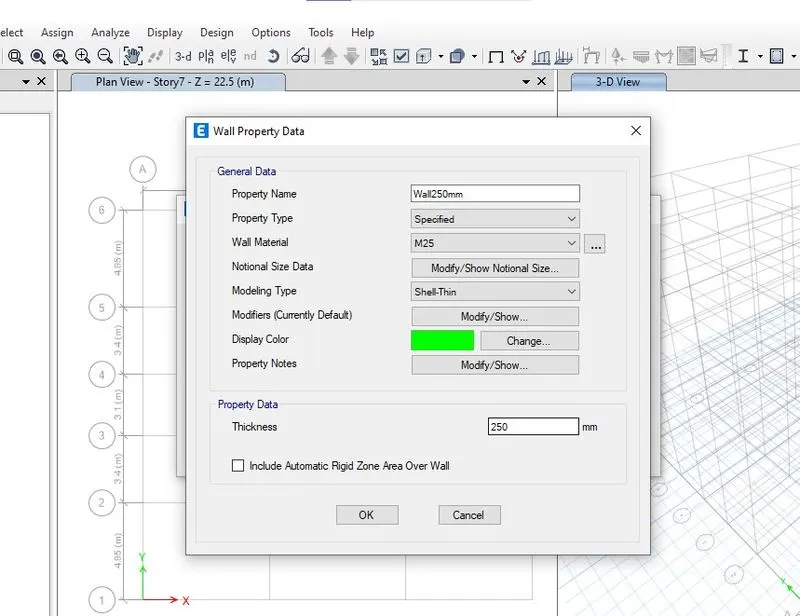

• add beam,column,slab and wall sections
•
•

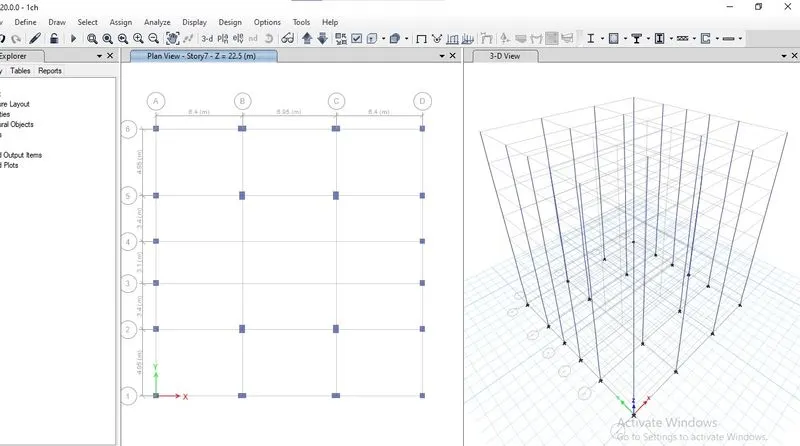

• place the columns using quick draw column,
•

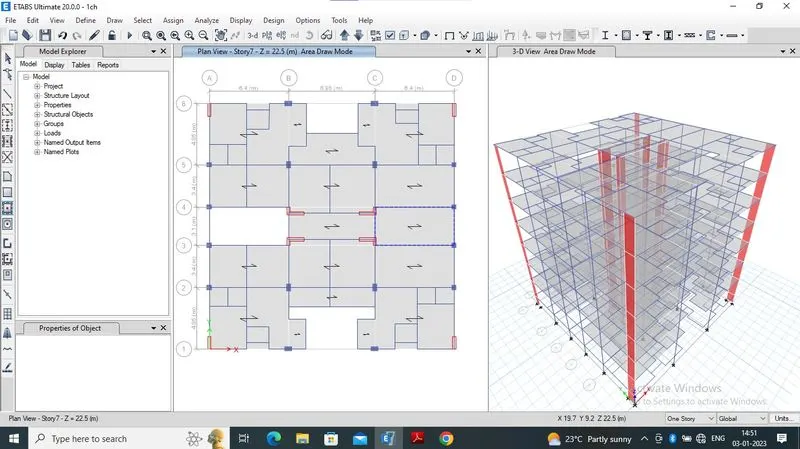

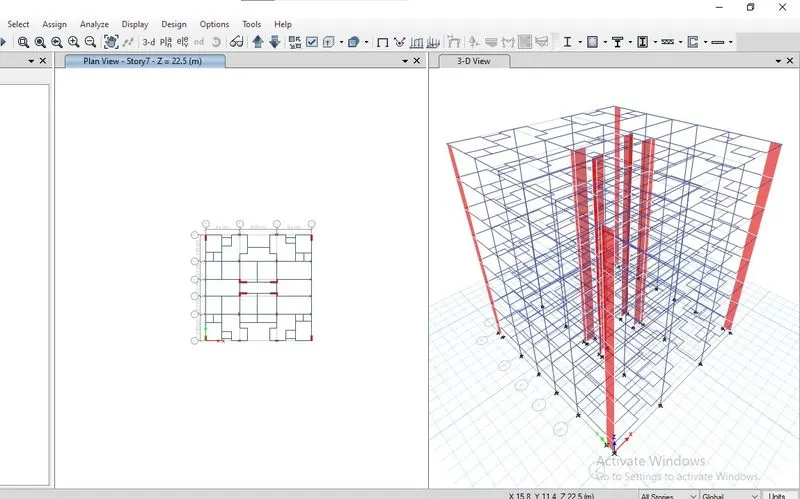

• draw main beam,secondary beam and slabs and wall
•
•
• assign the supports
•

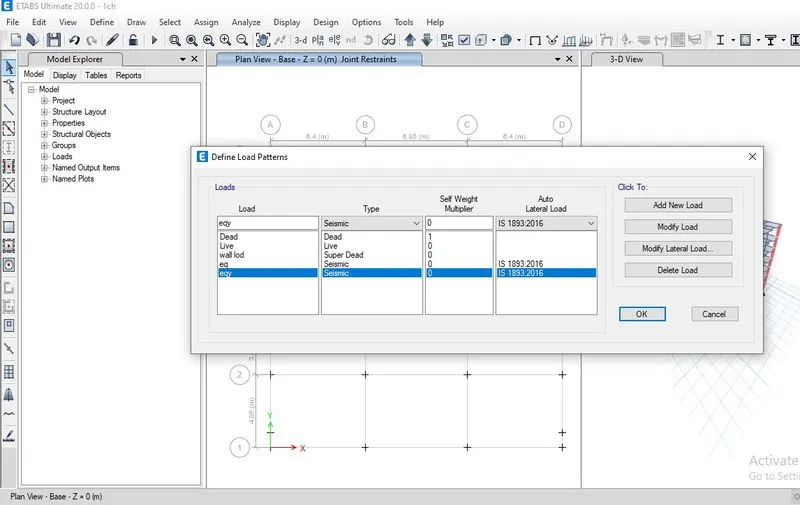

• define the load patterns
•

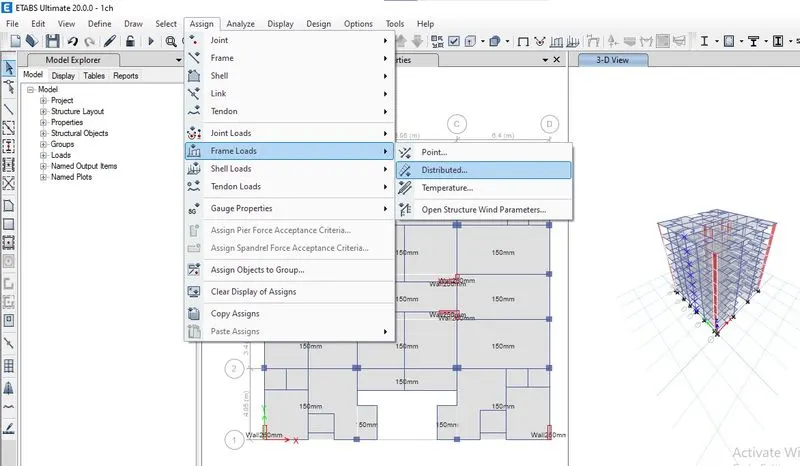

• assign the load datas
•

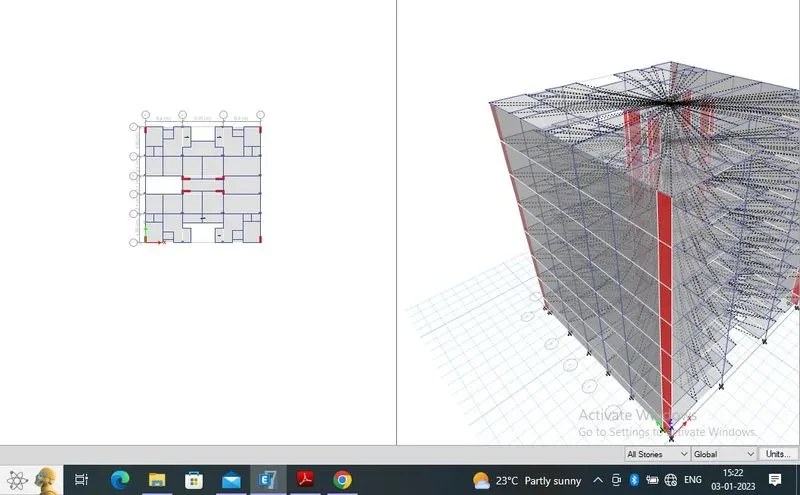

• define diaphrm
•

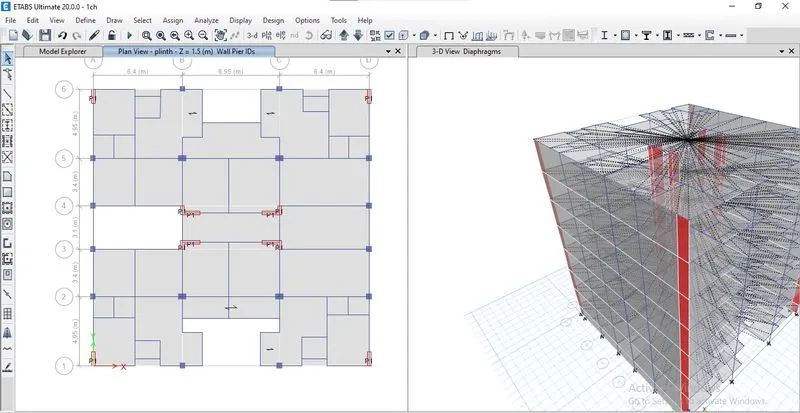

• add pier lables
•

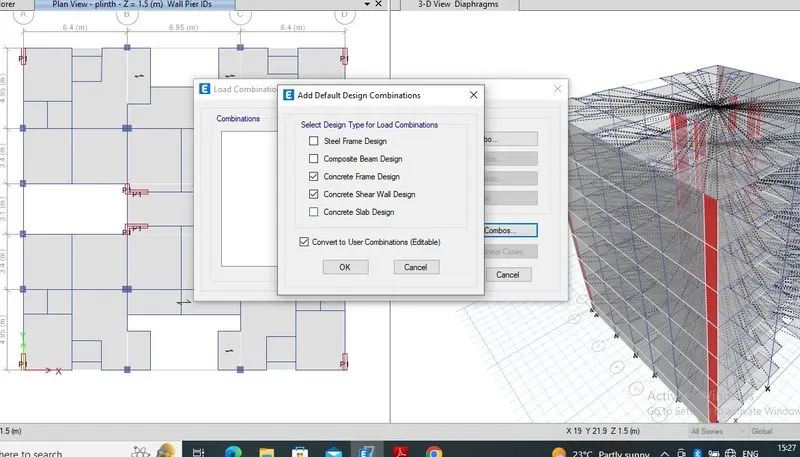

• load combinations
•

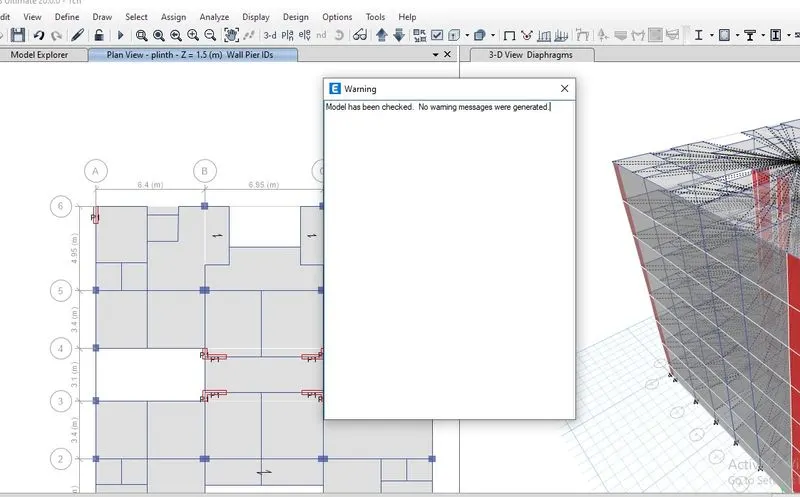

• model check
•

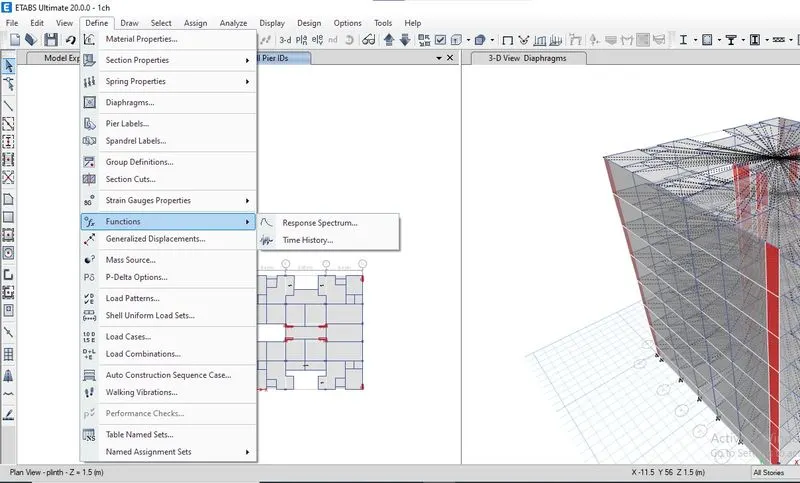

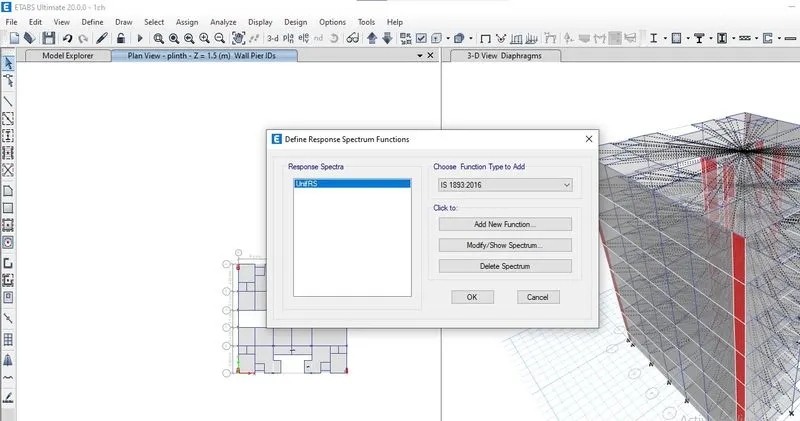

• define menu fuction response factor
•

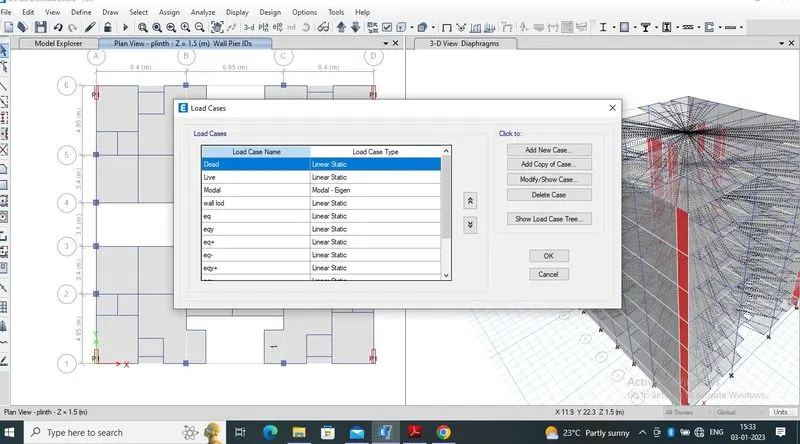

• load case
•

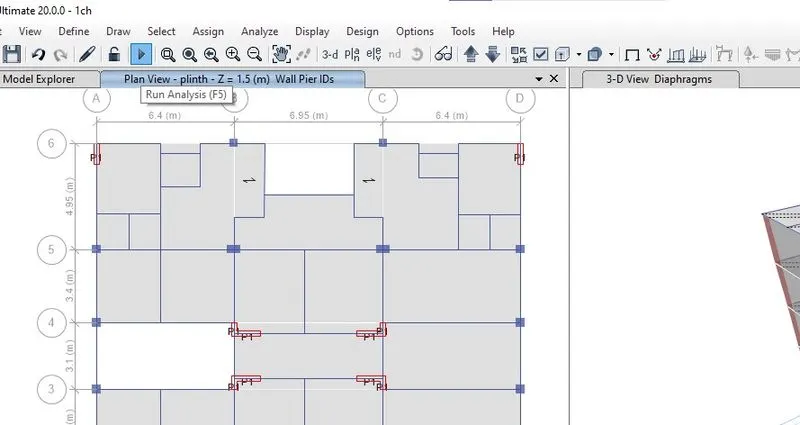

• run analysis
•

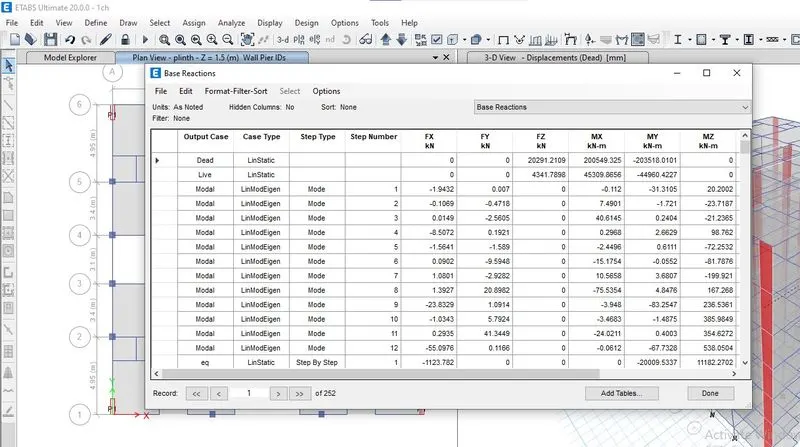

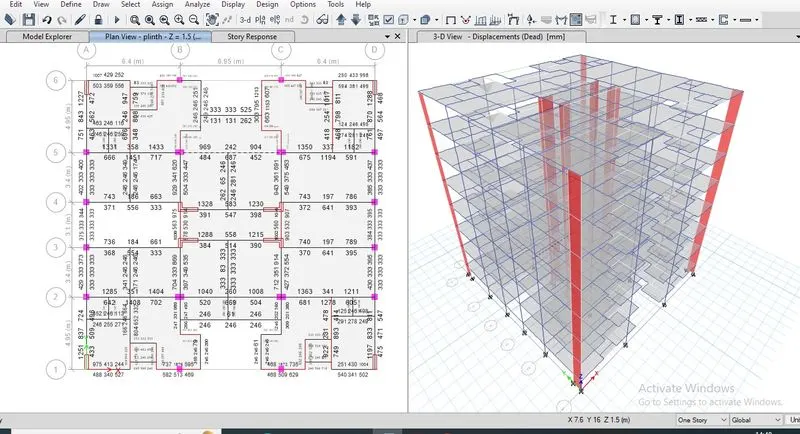

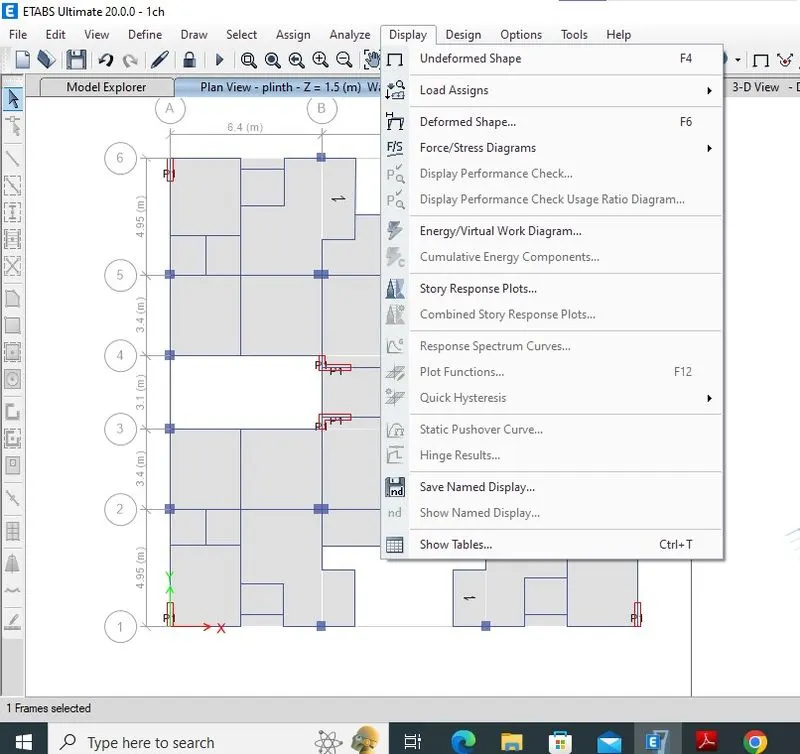

• see the table base reactions
•
• design
•
•

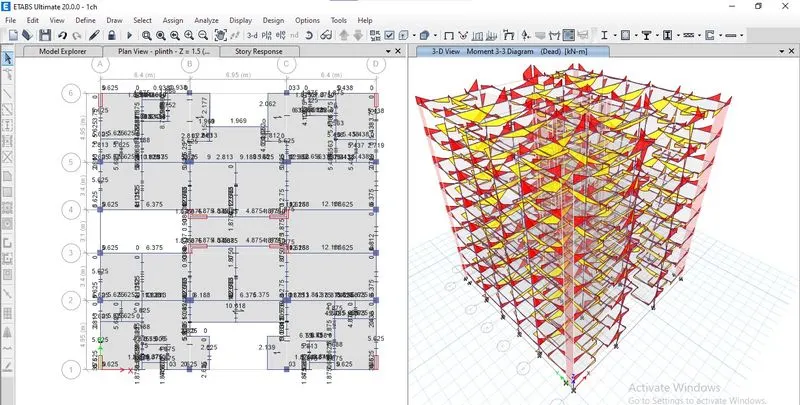

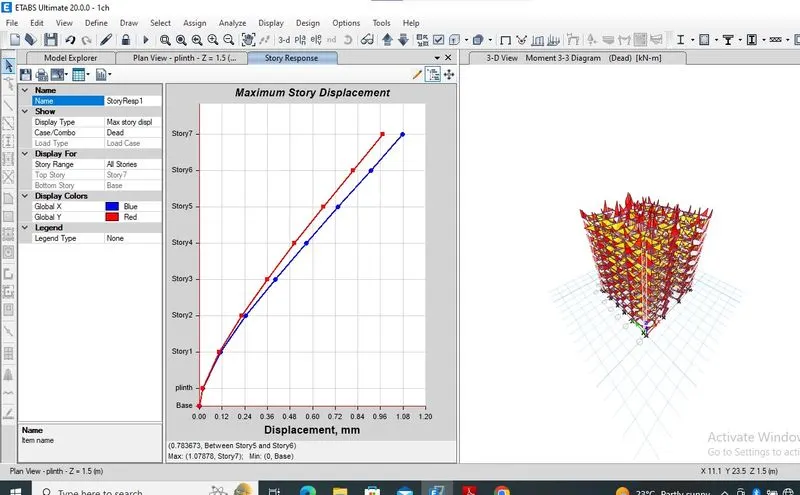

• result
• the g+7 building has model and analyse successfully.
