Structural Modelling using Etabs 2018
AIM:
To model and anlyze the G+7 storey building using ETABS for the given typical floor plan drawing
PROCEDURE:

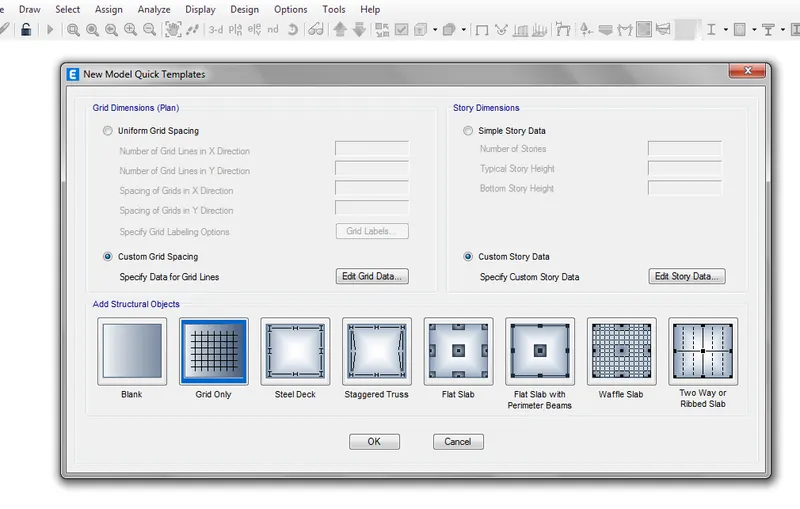

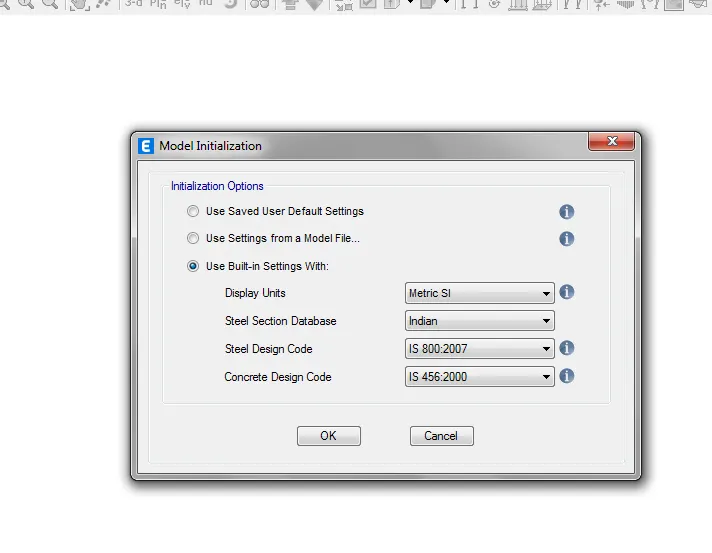

-Open ETABS software and click on new model,following display is visible ,give the specifications as shown in figure.

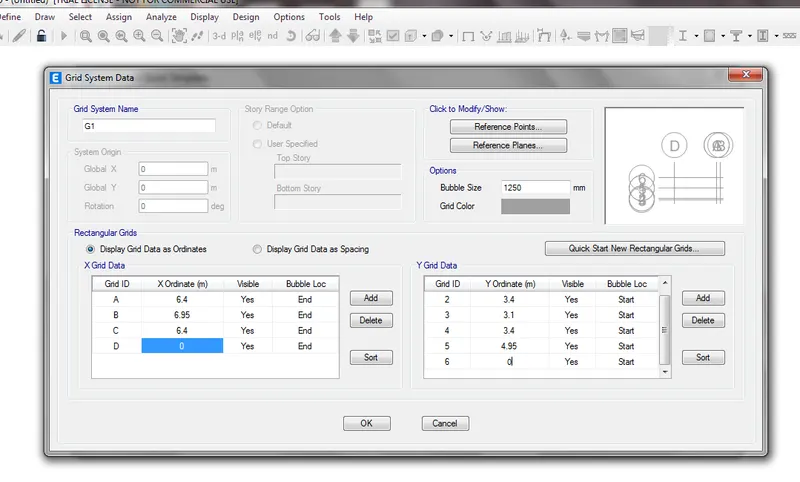

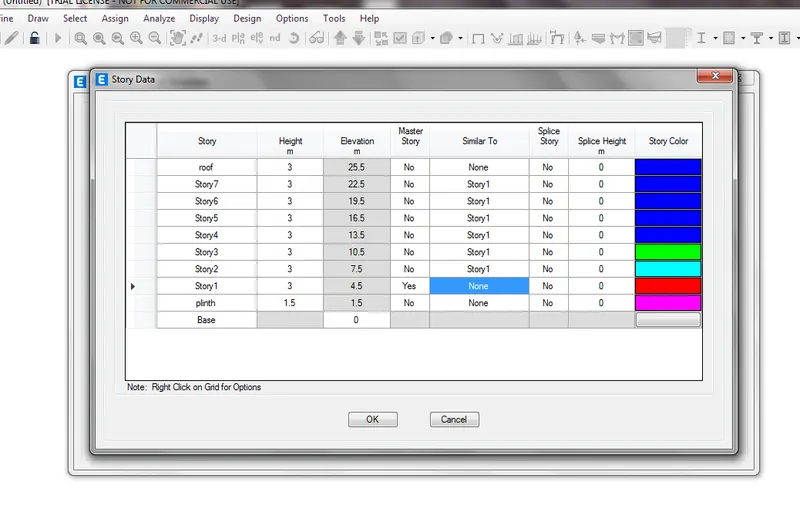

- Now ,enter the grid and story details as shown below

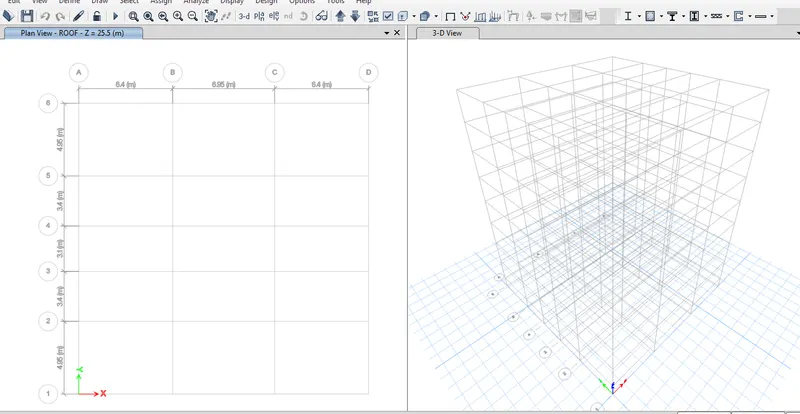

-When we enter the grid and story details ,the following display is visible in the wok area of etabs software

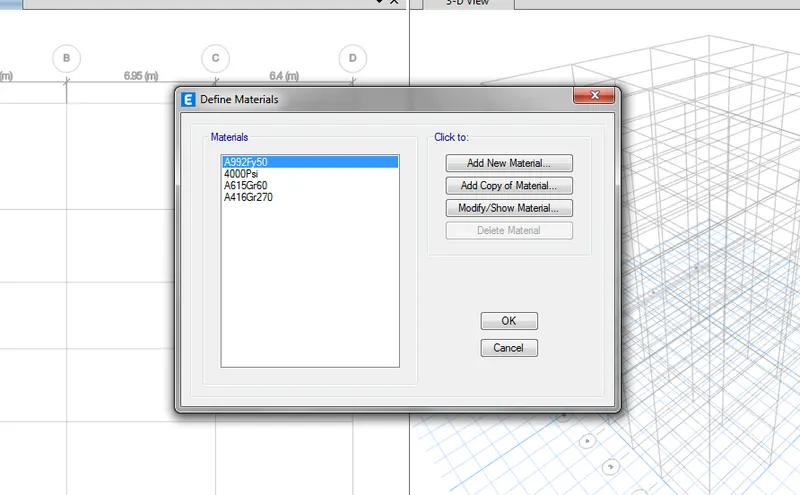

-Now go to Define>>material properties >> add new material

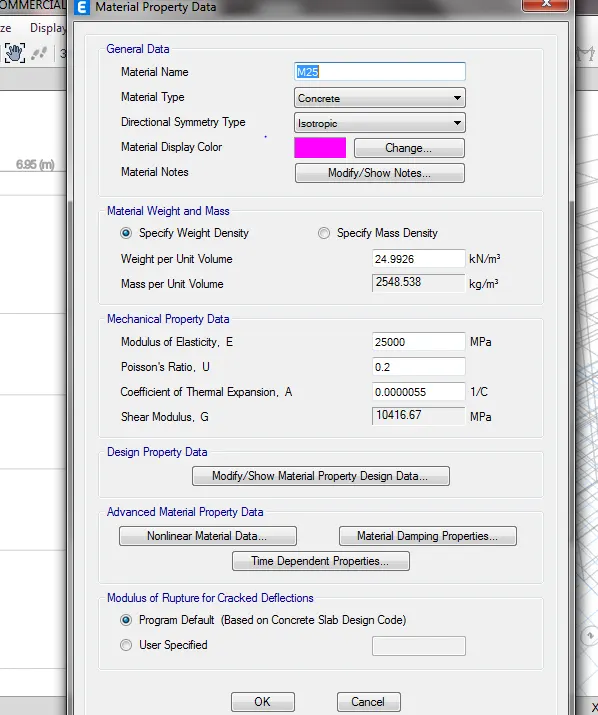

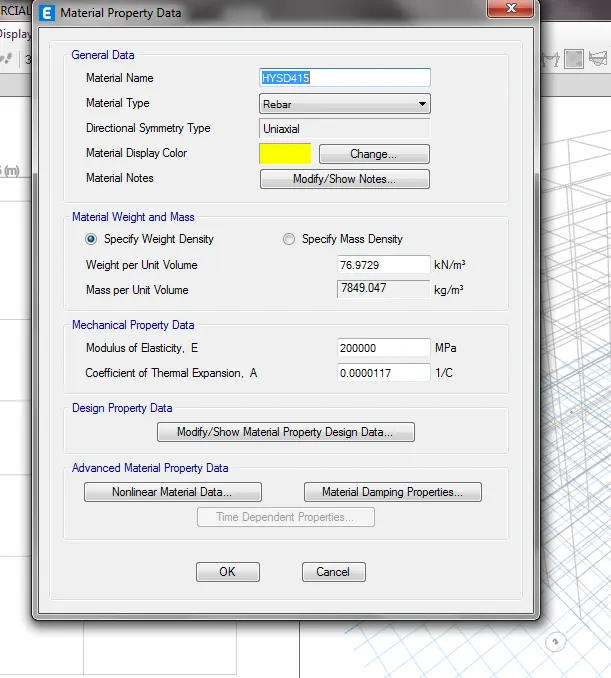

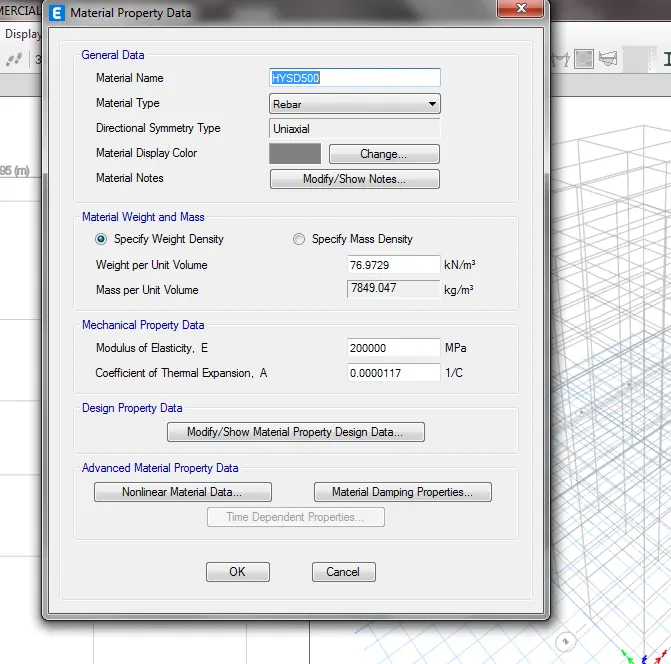

- create ,the new materials,M25,HYSD415,HYSD500 as shown in below figures

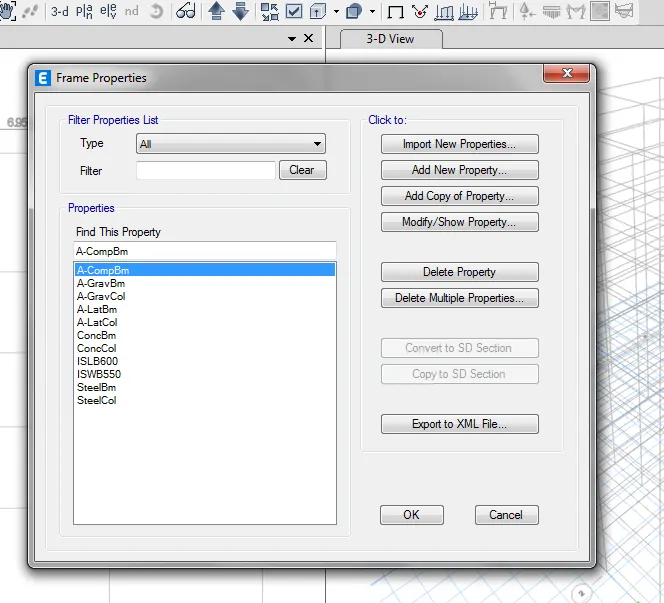

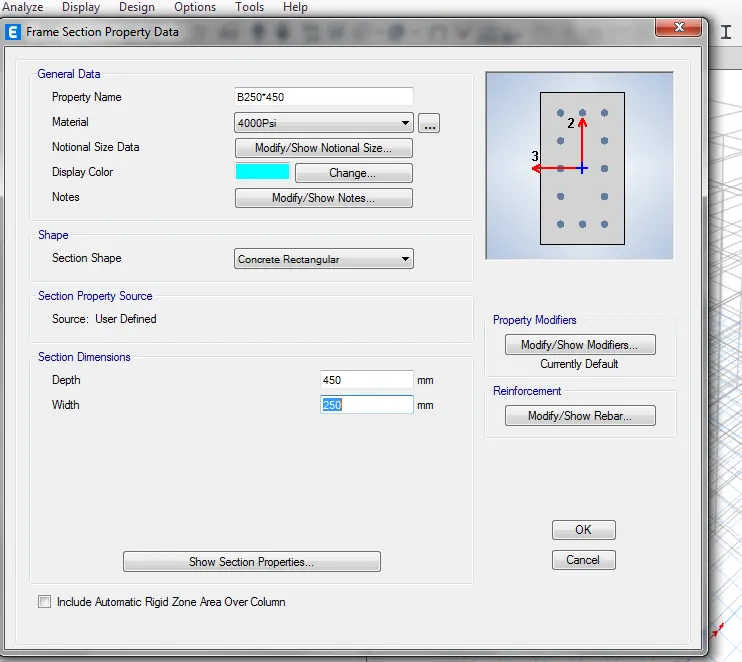

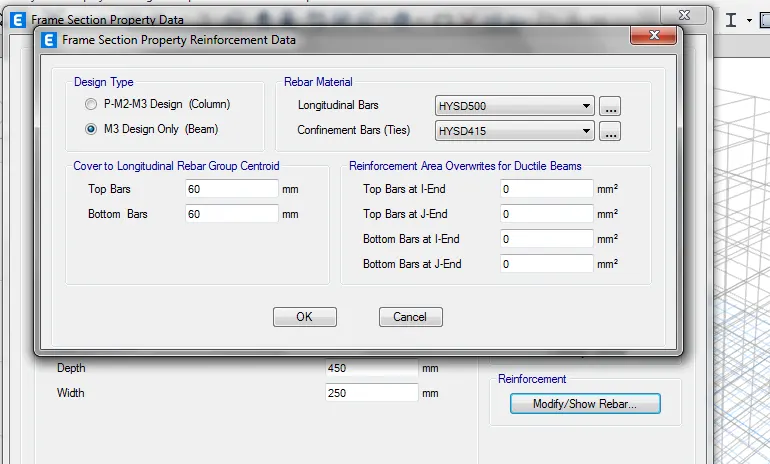

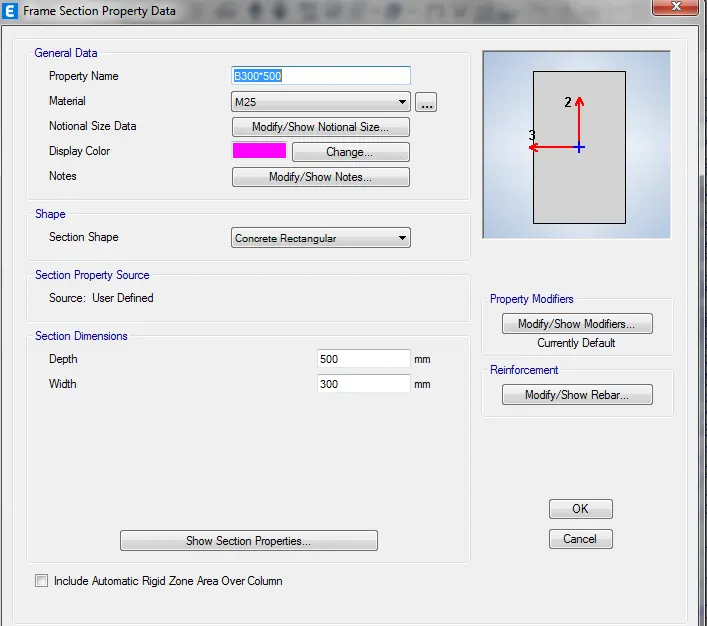

-Now, go to Define>>section properties >>frame properties>>Add new property>>rectangular section. Following this,create beam250*450 and beam 3008500 and set longitudinal bars to be HYSD500 and Confinement bars to be HYSD415 as shown below.

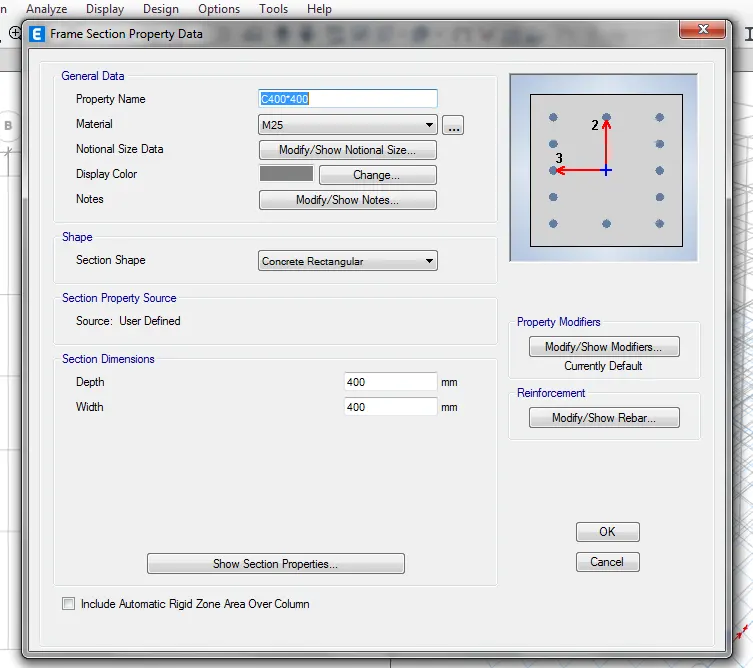

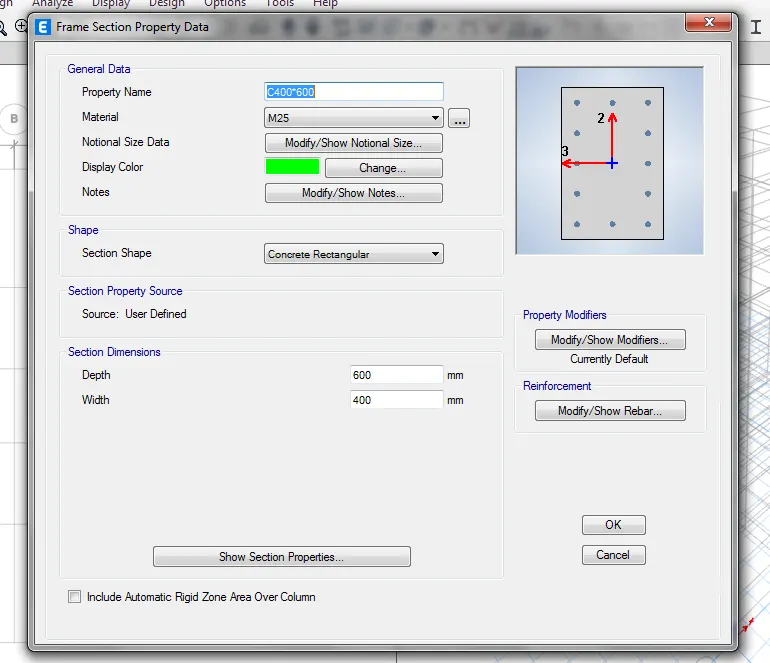

-Again, go to Define>>section properties >>frame properties>>Add new property>>rectangular section. Now,give two columns of sizes 400*400 and 400*600 as shown below.

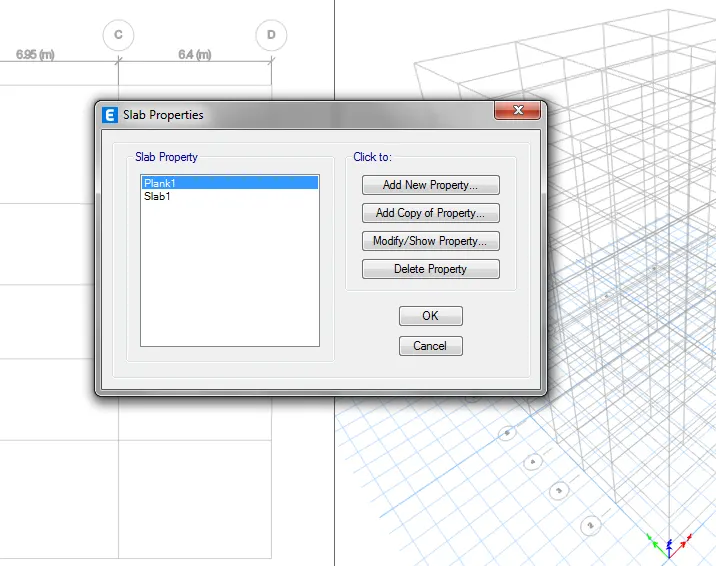

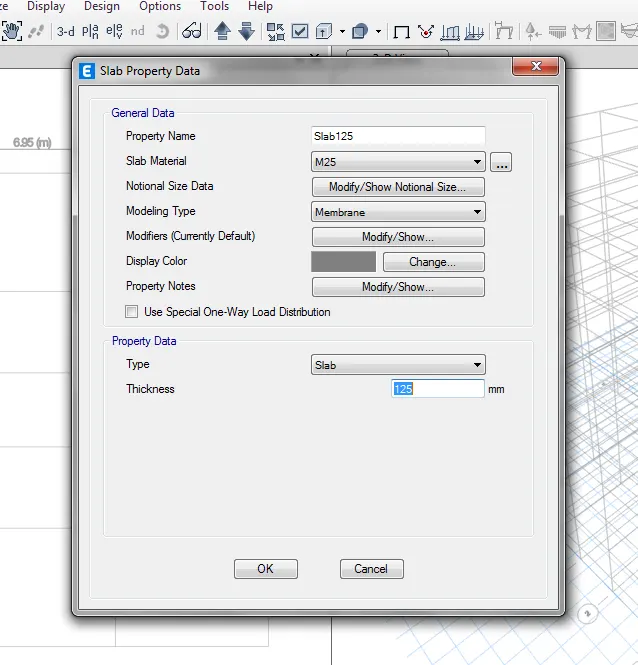

-Again, go to Define>>section properties >>slab properties>>Add new property

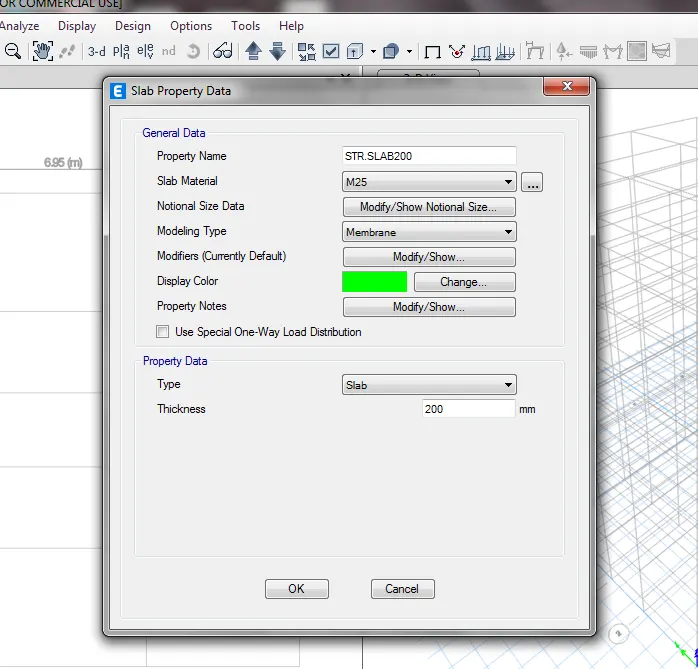

- Add slab of size 125mm and stair.slab of size 200mm as shown below.

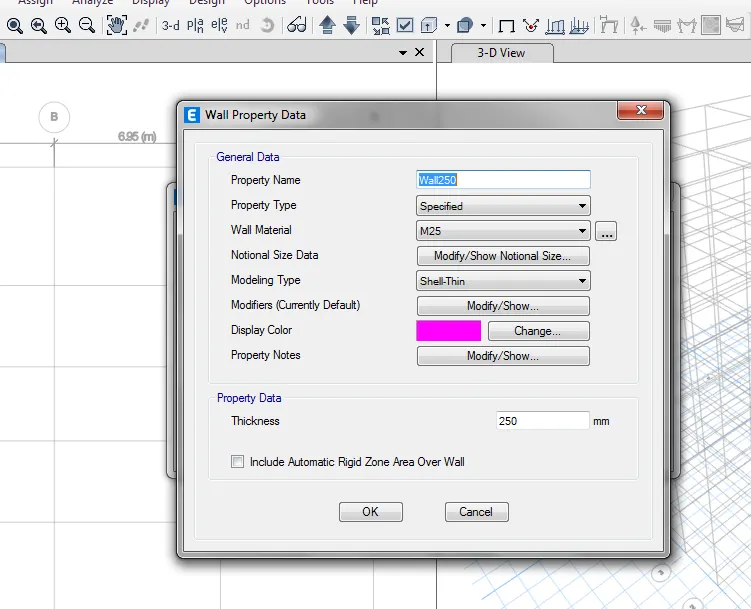

- Add wall of size 250mm as shown below

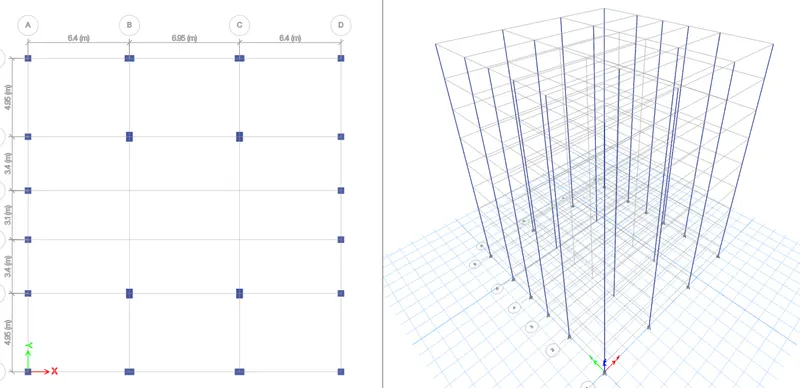

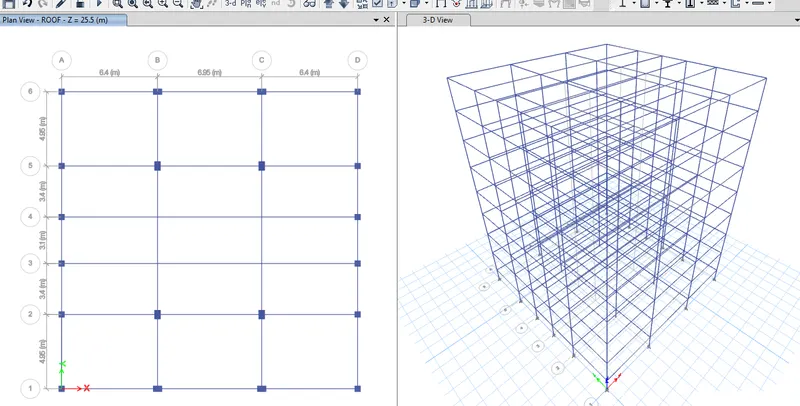

-Now, using uick draw column option ,draw columns as shown below.
- orient required columns according to the attachment.

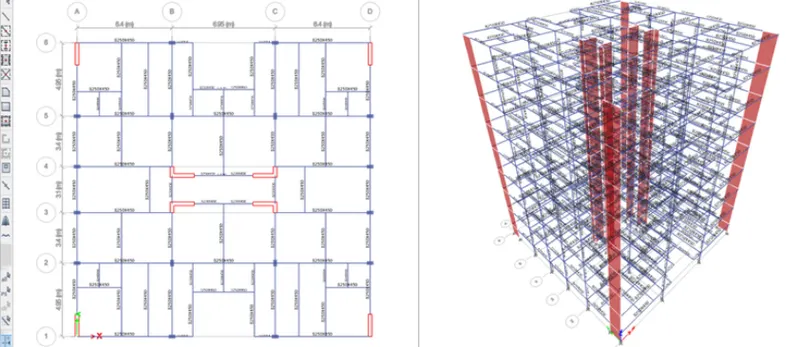

-Now,draw secondary beams, shear walls as per the reuirement

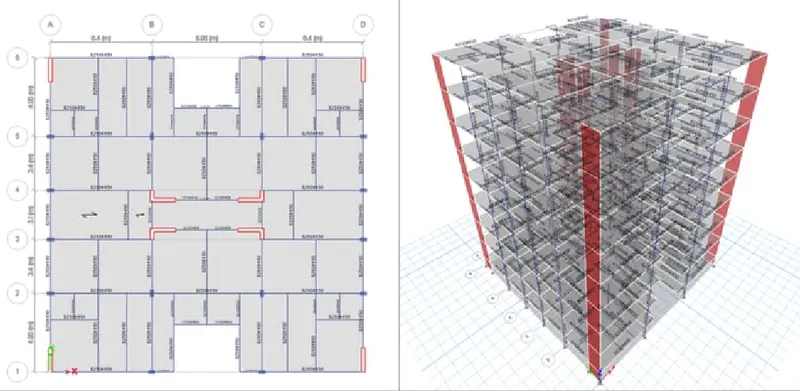

- Now,add the slabs

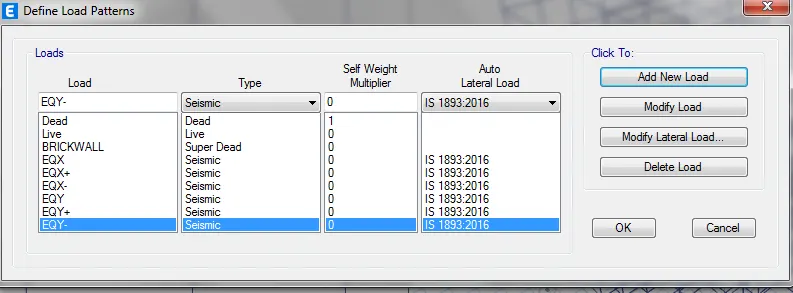

- Now we should select the load patterns from the define option, as shown below.
-Next, we should select distributed load from the frame loads.

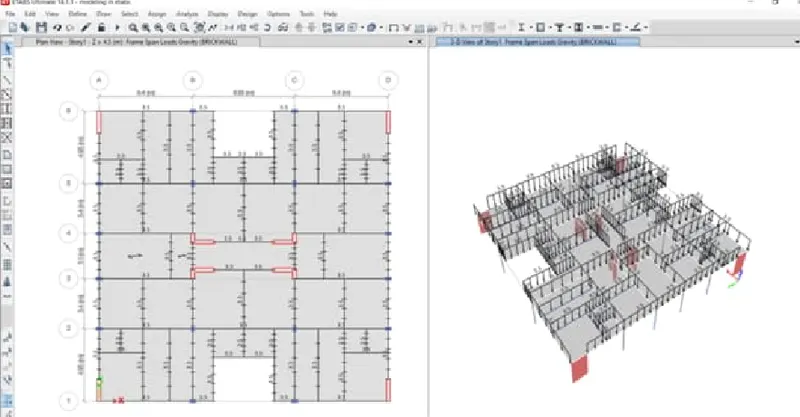

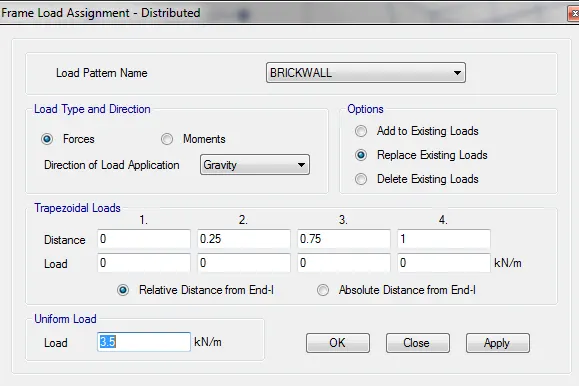

-Enter load pattern name as "BRICKWALL" and uniform load of value 3.5KN/m

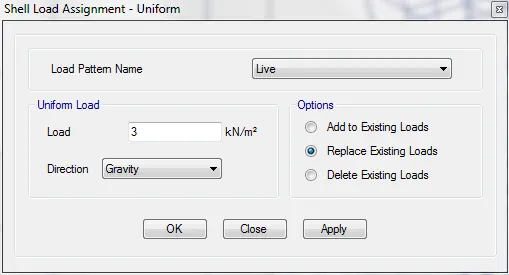

- Now,go to shell loads and then to uniform. Enter load pattern name as Live and uniform load of value 3 kN/`m^2`
- we need to apply the loads

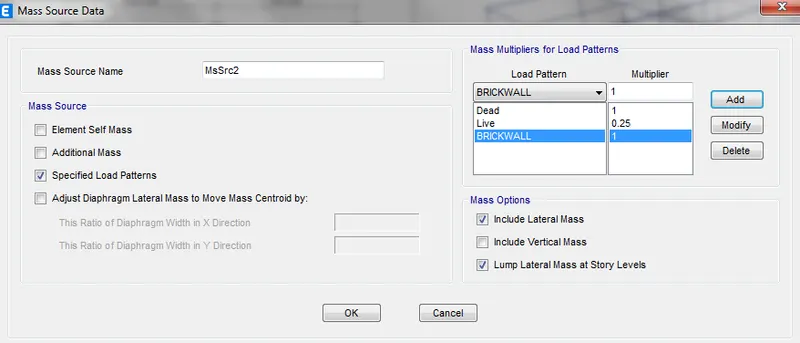

- Go to mass source data and enter load patterns as shown below.

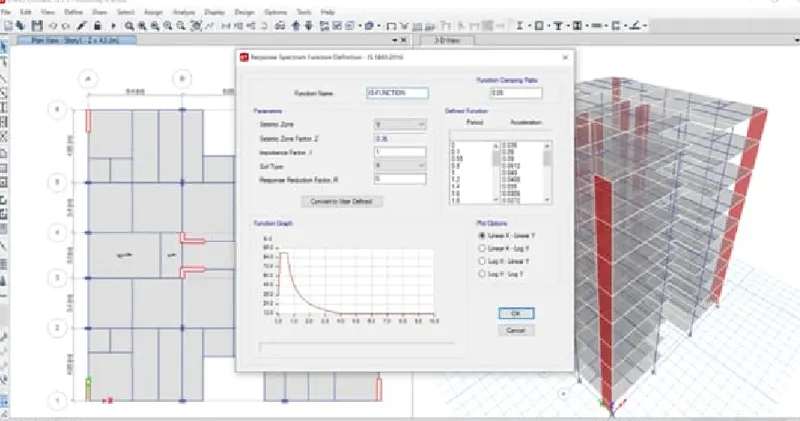

-Now go to Define>>Functions>>response spectrum>>function type>> modify/show spectrum. Give the function name as"IS FUNCTION" and all the details are changed accordingly by the software itself.
