Structural analysis of a buidling using Robot Structural Analysis
1) What are HVAC systems? Why are they essential in the modeling of buildings.
ans-An HVAC (heating ventilation air conditioning) system is integrated into a building to provide comfort for the residents. It allows for creating a comfortable environment by controlling the temperature of a room through heating and cooling.
There are different types of HVAC systems such as:
- Split and window AC system
- Packaged heating and air conditioning system
- Central AV system
- Smart HVAC system
Not all systems work the same way; some only provide air conditioning while other systems provide both ventilation and temperature control. The smart HVAC systems are known to be more energy efficient and they lower carbon emissions into the atmosphere.
Besides these basic facts, let’s take a look at the top four advantages of having an HVAC system integrated into your home, or a property you’re renting or selling.
Benefits of an HVAC System
1. Cost Effective
Integrating an HVAC system into your home can actually lower your electricity bill, especially if you install a smart energy efficient HVAC unit. You can reduce your electricity bill by 20% by using a smart hvac system.
2. Safe Heating and Cooling
With an HVAC system, you can easily cool or heat a room in a matter of minutes. Using heaters to warm up a room can increase your electricity bill by triple the amount you pay, not to mention it’s a massive fire hazard.
Cooling down a room is easier using HVAC systems and can provide comfort in regions with hot climates.
3. Cleaner Air
An HVAC system reduces stuffiness in a room that may not have natural airflow. The system provides ventilation so you don’t breathe in dust particles. Energy efficient HVAC systems are said to detect when there are lower carbon dioxide levels.
4. Remote Access
New technology allows some HVAC systems to be Remote activate on the premises yet. You can easily turn your HVAC system on or off with a smartphone in any room of the house or when you’re out and about. This makes it highly convenient because you can walk into a cool room the moment you arrive home.
In regions where the temperatures drop below zero, there needs to be an indoor heating system to prevent people from using hazardous forms of heat such as heaters or fireplaces. The same goes for places where the climate is hot, as heat waves can cause heat stroke or other health risks. An HVAC system prevents this challenge.
Office buildings can also benefit from HVAC systems as some workplaces don’t have windows. HVAC provides ventilation for places that don’t have sufficient airflow.

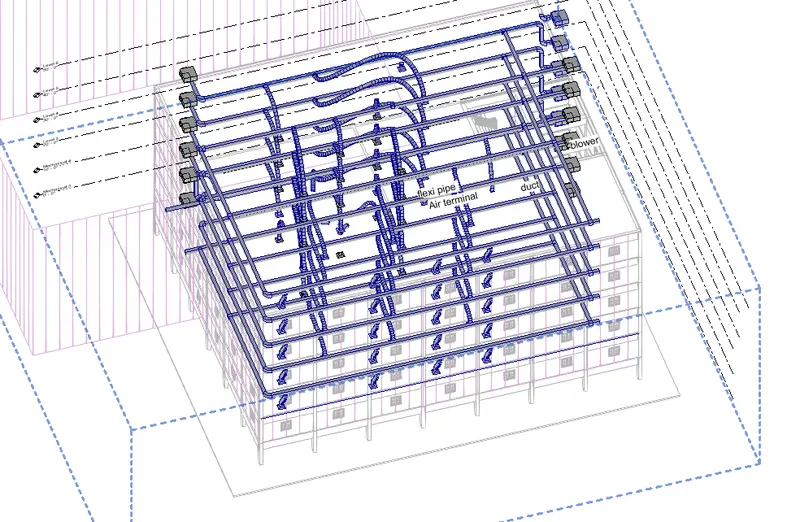

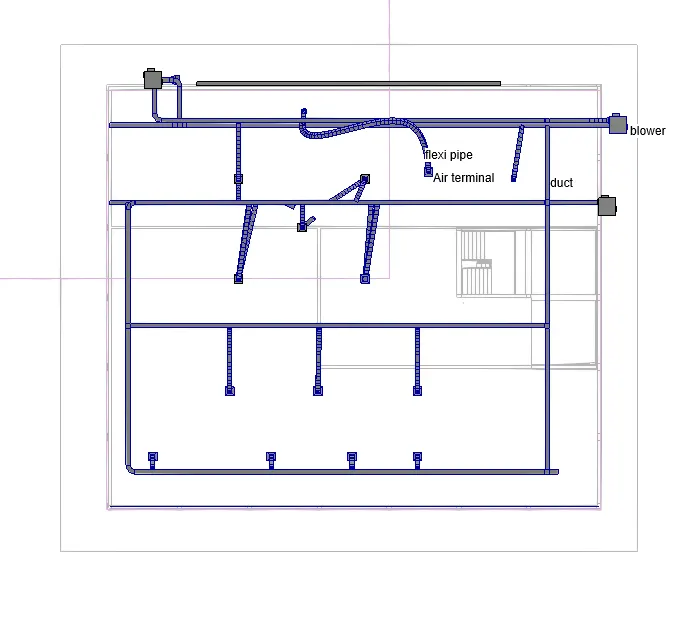

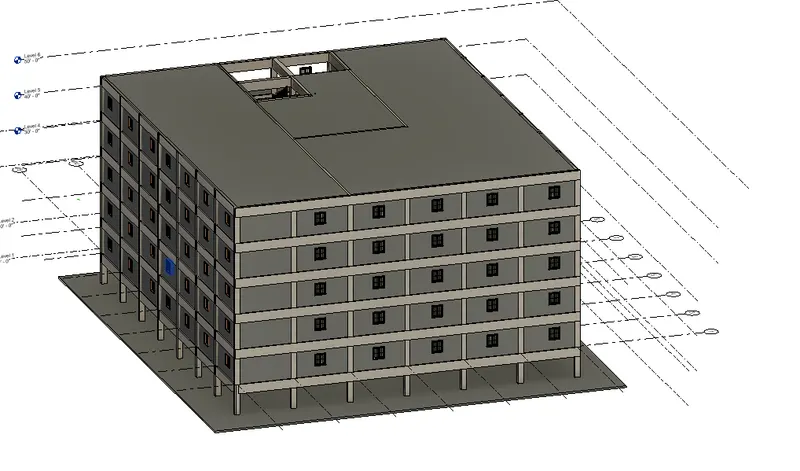

2) From week 7 assignment, based on the building designed use the same Revit file to design a HVAC
system for each floor to cover the topics included in the class.
a. Typical HVAC unit includes Distribution center
b. Collector
c. Ducts
d. Blower

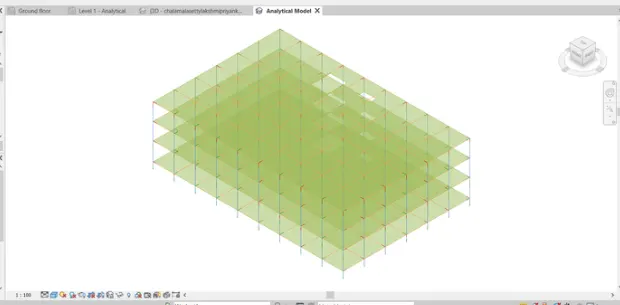

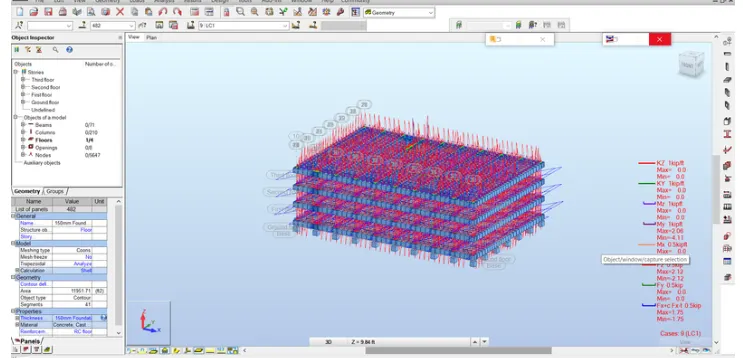

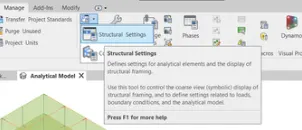

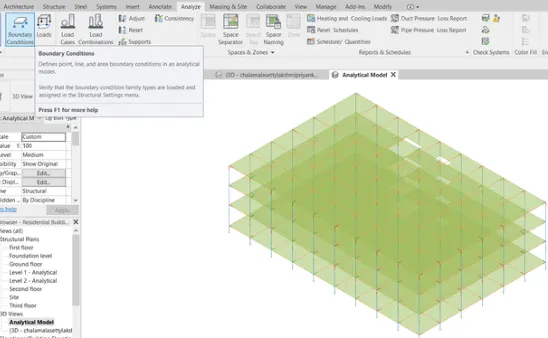

3) Use the add-ins tab to load plug-ins for robot structural analysis to your Revit software
4) Why do we need to assess buildings/analyze while modeling elements? Does design affect modeling in anyways?

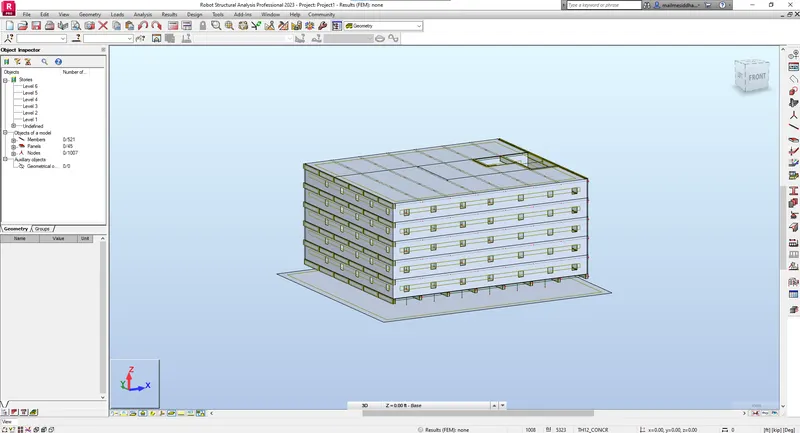

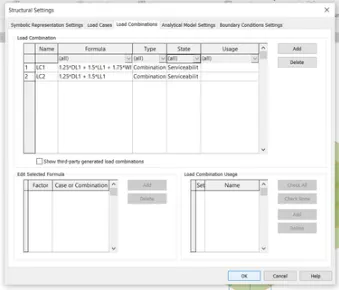

Analysing a building is nothing but calculating forces and bending moments that occur when loads are applied. Revit enables us to calculate the forces, reactions, bending moments etc, by using robo structural analysis option making the work of a designer easy . Energy analysis is also important aspect as it calculates the overall performance of building. Analysing a building is very important because it gives complete understanding of building and how it acts when some natural calamities like tornados, earth qauke occurs. Analysis or assessment of building makes us understand how much strength a building gives and how much is the actual requirement , this helps us to make required changes to attain the expected functionality.
Assesment of building enables us to design the building and structural elements accordindly like placing the columns, arrangement of trusses, beams, etc. Designing a building is most efficient when assessment of building is done. Modeling is surely affected by designing. As designing involves creating plan of a model, when design changes obviously modeling varies. As desiginng depends on structural analysis of model, both designing and modeling are affected by assessement of building.
