Solving Air Standard Cycle using Matlab

Air Stadard Cycle solving and program to get the p-v diagram plot

Otto Cycle is the air standard cycle of the SI engine.

The otto cycle consists of the following processes:

1.Process 1-2 Isentropic compression.

2.Process 2-3 Constant volume heat addition

3.Process 3-4 Isentropic expansion

4.Process 4-1 Constant volume heat rejection.

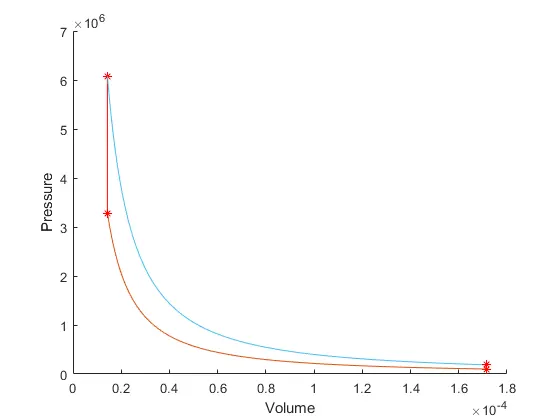

Output of the program: Plot of p-v diagram for air standard otto cycle with engine parameters:

Bore diameter-0.05 m

Stroke length-0.08 m

connecting rod length-0.07 m

compression ratio of 12

The efficiency of the air standard otto cycle is a function of compression ratio.The higher the compression ratio, the higher is the efficiency.
