Sketch a G+1 residential plan according to Vaastu Shastra and Calculation of Loads as per IS code

About Vastu shastra:-

• Vastu shastra is the ancient Indian science of architecture and act as a guideline to design your home in a way that enhances positive energy.
• our nature is abundant with powerhouses of energy sources like the sun wind moon water earth and fire
• effect of the sunrise flow of winds pool of earth magnetic field and other such cosmic energies
• a good home needs to radiate the right kind of energy
• a person drilling in a house comes under the influence of a specific energy field which comes under the influence of specific energy field
• architectural changes are not possible for a ready-to-move-in house.

Significance of directions:-

• four cardinal directions north, South, East, and West
• four intercardinal directions north-east, north-west, south-east, and south-west
• each direction signifies an aspect of life and is governed by various gods
• North - Wealth
• South - dharma
• West and east - overall prosperity.

basic principles of Vastu shastra:-

• shape: rooms should preferably be square or rectangle
• room basics: rooms should be very well it bright and clean
• home center: center of the house should be a space with stairs and furniture heavy furniture should be kept in the South West direction
• water: avoid keeping plants and water features in the bedroom
• dining table: dining space should be near the kitchen and not near the main door
• mirror placement: mirror facing the bed is strictly not allowed mirrors in the bedroom need to be placed in such a way that the bed can be seen.

auspicious directions as per Vastu shastra:

• kitchen: south-east is the best, north-east to be avoided
• staircase: south-west is the best, north-east to be avoided
• toilet: north-west is the best, north-east to be avoided
• master bedroom: south-west is the best
• guest room: north-west is the best
• living room: north-west is the best
• overhead tanks: waste is the best
• underground tanks: northeast is the best, and southwest is to be avoided.

gateway of the house:-

• main entrance is not only the entry point of the family but also for energy
• the main door should be stronger and bigger than other doors in the house and made of superior quality would preferably teak wood
• the main door should not be dark because good energy associated with bright and cherry places
• garbage bags unwanted things and shoes should be kept away from the main door
• the main door should open in Word and avoid a creaky sound
• the main door should be constructed in a way to ensure that when you step out you face the northeast or in the North East direction
• avoid painting the main door black and placing animal statues near the door.

living room:-

• living room should be clusters of free and is the place where the families paint most of the time together
• living room should face east north or northeast
• northwest facing living room is also favorable
• heavy furniture should be kept in the West or South West direction of the living room
• electronic appliances should be installed in the South East section of the living room
• if planning for a mirror in this room, insure you place it on the north wall.

bedroom:-

• bedroom in South West direction brings good health and prosperity
• avoid a bedroom in North East as it may cause health issues
• avoid South East zone as it may cause quarrels among couples
• bed should be placed in the South West corner of the bedroom with the head facing West
• placing a mirror television in front of the bed because reflection causes fight another domestic disruption
• avoid having paintings depicting water or a fountain as it could cause an emotional outburst
• using aromatic oil creates an Oasis of calm
• never sleep with your head in the north
• avoid overhanging beams in the room to enjoy good health
• use solid wooden beds instead of Hollow brought iron beds
• paint the bedroom walls in neutral shades that radiate positive energy
• bedrooms are the place for the rest of repose and it’s good to have soothing wall colors for a peaceful aura

pooja room:-

• rooms in a house for meditation and prayer will ensure spiritual growth
• east or North East part of your home is perfect for meditation, yoga, and spiritual pursuits. facing east when you meditate will increase positivity
• white, Bing, or light yellow or green are great color options for the meditation room.
• create a sacred altar and decorate it with candles or incense sticks.

kitchen:-

• following Vastu for the kitchen ensures a healthy life for your family's growth
• keep the water sink away from the gas stove
• fridge needs to be placed in South West corner
• never let your kitchen face of washroom wall nor share a common wall with it

study room:-

• select a square or rectangle shape for a study table
• and Don’t place the table facing a blank wall or window.
• Placing a table in the North East, East, or West direction is ideal.
• Hanging bookshelves are best avoided.

Courtyard:-

• Brahma Sthan is a unique feature of ancient architecture based on Vastu shastra.
• It is the center of your residence and the holiest and most powerful zone.
• A traditional home in Kerala courtyard is always at the center of the house.
• This part should be perfect and clutter-free.
• The placement of the kitchen, bathroom, or pillar beam attracts negative energy.

Requriment of Vaastu shastra for the home project :

• design of homes as the Vaastu shastra is directly connected to our life
• it provides the positive energy
• design the home as per the Vastu shastra we can properly utilize energy like sun, wind, water, moon, etc that gives the peace full filling.
• Vaastu shastra is required to make our life better and secure from wrong thinking
• reflection causes fights and other domestic disruptions so design the bedroom as per the Vaastu shastra and avoid placing the mirror in front of the bed.
• Vaastu shastra is an ancient concept but it is a proven concept so this current technological generation also accepts it.

• NOTES :
• PROJECT NAME : G+1 RESIDENTAL BUILDING
• all dimension is in m
• type of cement: OPC grade 43 conforming to the IS CODE IS812
• grade of concrete as per the IS CODE 456:2000
• REINFORCEMENT DETAILS :
• Beam size: 300*450 mm
• column size:300*300 mm
• slab thickness:250 mm
• external wall thickness: 230 mm
• use standard cover for beam column is 40 mm and 50 mm
• provide extra cover for the side of a footing and construction below the ground.
• sheeting removing time for the column and and lentil etc is 24 hr after casting
• for slab 21 days of deshuttetring period is 21 days.
• REVISION: NA
• DESIGN BY : Shubhangini Desale.

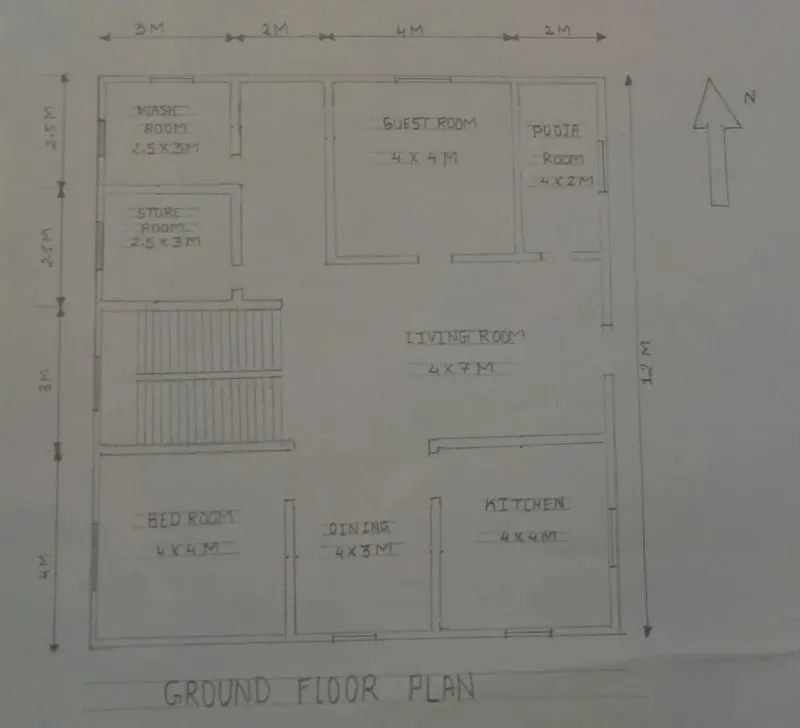

• DIMENSION OF THE GROUND FLOOR :
• kitchen :4m*4m
• Dining hall:4m*3m
• Bedroom: 4m*4m
• Living room: 4m*7m
• Store room: 2.5m*3 m
• Washroom : 2.5m*3m
• Guest room: 4m*4m
• Pooja room: 4m*2m

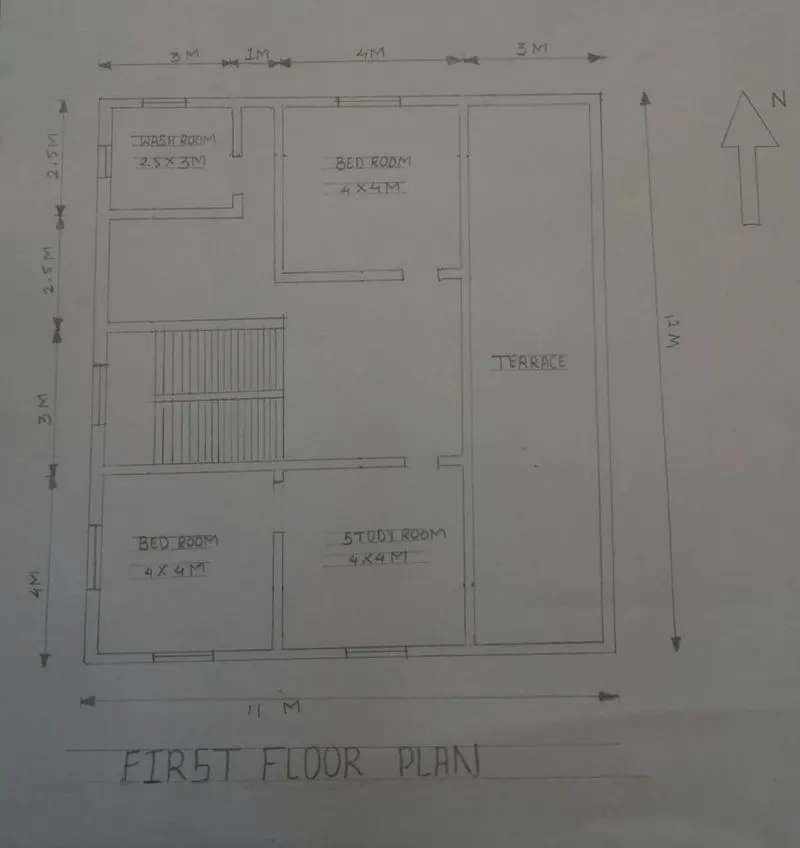

• DIMENSION OF THE FIRST FLOOR :
• Study room: 4m*4m
• Bedroom 1: 4m*4m
• Bedroom 2: 4m*4m
• Washroom: 2.5m*3m
• Terrace : 12m*3m

• OTHER DIMENSIONS OF A BUILDING :
• dimension of a plan: 12m*11m
• thickness of external/internal wall:230 mm i.e 0.23 m
• thickness of a slab: 250mm i.e 0.25m
• height of the first floor: 4m
• height of the first floor:4m
• dimensition of a beam : 300mm*450mm i.e 0.3*0.45 m
• dimensition of a column : 300*300 mm i.e 0.3*0.3 m

• LIST OF DRAWINGS PROVIDED FOR THE CONSTRUCTION AT THE SITE :
• center line plan
• footing and column layout plan
• foundation plan
• floor plan
• design drawing
• slab layout pan
• section drawing of a building
• drainage pan
• plumbing details
• electrification details
• furniture plan
• LOAD CALCULATION
• DEAD LOAD CALCULATION
• DEAD LOAD OF A COLUMN :
• dimension of a column: 0.3m*0.3m
• height of a column : slab thickness of two slab + height of ground floor+height of a first floor
• height of a column: 0.25+0.25+4+4 =8.5 m
• unit weight of an RCC: 25 KN/M^3
• a dead load of a column: unit weight of an RCC* volume of a column
• Dead load of a column : 25*(8.5*0.3*0.3) = 19.125 KN/M^2
• a Dead load of a column: 19.125 KN/M^2
• DEAD LOAD ON BEAM :
• Dimension of a beam: 0.3*0.45 m
• a dead load of the beam calculates for a one-meter length so, the length of a beam is 1 m
• unit weight of an RCC: 25 KN/M^3
• a dead load of a beam: unit weight of a beam *volume of a beam
• dead load on a beam : 25*( 0.3*0.45*1) = 3.375 KN/M^2
• a Dead load of a beam per meter length is 30.375 KN/M^2
• DEAD LOAD OF A SLAB :
• dimension of a slab is 12*11m but,
• slab is always designed for a one-meter span hence assume the size of a slab is 1m*1m
• so, the size of the slab is 1m*1m
• unit weight of RCC is 25 KN/M^3
• dead load of a slab : unit weight of slab* volume of a slab = 25*(1*1*0.25)=6.25 KN/M^2
• a Dead load of slab having size (1*1m) is 6.25 KN/M^2
• DEAD LOAD OF WALL :
• thickness of a wall: 0.23 m
• unit weight of bricks: 20 KN/M^3
• height of the wall: total height of floor - beam thickness =4-0.45= 3.55 m
• a dead load of a wall: unit weight of bricks *volume of a bricks
• Dead load of wall :20*(0.23*3.55)= 20.4125 KN/M^2
• a Dead load of wall: 20.4125 KN/M^2
• LIVE LOAD CALCULATION :
• (according to IS CODE 875 part 2 following live load is calculated for each room)
• bedroom: 2 KN/M^2
• Living room: 2 KN/M^2
• washroom: 2 KN/M^2
• staircase : 3 KN/M^2
• study room: 2 KN/M^2
• kitchen: 2 KN/M^2
• store room : 3 KN/M^2
• terrace: 2 KN/M^2
• guest room: 2 KN/M^2
• dining hall: 2KN/M^2
• Total live load: 22 KN /M^2
• WIND LOAD CALCULATION
• as per the IS CODE 875 part 3 wind load is calculated for the building when the height of a building is more than 10 m
• Here, the height of the building is 8 m which is less than 10 m
• so calculation of wind load is not required
• RESULTS :
• design of a G+1 building is as per the Vaastu shastra here we can consider all aspects and principle of the Vastu shastra
• and the load is calculated by using IS CODE.
• REFERENCE OF IS CODE
• Building design: prepared by Vastu shastra
• CEMENT USED: OPC grade conforming IS CODE IS: 8112
• CONCRETE USED: design mix as per the IS CODE IS 456:2000
• DEAD LOAD CALCULATION: as per the IS CODE 875 ( part 1)
• LIVE LOAD CALCULATION: as per the IS CODE 875 (part 2)
• WIND LOAD CALCULATION: as per the IS CODE 875 (part 3)

THANK YOU!!!
