Sketch a G+1 residential plan according to Vaastu Shastra and Calculation of Loads as per IS code

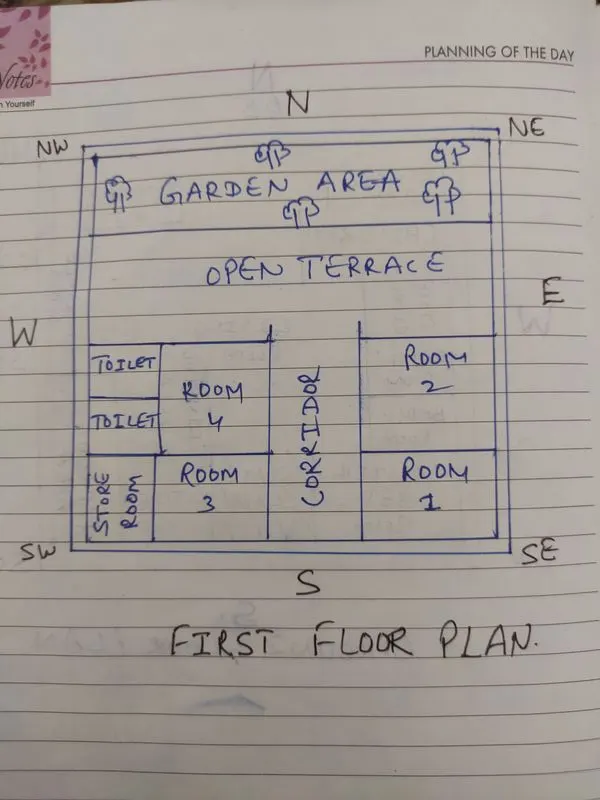

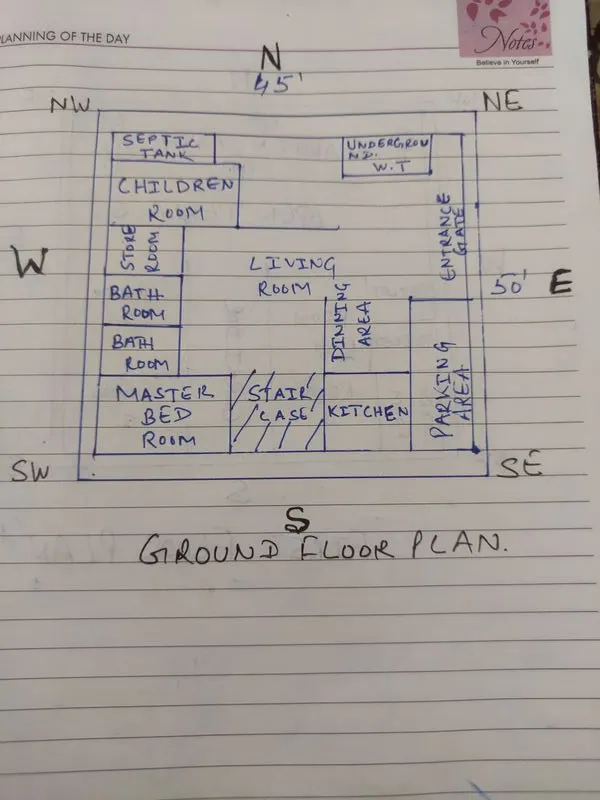

Sketch a G+1 floor residential plan, according to Vaastu Shastra, and list down the names of the structural drawings required to be provided to the site for construction.

Also, assume the sizes of the structural elements (Column, Beam, Slab, etc.,) and accordingly calculate the individual corresponding loads from the members as per IS code.

4. Structural Drawings

These drawings show the support system of the building like how the building is standing, what are its structural components, what is the strength of the building and how beams, columns, stairs, slabs, etc. are connected and thus like.

1. General Notes
2. Typical sections
3. Foundation excavation plan
4. Footing sections
5. Ground floor column plan
6. Column sections
7. Ground floor plinth beams plan
8. Plinth beams sections
9. Ground floor beam plan
10. Beam sections
11. Ground floor slab bottom rebar detail
12. Ground floor slab top rebar detail
13. Ground floor slab section
14. Overhead water tank design
15. Septic Tank Design

SIZE OF THE MEMBERS

Assume Size Of Columns - 300 mm x 400 mm x 3500 mm (H)

Assume Size of Beams - 200 mm x 350 mm X 4.0 (L)

Assume Depth of slab - 200 mm

Assume size of the wall = 230 mm x 3.0 mm x 3500 mm (H)

LOAD CALCULATION

Dead load of columns :

Take unit weight of RCC = 25 kN/m3 (AS PER IS 875 PART 1)

= 0.3 x 0.4 x 4.0 X 25

= 12 KN/m2 .

Dead Load of beams :

Take unit weight of RCC = 25 kN/m3 (AS PER IS 875 PART 1)

= 0.2 X 0.35 X 4.0 X 25

= 7 KN/m2

Dead Load of slab :

Take unit weight of RCC = 25 kN/m3 (AS PER IS 875 PART 1)

Assume size of the slab = 3.0 m x 4.0 m x 0.2 m

= 3.0 x 4.0 x 0.2 x 25

= 60 KN/m2

Dead Load of wall :

Take unit weight of brick = 1920 kg/m3 (AS PER IS 875 PART 1)

= 0.23 x 3.5 x 3.0 x 19.20

= 46.37 KN/m2
