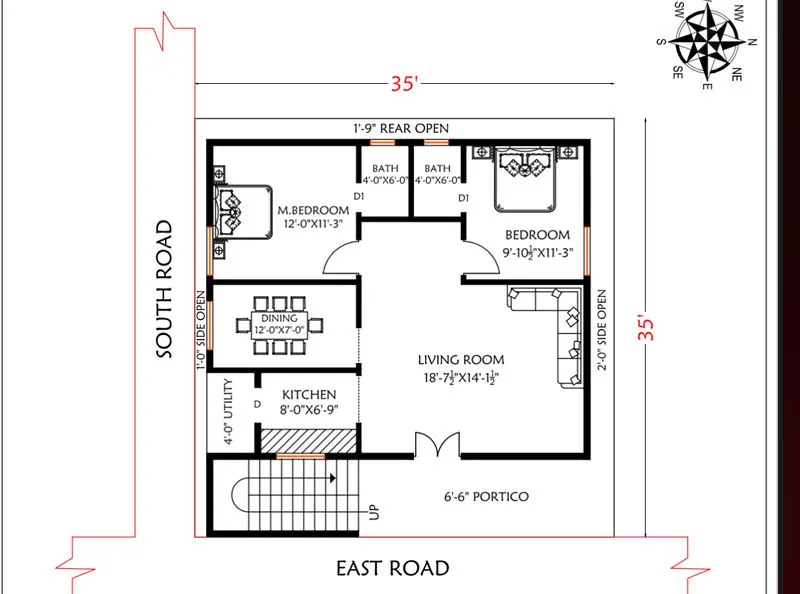

Sketch a G+1 residential plan according to Vaastu Shastra and Calculation of Loads as per IS code

Vastu Shastra is the ancient Indian science of architecture and acts as a guideline to designing your home in the way that enhances positive energy

Our nature is abundant with powerhouses of energy sources like the sun, wind, moon, water, earth and fire. The effect of sunrays, flow of winds, pull of earth's magnetic fields and other such cosmic energies influence our lives in unfathomable ways.

We can make the most of nature's gifts and live a life replete with wealth, health, and success by learning to balance its five elements (earth, water, fire, air, and space) around us. Vastu Shastra, an ancient science propounds such theories based on directions, architecture, astronomy, and even astrology! Stay with us, as we acquaint you with a few of its basic principles.

Significance of Eight Directions

We have four cardinal (North, South, East, and West) and four intercardinal directions (North-west, North-east, South-west, and South-east). Each direction signifies an aspect of life and is governed by various gods.
While North is the direction for wealth, south is for dharma. West and East are for prosperity and overall success.

Few Basic Principles of Vastu Shastra

Shape:

The rooms of your house should preferably be square or rectangular.

Room Basics:

Rooms should be airy, well lit, bright, and clean. This rule also extends to the corners of each room.

Home Centre:

The centre of the house should be an empty space.

Stairs and Furniture:

Heavy furniture (like almira etc.) should be kept in the South-west direction. If you are planning to build a duplex house, building stairs in this direction is a good idea.

Water:

Avoid keeping plants and water features like water fountain, aquarium, painting depicting water etc. in the bedroom.

Dining Table:

Ensure that your dining space is near the kitchen and not the main door.

Mirror Placement:

Placing a mirror in the bedroom that reflects the sleeping couple is a strict no-no. If at all you place a mirror in the bedroom, ensure that the bed cannot be seen in it.

Gateway (entrance) of the House:

Positive energy can be harnessed right at the entrance of your house with these tips:

• Main door should be stronger and bigger than other doors in the house; it should preferably be made of teak wood.
• Never keep the place outside your main door dark. Remember good energy is always associated with bright and cheery places.
• Garbage bags, unwanted things, and shoes should be kept away from the main door. We don’t want visitors to cringe before entering your home.
• Ensure that the main door opens inward. Also regularly oil its hinges to avoid creaky sounds.

Drawing Room:

For a place where the family spends most time together, drawing room should have:

• An aquarium on the North or East wall for prosperity
• A bright picture of sunrise in the southern wall
• Shades of yellow, green, beige or blue on walls to infuse liveliness and vibrancy

Kitchen:

To improve the Vastu of your kitchen and ensure a healthy life for your family:

• Keep the water sink away from the gas stove.
• Place the fridge at the south-west corner of the kitchen.
• Never let your kitchen face the washroom or share a common wall with it.

Bedroom:

Bedrooms are a place for rest and repose and should have soothing wall colors for a peaceful aura. Remember to:

• Place the master bedroom in the South-west.
• Never sleep with your head in the north.
• Avoid overhanging beams in the room to enjoy good health.
• Use solid wooden beds instead of hollow wrought-iron beds.

Study Room:

A place where your child needs his/her full concentration! Even if you do not have a separate study room, these basic dos need to be kept in mind:

• Select a square or rectangular shape for the study table.
• Place the table so that one need not face a blank wall or window.
• Keep the table in the North-east, East, or West direction.
• Hanging bookshelves are best avoided.

List of drawings provided at the construction project

-Centre line drawing.

-Footing and column layout with reinforcement details.

-Column schedule with reinforcement details.

-Plinth beam layout with reinforcement details.

-First floor beam layout with reinforcement details.

-Lift pit and head room reinforcement details.

-Centre line drawing.

-Floor plans.

-Foundation plan.

-Design drawings.

-Block plan.

-Roof slab layout.

-Column layout.

-Site plans.

-Column sections.

-Septic tank design.

-Overhead water tank design.

-Plinth beam sections

-Flooring plan.

-Furniture plan.

-Road drainage plan.

-Setting out plan.

-Section drawings of buildings.

-Plumbing details.

-Electrification details.

Calculation of loads-

(A). Dead load Calculations

1. Dead load of columns-

Dimension of column= 0.3m X 0.3m (300mm X 300mm)

Height of column= (Slab thickness X 2) + (Height of wall for each floor X 2)

= (0.25 X 2) + (3 X 2) = 6.5m

Total volume of concrete = 0.3 X 0.3 X 6.5 = 0.585m3.

Unit weight of RCC= 25KN/m3.

Unit Weight of Building Materials used in construction works as per IS 875 (Part-1)

Dead load of column= 25 X 0.585=14.62KN.

2. Dead load of beams-

Dimension of beam= 0.3m X 0.45m (300mm X 450mm)

Total volume of concrete = 0.3 X 0.45 X 1 = 0.135m3.

Unit weight of RCC= 25KN/m3.

Unit Weight of Building Materials used in construction works as per IS 875 (Part-1)

Dead load of beam= 25 X 0.135=3.375KN

3. Dead load of slab-

Slab is always designed for the span of 1m.

Hence assume size of slab as 1m X 1m.

Thickness of slab= 0.25m

Density of RCC= 25KN/m3.

Self-weight of slab= 1 X 1 X 0.25 X 25= 6.25KN.

4. Dead load of walls

-Dead load of external wall

Thickness of External wall = 0.23m. (230mm)

Unit weight of brick wall= 20KN/m3

Unit Weight of Building Materials used in construction works as per IS 875 (Part-1)

Height of wall = 3m.

Load of wall on beam= 3 X 0.23 X 20= 13.8KN.

-Dead load of internal wall

Thickness of Internal wall = 0.15m. (150mm)

Unit weight of brick wall= 20KN/m3

Unit Weight of Building Materials used in construction works as per IS 875 (Part-1)

Height of wall = 3m.

Load of wall on beam= 3 X 0.15 X 20= 9KN.

(B). Live load calculations-

(According to IS 875 Part 2)

Bed room= 2KN/m²

Living room= 2KN/m²

Bath=2KN/m²

Terrace = 3KN/m²

Toilet= 2KN/m²

Staircase= 3KN/m²

Study room= 2KN/m²

Kitchen= 2KN/m²

(C). Wind load calculation-

Wind load is designed only when the height of the building exceeds 10m.

The height of designed building is 6.5m which is less than 10m.

So, the calculation of wind load is not required.

References and IS codes used for the design-

IS 875:1987, Part 1 for Dead load

IS 875:1987, Part 2 for Live load

IS 875:1987, Part 3 for Wind load

IS 456:2000, for Reinforced Concrete.

Results-

-The plan is prepared by the Vaastu shastra concept considering all the principles and considerations of Vaastu shastra

-The load calculations are done as per the IS code considerations.
