Section Modulus calculation and optimization

SSanthosh R5 Nov 2021

SECTION MODULUS

About section modulus

Ratio of total moment resisted by the section to the stress in the extreme fibre
It gives us an idea about how much of load the given structure can take
if the section modulus increases the moment of resistance increases and hence its load bearing capacity.

Formula to find the section modulus

S=I/y where,

S - Section modulus

I - Moment of inertia value from the ineryia analysis

y - Dista

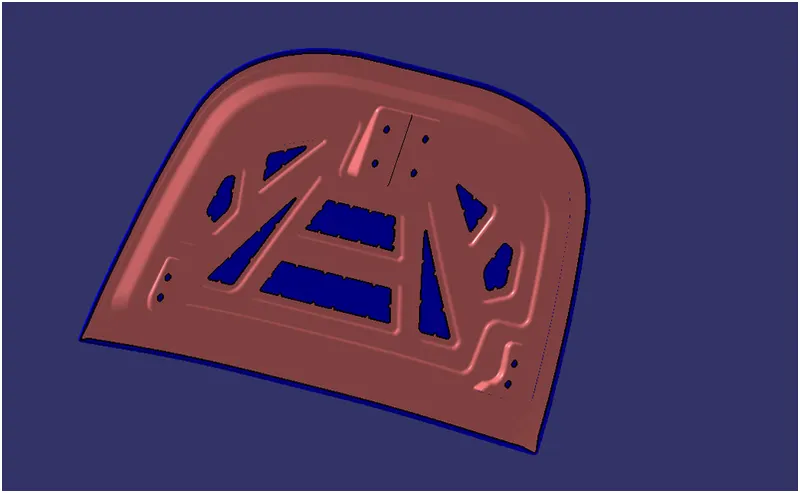

here we are going to find section modulus for hood

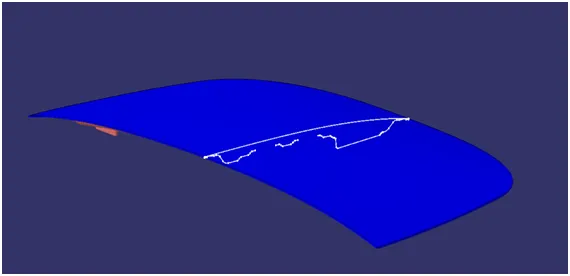

intersecting the part by using plane

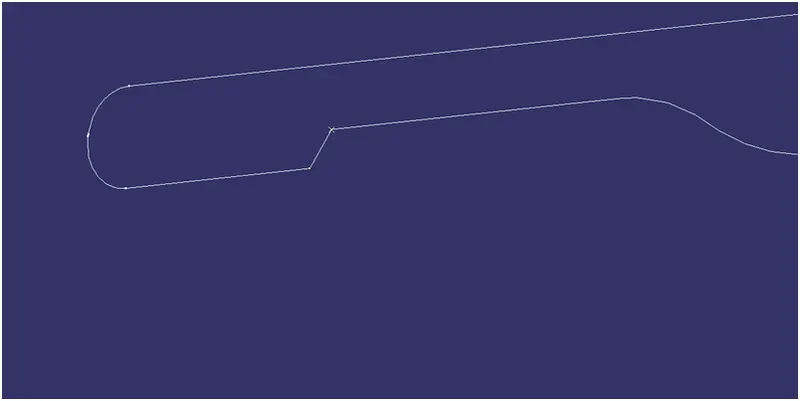

extracting both outer boundries

creating point and line then spliting extra part

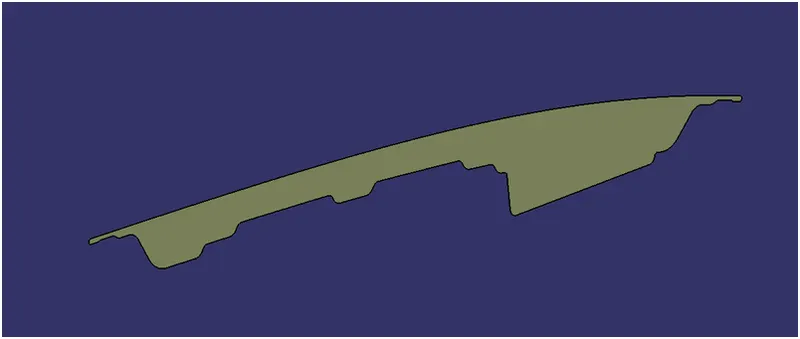

join and fill the section

using measure inertia tool

------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

Product : Face...Fill.1...inertia cal

Date : Friday, 05 November 2021 13:14:32

Author : SANTHOSH

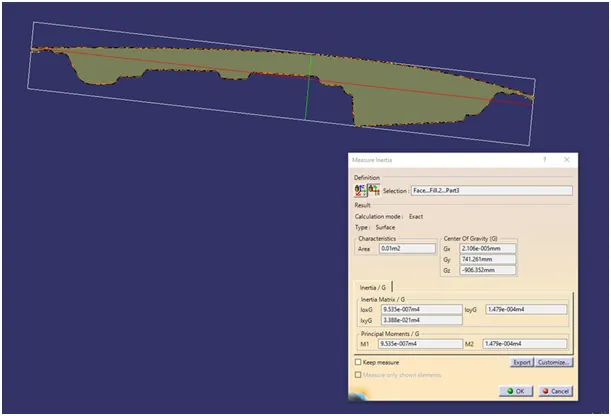

Face...Fill.1...inertia cal | | 0.010 | 3.94646e-005 | 741.259 | -906.344 | 9.53535e-007 | 0.000147924 | 9.535e-007 | 1.479e-004 | -7.115e-019 |

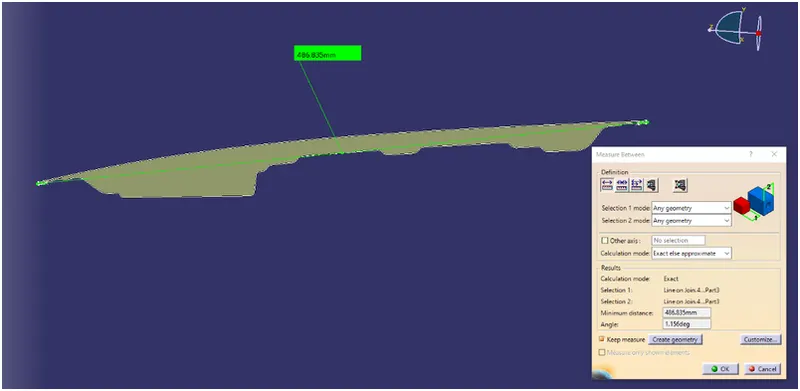

measuring total distance and we have to take half distance from neutral axis

we got total 483.835mm length

we need to take 483.835/2=241.9175

calculating section modulus for first section

S = I/y

here, I= 9.535*10^7m^4

y=241.9175

S = 9.535*10^7/241.9175

S = 39.414*10^6mm^4

calculation for next part

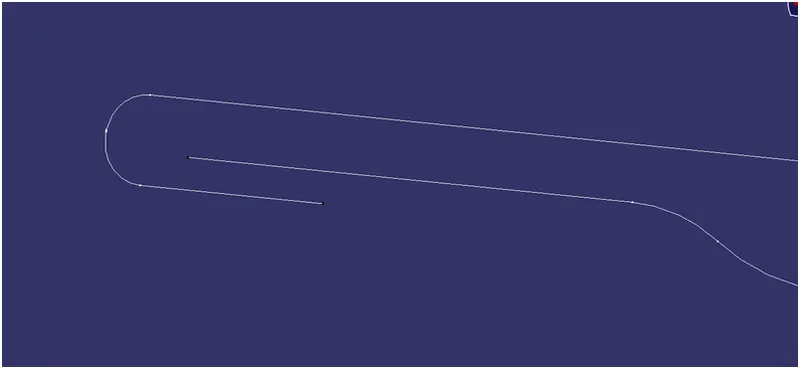

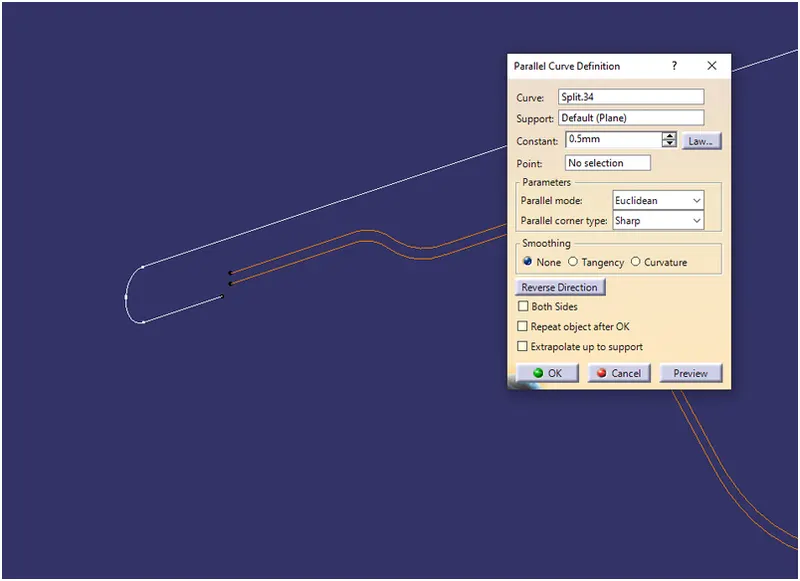

for that we have to take parallel curve 0.5mm

create point and line then fill

go for measure inertia and measure part

Product : Face...Fill.2...inertia cal

Date : Friday, 05 November 2021 13:40:32

Author : SANTHOSH

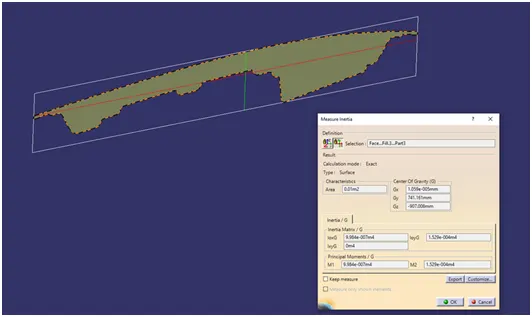

Face...Fill.2...inertia cal | | 0.010 | 1.2678e-005 | 741.161 | -907.005 | 9.98384e-007 | 0.000152897 | 9.984e-007 | 1.529e-004 | 1.287e-019 |

section modulus calculation for second section

S = I/y

here, I= 9.98383*10^7m^4

y=241.9175

S = 9.98383*10^7/241.9175

S = 41.269*10^6mm^4

conclusion

So decreasing the distance between two panels leads to increase in section modulus, so resistance to bending also increases, and strength of hood also increases.
