Section Modulus calculation and optimization

AIM:- SECTION MODULE CALCULATION AND OPTIMIZATION.

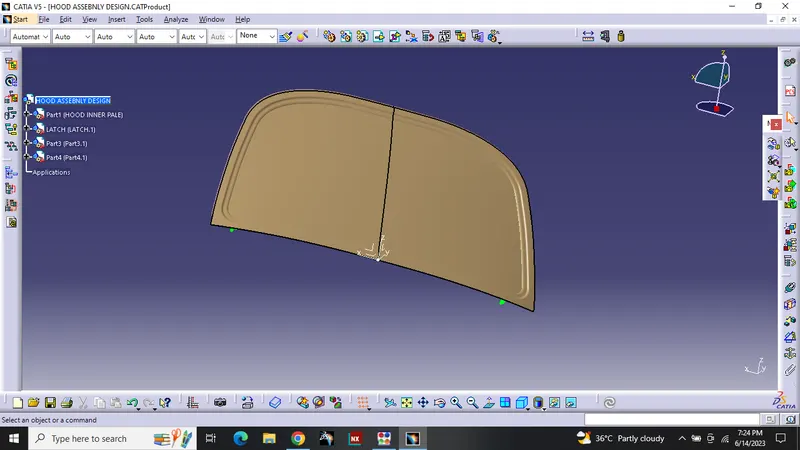

STEP 1:-OPEN THE MODEL.

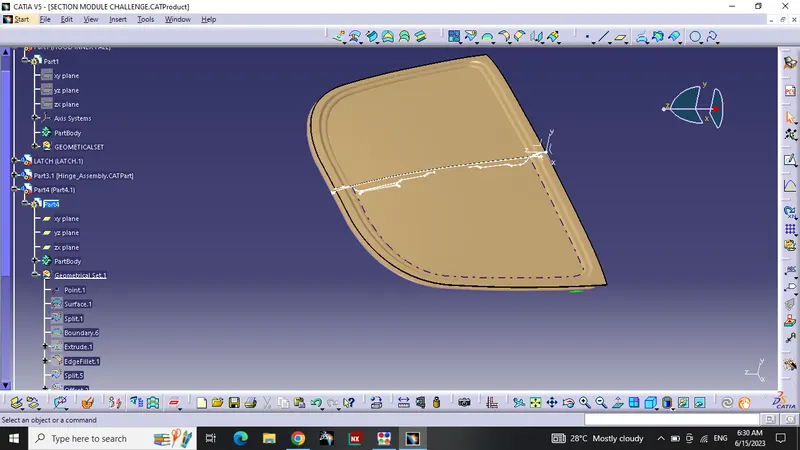

STEP 2:- APPLY A INTERSECTION CURVE CAMMAND ON PART.

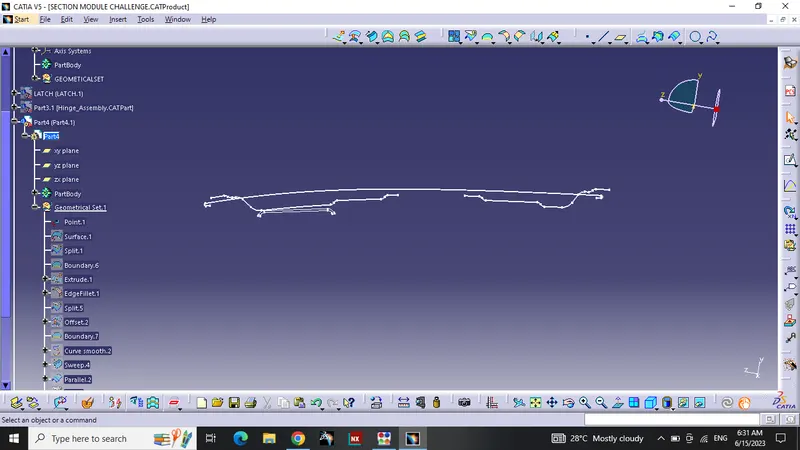

STEP 3 :- CREATE A INTERSECTION CURVE.

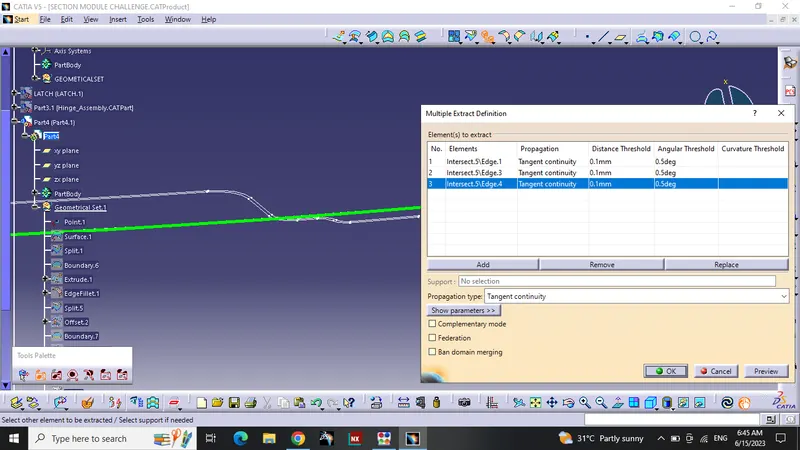

STEP 4:- USE THE MULTIPLE EXTRACT CAMMAND AND CHOOSE THE OUTSIDE BOUNDRY.

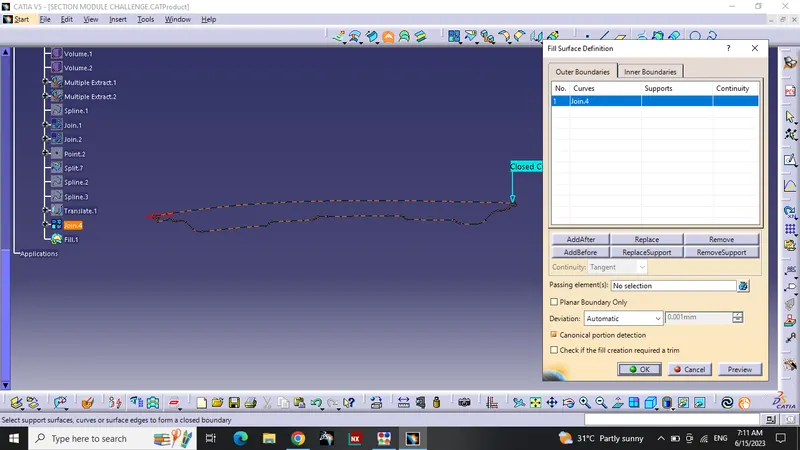

STEP 5:-USE THE FILL SURFACE CAMMAND.

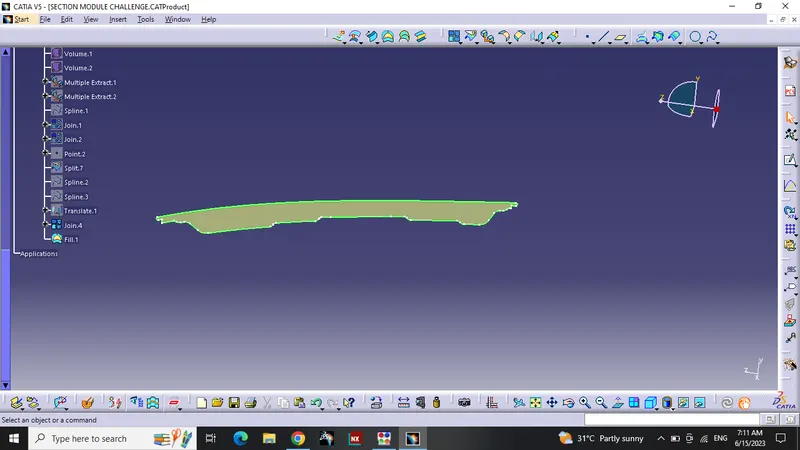

STEP 6:- FILL THE INTERSECTION CURVE.

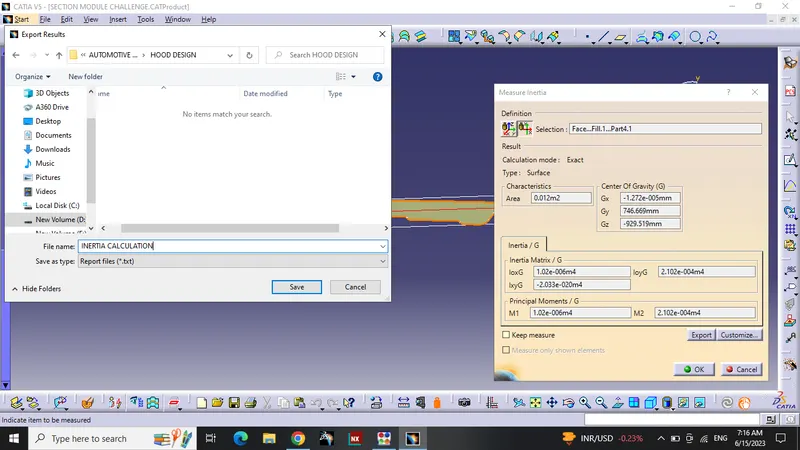

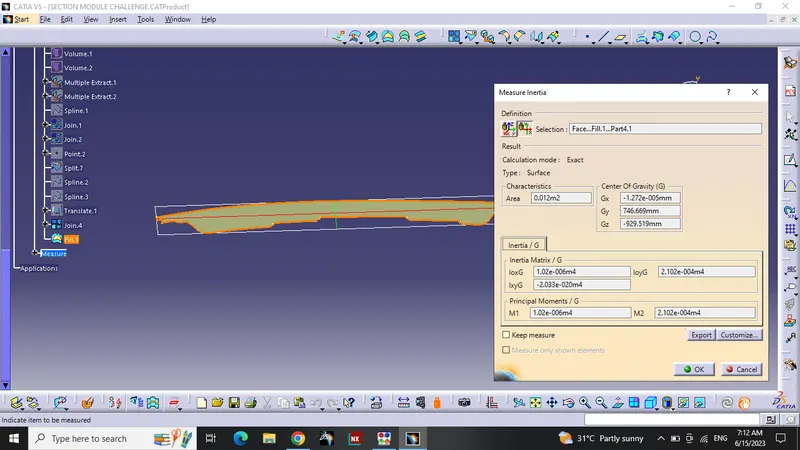

STEP 7:- CHOOSE THE MEASURE INERTIA COMMAND AND APPLY ON THE FILL SURFACE, GET THE MAXIMUM VALUE AND MINIMUN VALUE.

MY MAX VALUE IS:- 1.02e-006m4

MY MIN VALUE IS:- 2.102e-004M4

STEP 8:- CHOOSE A EXPORT OPTION AND SAVE IT.

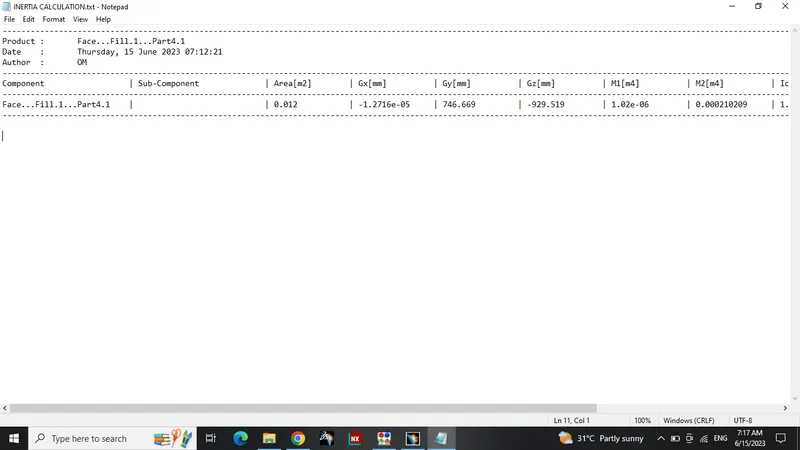

STEP 9:- GET A INERTIA CALCULATION FILE

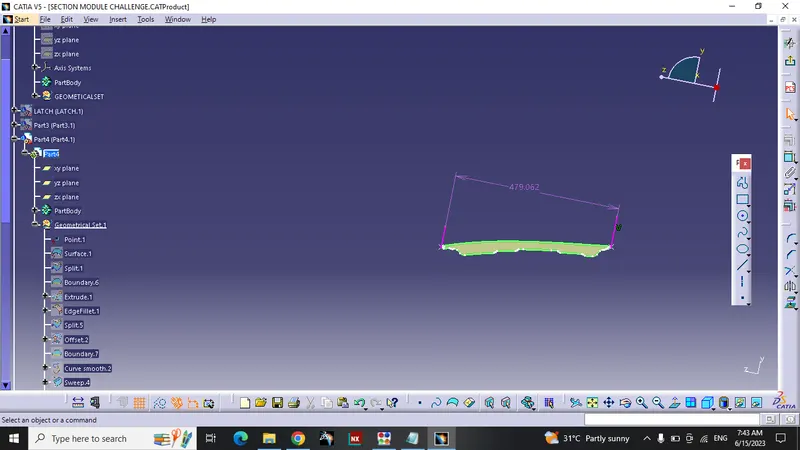

STEP 10:- CTRATE POINT AND LINE MEASURE THE VALUE OF Y AXIS .

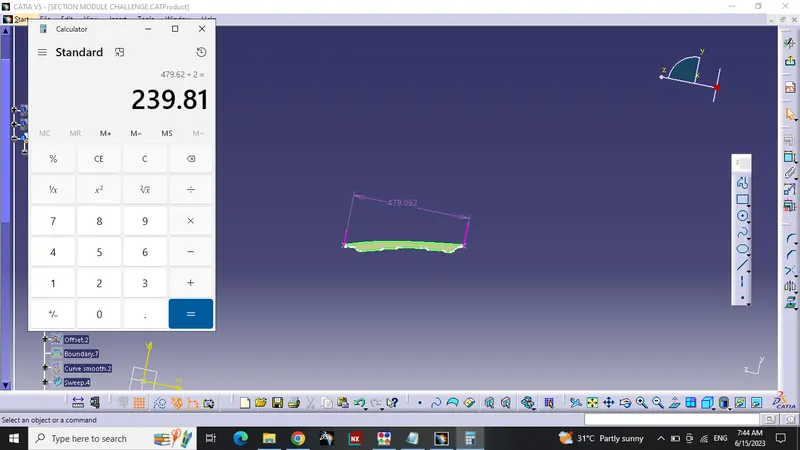

STEP 11:- GIVE THE Y AXIS VALUE AND DIVIDE BY 2
