Section Modulus calculation and optimization
Section Modulus-
Section modulus is a geometric property of a structural shape that measures the shape's resistance to bending. It is defined as the ratio of a shape's moment of inertia to its most distant point from the neutral axis. The moment of inertia is a measure of a shape's ability to resist bending and is calculated using the area of the shape and the distance of each element of the shape from a neutral axis.
The section modulus is used to calculate the maximum bending stress that a structural member can withstand without experiencing failure. It is a key factor in the design of structural elements such as beams, columns, and girders.
The section modulus can be calculated for a wide range of shapes, including rectangular and circular sections, as well as more complex shapes such as I-beams and T-sections. The section modulus is often provided in engineering tables and is typically used in conjunction with other properties, such as the yield strength of the material, to design safe and effective structural elements.
mathematically it is expressed as
S=I/Y
where, S=section modulus
I=moment of inertia
Y= distance from the neutral axis to the outermost edge of the component.
In simple words, section modulus is the Resistance Toward the Bending.

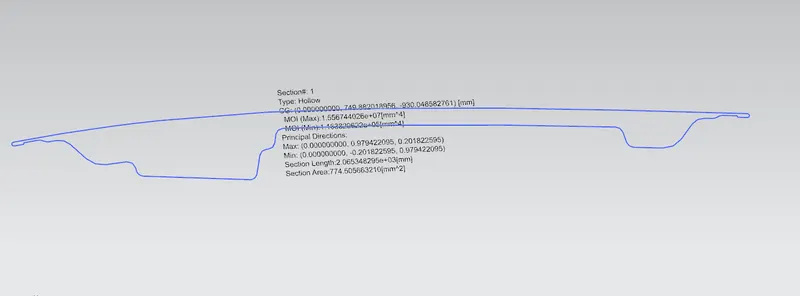

Section Modulus calculation for the HOOD

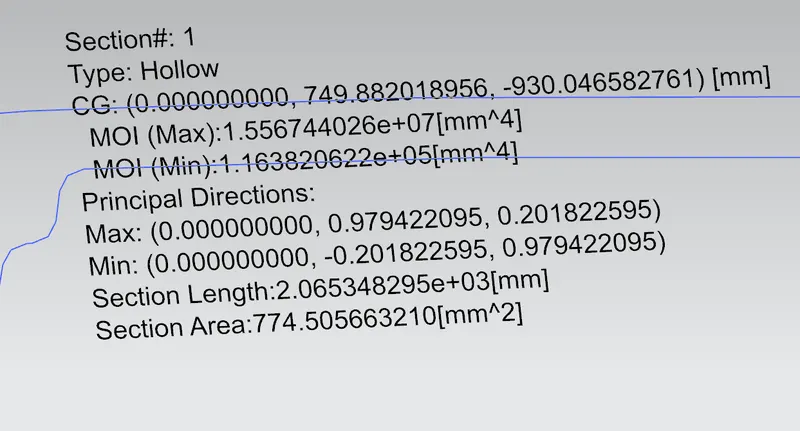

calculating the MOI by using the Section Inertia Analysis tool from NX CAD
MOI (min) = 1.163820622e+05[mm^4]
distance Y = 487.4152 mm
section modulus
S = I/Y
=116382.0622 mm^4 / 487.4152 mm
s = 238.773969404 mm^3

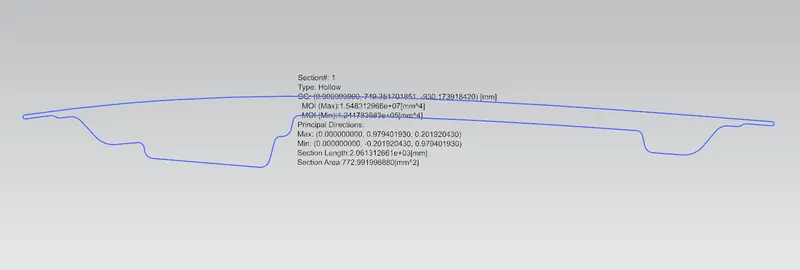

Optimization (1mm)

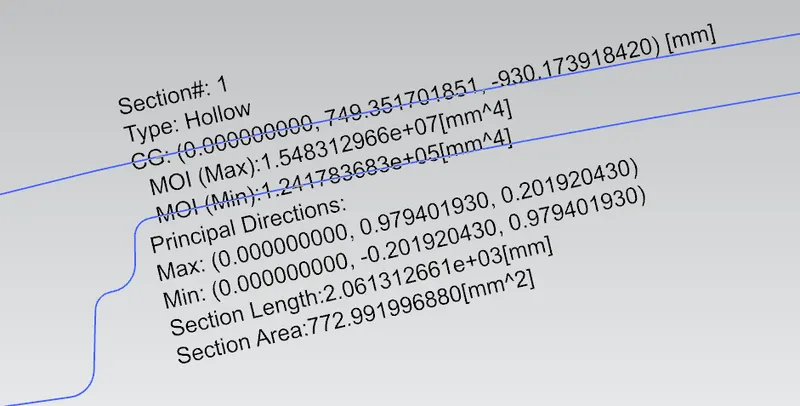

Now the Section Modulus after the optimization
MOI (min) = 1.24178368e+05[mm^4]
Y= 487.4152 mm
S = I/Y
= 124178.3683 [mm^4] /487.4152 mm
S = 254.769174822 [mm^3]
Optimized section value is = 254.769174822 [mm^3]
Conclusion
The strength of the material is directly proportional to the moment of inertia, thus increasing the sectional area increases the increases strength of the component.
Thus sectional modulus for the hood design is calculated and an optimized design is also done to increase the section modulus of the hood.
