Section Modulus calculation and optimization
Aim: Use the Section from your Hood design and calculate the section modulus using the formula
S = I/y.
-From the below images, the steps for calculating the section modulus for the given surface can be seen. In order to see how actually the change in section modulus results in the behavior of the material is it necessary to see what the section modulus actually is.
Method:
Section modulus:
- A "section modulus is the value of the "moment of inertia of area" related to the neutral axis of the cross-section of a beam multiplied by the distance from the neutral axis to the outer surface". Therefore, the relationship between the section modulus Z and the moment of inertia of area I is as expressed by the following equation.

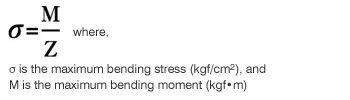

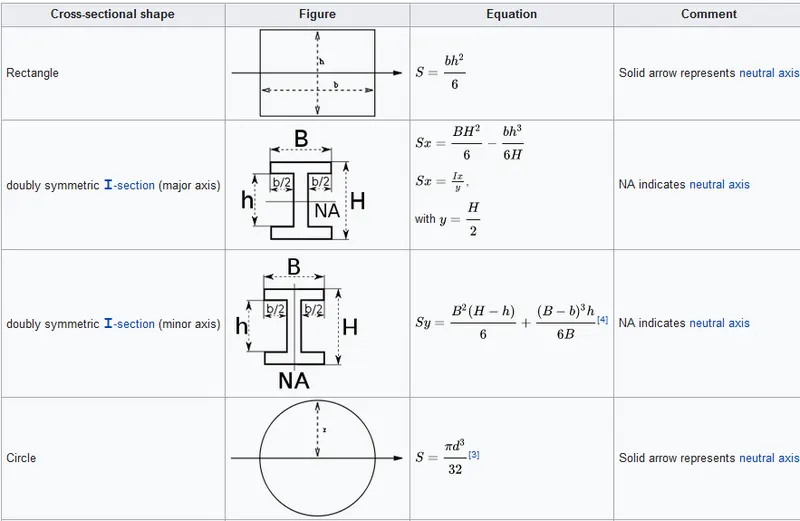

- The symbol Z is used customarily for the section modulus. In general, as the section modulus becomes larger, the strength against bending also becomes larger. Regarding bending, the maximum bending stress σ acting on the outer surface of the part can be calculated using the following equation.
- Second moment of area or moment of inertia
- The second moment of area is also known as the moment of inertia of a shape. It is directly related to the area of material in the cross-section and the displacement of that area from the centroid. Once the centroid is located, the more important structural properties of the shape can be calculated. The axis that determines the centroid is also known as the neutral axis (N/A).
- The second moment of area is a measure of the 'efficiency of a shape to resist bending caused by loading. A beam tends to change its shape when loaded. The second moment of area is a measure of a shape's resistance to change.
- This picture contains the following scene. Diagram of a beam on its narrow edge supported at both ends. A man is walking on a straight beam. Diagram of a beam resting on its flat side supported at both ends. A man is walking on a straight beam and it is bending in the middle.
- Certain shapes are better than others at resisting bending as demonstrated in the diagram. Clearly, the orientation of the shape also influences bending.
Section modulus Part 1
The inertia of part 1
Minimum Value = 1.597e-006 m^4
= 1.597-006 x 10^12 mm^4
= 1.597e006 mm^4
Maximum Value = 5.824e-004 m^4
= 5.824e-004 x 10^12 mm^4
= 5.824e008 mm^4

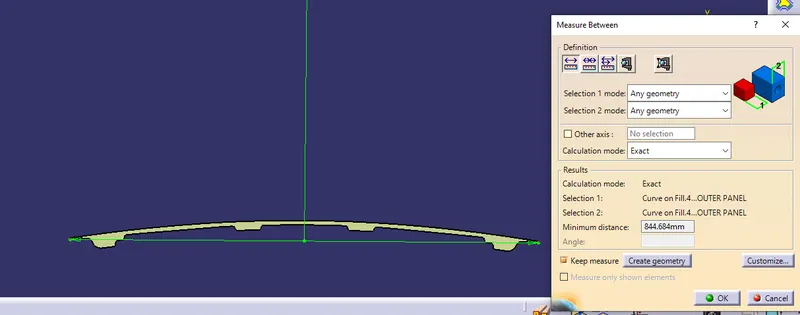

Distance between the neutral axis and the extreme end of the object.
Y = Distance between the neutral axis and the extreme end of the object
Y = 844.684/2
= 422.3445 mm
Hence section modulus,
S = I/Y
= 1.597e006/422.3445
= 3781.287 mm^3
Section modulus of Part 2 by increasing 0.5mm offset.

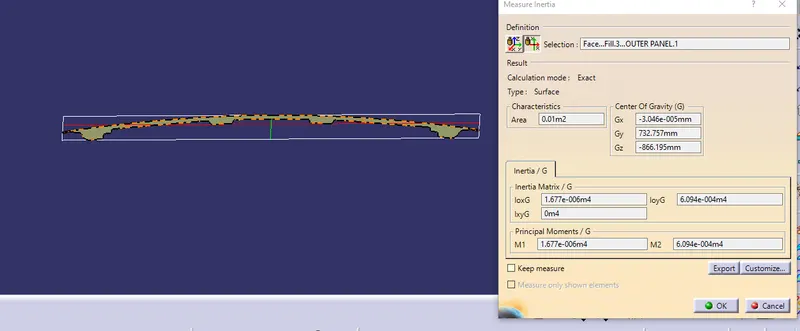

The inertia of part 2
Minimum Value = 1.677e-006 m^4
= 1.677-006 x 10^12 mm^4
= 1.677e006 mm^4
Maximum Value = 6.094e-004 m^4
= 6.094e-004 x 10^12 mm^4
= 6.094e008 mm^4
Y = Distance between the neutral axis and the extreme end of the object
Y = 844.684/2
= 422.3445 mm
Hence section modulus,
S = I/Y
= 1.677e006/422.3445
= 3970.7063 mm^3
CONCLUSION :
The section modulus of the hood is 3781.287 mm^3 and by increasing the 0.5mm value it is 3970.7063 mm^3, Hence by increasing the value the section modulus strength also increases.
