Section Modulus calculation and optimization

AIM:

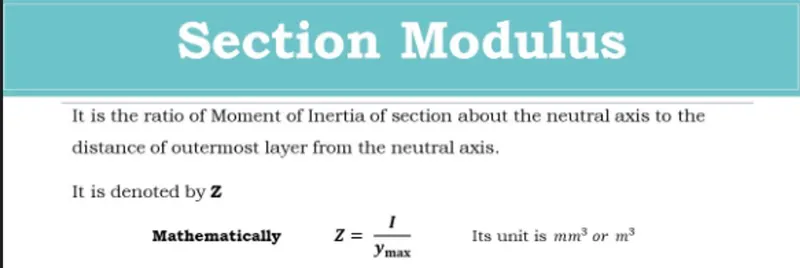

TO use the section from the hood design and calculate the section modulus using the formula.

S=I/Y

S=SECTION MODULUS

I=MOMENT OF INERTIA

Y=DISTANCE BETWEEN NEUTRAL AXIS ANS EXTREME END OF THE OBJECT

|SECTION MODULUS|

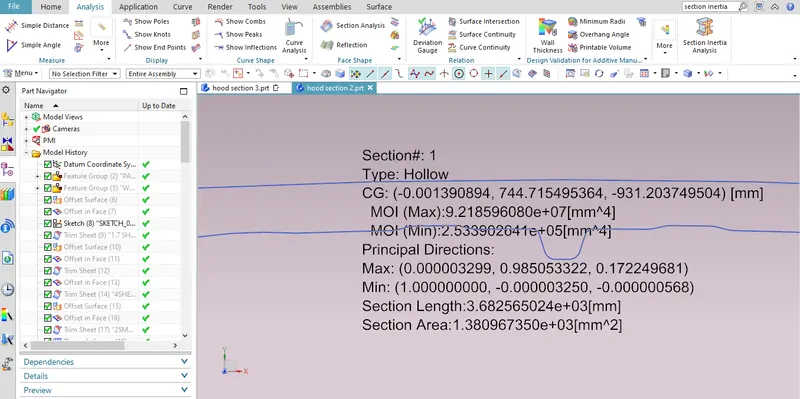

|ANALYSIS -TYPE -1|

|CALCULATIONS|

MAXMIUM MOMENT OF INERTIA I= 9.218596080*10^7 mm^4

MINIMIUM MOMENT OF INERTIA I =2.533902641*10^5 mm^4

y=441mm

MAXIMIUM SECTION MODULUS, S=Z=I/y.

=9.218596080*10^7mm^4/441mm

=209038mm^3

MINIMIUM SECTION MODULUS,S=Z=I/Y

=2.533902641*10^5mm^4/441mm

=574mm^3

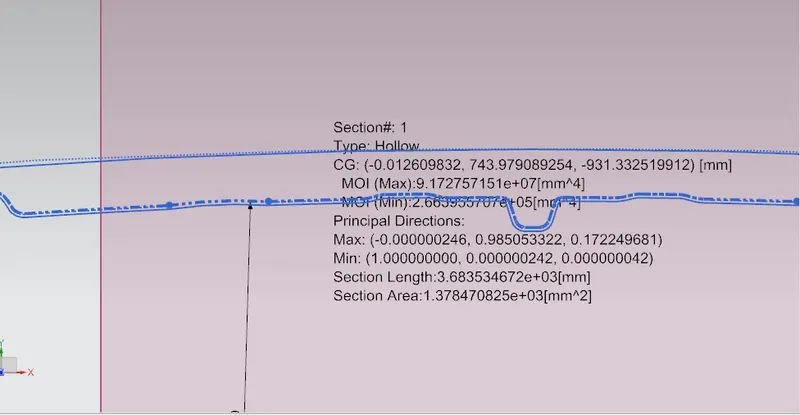

|TYPE -2|

MAXMIUM MOMENT OF INERTIA I= 9.172757151*10^7 mm^4

MINIMIUM MOMENT OF INERTIA I =2.663955707*10^5 mm^4

y=441mm

MAXIMIUM SECTION MODULUS, S=Z=I/y.

=9.172757151*10^7 mm^4/441mm

=207999mm^3

MINIMIUM SECTION MODULUS,S=Z=I/Y

=2.663955707*10^5mm^4/441mm

=604mm^3

RESULT:

Thus the designed given hood is taken and the calculation is performed on by creating the section modulus, And the value is derived.
