Reinforcement detailing of Columns from ETABS output

Reinforcement detailing of columns in Etabs.

AIM

To provide details of longitudinal reinforcement for the two columns from foundation to terrace level

PROCEDURE

STEP 1

• Open a G+4 Etab file

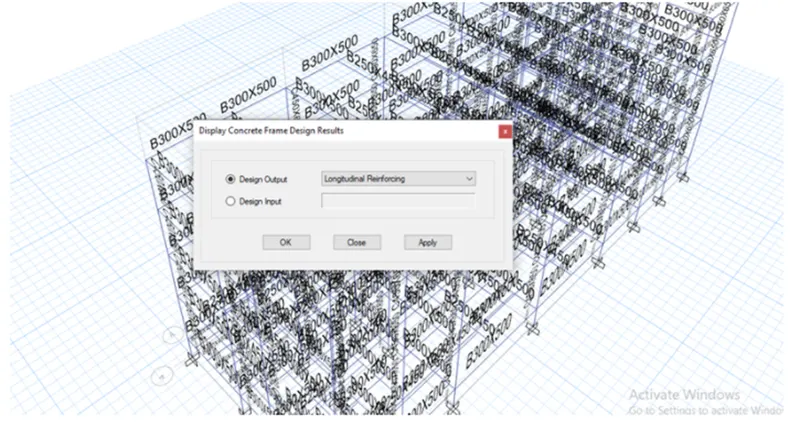

• Click the concrete frame Design tool
• Select the Display design info option

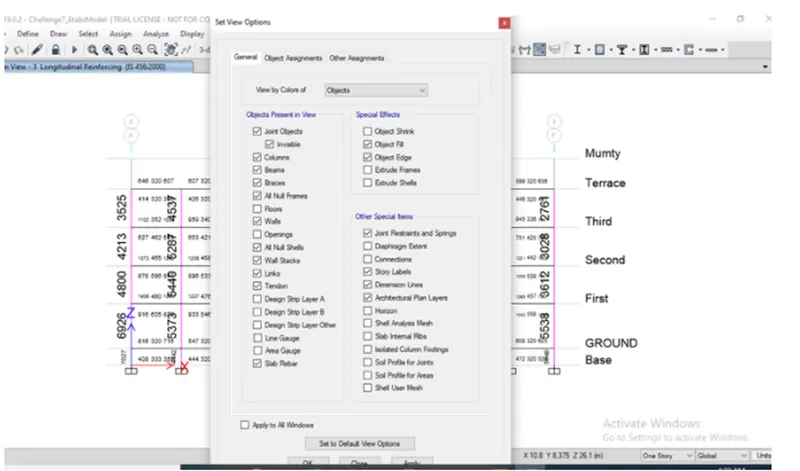

• Choose design output as Longitudinal Reinforcement

STEP 2

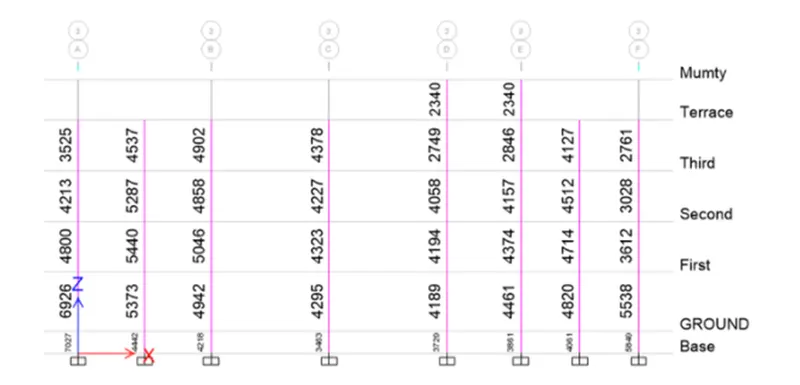

• After selecting the longitudinal reinforcement click Elevation View
• To avoid confusion click the tick mark on the ribbon and uncheck the beam

STEP 3

Now, need to calculate the reinforcement details of 3a and 3b

STEP 4

• For shear reinforcement, click the concrete frame design tool

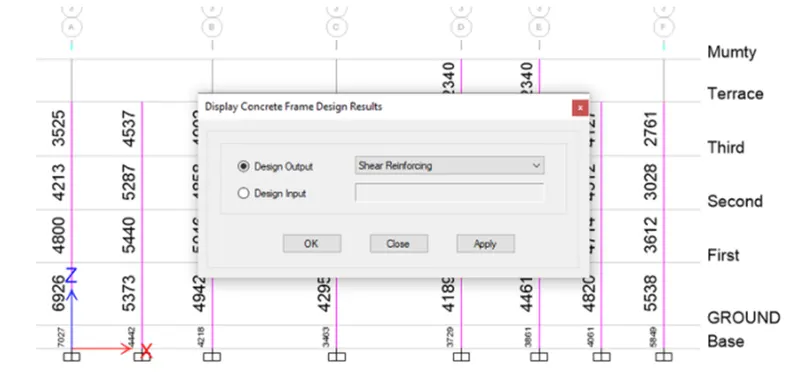

• Choose shear reinforcing
• Click Apply and OK

STEP 5

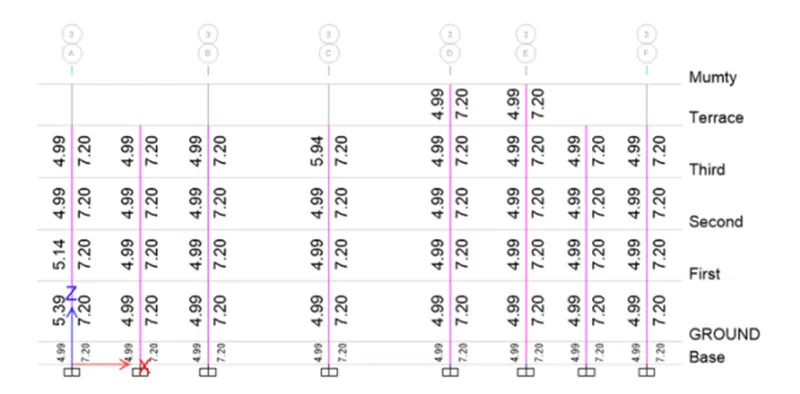

• After selecting the shear reinforcement option the shear reinforcement values are obtained at each column

STEP 6

GRID A

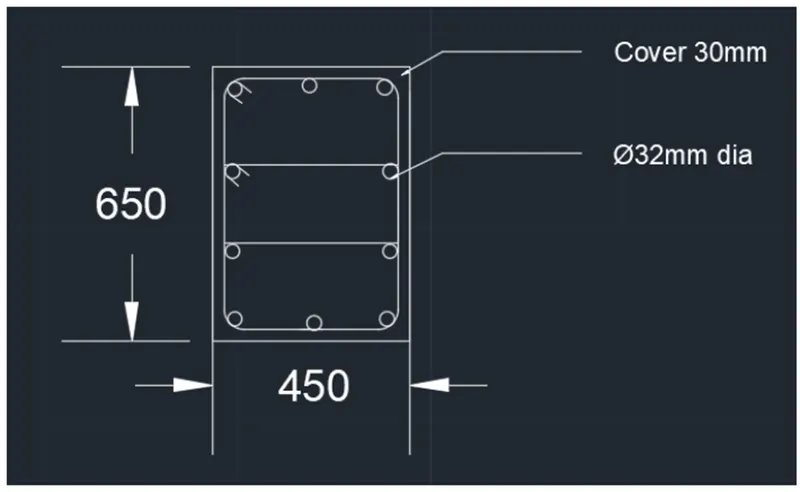

• From base to the first floor the maximum Ast = 7027
• So we can provide 10nos of 32mm dia bars = 10*804=8040mm^2

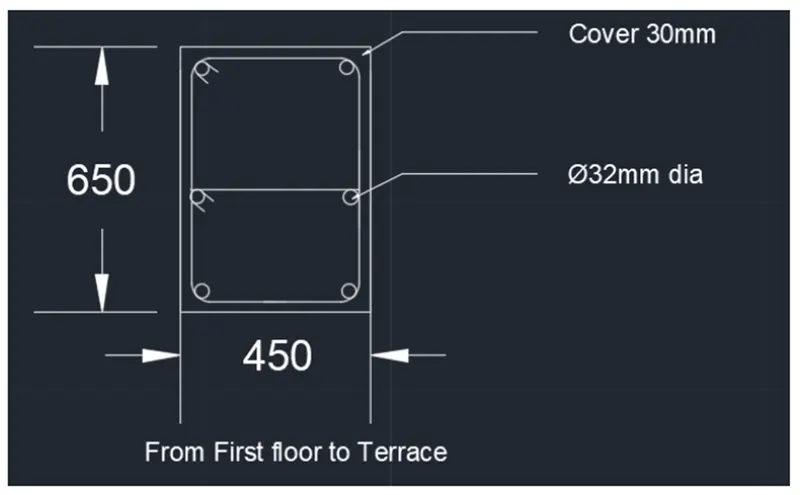

• From the first floor to terrace the maximum Ast = 4800
• Provide 6 nos of 32mm dia bar = 6*804=4824mm^2

GRID B

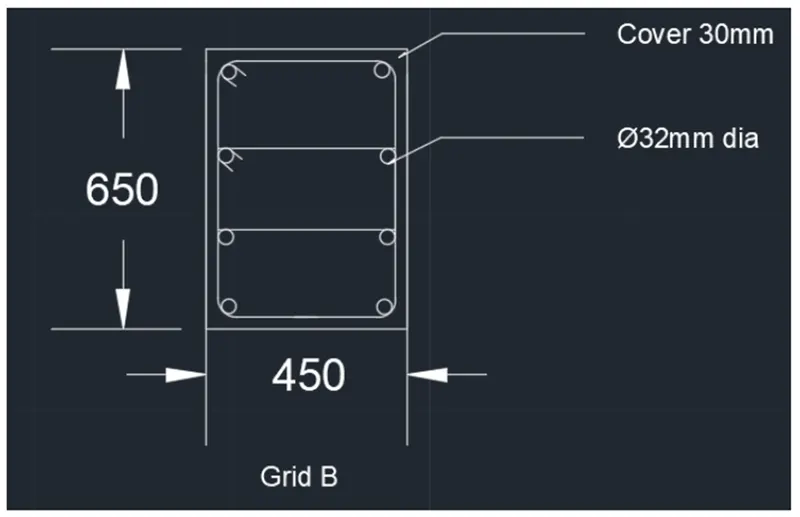

• From Base to terrace the maximum Ast = 5046
• Provide 8nos of 32mm dia bar = 8*804=6432mm^2

It can satisfy the entire span

 RESULT

The given reinforcement details of Column is created using ETabs
