Reinforcement detailing of Columns from ETABS output

Aim: To analyse the given ETABS model and to extract the design results and detailing of two mentioned RC columns. Also the calculation for special confining reinforcement has to be ensured based on clause 8.1 of IS 13920-2016.

Design of RC columns:

Step-1:

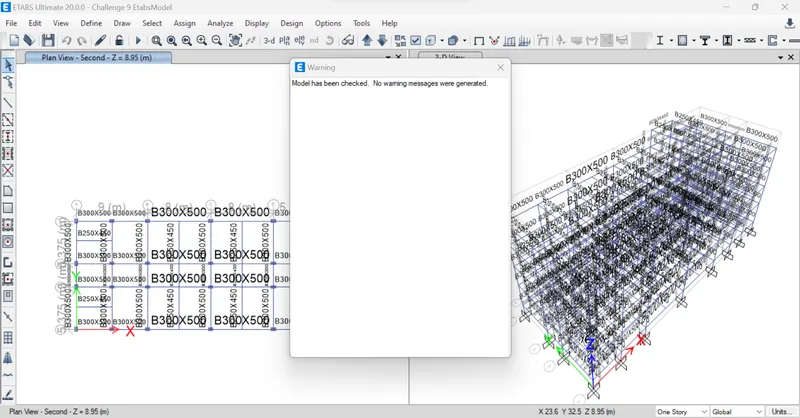

• Analyse > Check model
• Analyse > Run analysis



• Using the above toolpath, the given model is first checked for its errors and warnings. The model is found to be OK. The Model has completed analysis.

Step-2:

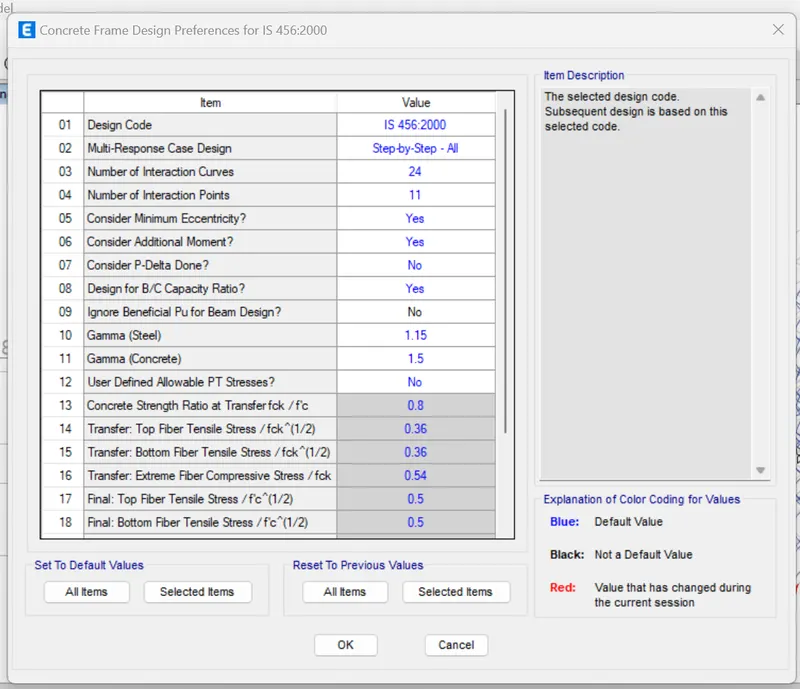

• Design > Frame design Preference

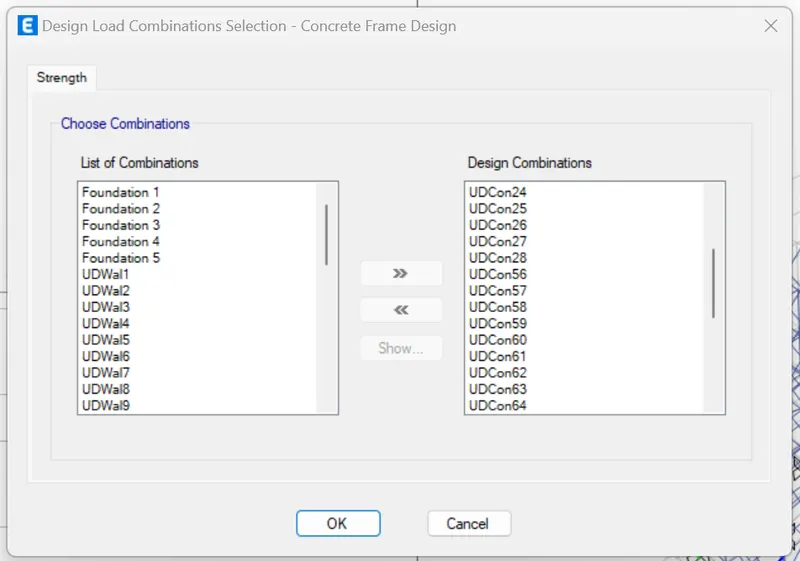

• Design > Design combination
• Design > Start design/check

• Using the above toolpath, the given ETABS model is ensured for its design code assignment and combination assignments. Then the ETABS model is design initiated.

Step-3:

• Design > Verify all members passed

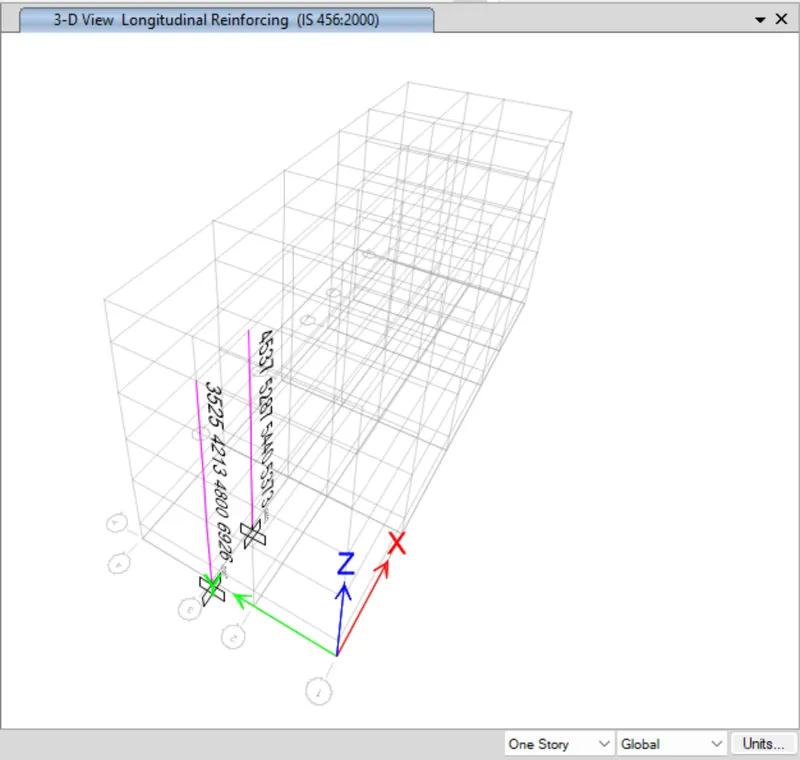

• Design > Display design info > Flexural reinforcement
• Design > Display design info > Shear reinforcement

7027

5440

• With "View selected objects only" tool, the two columns (Grids-3/A and 3/B) are viewd. Using the above toolpath, the Model is verified for all members satisfy design criteria. The design flexural reinforcement and shear reinforcement are noted from the Frame design output for the requested RC columns.

Step-4: As per the noted rebar outputs, the Longitudinal sections for those two RC beams are drawn using AutoCAD software and detailing is done complying IS 13920-2016 requirements.

Note: Drawing is attached as dwg format.

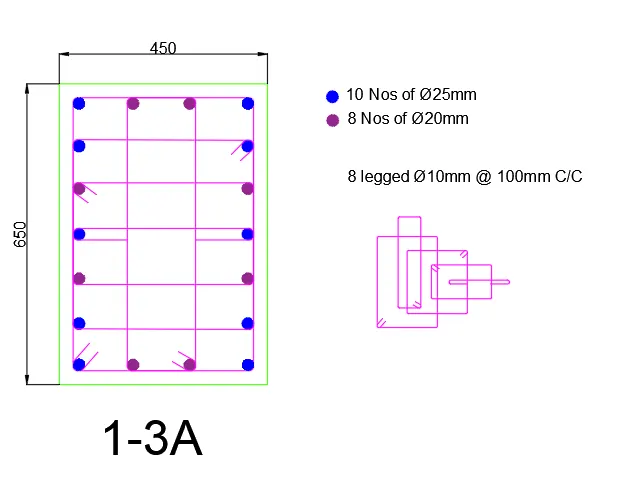

1. 3A:

• Column (3A intersection).
• The size of column we take is 450x650mm.
• Maximum Ast for the column is 7027mm2.
• Now we provide 16 bars with 18mm dia. as shown below.
• And we provide stirrup size as 10mm, for A we provide 100mm spacing and for C we provide 150mm spacing ,as shown in the below figure.
• The details of shear reinforcement are provided as per special confining reinforcement provision of clause 8.1 of IS 13920-2016.

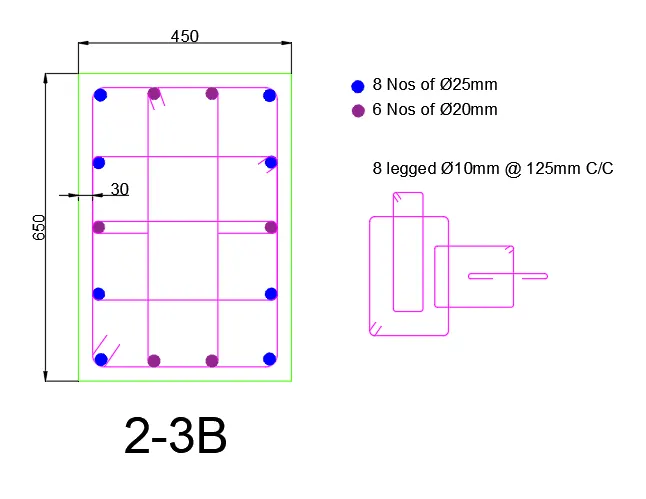

2. 3B:

• Column (3B intersection).
• The size of column is 450mmx650mm.
• Maximum Ast for the column is 5440mm2.
• Provide 16 bars with 20mm dia. as shown below.
• And provide stirrup size as 10mm, for A provide 100mm spacing and for C provide 150mm spacing ,as shown below figure.
• The details of shear reinforcement are provided as per special confining reinforcement provision of clause 8.1 of IS 13920-2016.

Step-5:

As per clause 8.1 of IS13920-2016, the special confining reinforcement is calculated and verified with the drawing detail.

As per cluase 8.1 section a), the confining reinforcement length lo">lo should be at least

1. larger dimension of frame member (650mm)
2. 1/6th of clear span (575mm)
3. 450mm

So lo">lo= 650mm

As per cluase 8.1 section b), the maximum spacing of confining reinforcement shall be

1. 1/4th of minimum member dimension (112.5mm)
2. 6 times of smallest longitudinal rebar (120mm)
3. 100mm

So maximum shear link spacing maintained = 100mm

Minimum special confining reinforcement should be maximum of (a) and (b)

1. `A s h = 0.18 s v h (( f c k)/ (f y )) ( (( A g)/( A k )) − 1 )`
2. `A s h = 0.05 s v h (fc k) /(f y)`
3. `A s h = 631 sq.(mm)/m`
4. `A s h = 337 sq.(mm)/m`

Required minimum special confining reinforcement at joint `A s h = 631 sq.mm`

Provided shear reinforcement at joint `= ( 1000 /100 )` x4 legs x area of 8mm dia rebar (50.3 sq.mm) = 2010 sq.mm

Hence OK.

Conclusion: Thus the detailing of two RC columns were done using AutoCAD and special confininf reinforcement is verified with respect to IS13920 clause 8.1.
