Reinforcement detailing of Columns from ETABS output

Reinforcement detailing of columns in Etabs 2018.

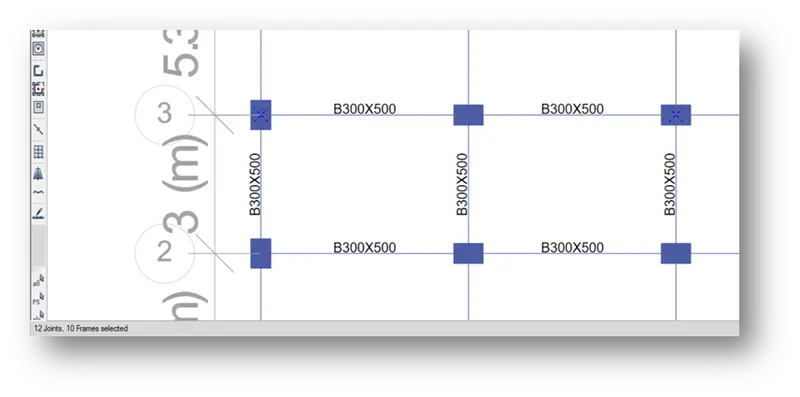

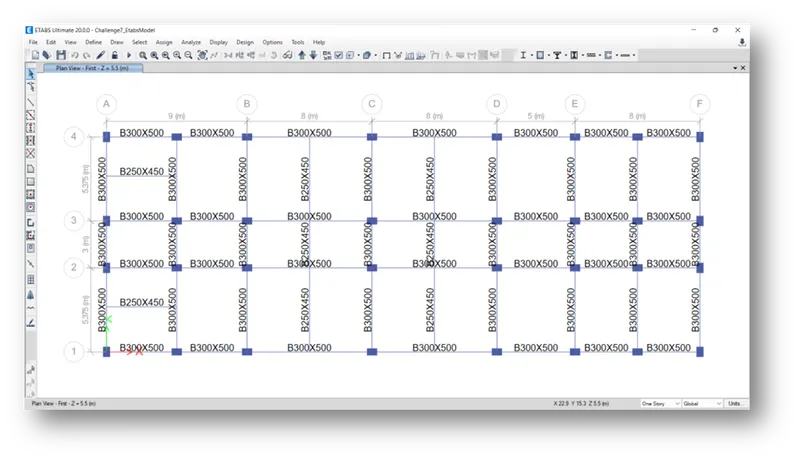

The ETABS file for a G+4 building is provided. Run the analysis and design the RCC Moment Resisting Frame. The following challenge deals specifically with two columns at the following grid intersections.

1. 3A
2. 3B

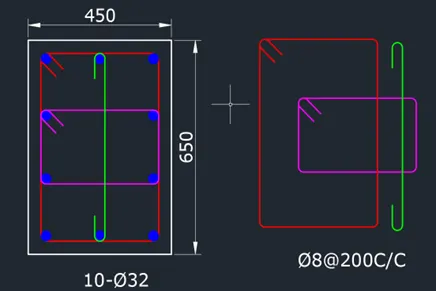

• Provide details of longitudinal reinforcement for the two columns, from foundation to terrace level. Sketch the column cross sectional & elevation details or draft it using autocad software.
• Show shear reinforcement & lapping details as per special confining reinforcement provision of clause 8.1 of IS 13920 - 2016.

AIM:

In the given etabs project we have to analyse and redesign the RCC moment resisting frame in two columns at the following grid intersection 3A & 3B from foundation to terrace level by using etabs with reference of IS 13920-2016

INTRODUCTION:

In the modal we provide the details of longitudinal reinforcement of two columns and shown shear reinforcement, lapping details as per special confining zone of clause 8.1 of IS 1920-21016

PROCEDURE:

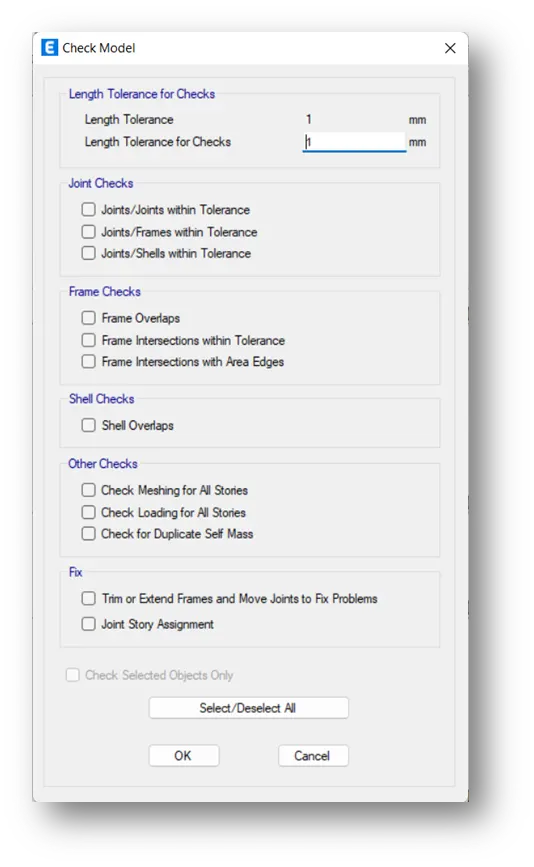

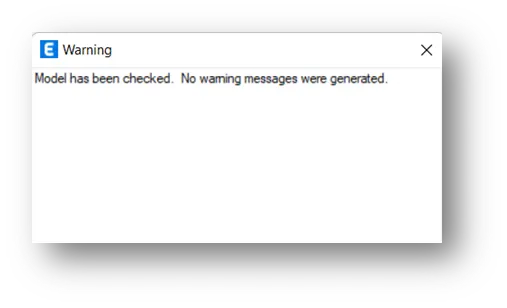

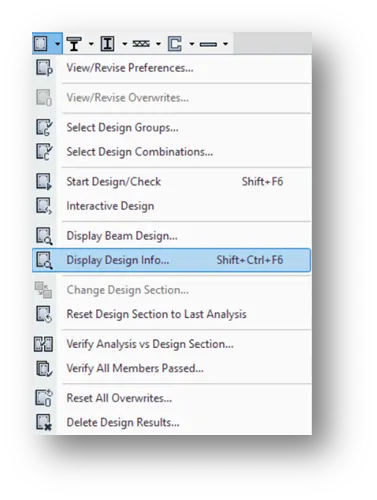

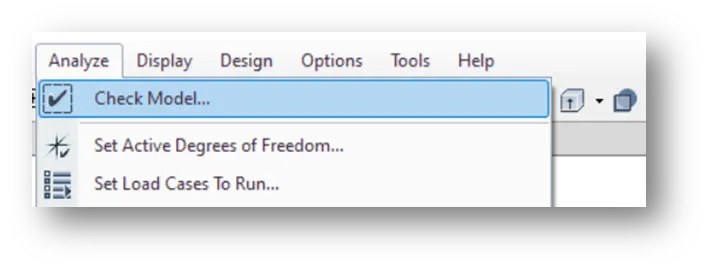

STEP 4) Reinforcement Design

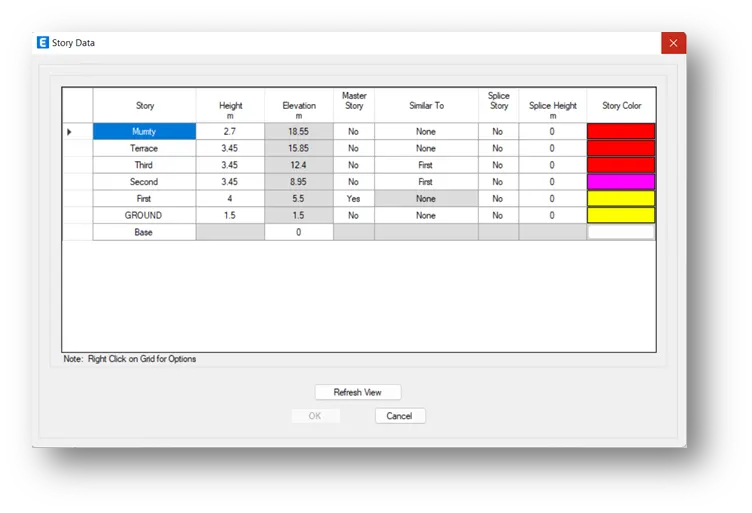

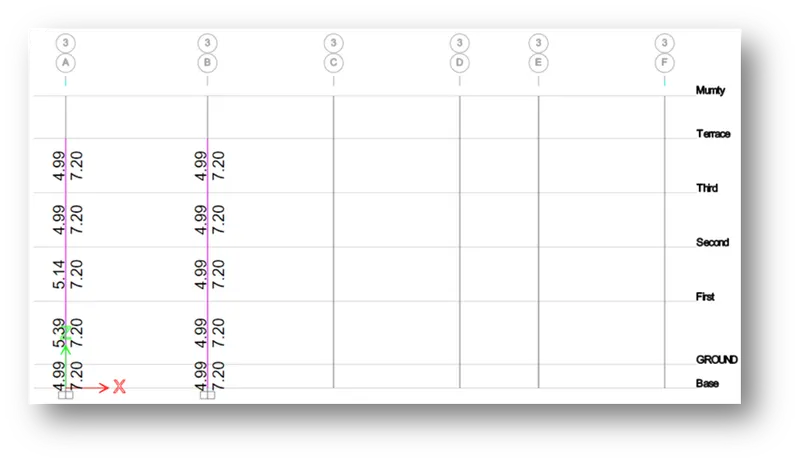

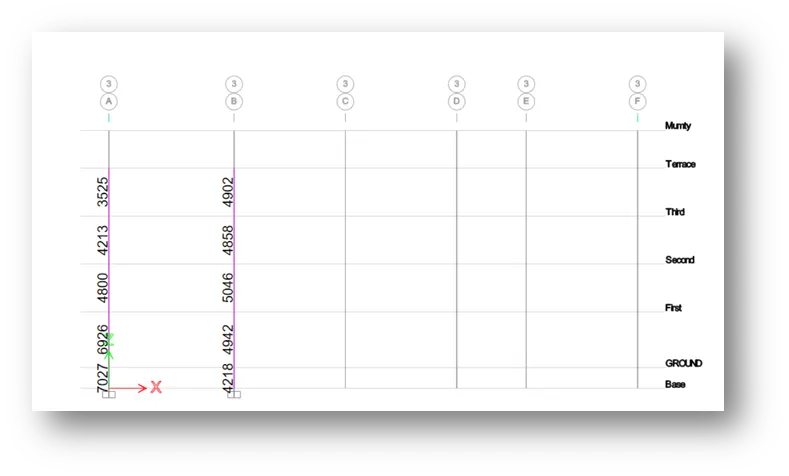

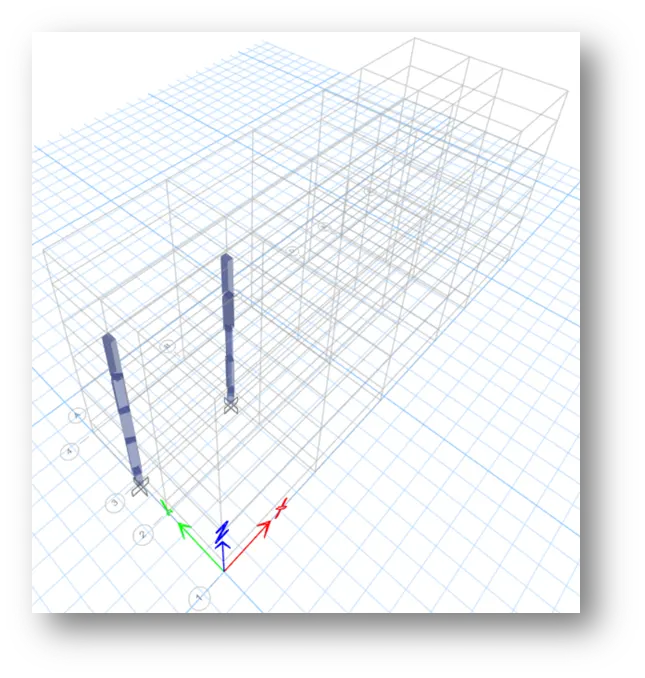

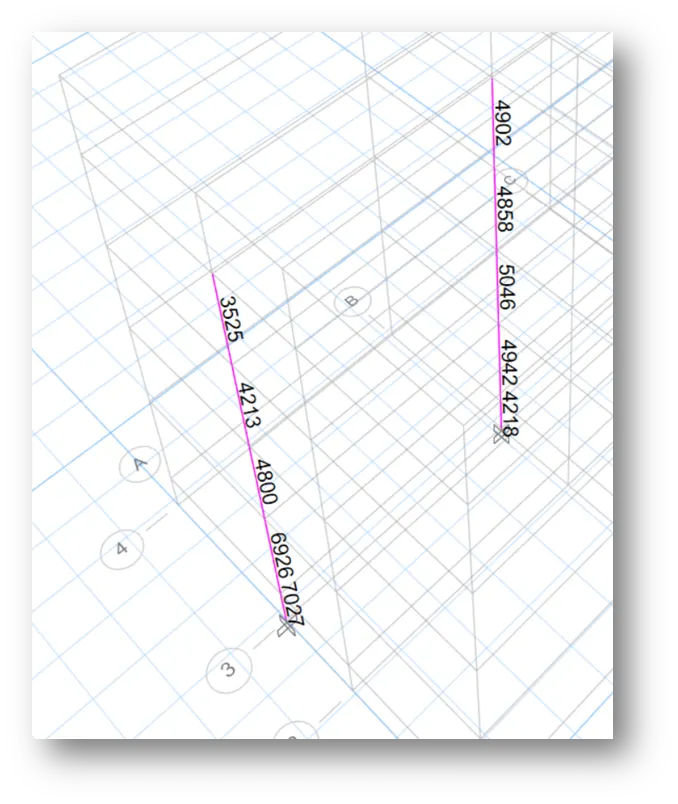

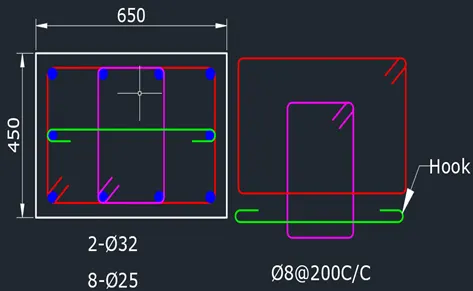

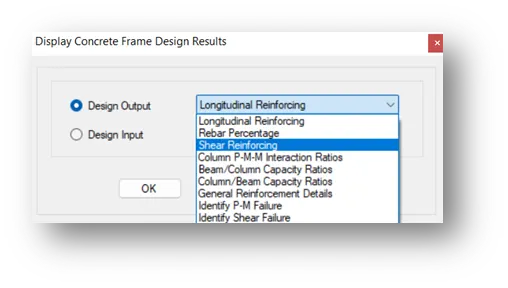

Longitudinal reinforcement & shear reinforcement of column at Grid-3A & 3B from ETABS (450X650)

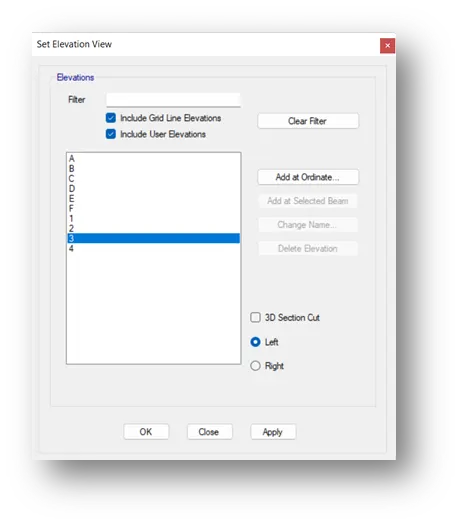

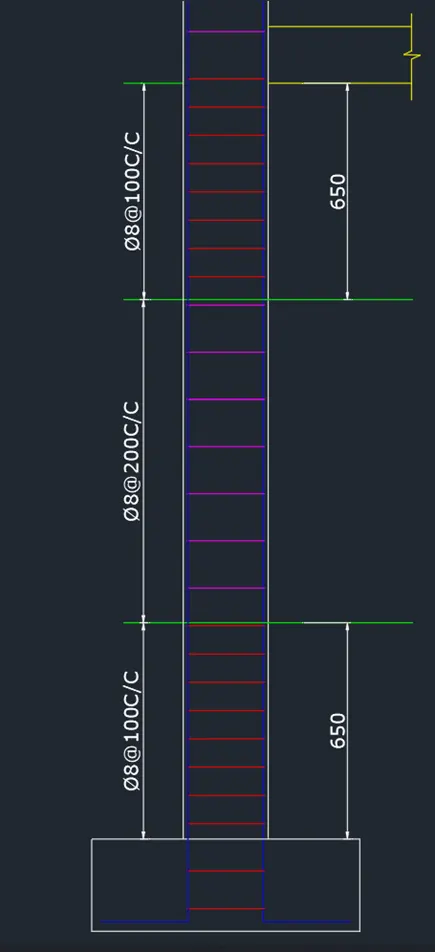

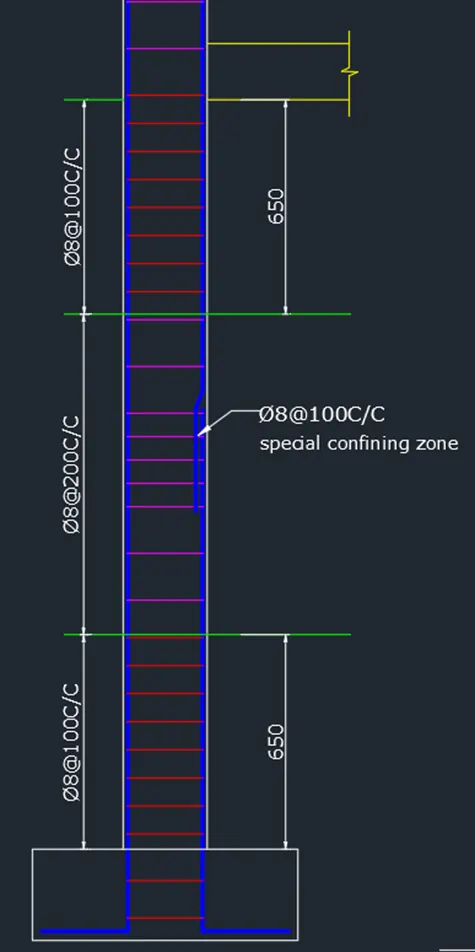

Storey Elevation of column

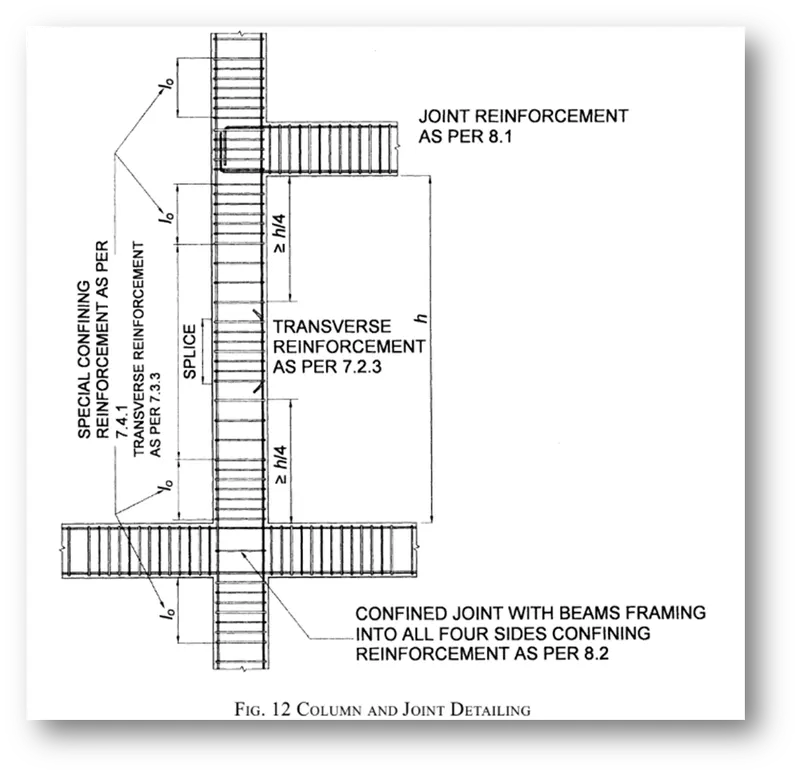

Special confining reinforcement from IS-13920-2016(Clause 8.1)

Lo not less than-

1. Larger column dimension
2. 1/6 of clear span of column
3. 450 mm

Confinement spacing not more than-

1. ¼ of smaller column dimension
2. 6 times of dia of column main bar
3. 100mm

The amount of confinement rebar- .

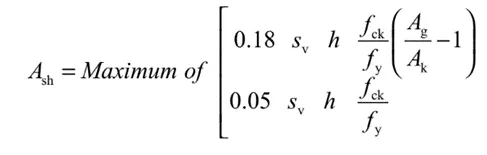

Ash=169mm2
