Reinforcement detailing of Columns from ETABS output

Reinforcement detailing of columns in Etabs 2018.

objective :

• To know the design of RC column using ETABS analysis
• To know thee basics of RC column reinnforcement detailinng with respect to primary standards
• To ensure the ductility reinforcements required by IS - 13920- 2016 been satisified in reinforcement drawing

Detailing rule of any reinforced concrete member

• minimum reinforcement for shrinkage and temperature
• ultimate limit state design rebar requirement
• ductility rebar requirement

(for above which ever is greater sholud be drawn in RC column detailing)

• minimum longitudinal reinforcement as per IS 456-2000 clause 26.5.3.1 As = 2340mm2
• minimum shear or transverse reinforcemnt as per IS 13920-2016 clause 7.4.2- 8mm dia at 300mm spacing.
• development length as per IS 456-2000 clause 26.2.1 Ld= 41 x diameter of bar

Io not less than

• larger column dimension
• 1/6 of clear span of column
• 450 mm

(for 600mm)

confinement spacing not more than

• 1/4 of smaller column dimension
• 6times of dia of coulmn main bar
• 100mm

The amount of confinement  rebar

procedure:

• Initially open the ETABS and the given file.
• Then carry out the analysis of the model after checking it.
• Once analysis is complete next we have to carryout the design.
• For this initially go to concrete frame design in the tabs provided at the top.

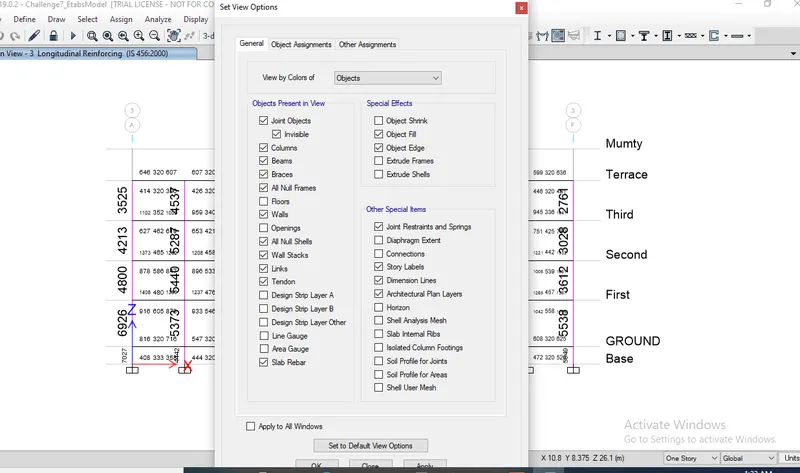

• Concrete frame design and go to Design preferences.



• Concrete frame design set the Design combinations.



• Concrete frame design go to Start design check

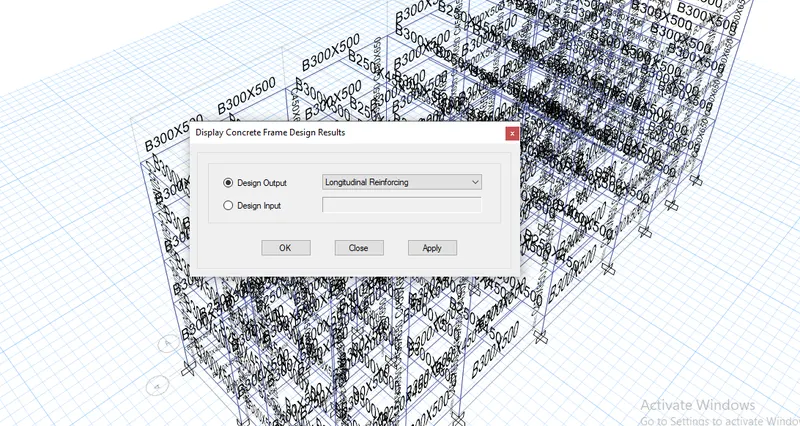

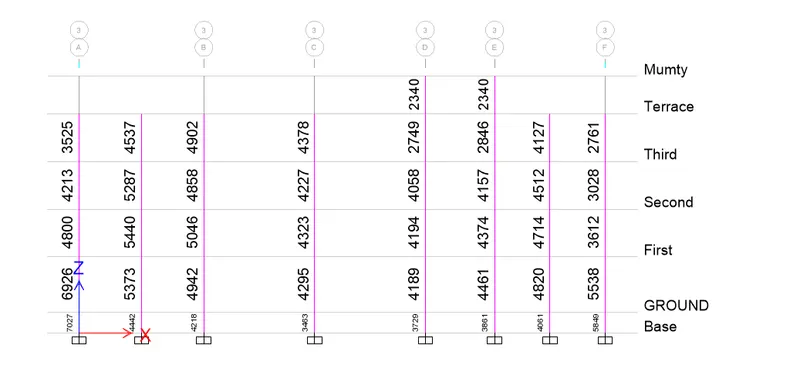

• Concrete frame design go to Display design info and run longitudinal reinforcement.

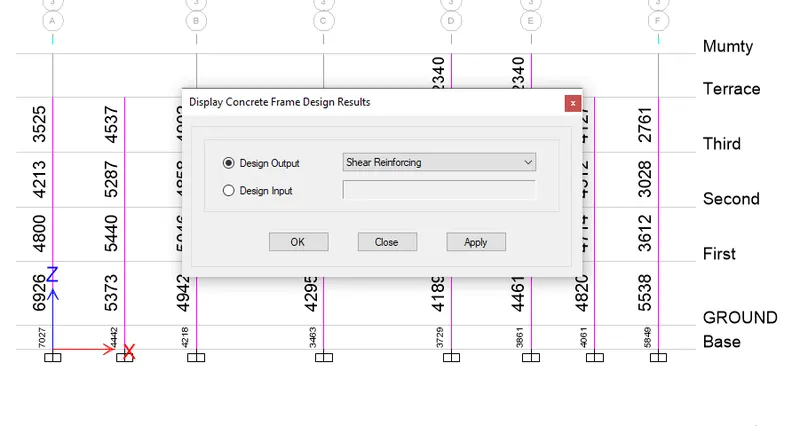

• Concrete frame design go to Display design info.and run  shear reinforcement.

• Now, we need to draft the column reinforcement details on an AutoCAD.

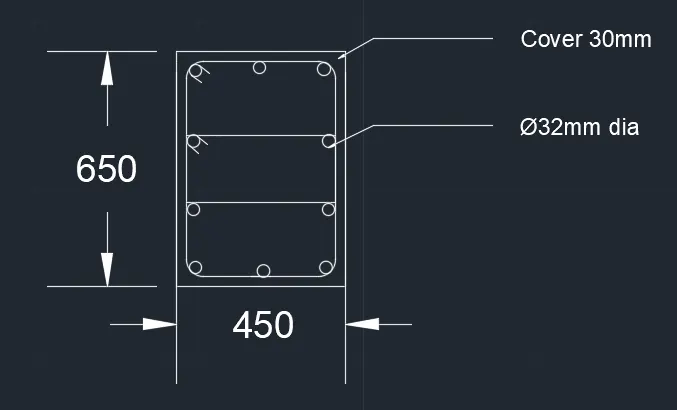

• The reinforcement details for the column 3A is given as:
• Here the maximum longitudinal reinforcement required is 7027`mm^2`.
• Hence, provide 8 no.s of 32mm dia bars and 2 no.s of 20mm dia bars which together contributes an Ast of 7060`mm^2`
• Now, for shear reinforcement, the maximum reinforcement area required is 720`mm^2`.
• Hence, provide 10mm dia bars @ 150mm c/c at zone A and a spacing of 100mm  c/c at zone B ( at splicing location and near the beams) which contributes to an Ast of 1570`mm^2` and 2355`mm^2` respectively.

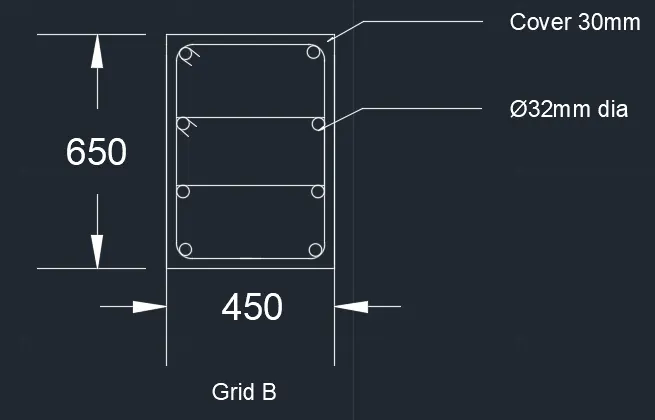

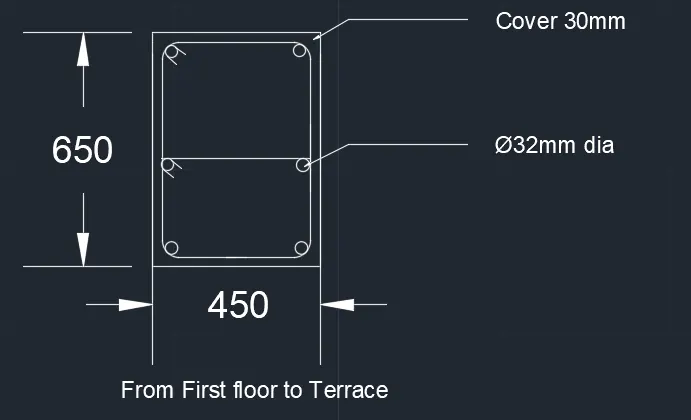

• The reinforcement details for the column 3B is given as:
• Here the maximum longitudinal reinforcement required is 5046`mm^2`.
• Hence, provide 4 no.s of 32mm dia bars and 6 no.s of 20mm dia bars which together contributes an Ast of 5100`mm^2`
• Now, for shear reinforcement, the maximum reinforcement area required is 720`mm^2`.
• Hence, provide 10mm dia bars @ 150mm c/c at zone A and a spacing of 100mm  c/c at zone B ( at splicing location and near the beams), which contributes to an Ast of 1570`mm^2` and 2355`mm^2` respectively.

Result:

• The given Etabs model has been analysed after checking the model.
• Then concrete frame design has also been carried out hence the reinforcement area required has been obtained.
• The longitudinal reinforcement details obtained from the results have been drafted in AutoCAD software.
• Similarly the shear reinforcement detiakls also have been drafted.
