Reinforcement detailing of Columns from ETABS output

aim

to complete the given challenge reinforcement detail of column in autocad

steps

• open the given model and run analysis the model

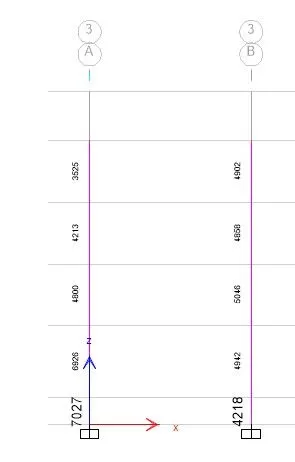

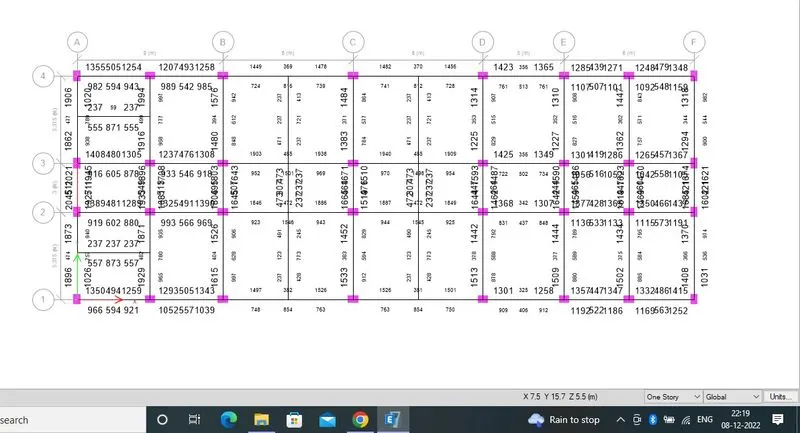

column 3A and 3B longitudinal reinforcements

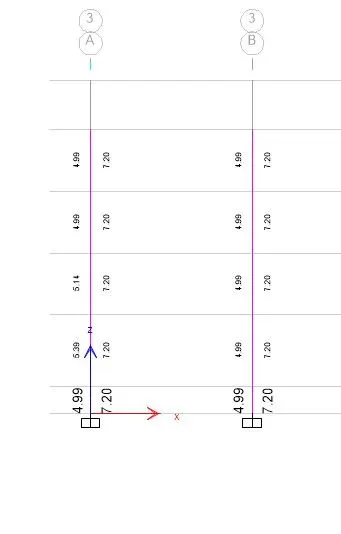

shear rein forecments

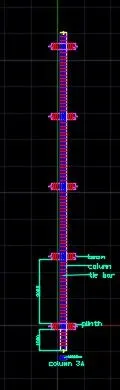

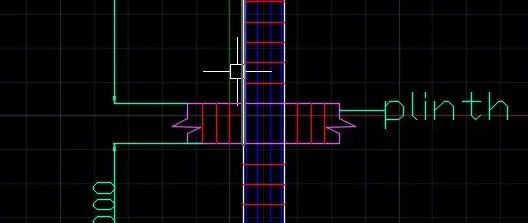

reniforcement details in Cad

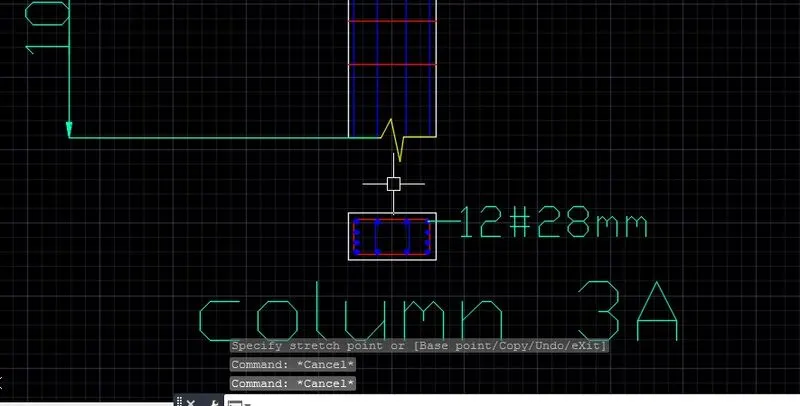

the highest of 7027,6926,4800,4213,3525 = 7027mm2 is Provided for the Column.so 12 number of 28mm diabar provide longitudinal reinforcements

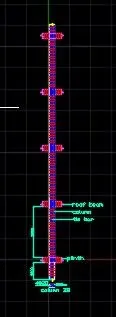

column 3B

the highest of 4218,4942,5046,4858,4902 = 5046mm2 is Provided for the Column.

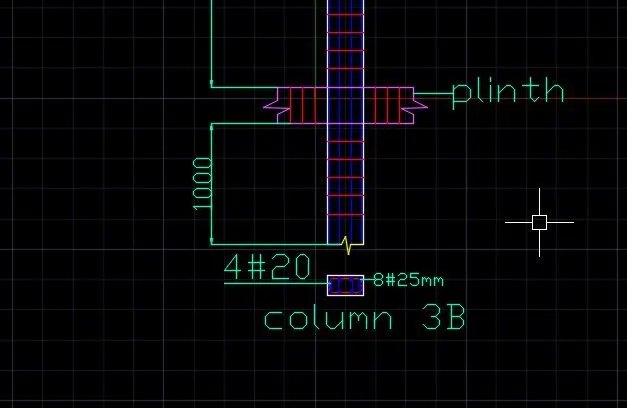

so 8 no.of 25mm bar and 4 no of 20mm bar provide

result

the column 3Aand 3B reinforcements details provided
