Reinforcement detailing of Columns from ETABS output

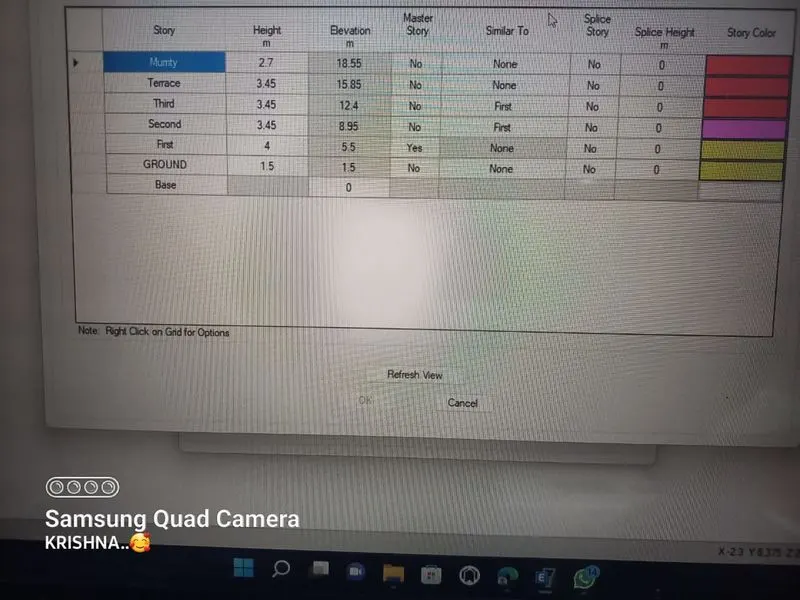

The ETABS file for a G+4 building is provided. Run the analysis and design the RCC Moment Resisting Frame. The following challenge deals specifically with two columns at the following grid intersections.

1. 3A
2. 3B

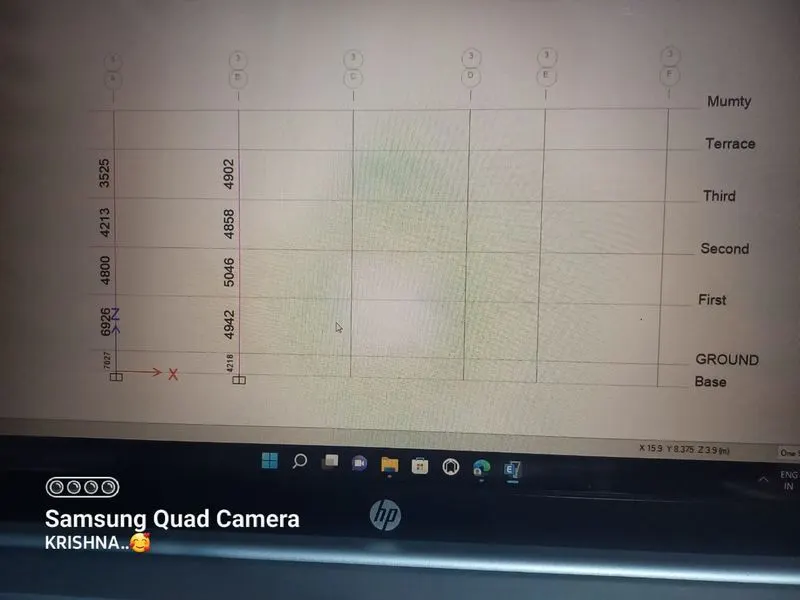

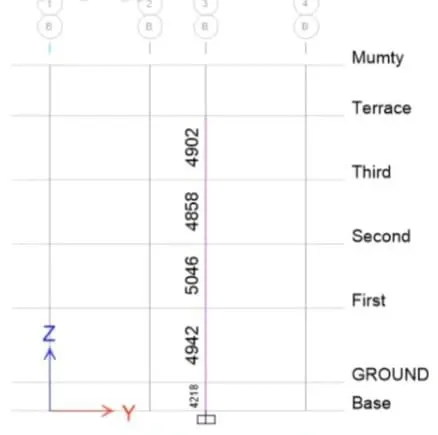

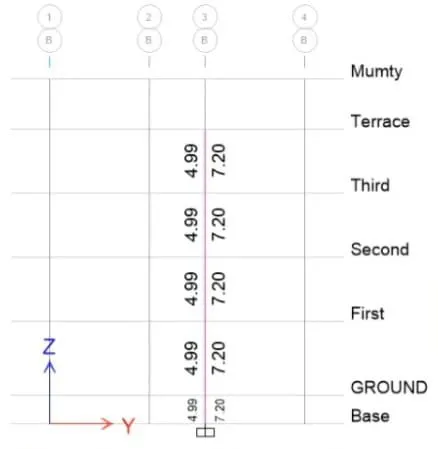

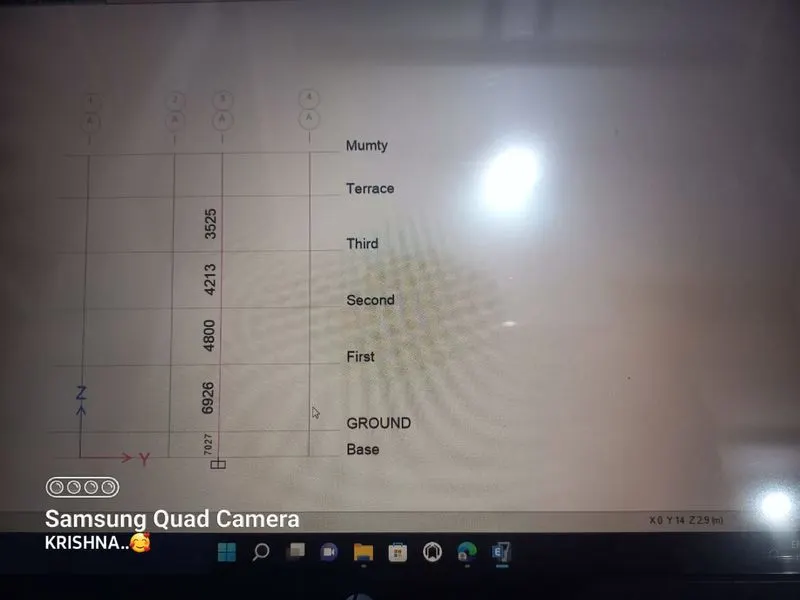

• Provide details of longitudinal reinforcement for the two columns, from foundation to terrace level. Sketch the column cross sectional & elevation details or draft it using autocad software.

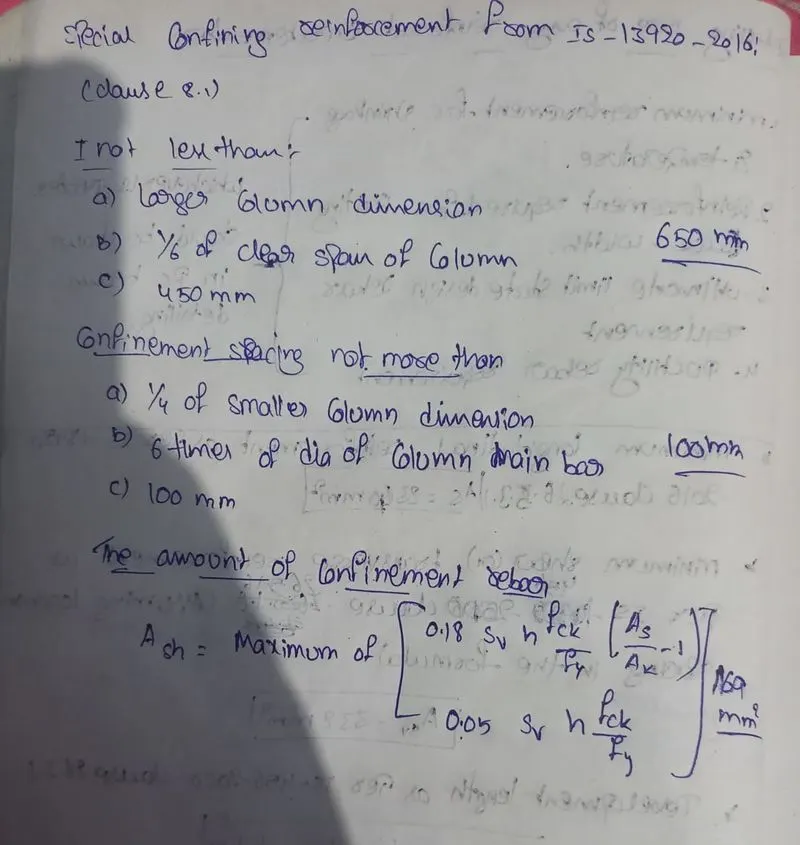

• Show shear reinforcement & lapping details as per special confining reinforcement provision of clause 8.1 of IS 13920 - 2016

Objectives :-

• TO know the design of RC beam using ETABS analysis.
• To know the basics of beam reinforcement detailing with respect to primary standards.
• To ensure the ductality reinforcement required by IS-13920-2016 been satisfied in ETABS design.
