Reinforcement Detailing of Beams from ETABS output

Aim:

To analyse the given ETABS model and to extract the design results and detailing of two mentioned RC beams. Also the design recheck for Grid-A RC beam has to be done.

step 1

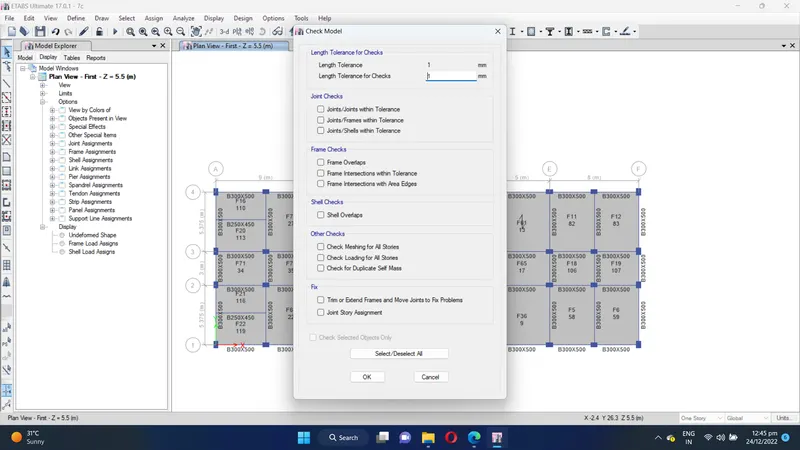

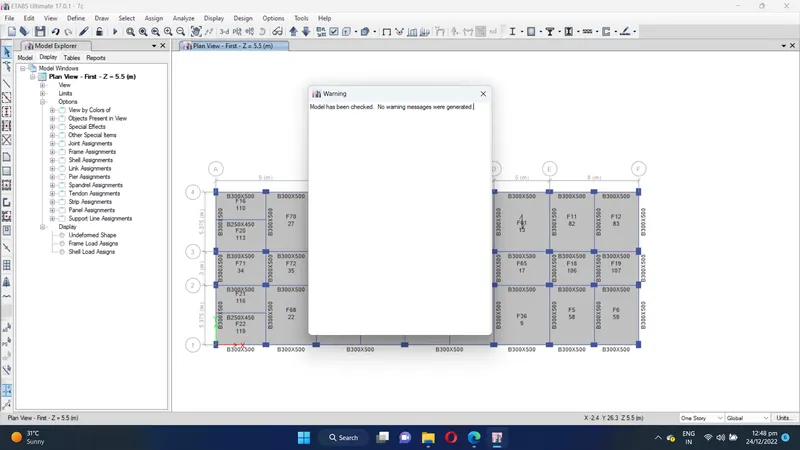

Analyse > Check model

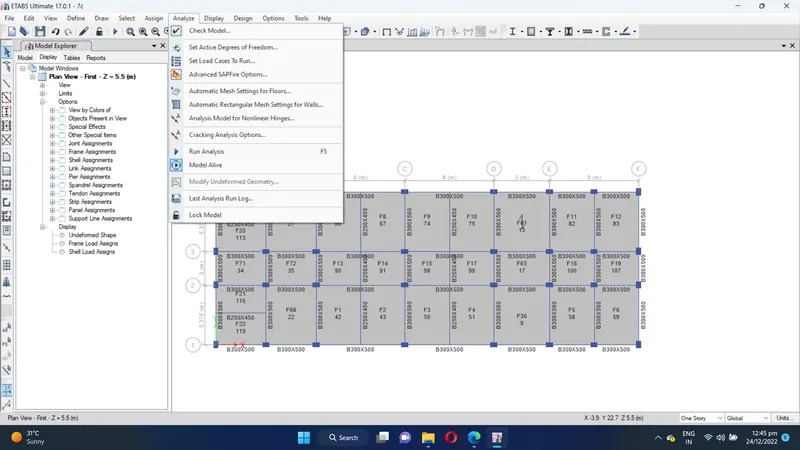

Analyse > Run analysis

step 2

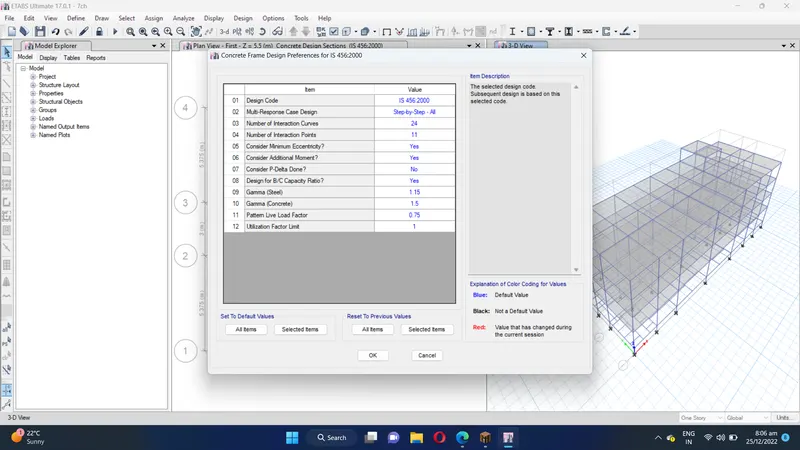

Design > Frame design Preference

step 3

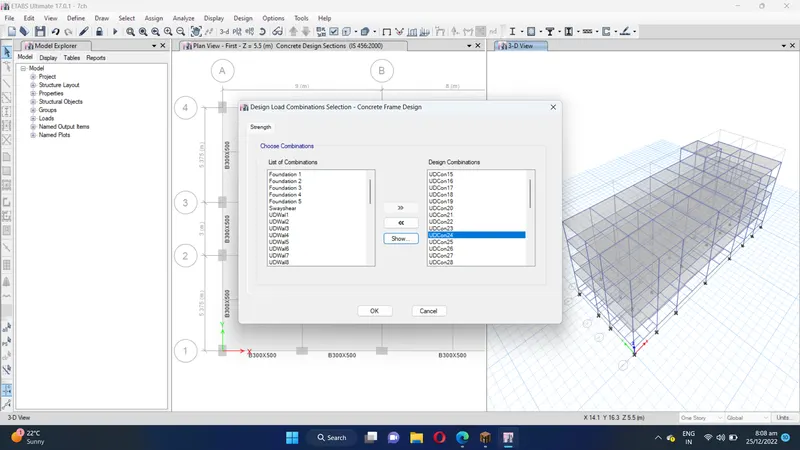

Design > Design combination

Design > Start design/check

step 4

Design > Verify all members passed

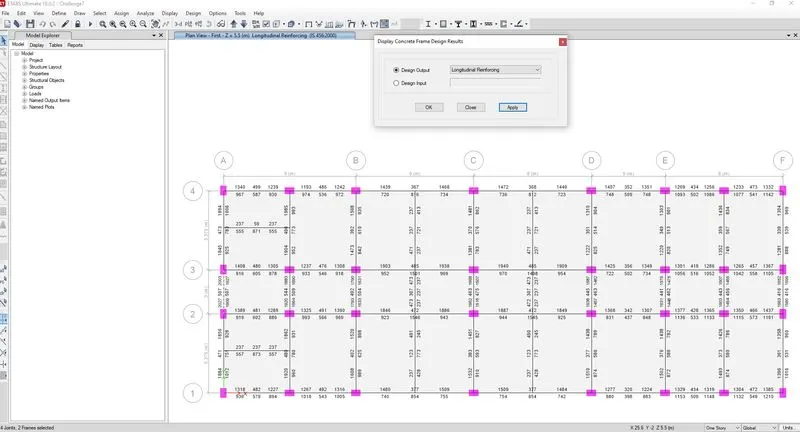

Design > Display design info > Flexural reinforcement

Step 5

As per the noted rebar outputs, the Longitudinal sections for those two RC beams are drawn using AutoCAD software and detailing is done complying IS 13920-2016 requirements.
