Radial Engine Assembly : Week 4 Challenge

RADIAL ENGINE ASSEMBLY

• TO START WITH, I DREW ALL PARTS OF RADIAL ENGINE MOSTLY BY PAD, PROFILE AND SHELL COMMAND.
• AS THERE IS 5 PISTON, I CREATED TWO SUBASSEMBLY ARTICULATED ROAD AND MASTER ROD SUBASSEMBLY.

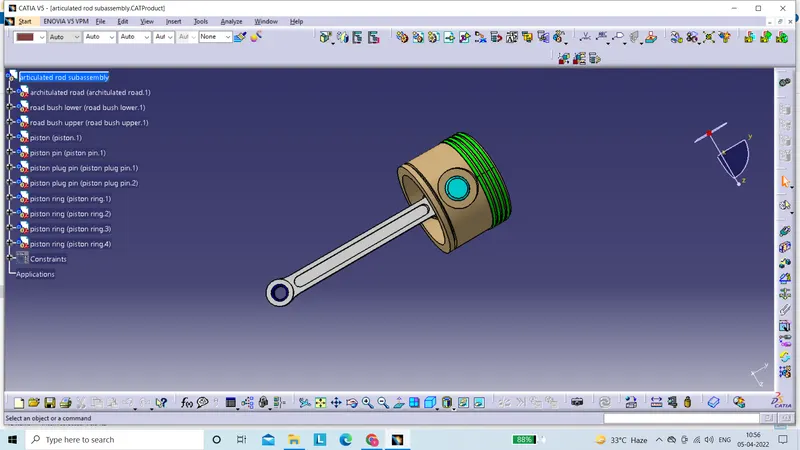

• IN ARTICULATED ROD ASSEMBLY, I ASSEMBLED ARTICULATED ROD WITH PISTON BY OFFSET AND COINCIDENCE CONSTRAINT ALOMNG WITH ROD BUSH UPPER AND ROD BUSH LOWER. APART FROM THAT I ALSO ASSEMBLED PISTON RING BY MULTI INSTANTIATION TOOL AND COINCIDENCE CONSTRAINTS.

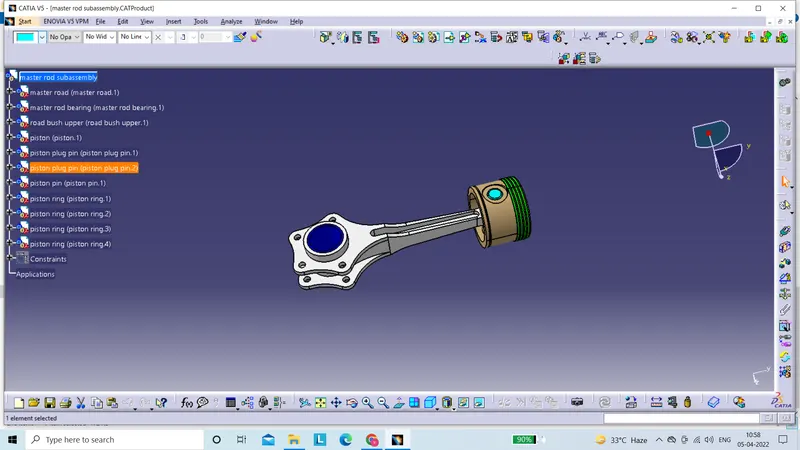

• IN MASTER ROD ASSEMBLY, I FIXED MASTER ROD THEN FOLLOWED SAME PROCESS FOR PISTON , PISTON PLUG , PIN , RING AS ARTICULATED ROAD SUBASSEMBLY.
• AFTER FINISHING BOTH SUB ASSEMBLIES, I TOOK NEW ASSEMBLY WINDOW NAMED RADIAL ENGINE ASSEMBLY. I ENTERED MASTER ROD SUBASSEMBLY FIRST AND FIXED IT.

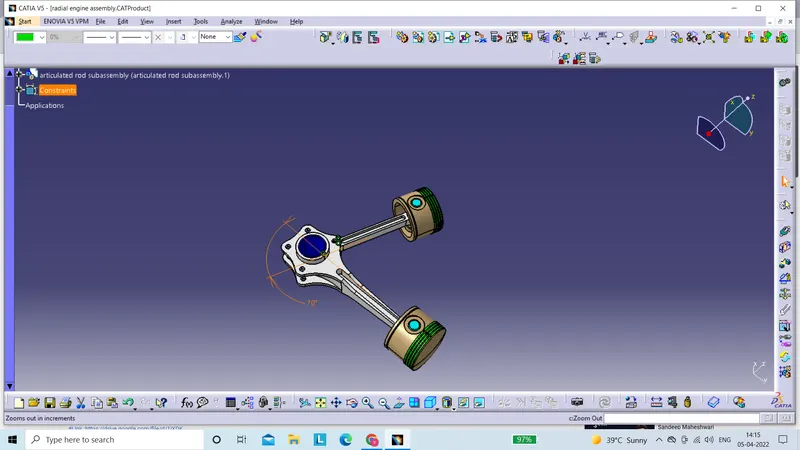

• THEN, I TOOK ARTICULATED ROD AND ASSEMBLED IT WITH MASTER ROD BY COINCIDENCE CONSTRAINT AND 70' ANGLE BETWEEN MASTER ROD AND ARTICULATED ROD.
• AFTER THAT, I FOLLOWED SAME PROCESS FOR OTHER 3 PISTONS.
• IN THE END, I ASSEMBLED LINK PIN TO JOINT MASTER ROD AND ARTICULATED ROD.
• I USED PATTERN COMMAND TO APPLY LINK PIN TO OTHER EMPTY PLACES ON MASTER ROD.
