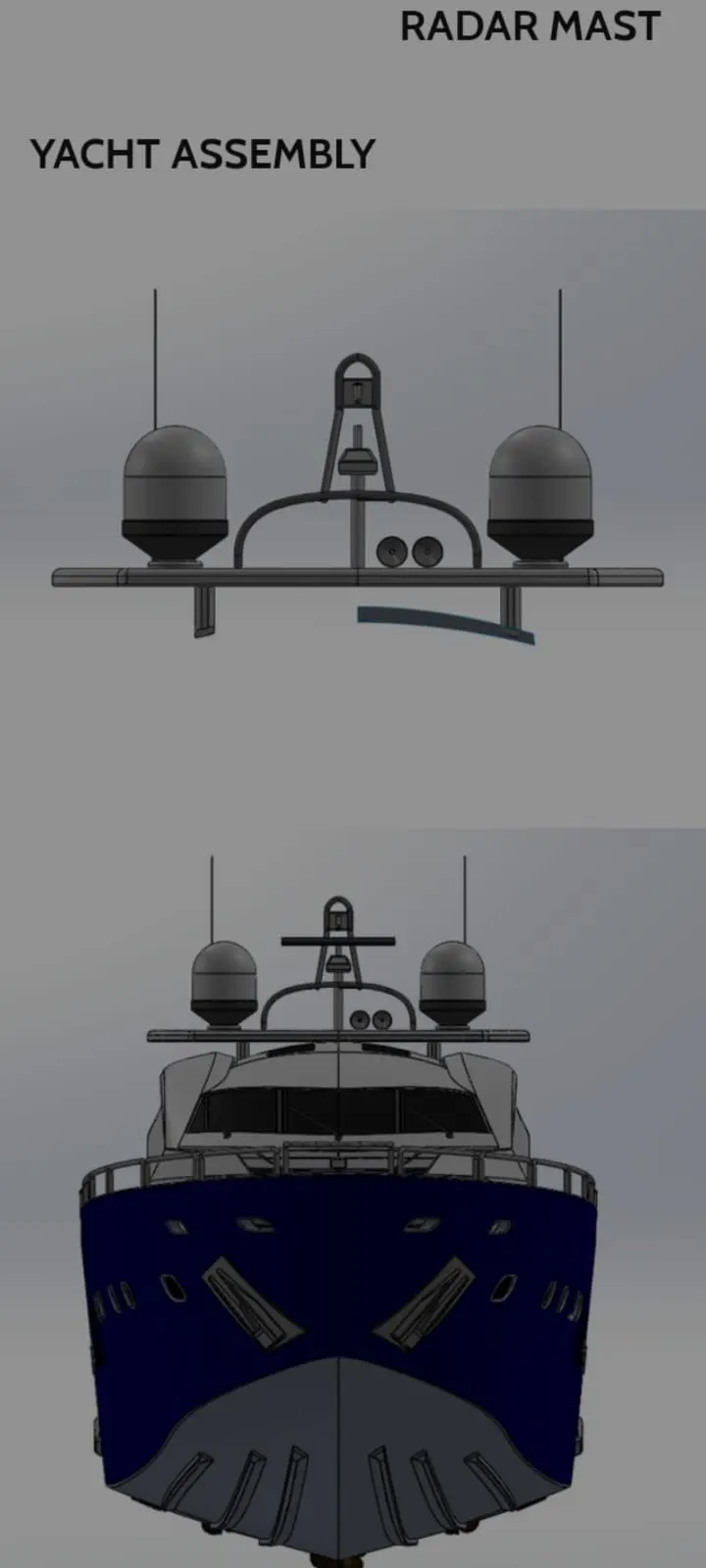

Radar Mast & Final Assembly of Yacht

INTRODUCTION :

We are to learn the entire modelling of yacht tutorial on solidworks and solidworks visuvialize

The various components of the yatcht we deal with are:

1.Propeller

2. Radar

3.Blue print setup

4. Hull

5.Garage door

6.Front seat

7.Middle seat

8.Rear seat

9.Super structure

10.Radarmast

After designing the part components, we have worked upon the assembly and photo rendering of the yatcht which gives it a complete and realastic view.

1.PROPELLER:

A Propeller is a rotating fan-like structure that is used to propel ship by using the power generated and transmitted by the main engine of the ship.

A Propeller blades displace water, to create the forces that move a boat forward. The propeller works by turning torque into thrust.

In this modelling a lot of features are used shown in below.

1. REVOLVE:

To create a revolve feature: Create a sketch that contains one or more profiles and a centre line, line, or edge to use as the axis around which the feature revolves. Click one of the following revolve tools: Revolved Boss/Base (Features toolbar) or Insert > Boss/Base > Revolve.

b.LOFT:

The loft feature in SOLIDWORKS allows you generate complex geometry in a single feature. It does this by interpolating surfaces between various cross-sections of a model. These cross-sections can be sketches, faces, or edges. In the loft interface, these cross sections are considered "Loft Profiles".

Fillet
Fillet/Round creates a rounded internal or external face on the part. You can fillet all edges of a face, selected sets of faces, selected edges, or edge loops

1. CUT EXTRUDE:

To create an extruded cut:

1) Sketch the profile for cut.

2) Click Extruded Cut on the Features toolbar or select Insert, Cut, Extrude on the menu bar.

3) Under Direction 1, do the following: Select an End Condition. Examine the preview and if necessary, click Reverse Direction to extrude in the opposite direction.

1. CIRCULAR PATTERN:

Use circular patterns to create multiple instances of one or more features that you can space uniformly around an axis.

To create a circular pattern:

• Create one or more features to replicate.

• Click Circular Pattern (Features toolbar) or Insert > Pattern/Mirror > Circular Pattern.

• Set the Property Manager options.

. Click ok.

2.RADAR:

It does so by detecting other ships and land obstacles, to give bearing and distance for collision avoidance and navigation while on water. A marine radar device acts as a major navigation aid for boaters. It helps in detecting boats, birds, landmasses, and weather systems - even if the visibility is less than usual.

In this modelling boss/base extrude, cut extrude, fillet, mirror, sketch pattern, split line etc.

1. Boss extrude:

Extrude Property Manager

• Create a sketch.

. Click one of the extrude tools: Extruded Boss/Base. on the Features toolbar, or click Insert > Boss/Base > Extrude. Extruded Cut. on the Features toolbar, or click Insert > Cut > Extrude. Extruded Surface. on the Surfaces toolbar, or click Insert > Surface > Extrude

1. Mirror:

To mirror a feature: Do one of the following: In a part, click Mirror (Features toolbar) or Insert > Pattern/Mirror > Mirror. In an assembly, click Assembly Features (Assembly tab on the Command Manager)

c.Sketch driven pattern:

Open a sketch on the face of a part.

• Create a seed feature on the model.

• Click Point or Tools > Sketch Entity > Point, and add multiple sketch points to represent the pattern you want to create, based on the seed

feature.

• Close the sketch.

d.Split line:

Using the split lines feature, the sketch lines are projected onto the selected faces, and divide the faces into multiple regions as defined by the sketch. Once the split line is created, these selected regions can have a different appearance than the other regions, and function as a separate face.

How to setting up blueprints in solid Works?

1. So, Let's Start the tutorial with New Part. 2. start a sketch on the front plane by right click in

the front plane Nd click sketch's icon. 3. click in TOOLS after that click in Sketch Tools and after that click in sketch picture.

4.HULL:

The hull of a ship is the most notable structural entity of the ship. To define the hull, it can be said that it is the watertight enclosure of the ship, which protects the cargo, machinery, and accommodation spaces of the ship from the weather, flooding, and structural damage.

In this modelling a lot of features are used.

To create a lofted surface:

1. Create a plane for each profile section of the loft. The planes do not need to be parallel.

2. Sketch the section profiles on the planes.... 3. If necessary, create guide curves....

4. Click Lofted Surface (Surfaces toolbar) or Insert > Surface > Loft.

5. Set the Property Manager options....

6. Click OK.

7. Surface trim:

To trim a surface:

1. Create two or more surfaces that intersect at one or more points, or create a surface that intersects with a plane or has a sketch on its face.

2. Click Trim Surface on the Surfaces toolbar, or

click Insert > Surface > Trim.

3. In the Property Manager, under Trim Type, select

a type:

o Trims surfaces using surfaces, sketch

entities, curves, planes, and so on.

o Trims multiples surfaces using the

surfaces themselves. 4. Under Selections, choose from these options:

o Trim tool (available with Standard selected under Trim Type). Select a surface, sketch entity, curve, or plane in the graphics area as the tool that

5. If you selected Mutual Trim, Preview options are available. Select one of the following:

Show included surfaces

Displays the regions that you are including as surfaces. All other surfaces are hidden.

Show excluded surfaces

Displays the surfaces that you are excluding as

transparent. All other surfaces are hidden.

Show both included and excluded surfaces

Displays both included and excluded surfaces.

Excluded surfaces appear transparent.

6. Under Surface Split Options, select an item:

o Boundaries extend tangent from the ends

of the Trim tool.

o Boundaries extend from the Trimtool endpoints to the nearest edge.

7. Optionally, select Split All.

Example: Trim Surface - Surface Split Options

8. Click

1. Chamfer:

The chamfer tool creates a bevelled feature on selected edges, faces, or a vertex. To create a chamfer:

1. Click Chamfer (Features toolbar) or Insert >

Features > Chamfer. 2. Under Chamfer Parameters, select an item andset parameters.

To create a sweep:

1. Sketch a closed, non-intersecting profile on a

plane or a face. If you use guide curves: ... 2. Create the path for the profile to follow. Use a sketch, existing model edges, or curves. ...

3. Click one of the following: ...

4. In the Property Manager: ...

5. Set the other Property Manager options. Click

Ok.

1. Dome:

Click Dome on the Features toolbar, or click Insert > Features > Dome. Select one or more planar or non planar faces. Set a value for the distance by which the dome expands. Click to create a concave dome.

To create a linear sketch pattern:

1. In an open sketch, click Linear Sketch Pattern. (Sketch toolbar) or Tools > Sketch Tools > Linear Pattern.

2. In the Property Manager, under Entities to Pattern, select the sketch entities to pattern. 3. Set values for Direction 1 (X-axis)

4. Repeat for Direction 2 (Y-axis)

You can use linear patterns to create multiple instances of one or more features that you can space uniformly along one or two linear paths. Seed feature. Linear pattern - two directions. Linear pattern - one direction.

6. Body delete/keep:

To move, copy, rotate, or mate a solid or surface body: Click Move/Copy Bodies (Features toolbar) or Insert > Features > Move/Copy. Specify parameters to move, copy, or rotate bodies. Apply mates between bodies.

Click Delete/Keep Body on the Features toolbar, or click Insert > Features> Delete/Keep Body. In the Property Manager, select Delete Bodies or Keep Bodies. For Bodies to keep or Bodies to delete, select bodies in the graphics area or from the Solid Bodies folder for Solid/Surface Bodies to Delete/Keep. Click OK.

5.garage door:

A garage door is a large door on a garage that opens either manually or by an electric motor (a garage door opener). Garage doors are frequently large enough to accommodate automobiles and other vehicles. Small garage up doors may be made in a single panel that tilts and back across the garage ceiling.

In this modelling the tools and features are used as same as before models there is no new features here.

Modelling of garage door

6.superstructure:

In the last modelling of hull I covered a lot of tools and features are used and showed how to use it and remaining are shown in this modelling of superstructure and next models.

a.surface sweep:

If you are using guide curves, create coincident or pierce relations between the guide curves and the profile. Click Swept Surface (Surfaces toolbar) or Insert > Surface > Sweep. Set the Property Manager options. Click OK.

Use the Knit Surface tool to combine two or more

b.surface knit:

faces and surfaces into one.

Note the following about knit surfaces:

Edges of the surfaces must be adjacent and not

overlapping. • Surfaces do not need to be on the same plane.

• Select the entire surface body, or select one or

more adjacent surface bodies. • Knit surfaces absorb the surface bodies you

used to create them.

• Create a solid body when the knit surfaces form

a closed volume, or leave as a surface body.

• Select Merge entities to merge faces with the

same underlying geometry. • Select Gap Control to view the gaps or modify

the knitting tolerance.

c.ruled surface:

To create a ruled surface: Click Ruled Surface on the mold Tools toolbar, or click Insert > molds > Ruled Surface. Ruled surface is tangent to the surfaces that share an edge. Ruled surface is normal to the surfaces that share an edge.

d.surface fill:

To create a filled surface, click Filled Surface on the Surfaces toolbar, or click Insert > Surface > Fill, set the Property Manager options, and click OK. Set the Property Manager options based on the type of filled surface you want to create

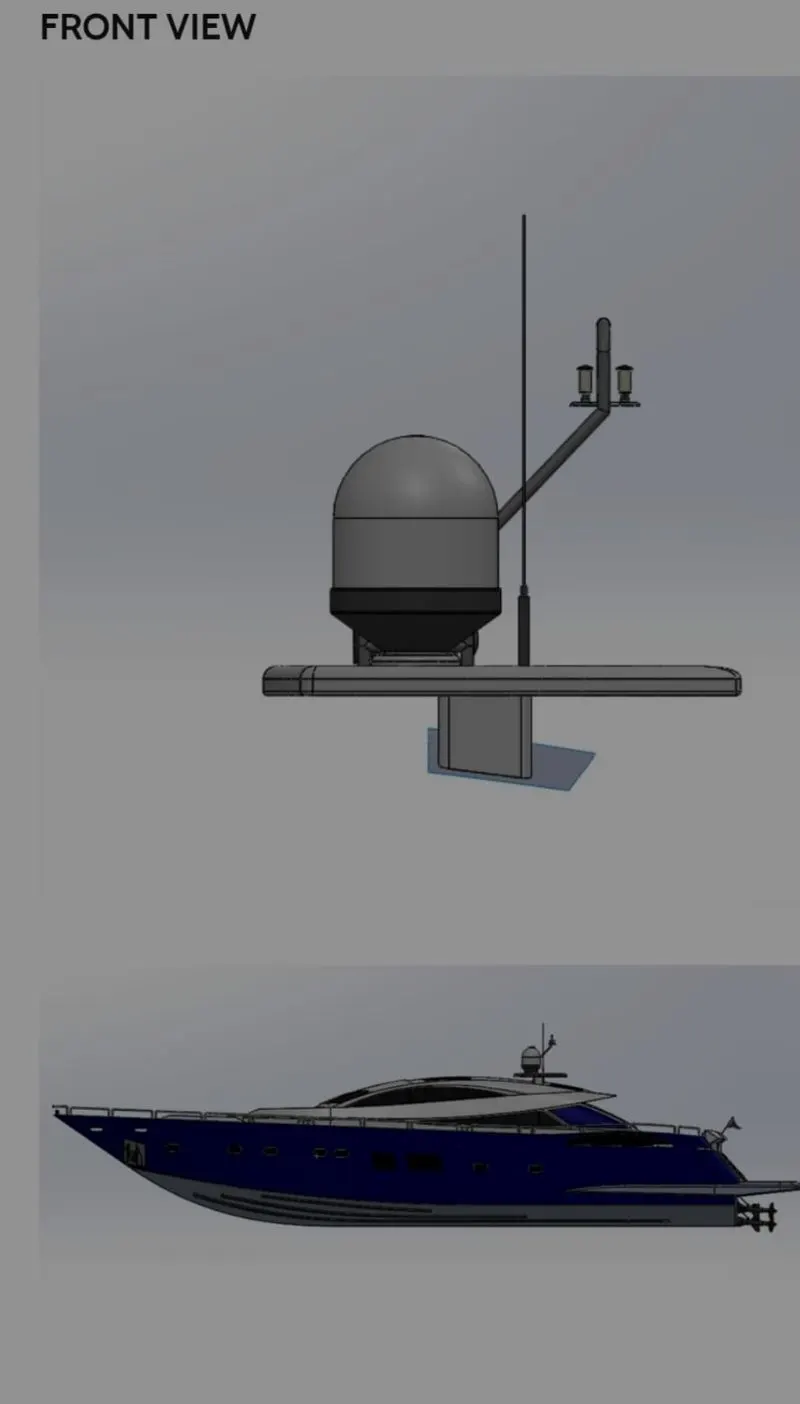

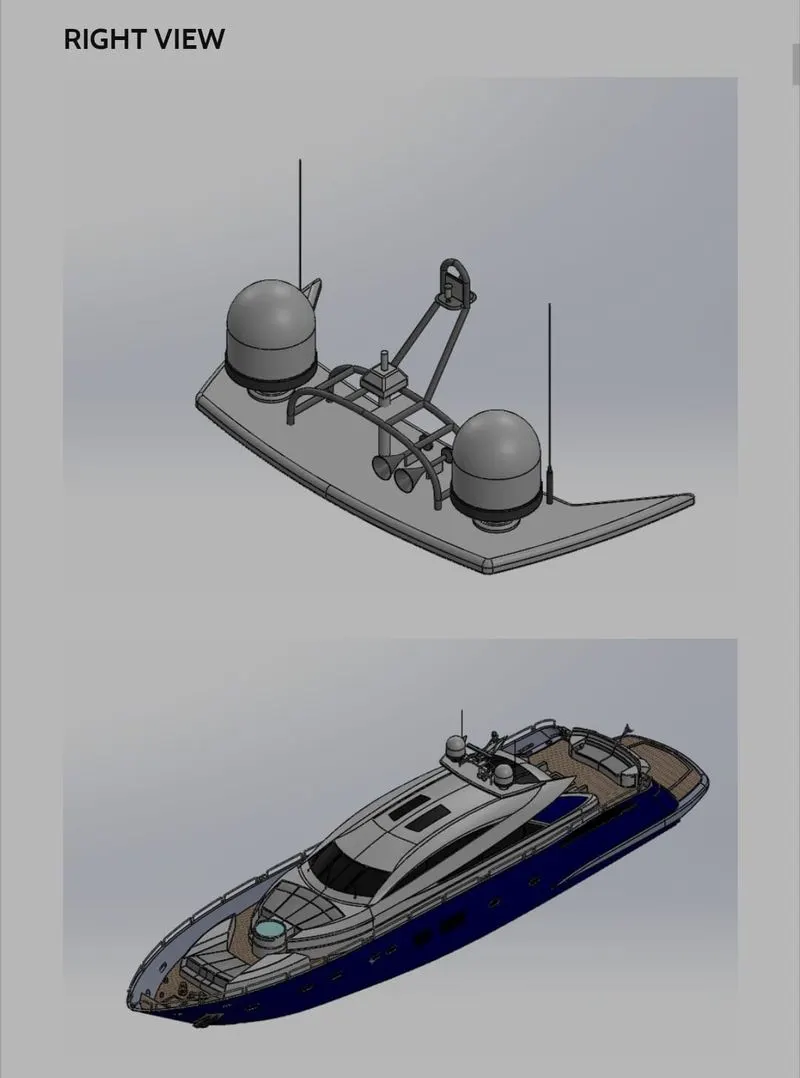

ASSEMBLY OF YATCHT TUTORIAL:

First import the hull

Go to: Insert>components>existing part/assembly

Click the browse option.

Select the hull in my model and click ok.

The hull is fix automatically in this assemply.

Same procedures used to import the other models such as super structure, Radar mast, front seat, middle seat.

In these parts are automatically fix in the assembly.

Import the rear seats and mates manually by using mates options such as coincident, concentric, distance changes etc...

And next import the garage door. Click anywhere in our screen. Select the coincident option and also select the mid plane of hub model and select right plane of garage door in the features tree as endities to mate. Change the distance in Omm and then click ok. Select the blue hinge tube of the hull and blue hinge hole of the garage door. Select concentric mate and click ok.

Next import the propeller. Click anywhere in the screen. Select the concentric option and select the blue axis of hull and select blue propeller hole and click ok. After create a coincident mates and change the distance 0 mm. Click ok. Same way used to mate the other two propeller.

At last import the radar model.

Go to:insert>components>existing pats. Browse and select the radar model appear in this screen any place and click ok. Select the concentric option

RENDERING:

Photo View 360 is a SOLIDWORKS add-in that produces photo-realistic renderings of SOLIDWORKS models. The rendered image incorporates the appearances, lighting, scene, and decals included with the model. Photo View 360 is available with SOLIDWORKS Professional or SOLIDWORKS

Premium. 1. With a model open, click Tools > Add-In and add in Photo View 360.

2. Start a Previewin the graphics area or open the Preview window to see how changes you make to the model affect the rendering.

3. Edit appearances, the scene, and decals.

4. Editlights.

By default, lighting is off in Photo View. With lights off, you can use the realistic lighting provided by scenes, which is usually sufficient for rendering. You typically need additional lighting in Photo View to illuminate occluded spaces in the model.

5. Edit Photo view options.

6. When you are ready, perform a final render either now (Photo View > Final Render) or later (Photo View > Schedule Render).

If annotations or dimensions are visible in your model, a dialog box appears with options to include the dimensions and annotations or render without them.

If you have not added a camera or turned-on perspective view, which provide more realistic, higher quality renderings, a dialog box appears. You can turn on a camera or perspective view from the dialog box or continue without them.

7. Make detailed adjustments in the Final render

CONCLUSION:

By the end of this project we have used a lot of Hdr environments, apperances, scenes and finally rendered also.

Now a yacht model is ready.
