Radar Mast & Final Assembly of Yacht

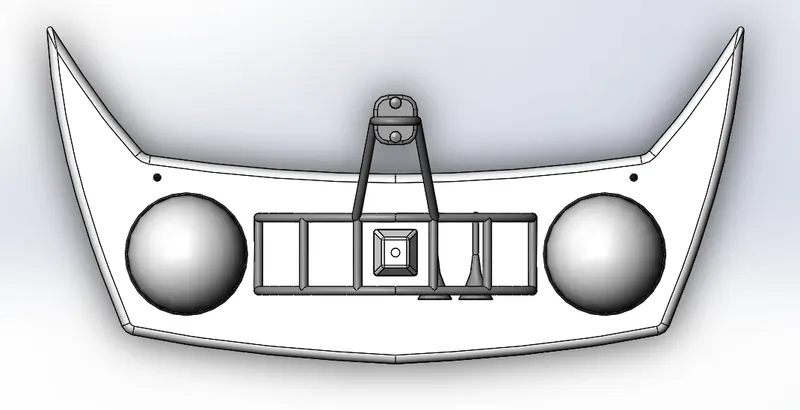

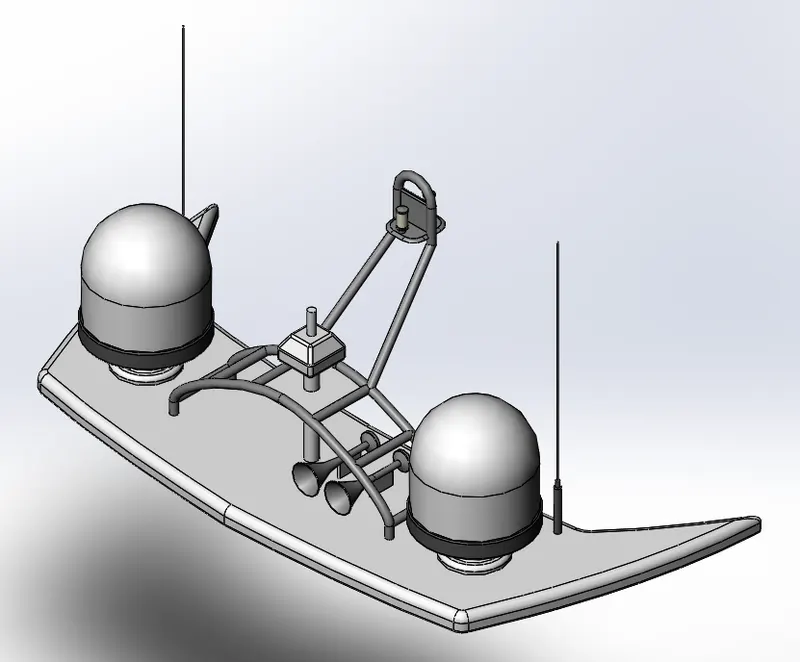

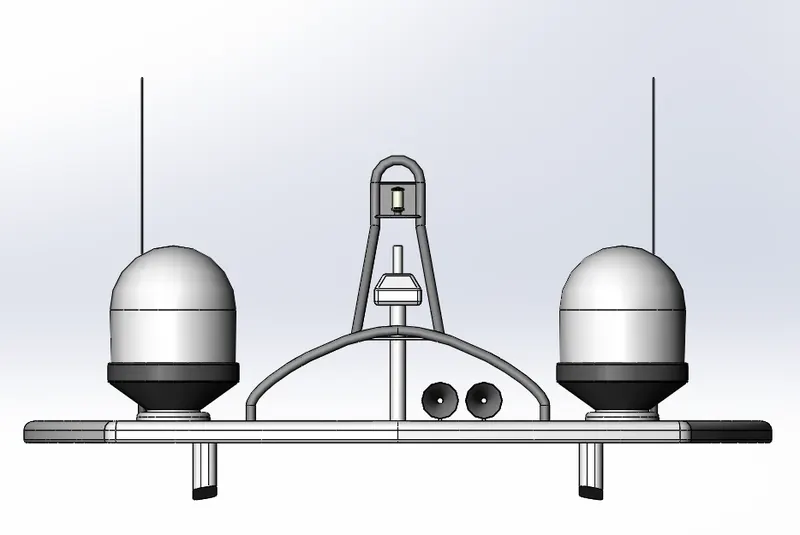

1. Radar Mast-

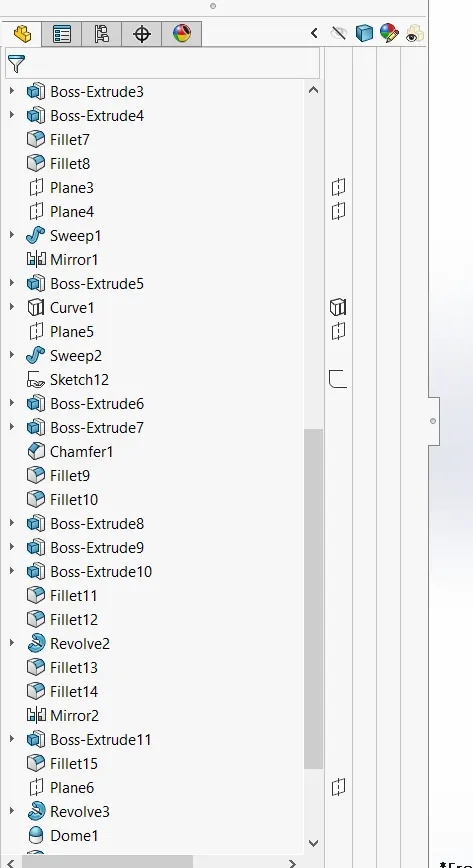

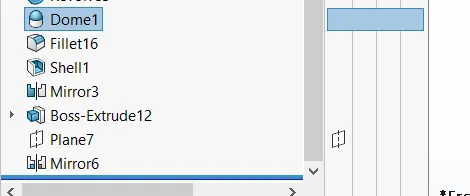

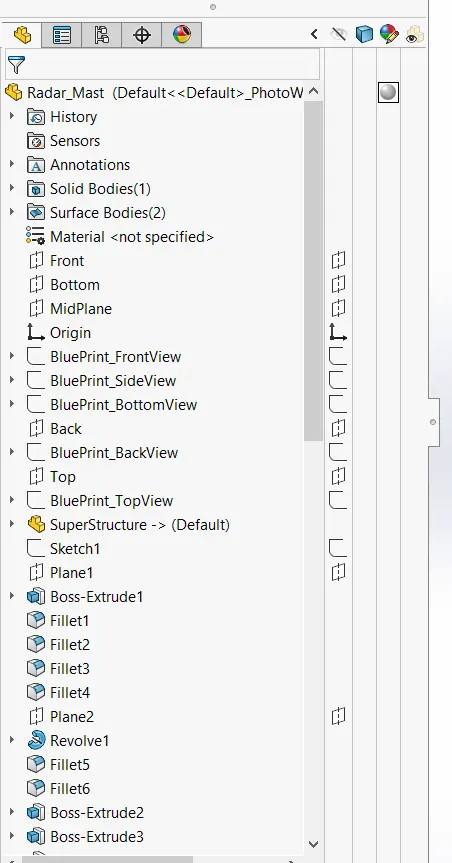

Feature Tree-
2. Yacht Assembly-
Open assembly
Step-1

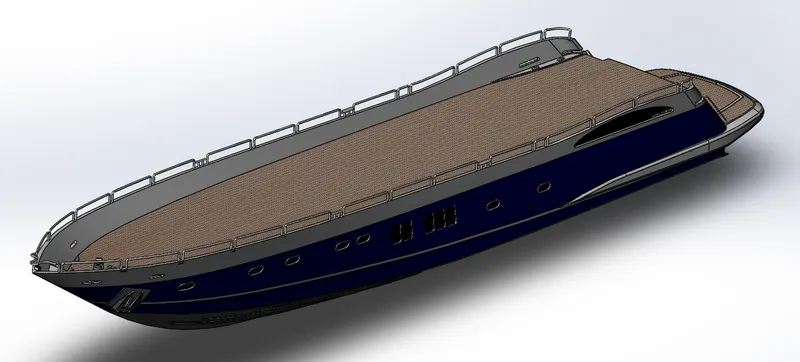

- Using the insert components export the hull part into the assembly.
Step-2
- Using the insert components export the SuperStructure part into the assembly.
Step-3
- Using the insert components export the Radar Mast part into the assembly.
Step-4
- Using the insert components export the Front Seat part into the assembly.
Step-5
- Using the insert components export the Middle Seat part into the assembly.
Step-6
- Using the insert components export the Rear Seat part into the assembly.
Step-7
- Using the insert components export the Garage Door part into the assembly.
- Using Mates fix the garage door properly.
Step-8
- Using the insert components export the Garage Door part into the assembly.
- Export the propeller three times and fix the propellers.
Step-9
- Using the insert components export the Garage Door part into the assembly.

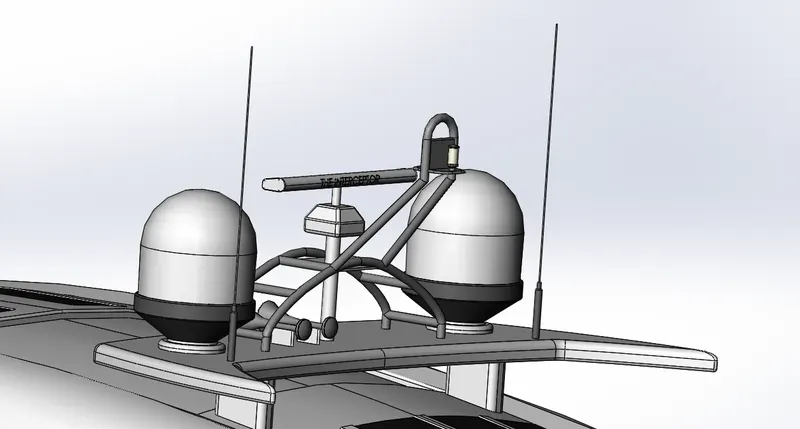

- Mate the radar.

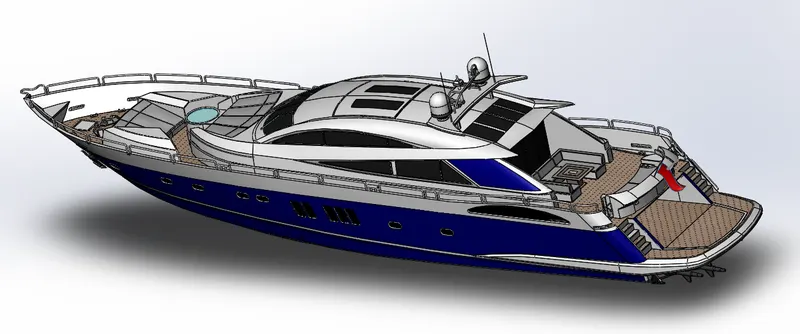

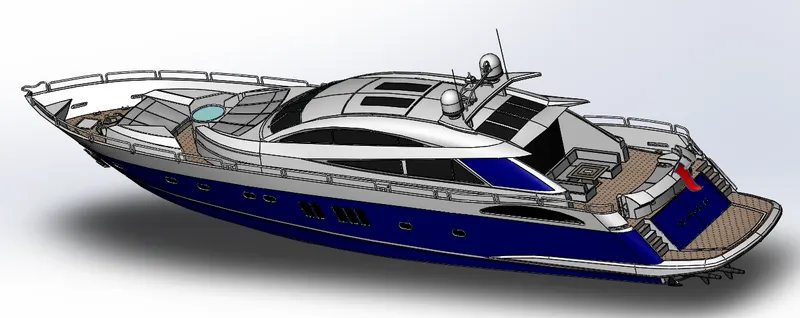

Pictures After Assembly-

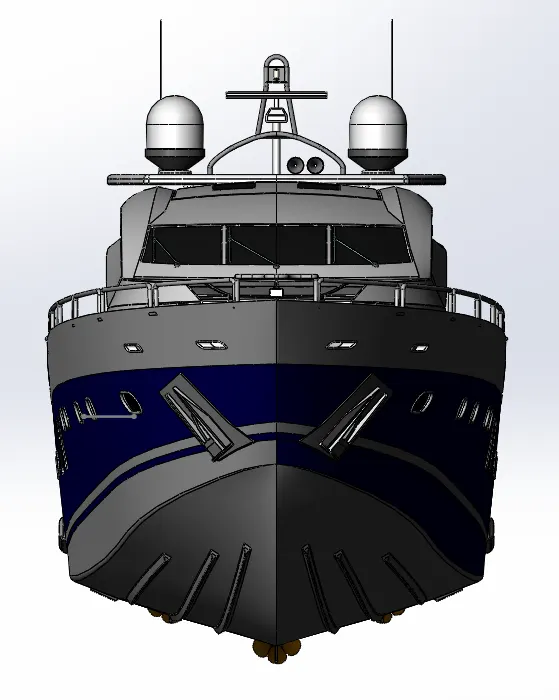

- Front View

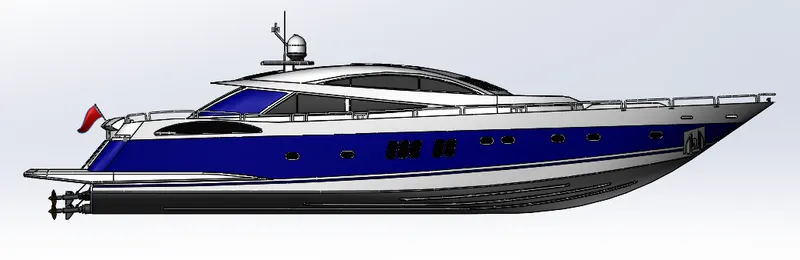

- Side View

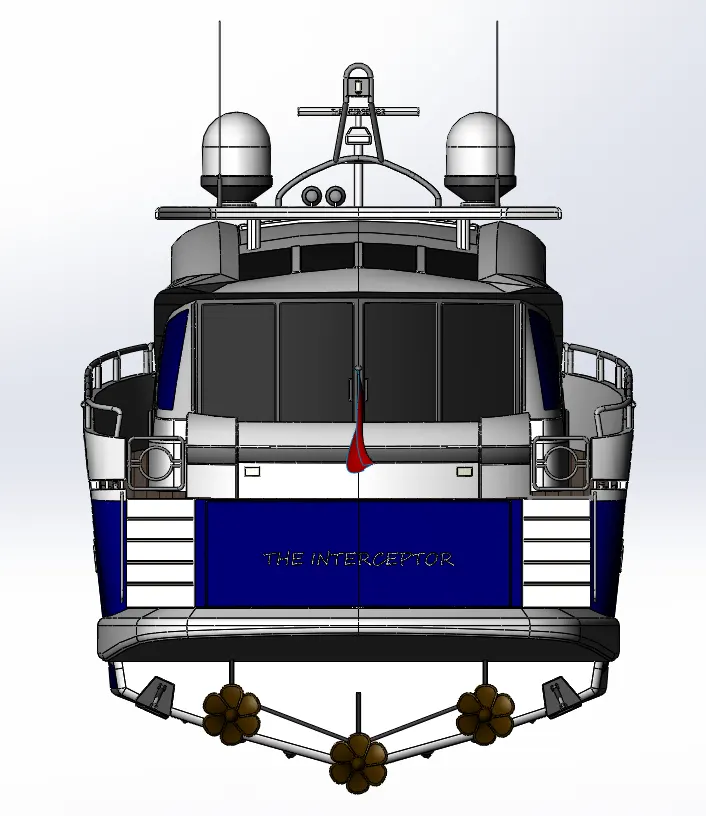

- Rear View

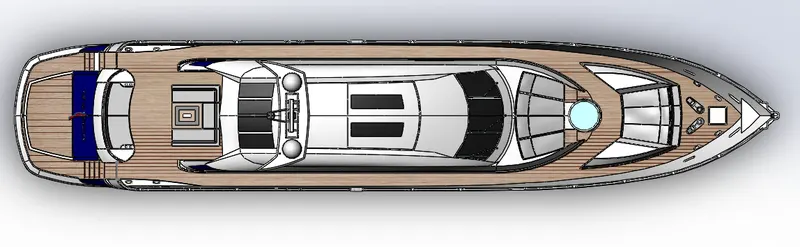

- Top View

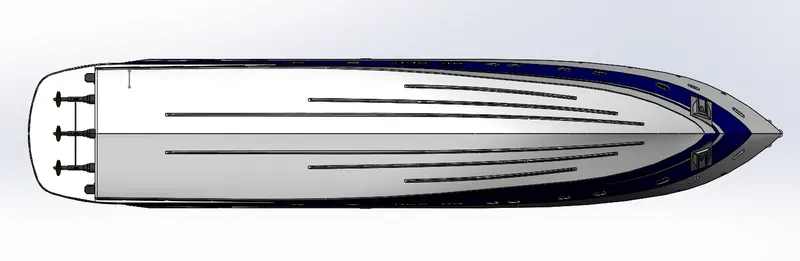

- Bottom View

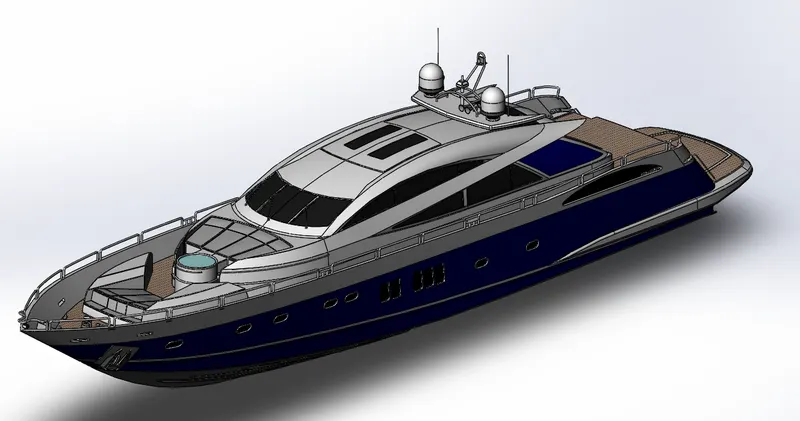

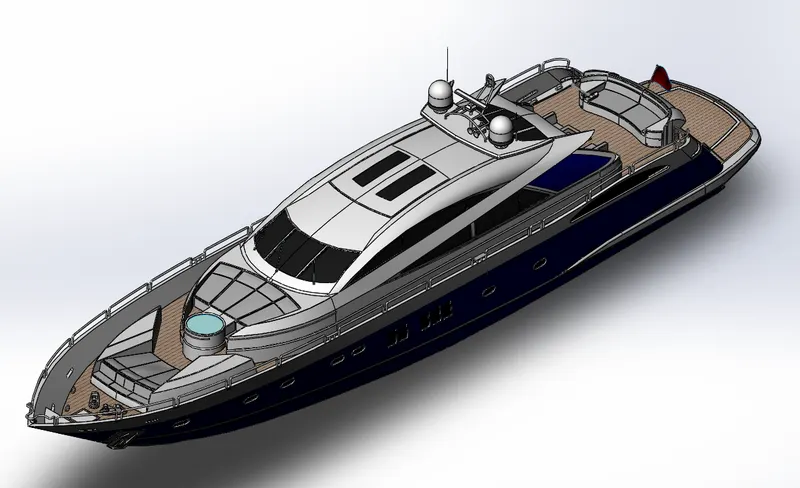

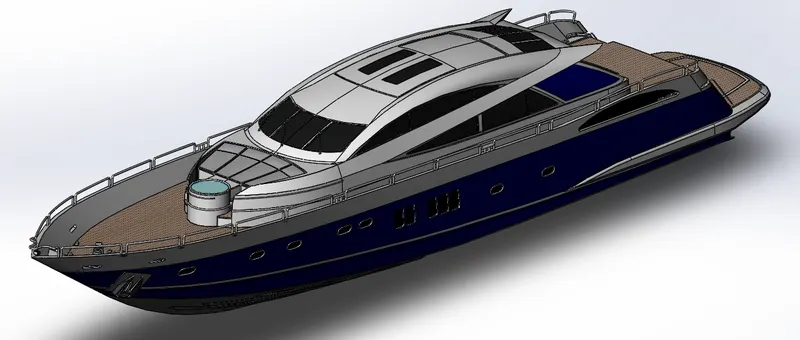

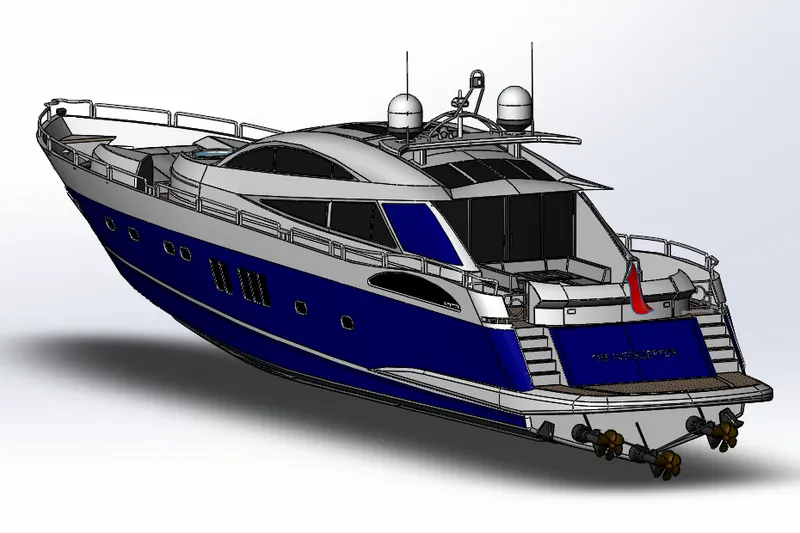

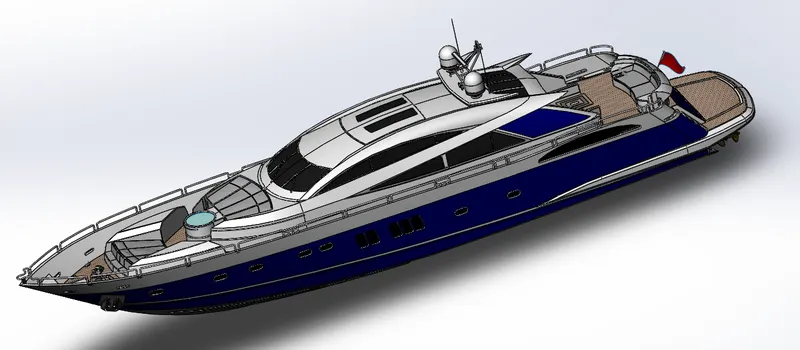

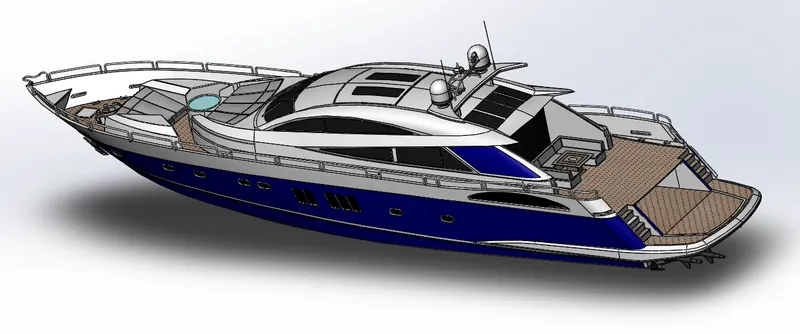

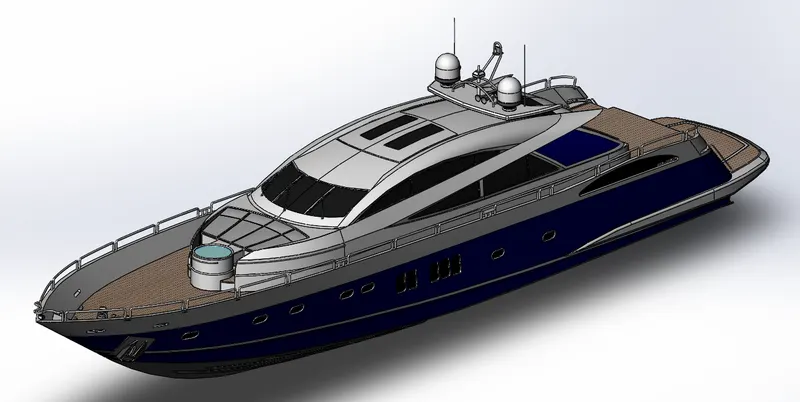

- Isometric View
