Project - Speed Control of a Direct Current (DC) motor

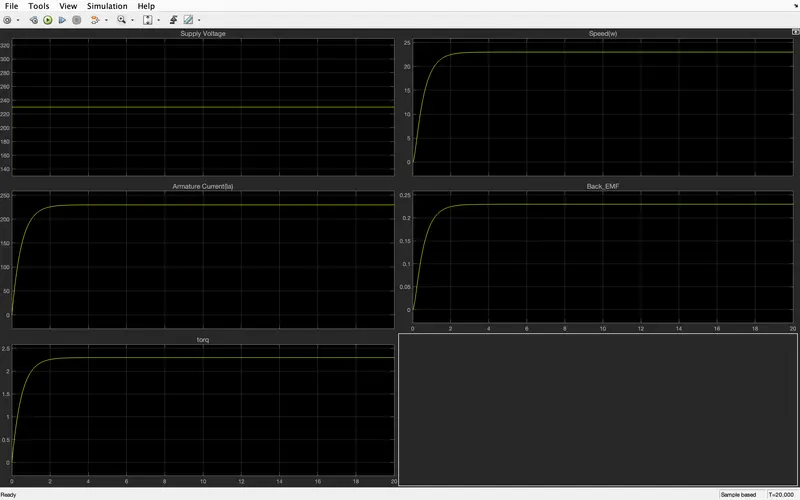

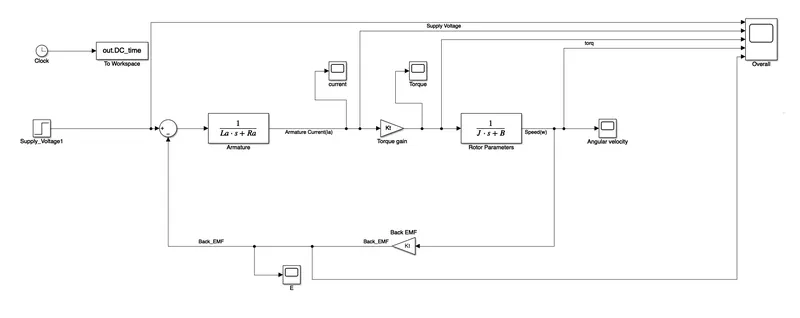

Simulink model of DC motor without PID control :

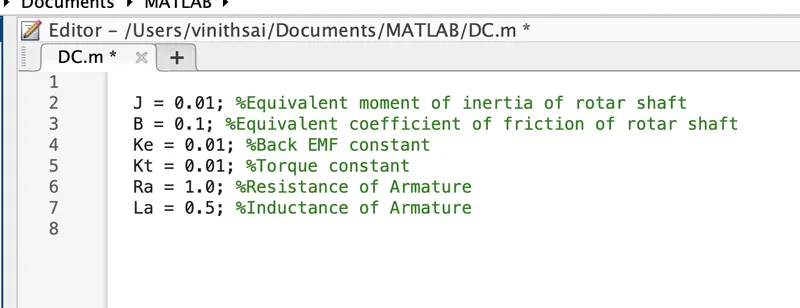

J,B,Ke,Kt,Ra,La are parameters of the Armature and Rotor.

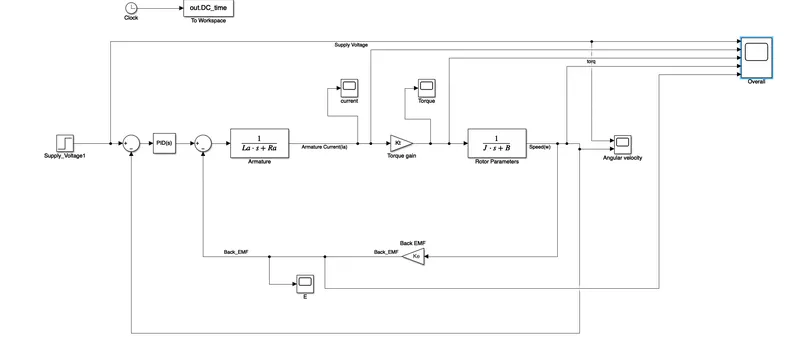

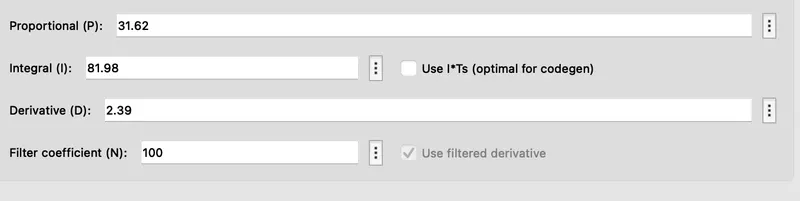

DC motor with PID controller :

With same parameters as above case.

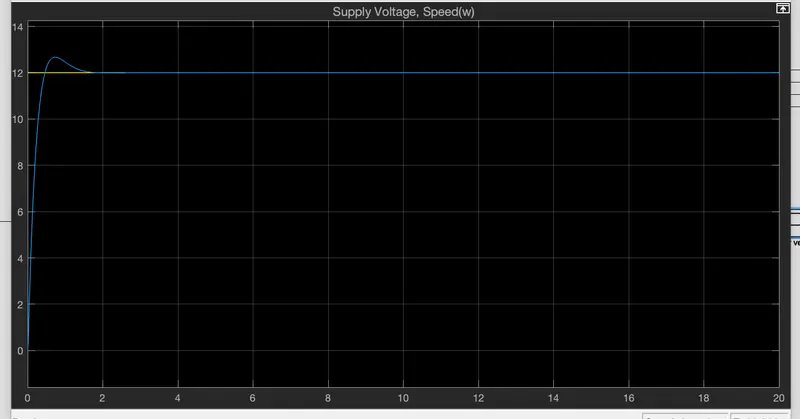

With input supply of 12v.

======================================================================

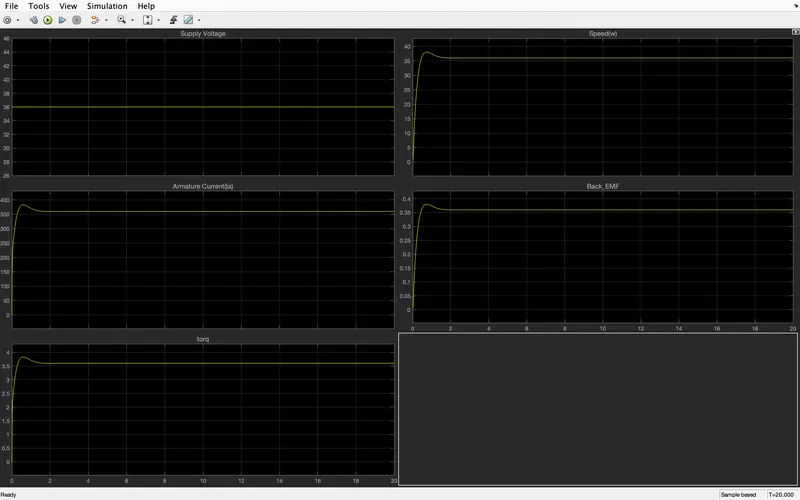

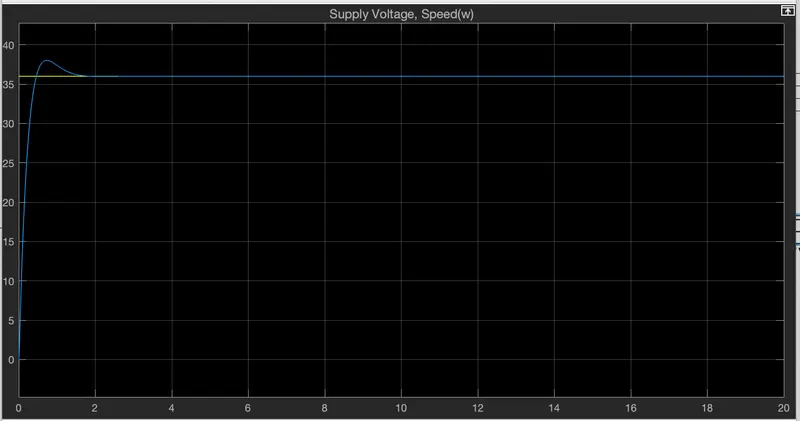

with input supply of 36v

======================================================================

Overshoot is Less then 10%.

Settling time less then 2 seconds.
