Project 1

Developing of double-acting actuator model using Simscape Multibody and Simscape components.

Double-acting hydraulic cylinders have a Cylindrical housing and one piston. When hydraulic oil is supplied to its cap end port, hydraulic pressure force will be applied over the piston and the end cylinder will be extended.

================================================================

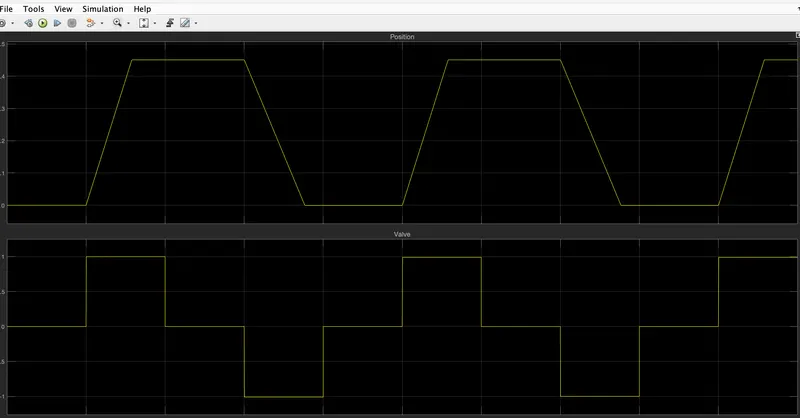

Input signal and output signal.

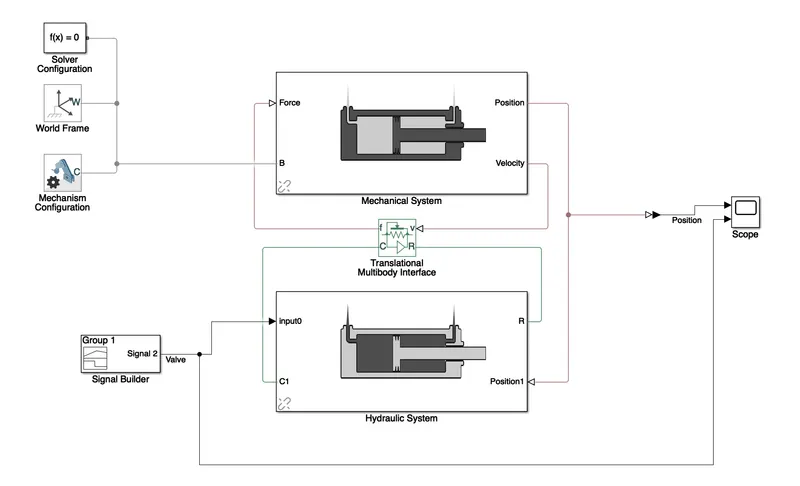

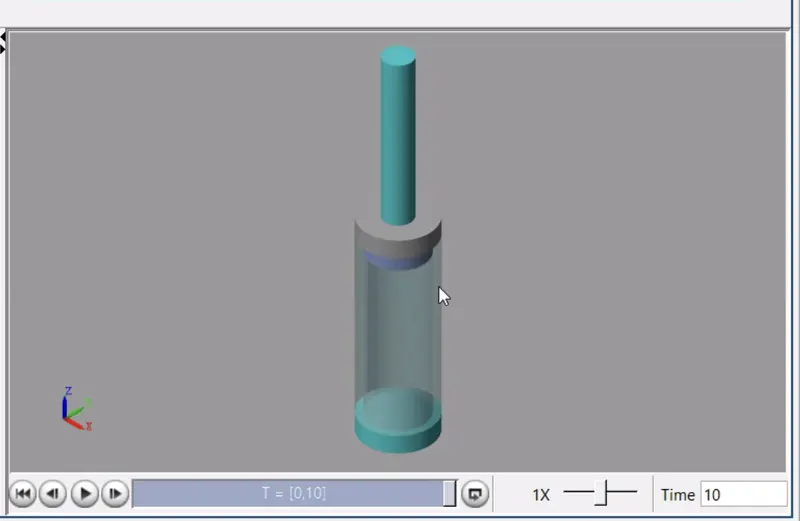

Simulation of double-acting actuator model .

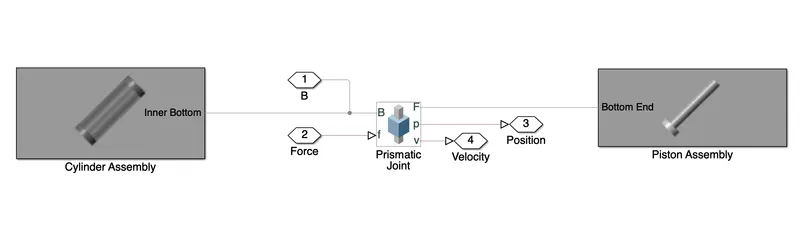

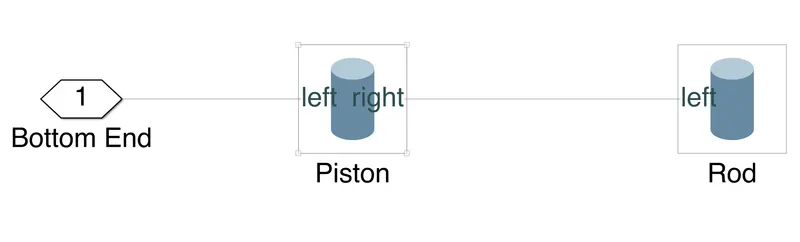

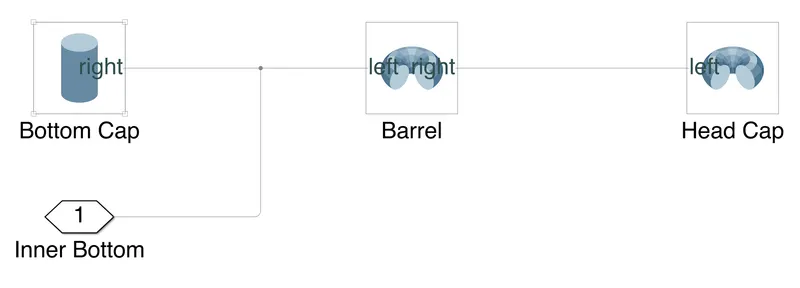

Mechanical system :

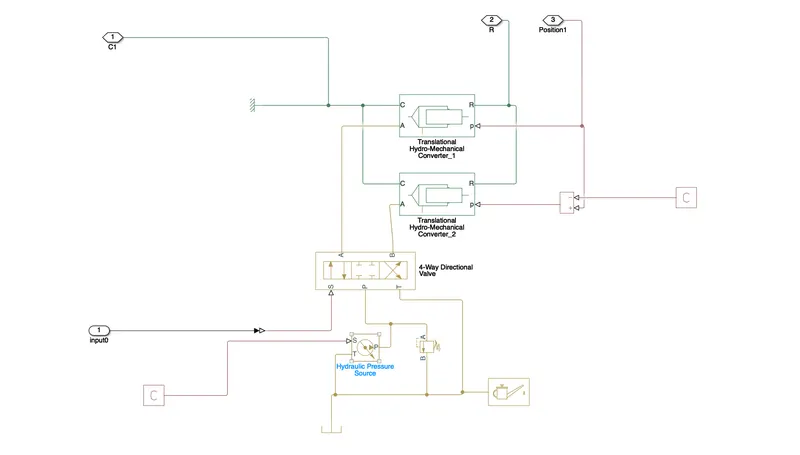

Hydraulic System :

Simulation model link :

https://drive.google.com/file/d/1ubNyFNWejzVGyhzo3X11MKiQEwozdEUH/view
