Project - Position control of mass spring damper system

PROCEDURE

1.Insert the required blocks
1. 1-pulse generator
2. 3-gain
3. 2-sum
4. 1-Integrator
5. 1-Derative
6. 1-Transfer function
7. scope

2.connect the circuit INPUT, PID CONTROLLER, TRANSFER FUNCTION, OUTPUT
3.run the program and save the vales to work sace
4.assigne the values of kd, kp from the work space
5.give the value of ki and change the value of ki randomly (0,100, 500, 1000, 1300, 1500, 2000).
6.open the scope and observe the geaphs of ki values.

Matlab function program

clc;

clear all;

% initial values of Position control of mass spring damper system

%from given data

m = 3.6; % m in kg

k = 400; % k in N/m

c = 100; % c in Ns/m

wn = sqrt(k/m) % calculating the wn

fn = wn/(2*pi) % calculating the fn

A = [0 1; -k/m -c/m]; % A matrix value

B = [0; 1/m]; % B matrix value

zeta = 0.5; % for under damping

p1 = -zeta*wn+wn*sqrt(zeta^2-1); %calculating the value of p1

p2 = -zeta*wn-wn*sqrt(zeta^2-1); %calculating the value of p2

p= [p1;p2];

K = place(A,B,p); % pole placements

Kp = K(1)

Kd = K(2)

RESULTS / OBSERVATION

The less value of Ki gives the more studystate error and the high value of Ki gives the more overshoot and under shoot error.

So, by chaging the valuse of ki we can observe the improvement of output responce.

Ki=1380 gives the best results .

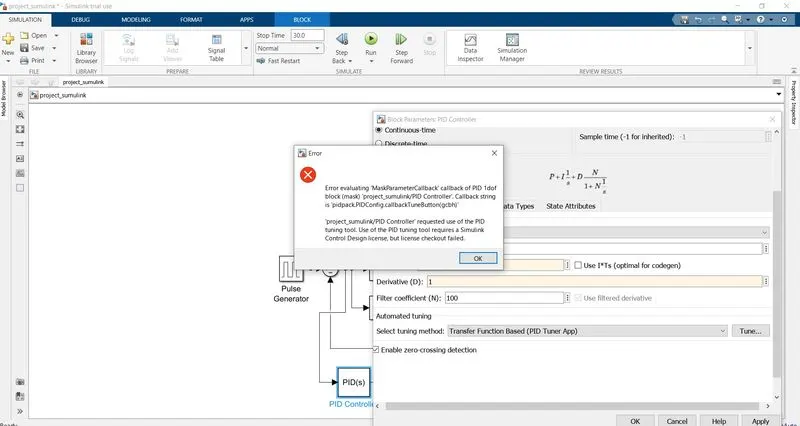

NOTE: I DONT HAVE ENOUGH TOOLS FOR DIRECT ACCESS OF PID CONTROLLER.

so i made the PID controller manually.

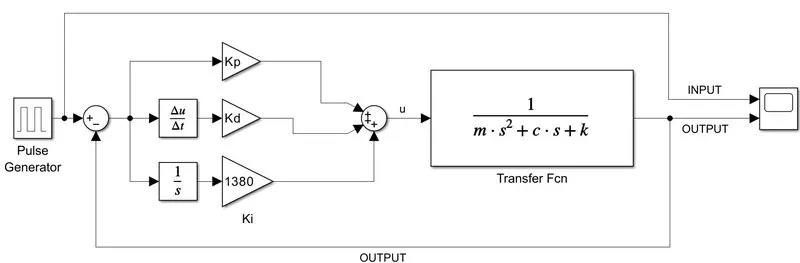

SIMULINK MODEL

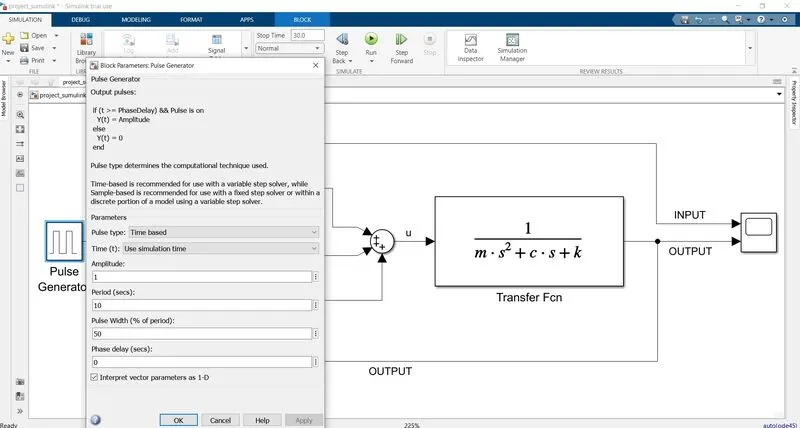

PULSE GENERATOR VALUES

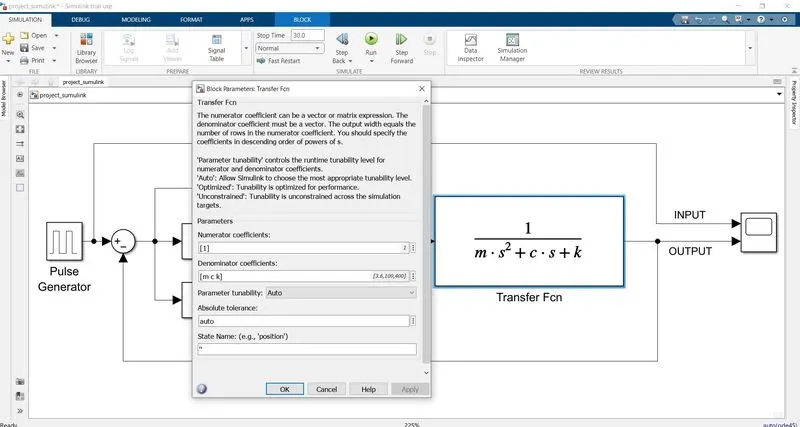

TRANSFER FUNCTION VALUES

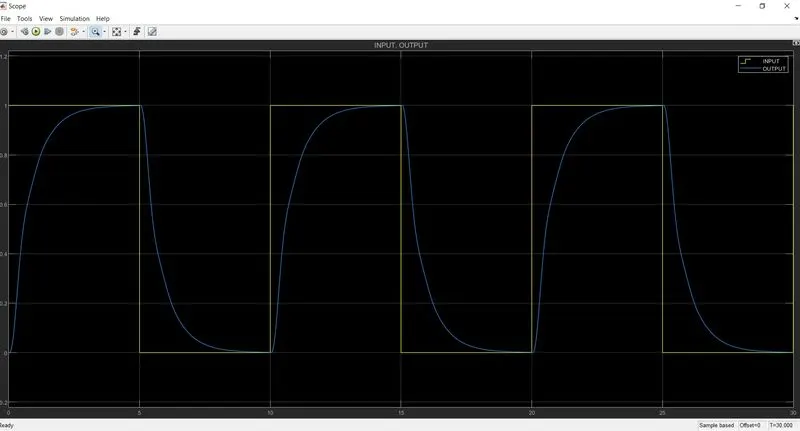

OUTPUT

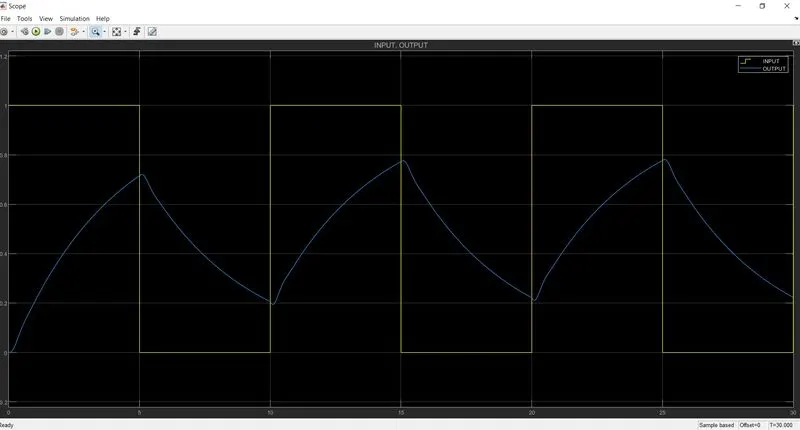

ki=100

ki=500

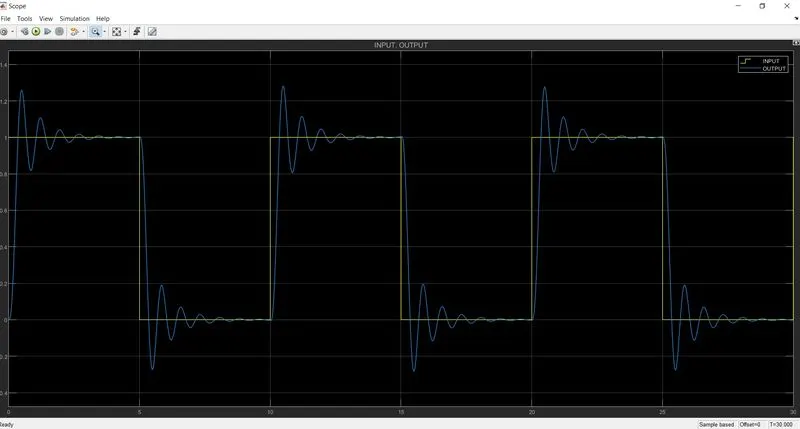

ki=1000

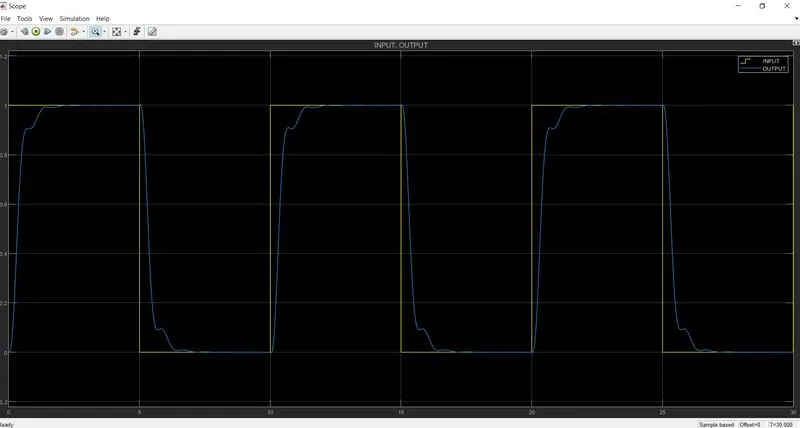

ki=1380

ki=1500

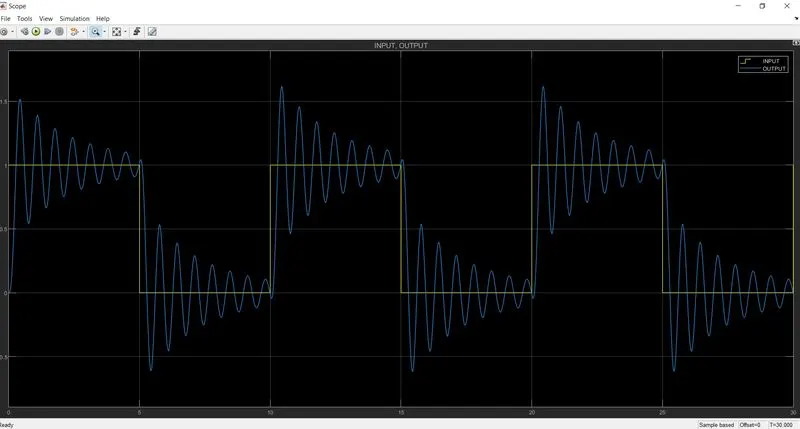

ki=2000

PID CONTROLLER ERROR
