Project - Data Handling and Interpolation

QUESTION :

Project :

In a laboratory experiment, data of voltage and current has been recorded and the same is attached in an excel file ( Click on this link VI.xlsx ). Read the excel file in the Matlab program and perform the interpolation in the range of -17.3:0.1:0.9. Generate the interactive plot for the interpolated data and store them in a text file.

Key Highlights:

• Graphical solutions are more visual and appealing
• Interpolation of data
• Read excel file
• Write to text file

Deliverables:

• Find missing data and save it in text
• Interpolate the data set
• Save your program and attach the same.
• Save txt file and upload in attachment

ANSWER :

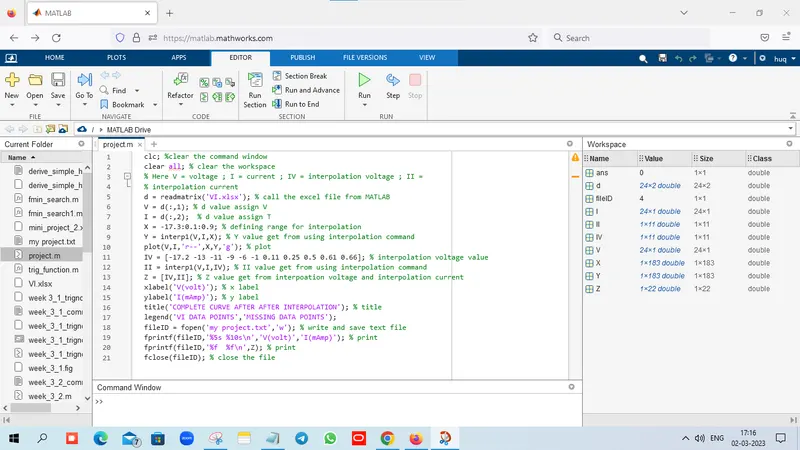

PROGRAM :

clc; %clear the command window

clear all; % clear the workspace

% Here V = voltage ; I = current ; IV = interpolation voltage ; II =

% interpolation current

d = readmatrix('VI.xlsx'); % call the excel file from MATLAB

V = d(:,1); % d value assign V

I = d(:,2); % d value assign T

X = -17.3:0.1:0.9; % defining range for interpolation

Y = interp1(V,I,X); % Y value get from using interpolation command

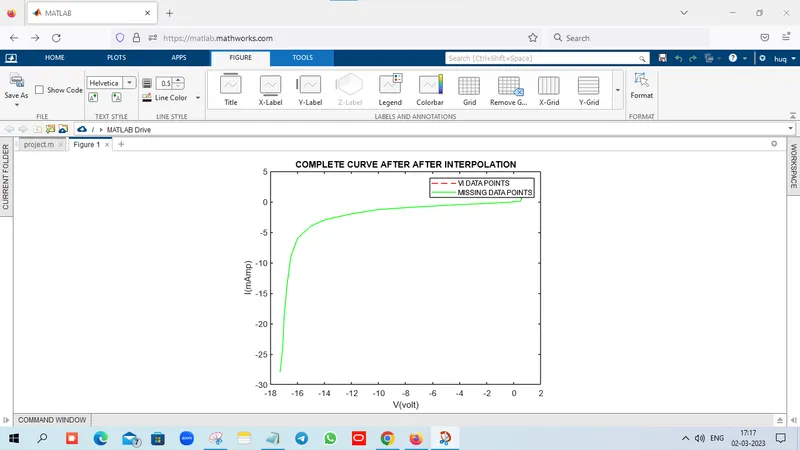

plot(V,I,'r--',X,Y,'g'); % plot

IV = [-17.2 -13 -11 -9 -6 -1 0.11 0.25 0.5 0.61 0.66]; % interpolation voltage value

II = interp1(V,I,IV); % II value get from using interpolation command

Z = [IV,II]; % Z value get from interpoation voltage and interpolation current

xlabel('V(volt)'); % x label

ylabel('I(mAmp)'); % y label

title('COMPLETE CURVE AFTER AFTER INTERPOLATION'); % title

legend('VI DATA POINTS','MISSING DATA POINTS');

fileID = fopen('my project.txt','w'); % write and save text file

fprintf(fileID,'%5s %10s\n','V(volt)','I(mAmp)'); % print

fprintf(fileID,'%f %f\n',Z); % print

fclose(fileID); % close the file

ANSWER :

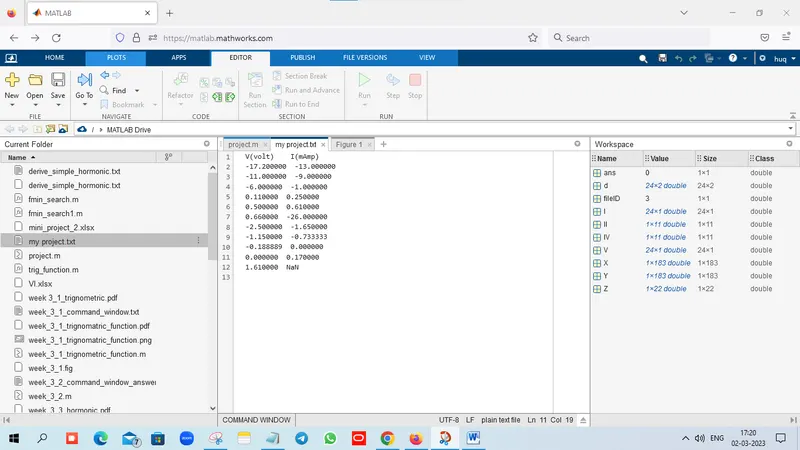

After interpolation of data value below on. this data file saved in text file.

V(volt) I(mAmp)

-17.200000 -13.000000

-11.000000 -9.000000

-6.000000 -1.000000

0.110000 0.250000

0.500000 0.610000

0.660000 -26.000000

-2.500000 -1.650000

-1.150000 -0.733333

-0.188889 0.000000

0.000000 0.170000

1.610000 NaN

RESULT :
