Project - Data Handling and Interpolation

Project :

In a laboratory experiment, data of voltage and current has been recorded and the same is attached in an excel file ( Click on this link VI.xlsx ). Read the excel file in the Matlab program and perform the interpolation in the range of -17.3:0.1:0.9. Generate the interactive plot for the interpolated data and store them in a text file.

Key Highlights:

• Graphical solutions are more visual and appealing
• Interpolation of data
• Read excel file
• Write to text file

Deliverables:

• Find missing data and save it in text
• Interpolate the data set
• Save your program and attach the same.
• Save txt file and upload in attachment

Answer:-

% Reading the xlsx file
data = readmatrix('VI.xlsx');
% Reading data from first column of xlsx file
V=data(:,1);
% Reading data from first column of xlsx file
I=data(:,2);
%Given range
X=-17.3:0.1:0.9
%ploting given data points separately
plot(V,I,'r*')
grid;
legend('Given data points')
title('Given data points graph')
xlabel('V (Volt)')
ylabel('I(mAmp)')
% using interpolation command
%ploting Given range points separately
Y=interp1(V,I,X)
figure(2)
plot(Y,'g--')
grid;
legend('Given range points')
title('Given range points graph')
xlabel('V (Volt)')
ylabel('I(mAmp)')
%ploting given data points and given range points together

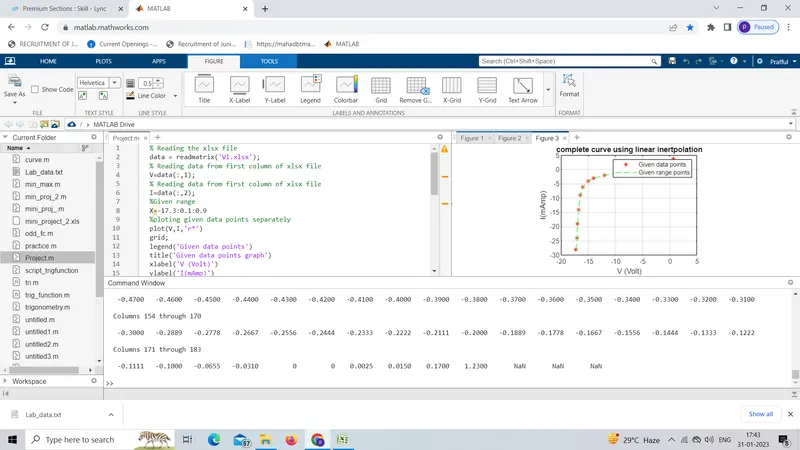

figure(3)
plot(V,I,'r*',X,Y,'g--')
grid;
legend('Given data points','Given range points')
title('complete curve using linear inertpolation')
xlabel('V (Volt)')
ylabel('I(mAmp)')

% Saving Text File

filename = fopen('Lab_data.txt','w');
fprintf(filename,'%8s %12s\n','V(volt)','I(Amp)');
fprintf(filename,'%f %f\n',Y);
fclose(filename);
