Project

Aim- To provide a tehnical report of system level simulation of an all-Terrain Vehicle.

Objective- To carry out a system level simulation of an all-terrain vehicle and prepare a report with model explanation.

Input-

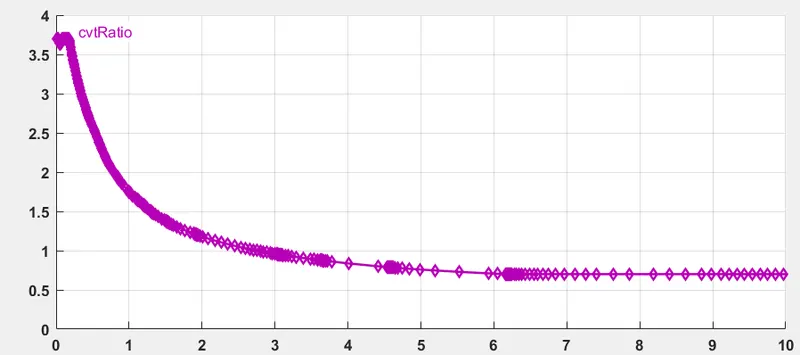

CVT ratio

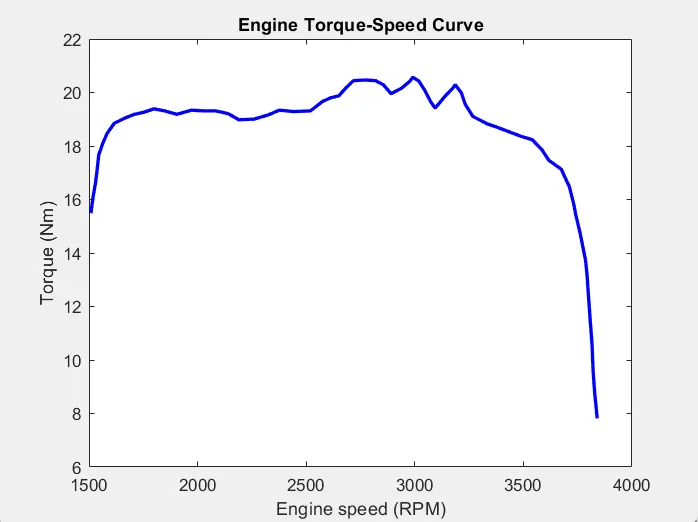

Engine Torque- Speed Curve

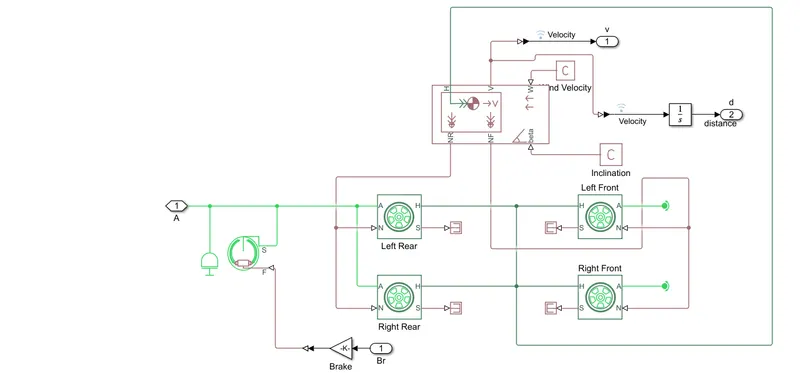

Vehivle Body

Output

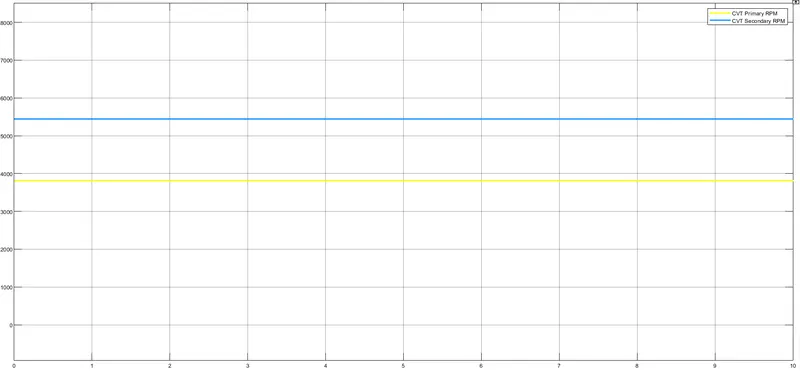

Above graphs shows variations in input and output variable gear transmission system.

Study-1

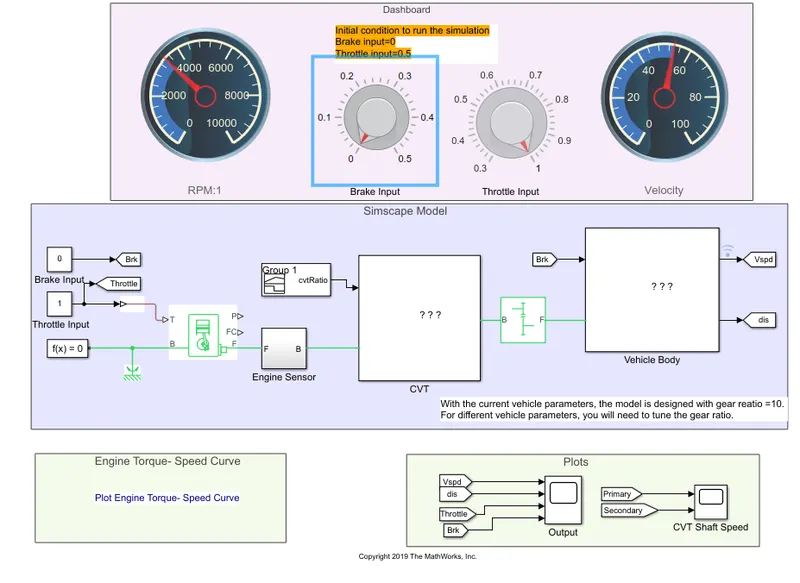

Simulink model for BAJA ATV with CVT using dash board.

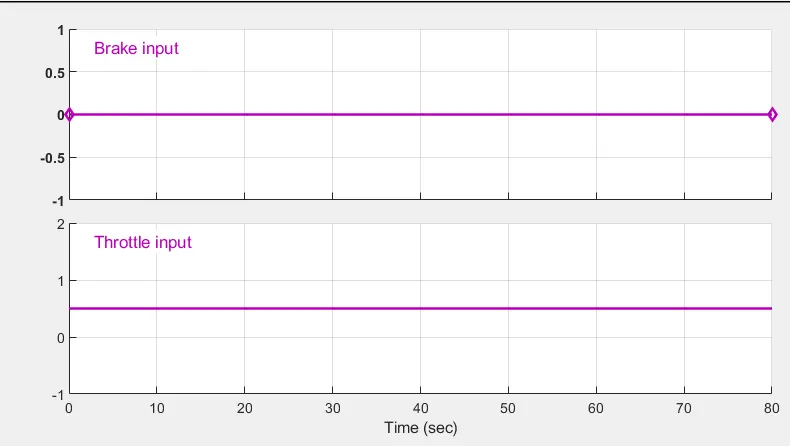

in this Mode, inputs throttle and brake is provided in real time from knob and it is provided to control both paramters in real life.

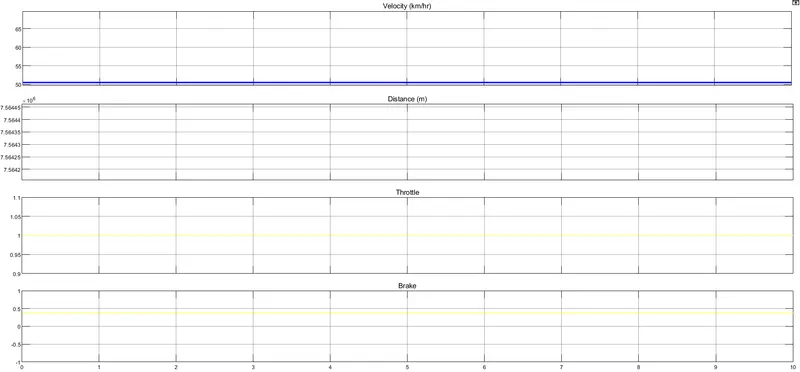

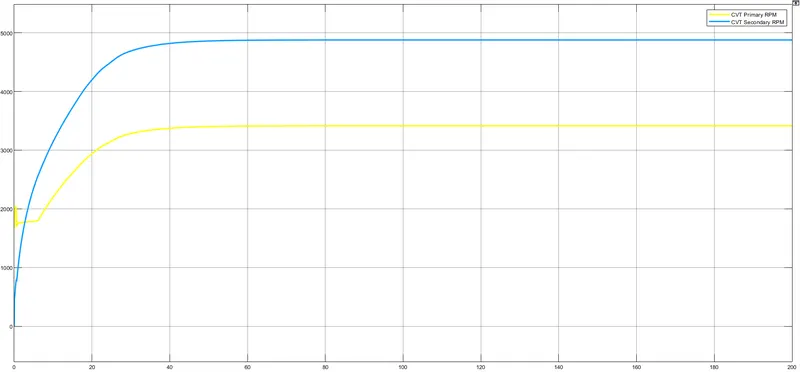

Output-

Conclusion- We have successfully analysed different moels of BAJA ATV vehicle and recorded the outputs with respect to variation in brake and throttle
