Project

1) a) (Vout/Vin) = D(N1/n2)

Vout = 35V

Ripple Voltage is derived from

So deltaV0/V0 (Ripple voltage) = 0.156%

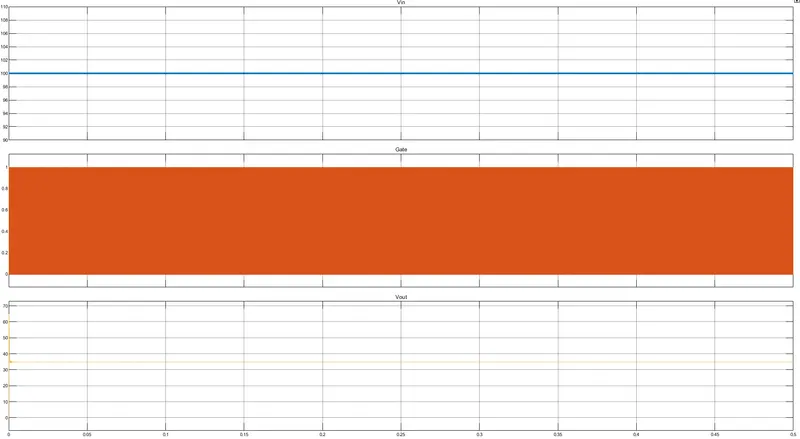

From the Simulation the following results are obtained, from a closed loop PID system

b) Average Inductor Current = 1.89A

Minimum Inductor Current= 0.624A

Maximum Inductor Current=2.86A

C) Peak Current in Diode= 2.991A

D) Peak Current in Switvh =3.484A

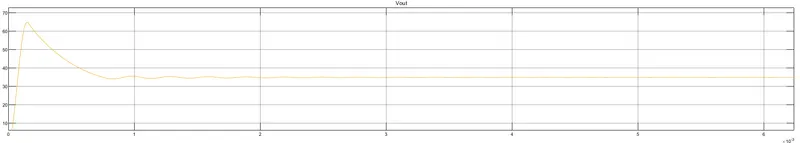

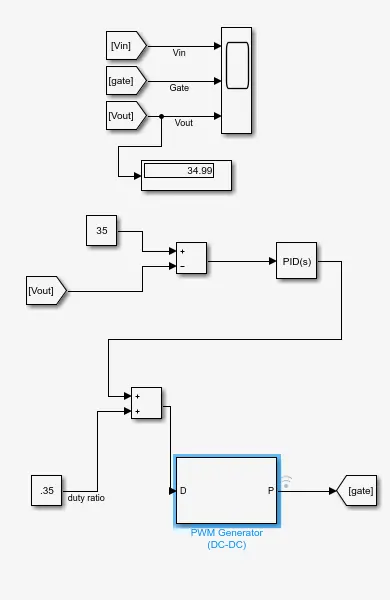

E) Closed loop with PID Control

2) Unipolar Inverter:

The Given inputs of V, L and R are given and the output is obtained.

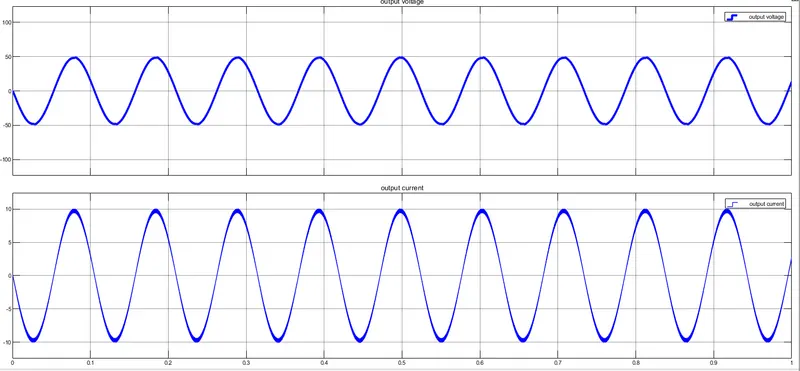

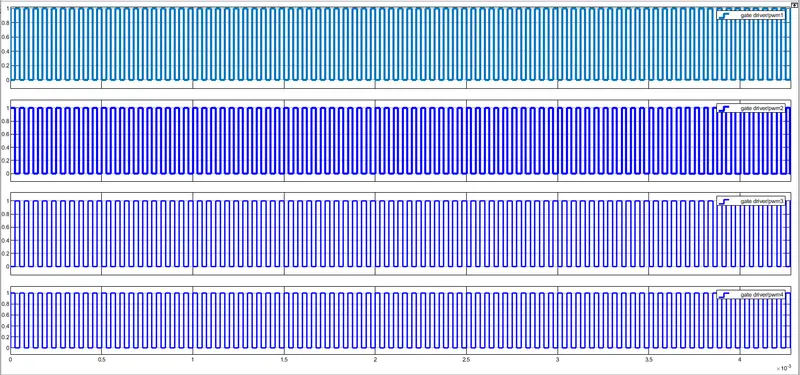

the output voltage, current, and the PWM signals to the four switches.
