Project 3

a.

ICsim Environment was used for Full bus DOS.

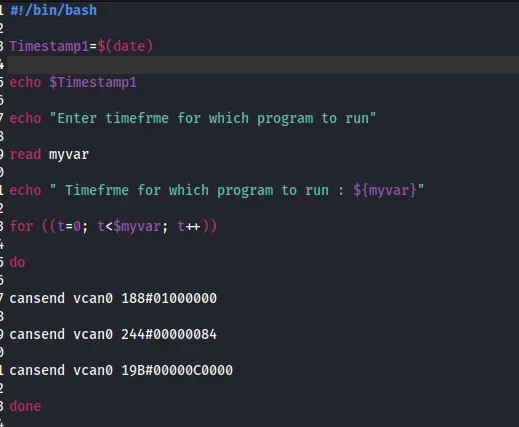

Program (as attached : project31.sh) written in bash script allowed to set the duration of attack

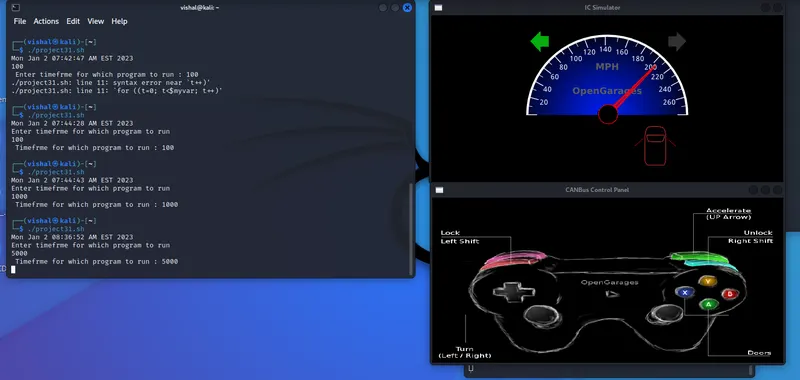

Below find below the screen shot of ICsim Environment to run the program

b. Partial DOS

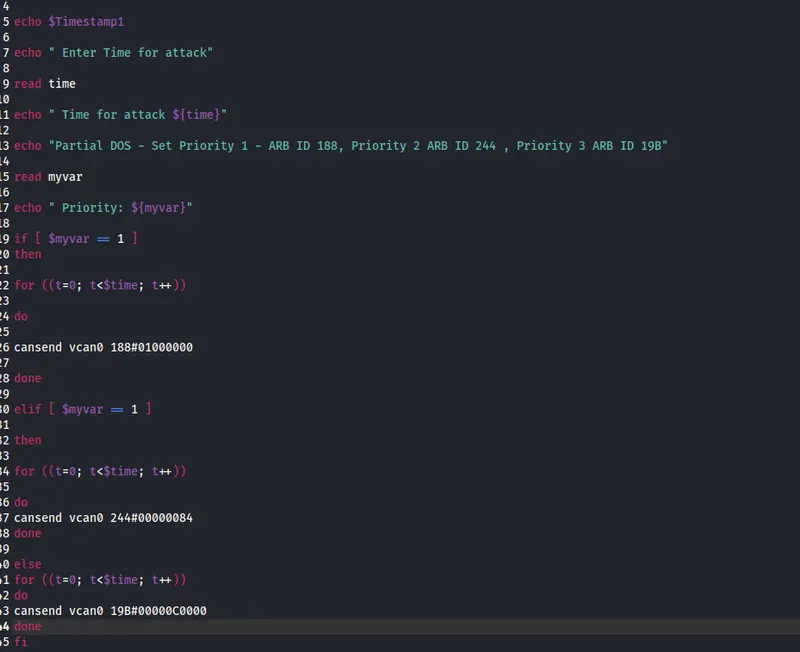

Program (as attached : project32.sh) written in bash script allowed to set priority and duration of attack

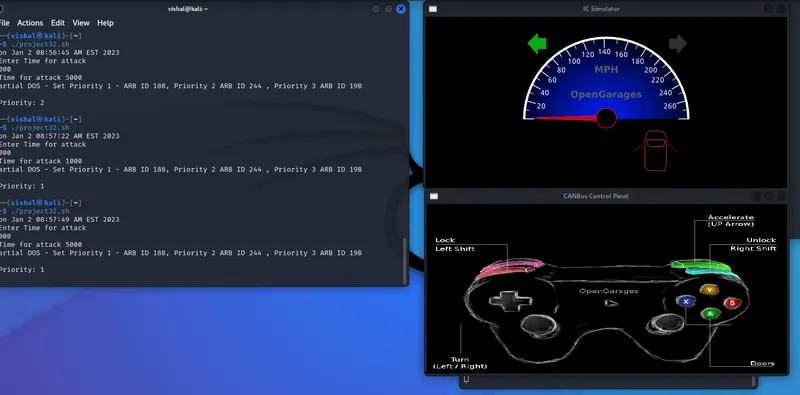

Below find below the screen shot of ICsim Environment to run the program

c.

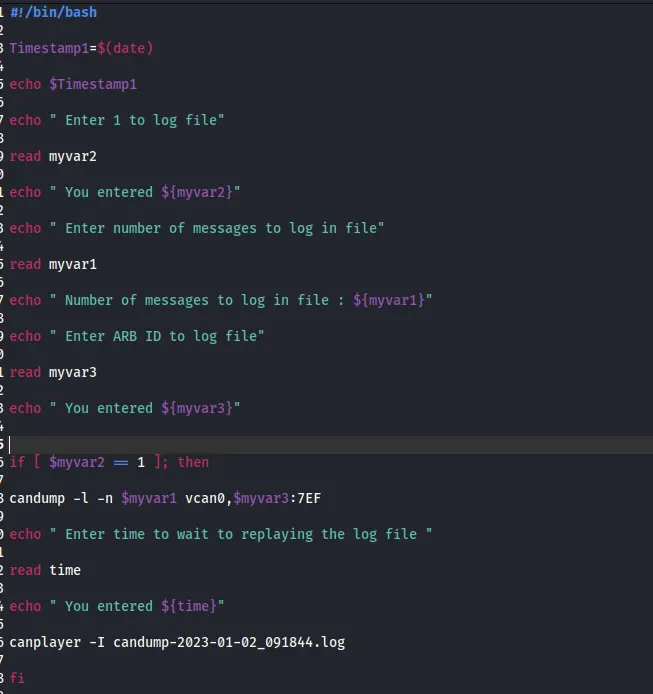

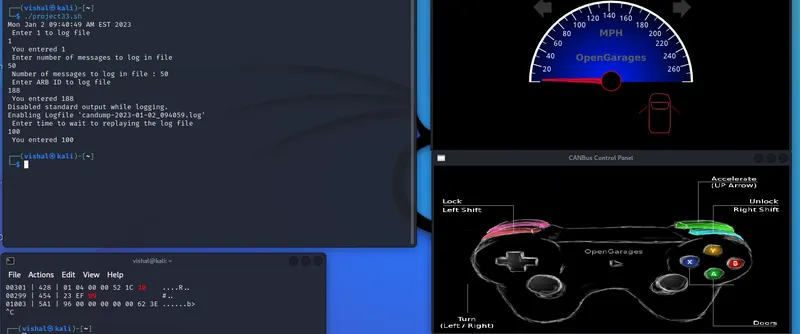

Program (as attched project33.sh) written in bash script with user allowed to set time after capturing log file and replayed the log file after that. Below is screen shot in ICsim environment. Log file as attached : candump-2023-01-02_091844

Program also provide option to set which attack to be executed and duration of attack alongwith date and time recorded. No attack was allowed to last forever as execution time of attack was selected by user. Log of CAN bus data was collected as in attached file.
