Project 2

Program written in bash to log CAN traffic from ICSim for ARB ID signal 188 - turn right and turn left indicators.

Prompt from user created to log file

Files as attached - Program : project3.bash.sh and log file : candump-2022-12-31_070604

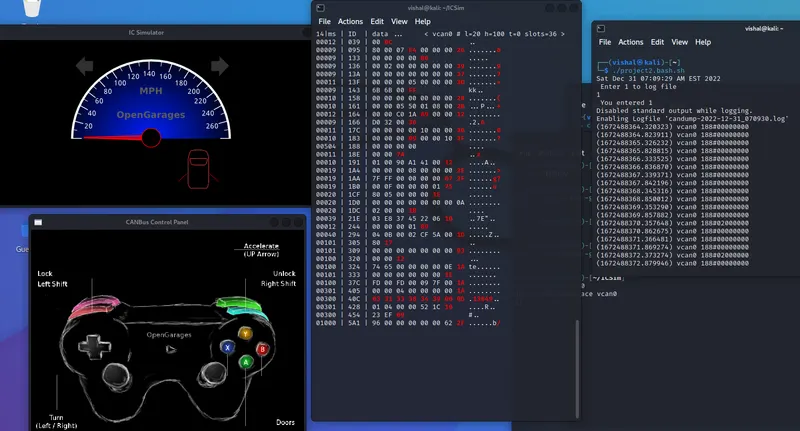

Below is the image for replay of the log alongwith IC sim environment

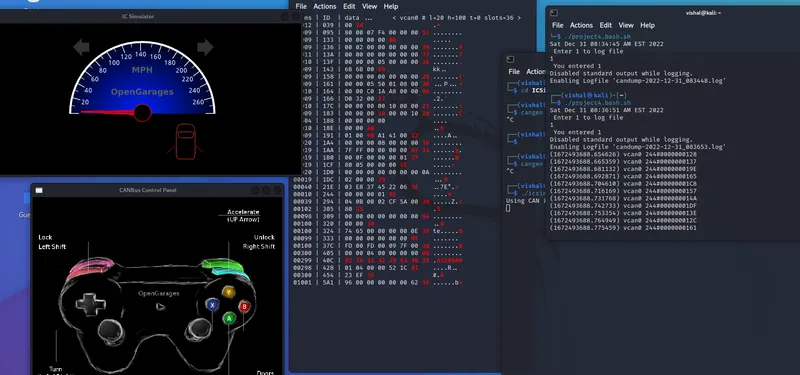

Similarly done for accelerator signal with ARB ID 244. Below is the screenshot of ICSim environment

Files as attached - Program : project4.bash.sh and log file : candump-2022-12-31_083448

Below is the replay of log in ICSim environment

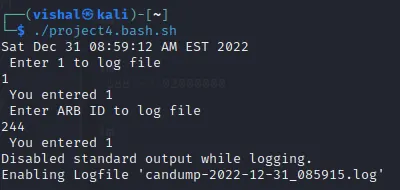

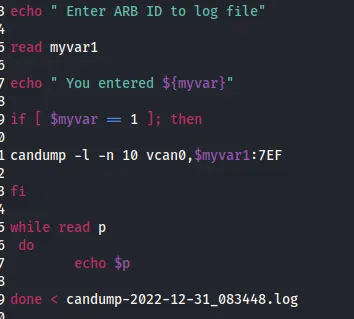

Program can be used for filtering any signal with ARB ID and analyze the data. It was made iteractive where user can enter whether he/she wants to log data and for which ARB ID.

File attached : project5.bash.sh
