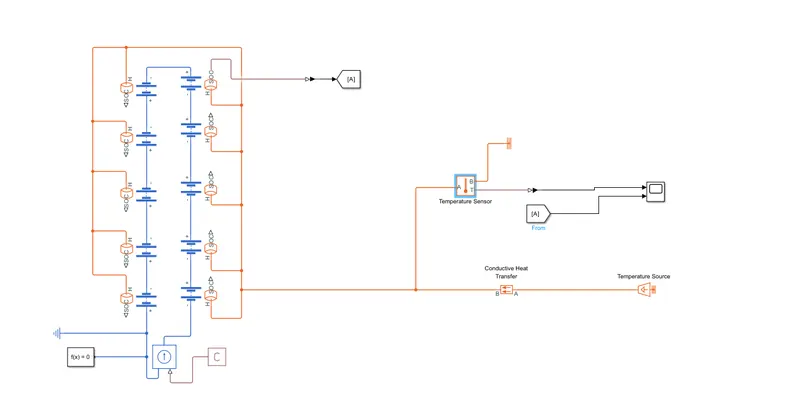

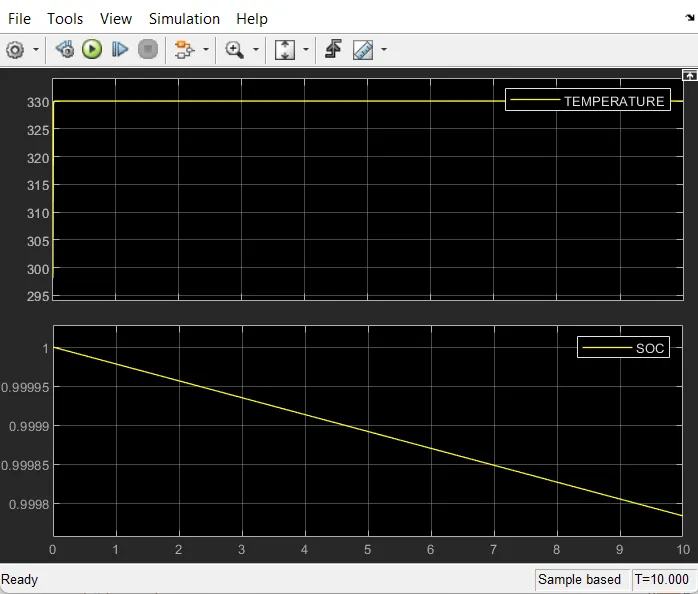

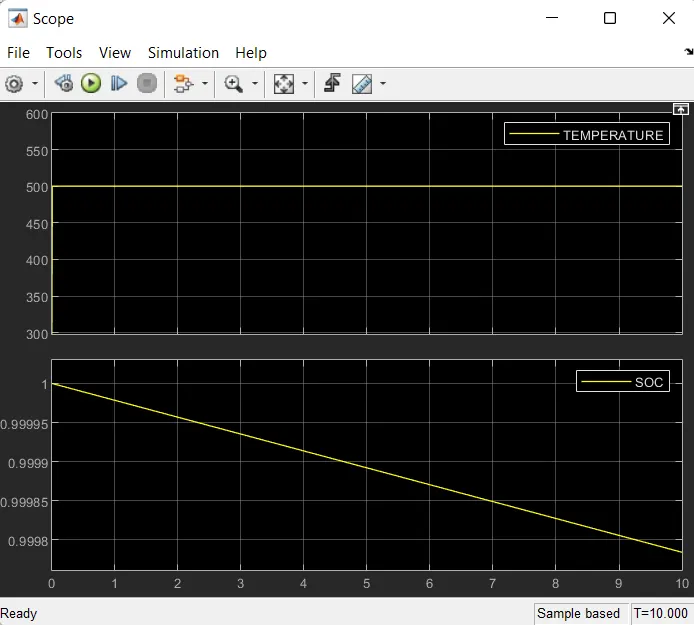

Project 2 Thermal modeling of battery pack
Lithium-ion battery
A lithium-ion or Li-ion battery is a type of rechargeable battery which uses the reversible reduction of lithium ions to store energy. The anode (negative electrode) of a conventional lithium-ion cell is typically graphite made from carbon. The cathode (positive electrode) is typically a metal oxide. The electrolyte is typically a lithium salt in an organic solvent.
It is the predominant battery type used in portable consumer electronics and electric vehicles. It also sees significant use for grid-scale energy storage and military and aerospace applications. Compared to other rechargeable battery technologies, Li-ion batteries have high energy densities, low self-discharge, and no memory effect (although a small memory effect reported in LFP cells has been traced to poorly made cells)
Single cell configuration

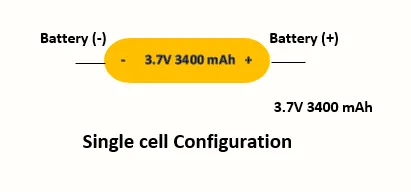

The single-cell configuration is the simplest battery pack. Typical these configuration are available in mobile phones and tablets with one 3.7V Lithium-ion cell. Other uses of a single cell are wall clocks, which typically use a 1.5V alkaline cell, wristwatches and memory backup, most of which are very low power applications. The below image shows the single cell configuration of Lithium-ion cell.
The nominal cell voltage for a nickel-based battery is 1.2V. for alkaline it is 1.5V; silver-oxide is 1.6V and lead acid is 2.0V. Primary lithium batteries range between 3.0V and 3.9V. Li-ion is 3.7V. Li-phosphate is 3.2V and Li-titanate is 2.4V. Li-manganese and other lithium-based systems often use cell voltages of 3.7V and higher.
There are different types of batteries in series vs parallel pack formation and they are explaning as follow,
Series configuration

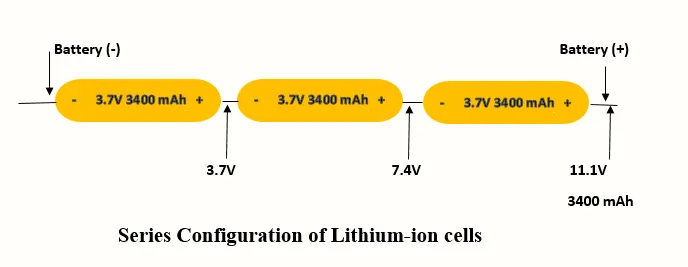

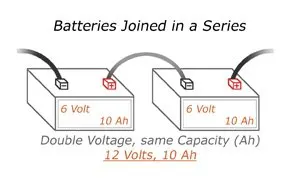

Some of the portable equipment requires higher voltage battery packs. so in thi case the voltage can increase by connecting these cell in series. The below figure shows a battery pack of three 3.7V Lithium-ion cells. These cells are connected in series now this 3S or 3 cell battery pack which produce 11.1 V in nominal mode.
Similarly, six-cell lead acid string with 2 V/cell will generate 12 V and four alkaline with 1.5 V/cell will produce 6 V. According with the required voltage for your application, you can connect the number of cells in series.

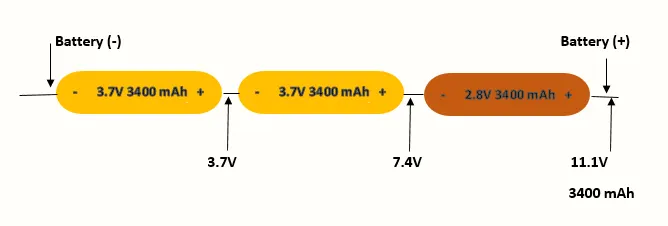

If one of the cell of the battery pack gets discharged or damaged then the battery pack shows the notification. This notification gets due to the protection board used in it. The below image illustrates a battery pack in which “cell 3” produces only 2.8V instead of the full nominal 3.7V.
With depressed operating voltage, this battery reaches the end-of-discharge point earlier than a normal pack. The voltage collapses and the device turns off with a “Low Battery” message. At this point you have to charge your battery pack with suitable charger.
Parallel Configuration

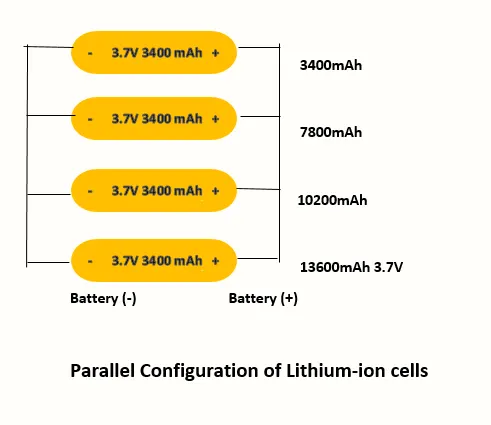

If the applications require the higher current capacity battery and larger cells are not available then by using the parallel configuration of these cells, the current capacity can increase. Most of the battery chemistries allow parallel configurations with little side effect. The below image shows the parallel configuration of four cells. The nominal voltage of the illustrated pack remains at 3.7V, but the capacity (Ah) and runtime are increased.
A cell that develops high resistance in a parallel circuit than in a series configuration. But in the parallel configuration, a failing or faulty cell will reduce the total load capability. On the other hand, an electrical short is more serious as the faulty cell drains energy from the other cells, it causes a fire hazard. Large packs often include a fuse that disconnects the failing cell from the parallel circuit if it were to short.

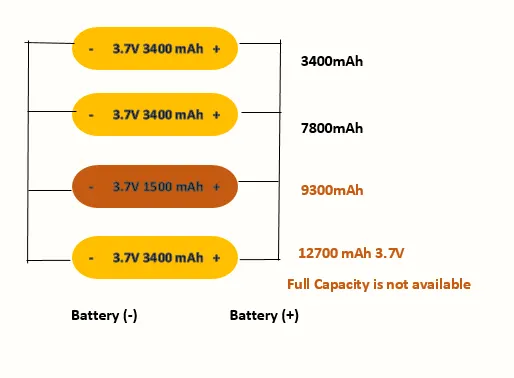

Below image shows the parallel configuration with one faulty cell. In that, the capacity of third cell is 1500 mah. Weak cell will not affect the voltage but provide a low runtime due to reduced capacity.
Series and parallel configuration

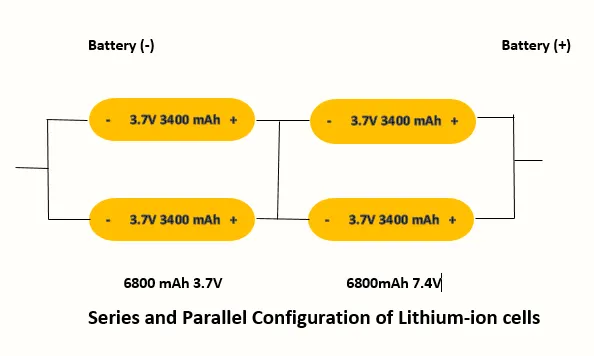

Using the series and parallel configuration, you can design the more voltage and higher capacity battery pack with a standard cell size. The below figure shows the configuration of 2S2P configuration of the 18650 lithium-ion cells. Here, 2 cells connect in series and 2 cells are in parallel. The total power is the sum of voltage times current. A 3.7V (nominal) cell multiplied by 3400mAh produces 12.58Wh.
Four 18650 Lithium-ion cells of 3400 mAh can connect in series and parallel as shown to get 7.2 V nominal and 12.58 Wh. The slim cell allows flexible pack design but every battery pack requires the battery protection circuit. Generally integrated circuits (ICs) for various cell combinations are available in the market. Larger packs need custom circuits. This larger battery packs use in e-bike batteries, hybrid cars and the Tesla Model.
