Project 2 Thermal modeling of battery pack

                                                                                   Project 1                                                                                          AIM : To Route the Wiring harness on Given Engine and Prepare flatten view drawing in CATIA V5. Application of all Packaging rules, Industry…

Statement of assignment: Route the Wiring harness on the Given car body and Prepare to flatten the view drawing in CATIA V5. Application of all Packaging rules, Industry best practices studied in this course shall be demonstrated in design. Apply Protection coverings as required. Available connector 3D data can be used,…

                                                                                   Project 1                                                                                          AIM : To Route the Wiring harness on Given Engine and Prepare flatten view drawing in CATIA V5. Application of all Packaging rules, Industry…

                                                  Wiring harness design in CATIA V5 - 3D modeling Week 7 Challenge                                AIM: Q1. Flatten the harness assembly completed in “ week 4 challenge”. Place the flattened view on drawing sheet. Ensure bundles with protective coverings has different visuals…

                                        Wiring harness design in CATIA V5 - 3D modeling Week 5 & 6 Challenge                                   AIM: Q1. Route the following harness layout in Electrical workbench. Make assumption for harness bundle diameters. Use the connectors provided. After completion of routing, Check…

                                              Wiring harness routing & packaging Rules Week 3 Challenge                           …

                                              Wiring harness design in CATIA V5 - 3D modeling Week 4 Challenge                           …

                                          Wiring harness design in CATIA V5 - 3D modeling Week 2 Challenge                                      AIM: - Download following connectors & Connector clip cad data from given link & define it as Electrical Connector using Electrical Part design Workbench. Define all the necessary…

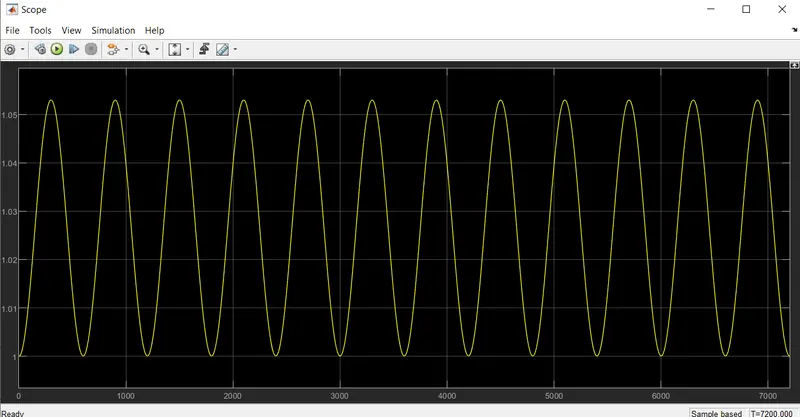

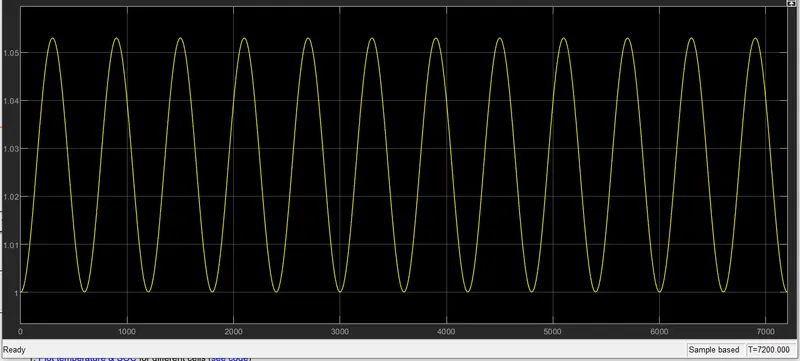

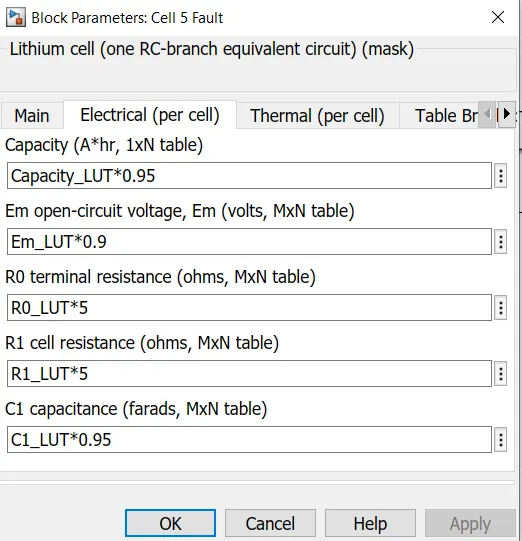

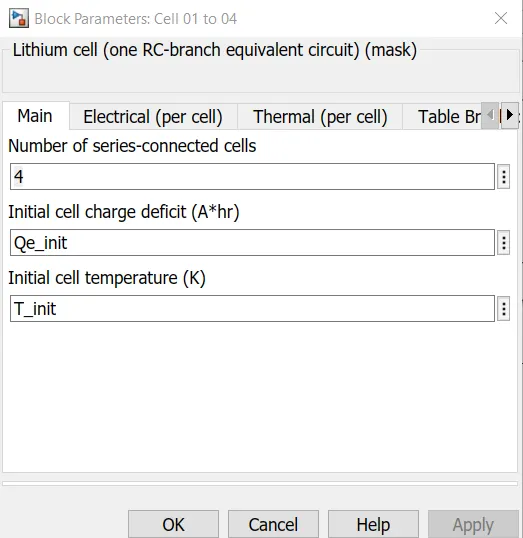

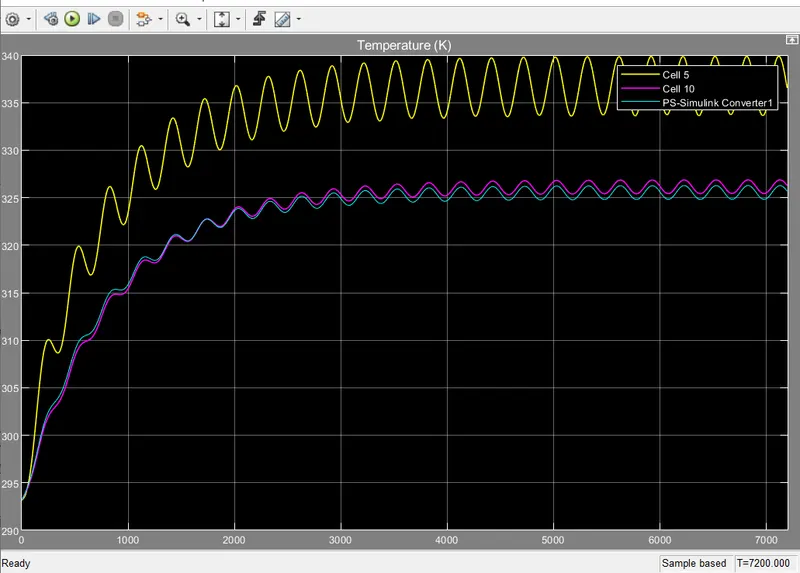

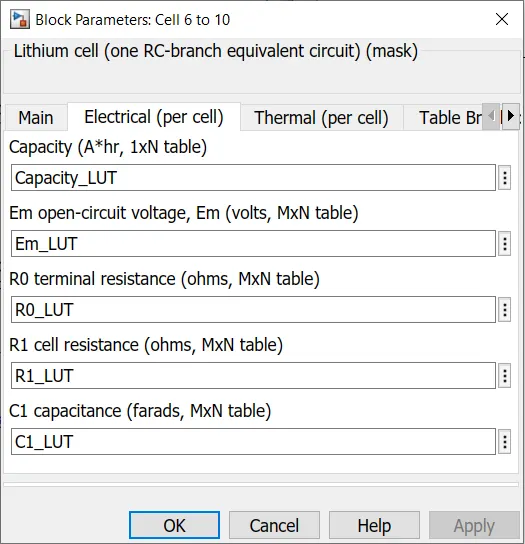

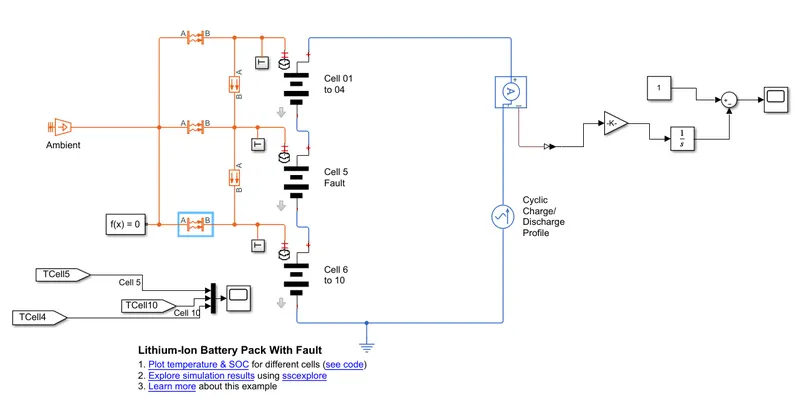

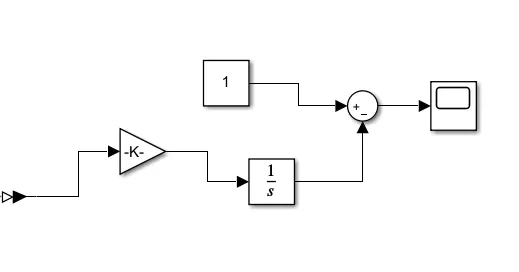

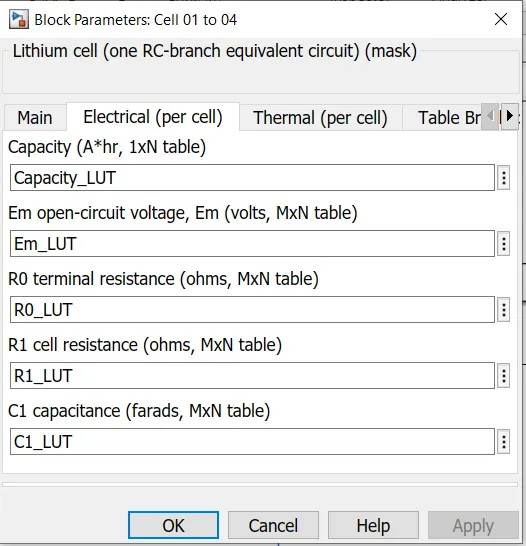

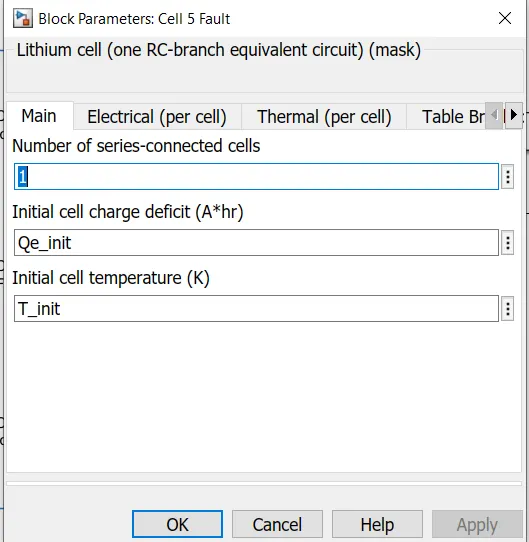

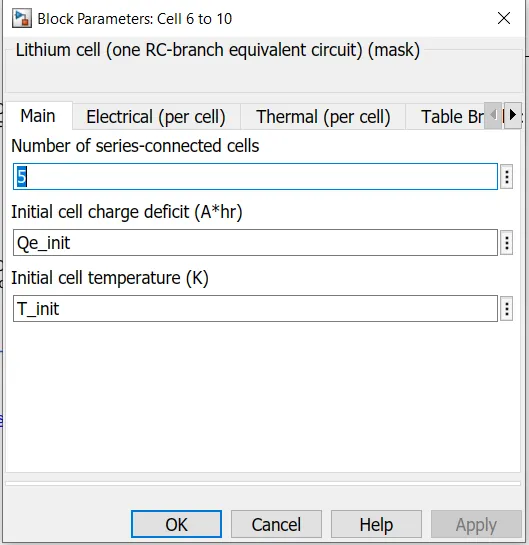

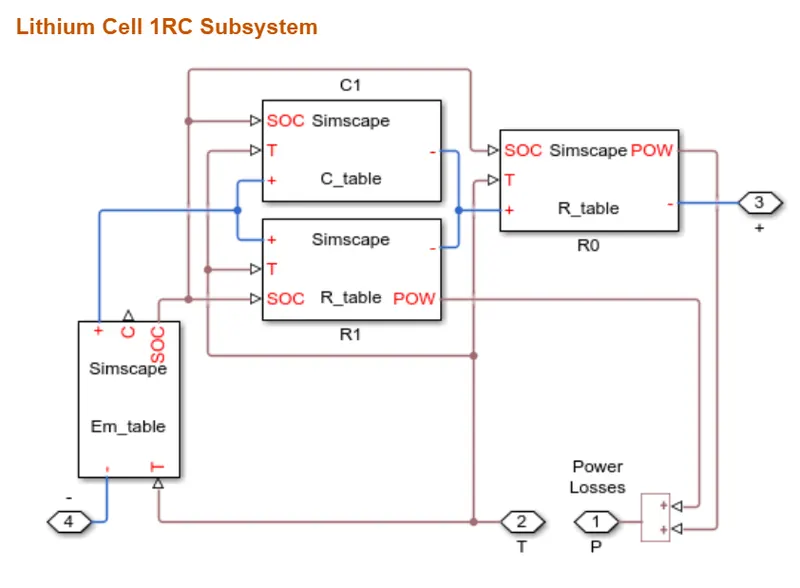

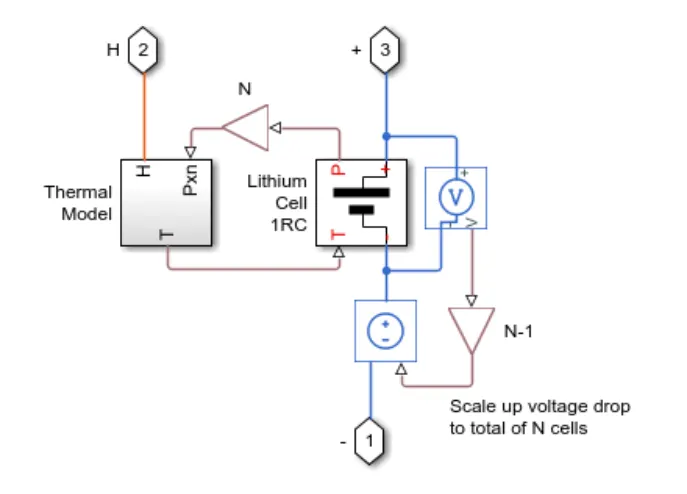

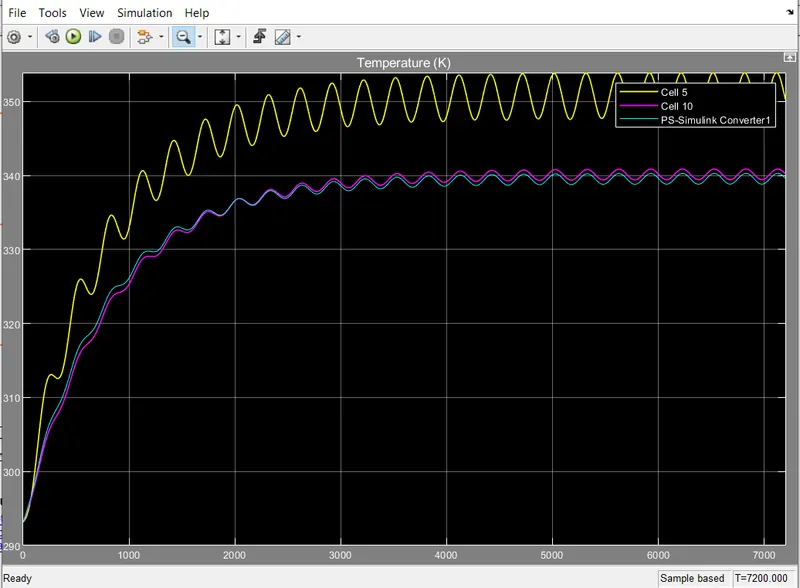

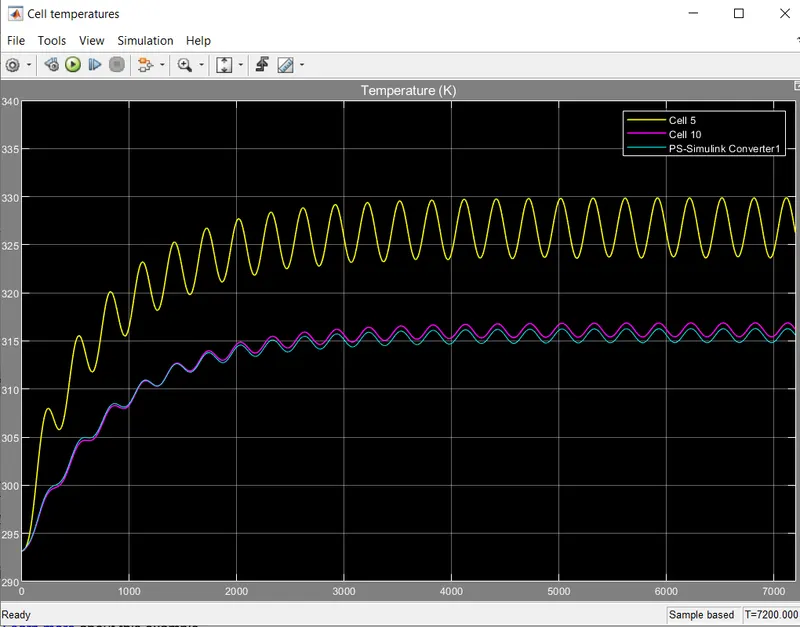

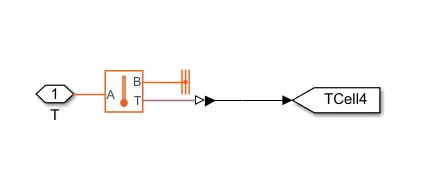

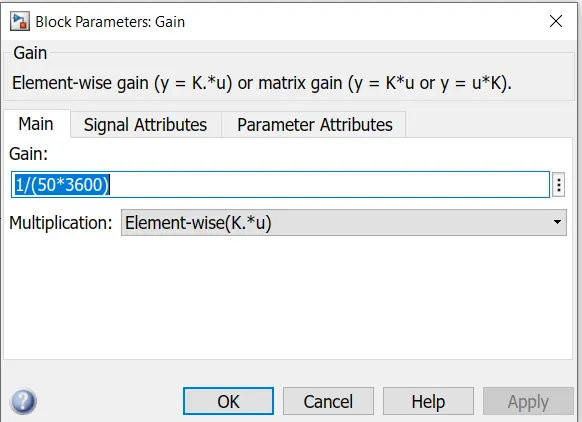

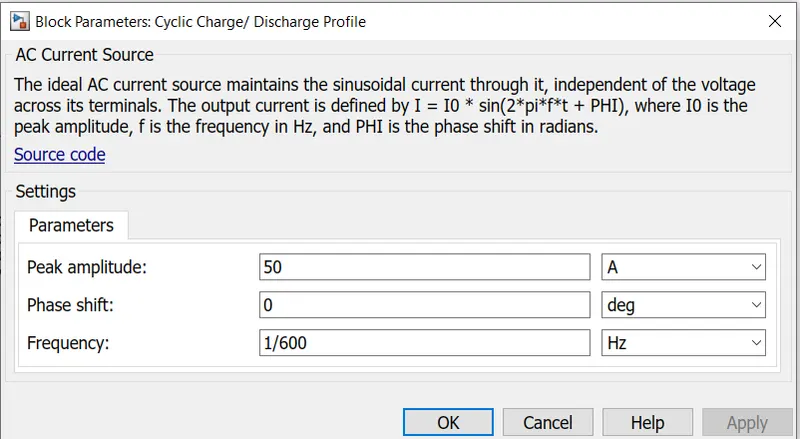

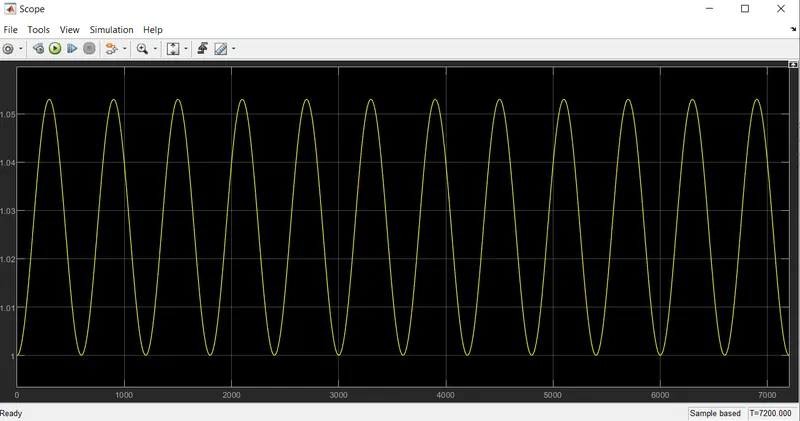

Question :- For a 10 cell series lithium ion battery model, simulate the thermal effects and compare life cycle performance at various temperatures, charge & discharge rates using MATLAB. Answer : - .................. Objective - For a 10 cell series lithium ion battery model, simulate the thermal effects and compare life…

                                           Project 1 Mechanical design of battery pack                                                Questions :-  Battery pack capacity: 18 kWh Cell: ANR26650M1-B  Prepare a detailed battery pack drawing along with its enclosure. State your assumptions. Answer :- AIM: - Prepare a detailed…

                                                                    Week 7 State of charge estimation             …

                                               Week 1 Understanding Different Battery Chemistry                             …

  PROJECT - 2 -                                                                                         Aim:- Modeling of development of a forward energy-based fuel consumption model of a P1 hybrid vehicle.  Objectives:- 1] Tabulate the fuel economy numbers (kmpl) for UDDS and HWFET cycle. Compare these numbers with the…

Project 1 : - AIM : To do that, the following steps need to be followed: 1) Load the Project1 folder as the Current Folder in Matlab.2) Run the “Project1_InitFile.m” Matlab script.3) The provided vehicle Simulink model “Project1_VehicleModel.slx” is incomplete. The engine and vehicle dynamics block contents have been deleted.…

Project 1 : - Develop a double-acting actuator model using Simscape Multibody and Simscape components. The mechanical system of the cylinder needs to be built using Simscape Multibody library components/blocks, and the hydraulic system needs to be modeled using Simscape library physical components. Answer:- You can model…

Project - Speed Control of a Direct Current (DC) motor : - In this project, a Simulink model for the DC motor will be first developed per the schematic shown in Figure 1. Use the Proportional, Integral, and Derivative (PID) control design knowledge gained in the training to design, develop and test a controller to maintain…

Project:- Here we have used the command 'interp1' for interpolation. The output xq1 is put to the text file called 'interpolation'. Code for interpolation: fileID = fopen('interpolation.txt','w'); % Open the text file to write the output x = ImAmp; % defining a variable x from excel file y = VVolt; % defining a variable…

Answer:-1- Major elements- (a)- Generator (b)- Battery (c)- Stator (d)- Iginition coil (e)- Ammeter (f)- Foot selector switch (g)- Breaker (h)- Fuse (i)- Current and voltage regulator   Answer:-2- Working of any three elements- Generator:- - Generators generate electrical energy by capturing the power of movement…
