Project 2 - Rankine cycle Simulator

The Rankine cycle is an idealized thermodynamic cycle of a heat engine that converts heat into mechanical work while undergoing a phase change. It is an idealized cycle in which friction losses in each of the four components are neglected. The heat is supplied externally to a closed loop, which usually uses water as the working fluid.

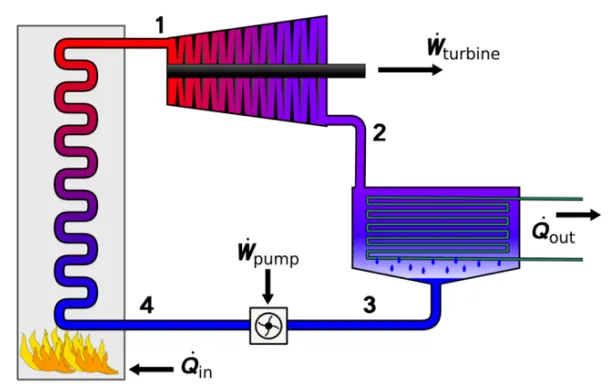

Four processes of the Rankine cycle-

1 2: Isentropic Expansion:
Turbine (1-2): Superheated steam enters into the Turbine and expands isentropically resulting in the production of work. The shaft of the turbine is connected to the generator. This results in the production of electricity i.e Mechanical energy gets converted into electric energy. Work produced by the turbine,

2-3: Condensation:
Condenser (2-3): The expanded vapour is then passed through a condenser, where it gets condensed and converts into liquid again. This liquid is again pumped to the boiler.

3-4: Isentropic Compression by the Pump:

Pump (3-4): The water enters into the pump in a saturated state. Then the liquid is compressed isentropically until it meets the boiler pressure. Work done by the pump is,

WP = m(h3 − h4)K

4-1: Constant Pressure Heat Addition
Boiler (4-1): The water enters into the boiler as compressed and leaves as superheated from the boiler. Thus the phase changes from liquid to vapour. The heat supplied by the boiler is

Qb = m(h1 − h4)K

The efficiency of the Steam Cycle is given by

Main Code : Rankine cycle Simulator

close all
clear all
clc
% Print Process Description
fprintf('1-2 Isobaric heat Transfer\n')
fprintf('2-3 Isentropic Expansion\n')
fprintf('3-4 Isobaric heat Rejection\n')
fprintf('4-1 Isentropic Compression\n')
%step 1:Enter Inputs
p1 = input('Enter the Pressure at the Turbine Inlet (in bar):');
T1 = input('Enter the Temperature at the Turbineinlet (in Degree Celcius):');
p2 = input('Enter the Pressure at the Condensor (in bar):');
%step 2: Calculate each state point values.
% state point 1
h1 = XSteam('h_pt',p1,T1);
s1 = XSteam('s_pt',p1,T1);
%step 3: state point 2
s2=s1;
sf2 = XSteam('sL_p',p2);
sg2 = XSteam('sV_p',p2);
hf2 = XSteam('hL_p',p2);
hg2 = XSteam('hV_p',p2); %x2 = (s2-sf2)/(sg2-sf2);
s2 = sg2;
h2 = hg2; %hf2 +(x2*(hg2-hf2));
T2=XSteam('T_hs',h2,s2);
%step 4: state point 3
T3=T2;
p3= p2;
s3=XSteam('sL_T',T3);
h3=XSteam('hL_T',T3);
v3 = XSteam('vL_p',p2);
%step 5: state point 4
p4 =p1;
s4= s3;
Cp4 = XSteam('Cp_ps',p4,s4);
Cv4 = XSteam('Cv_ps',p4,s4);
gamma = Cp4/Cv4;
r = (gamma - 1)/gamma;
T4 = T3 *(p4/p3)^r;
%step 6: Calculate other output values.
Wt = h1-h2; % Turbine Work
Wp = v3*(p1-p2)*100; % Pump Work
h4 = Wp + h3;
W_net = Wt-Wp; % Net Work unit in kj/kg
Qs = h1 - h4;%heat suppied
N_per = (W_net/Qs)*100;%Efficiency
steam_rate = 3600/(Wt - Wp);%Steam rate per second
%step 7: state point 5 and 6 which help in plotting
T5=XSteam('Tsat_p',p1);
T6=T5;
s5=XSteam('sL_p',p1);
s6=XSteam('sV_p',p1);
h5=XSteam('hL_p',p1);
h6=XSteam('hV_p',p1);
%step 8: print all state point values to show.
fprintf('\n------------------RESULT------------------\n')
fprintf('At State point 1:\nP1 is : %4.2f Bar\nT1 is : %4.2f Degree Celcius\nH1 is : %4.2f kJ/kg\nS1 is : %4.2f kJ/kgk\n\n',p1,T1,h1,s1)
fprintf('At State point 2:\nP2 is : %4.2f Bar\nT2 is : %4.2f Degree Celcius\nH2 is : %4.2f kJ/kg\nS2 is : %4.2f kJ/kgk\n\n',p2,T2,h2,s2)
fprintf('At State point 3:\nP3 is : %4.2f Bar\nT3 is : %4.2f Degree Celcius\nH3 is : %4.2f kJ/kg\nS3 is : %4.2f kJ/kgk\n\n',p3,T3,h3,s3)
fprintf('At State point 4:\nP4 is : %4.2f Bar\nT4 is : %4.2f Degree Celcius\nH4 is : %4.2f kJ/kg\nS4 is : %4.2f kJ/kgk\n\n',p4,T4,h4,s4)
fprintf('Wt is :%4.2f kJ/kg\nWp is : %4.2f kJ/kg\nWnet is : %4.2f kJ/kg\nNtherm is : %4.2f percent\nS.S.C is : %4.2f kg/kWh',Wt,Wp,W_net,N_per,steam_rate)
%step 9:plot T-S Diagram2
subplot(1,2,1)
T_rankine = linspace(T5,T1,5000);
for i = 1:length(T_rankine)
 s_rankine(i) = XSteam('s_pT',p1,T_rankine(i));
end
plot([s1 s2 s3 s4 s5 s6 s_rankine],[T1 T2 T3 T4 T5 T6 T_rankine],'linewidth',1.5);
hold on
T_curve = linspace(1,400,500);
for i=1:length(T_curve)
 s_l(i) = XSteam('sL_T',T_curve(i));
 s_v(i) = XSteam('sV_T',T_curve(i));
 h_l(i) = XSteam('hL_T',T_curve(i));
 h_v(i) = XSteam('hV_T',T_curve(i));
end
plot(s_l,T_curve);
plot(s_v,T_curve);
text(s1,T1,'1','FontSize',15)
text(s2,T2,'2','FontSize',15)
text(s3,T3,'3','FontSize',15,'HorizontalAlignment','right','VerticalAlignment','top')
text(s4,T4,'4','FontSize',15,'HorizontalAlignment','right','VerticalAlignment','bottom')
text(s5,T5,'5','FontSize',15)
text(s6,T6,'6','FontSize',15)
xlabel('Entropy in kJ/KgK');
ylabel('Temperature in Degree Celcius');
%step 10:plot H-S diagram
subplot(1,2,2)
plot([s1 s2 s3 s4 s1],[h1 h2 h3 h4 h1],'linewidth',2)
hold on
plot(s_v,h_v,'color','r')
plot(s_l,h_l,'color','r')
text(s1,h1,'1','FontSize',15)
text(s2,h2,'2','FontSize',15)
text(s3,h3,'3','FontSize',15,'HorizontalAlignment','right','VerticalAlignment','top')
text(s4,h4,'4','FontSize',15,'HorizontalAlignment','right','VerticalAlignment','bottom')
xlabel('Entropy in kJ/KgK')
ylabel('Enthalpy in kJ/kg')

Explaination:

1. The creation of Rankine cycle simulator starts with some input value which are required to calculate the other state point in cycle eventually.
2. The Rankine cycle process is displayed in the command window and then inputs are entered which are inlet pressure for turbine, temperature at turbine inlet and pressure at condenser.
3. Then we are using XSteam function file for reading state point. First, we get the value of enthalpy and entropy at state point 1 from the XSteam function file.
4. As process from 1-2 is isentropic compression the entropy at point 1 is equal to point 2. The term ‘(s_pT, p1, T1)’ refers to entropy at pressure and temperature point 1.
5. The term ‘sg’ and ‘sf’ are referred to saturated liquid and saturated vapor entropy respectively. This value is used to calculate other function according to mathematical relations.
6. Similarly, other points are taken from XSteam function file which are necessary to calculate other parameters. After that work done in turbine and pump are calculated for further getting the net work done Rankine cycle.
7. After calculating the net work done the efficiency of the Rankine cycle is calculated along with specific steam consumption which is steam consumed by a locomotive cylinders per unit of output of work done.
8. Then temperature at each point of cycle is calculated using input taken from start of the program and data taken from XSteam file. For given temperature range from lower to higher entropy points are calculated to create the T-S plot. Similarly, another for loop is used to create the saturation curve in each plot.
9. Then plotting is done respectively for T-s and H-s graph in Rankine cycle and each state point value has been put in command window.
