Project 2 - Rankine cycle Simulator

Aim:- To write a code for simulation of rankine cycle.

Theory:-

The Rankine cycle is a model used to predict the performance of steam turbine systems.Rankine cycle consits of an operating fluid which continuously gets evaporated and condensed in a close loop.

Components used:-

1)Boiler for generating steam at constant pressure

2)A turbine or engine in which steam will expand isentropically and work is done.

3)A condenser in which heat is removed from the exhaust steam and it is completely converted into water at constant pressure.

4)A pump which raises the pressure of liquid water to boiler pressure and pumps it in to the boiler for converting into steam.

Process involve

1-2 = Isentropic expansion in the turbine
2-3 = constant pressure heat rejection by the condensor
3-4 = Isentropic compression in the pump
4-1 = constant pressure heat addition by the boiler

PROGRAM

clear all
close all
clc

disp('RANKINE CYCLE SIMULATOR');
disp('1-2 = isentropic expansion in the turbine');
disp('2-3 = constant pressure heat rejection by the condensor');
disp('3-4 = isentropic compression in the pump');
disp('4-1 = constant pressure heat addition by the boiler');

%To type the inputs and getting the text as given in the problem

t1 = input('enter the temperature at the turbine inlet (in degree celsius):');

p1=input('enter the pressure at the turbine inlet (in bar):');
p2=input('enter the pressure at the condensor (in bar)');


%stage 1 (turbine inlet)
s1= XSteam('s_pT',p1,t1);
h1=XSteam('h_pT',p1,t1);

%stage 2 condenser inlet
sf2 = XSteam('sL_p',p2);
sg2 = XSteam('sV_p',p2);
hf2 = XSteam('hL_p',p2);
hg2 = XSteam('hV_p',p2);

s2 = s1;
t2 = XSteam('Tsat_p',p2);

%splitting the formulae

x2=((s2-sf2)/(sg2-sf2));
h2=hf2+(x2*(hg2-hf2));


%stage3 (pump inlet)
p3=p2;
t3=XSteam('Tsat_p',p2);
s3=XSteam('sL_p',p3);
h3=XSteam('hL_p',p3);

cp4 = XSteam('cpL_p',p3);
cv4 = XSteam('cvL_p',p3);
gamma = (cp4/cv4);
g = (gamma-1)/gamma;

%stage 4(boiler inlet)
p4=p1;
s4=s3;
h4 = XSteam('h_ps',p4,s4);
t4=t3*((p4/p3)^g);

%turbine work
wt=h1-h2;
%pump work
wp=h4-h3;
%network
w_net=wt-wp;

%Heat in and out of the system
q_in=h1-h4;
q_out=h2-h3;

q_in=h1-h4;
q_out=h2-h3;

n=w_net/q_in;
np=n*100;

SSC=3600/w_net;


tf_sat=XSteam('Tsat_p',p1);
sf_sat=XSteam('sL_p',p1);
hf_sat=XSteam('hL_p',p1);
sg_sat=XSteam('sV_p',p1);
hg_sat=XSteam('hV_p',p1);


%plot figure 1
figure(1)
hold on
temp=linspace(0,400,1000);
for i=1:length(temp)
    aa(i) =XSteam('sL_T',temp(i));

end



for j=1:length(temp)
    bb(j)=XSteam('sV_T',temp(j));
end

plot(aa,temp,'color','b')
plot(bb,temp,'color','b')

temp=(XSteam('Tsat_p',p1));
t0=linspace(temp,t1,300);
for i=1:length(t0)
    c11(i)=XSteam('s_pt',p1,t0(i));
end

t5=XSteam('Tsat_p',p4);
s5=XSteam('sL_T',t5);

plot([s1 s2],[t1 t2],'color','r')
plot([s2 s3],[t2 t3],'color','r')
plot([s3 s4],[t3 t4],'color','r')
plot([s4 s5],[t4 t5],'color','r')
plot([sf_sat sg_sat],[tf_sat tf_sat],'color','r')
plot(c11,t0,'color','r')

title('T-S diagram')
xlabel('entropy(KJ/kgK)')
ylabel('Temperature(K)')

text(s1,t1,'1');
text(s2,t2,'2');
text(s3,t3,'3');
text(s4,t4,'4');
text(s5,t5,'4s');
text(sg_sat,tf_sat,'1s');

%plotting figure 2
figure(2)
hold on

temp1=linspace(0,400,1000);
for i=1:length(temp1)
    cc(i)=XSteam('hL_T',temp1(i));
end

for j=1:length(temp1)
    dd(j)=XSteam('hV_T',temp1(j));

end

plot(aa,cc,'color','b')
plot(bb,dd,'color','b')

plot([s1 s2],[h1 h2],'color','r')
plot([s2 s3],[h2 h3],'color','r')
plot([s3 s4],[h3 h4],'color','r')
plot([s4 s1],[h4 h1],'color','r')


title('H-S diagram')
xlabel('entropy(KJ/KgK)')
ylabel('enthalpy(KJ/Kg)')

text(s1,h1,'1');
text(s2,h2,'2');
text(s3,h3,'3');
text(s4,h4,'4');

%printing the output

fprintf('at stage point 1:n')
fprintf('P1 is : %f bar',p1)
fprintf('T1 is : %f deg celsius',p1)
fprintf('T1 is :%f KJ/kg',h1)
fprintf('S1 is: %f KJ/KgKr',s1)

disp('at state point 2:')
fprintf('P2 is : %f Bar',p2)
fprintf('T2 is : %f deg celsius',t2)
fprintf('H2 is : %f KJ/Kg',h2)
fprintf('S2 is : %f KJ/KgK',s2)
fprintf('X is : %f r',x2)


disp('at state point 3:')
fprintf('P3 is : %f Bar',p3)
fprintf('T3 is : %f deg celsius400',t3)
fprintf('H3 is : %f KJ/Kg',h3)
fprintf('S2 is : %f KJ/KgKb',s3)


disp('at state point 4:')
fprintf('P4 is : %f Barn',p4)
fprintf('T4 is : %f deg celsiusn',t4)
fprintf('H4 is : %f KJ/Kgn',h4)
fprintf('S4 is : %f KJ/KgKbn',s4)

fprintf('Wt : %f KJ/Kgn',wt)
fprintf('Wp : %f KJ/Kgn',wp)
fprintf('Wnet : %f KJ/Kgn',w_net)
fprintf('Ntherm : %f %%n',n*100)
fprintf('SSC : %f KJ/KWhbn',SSC)

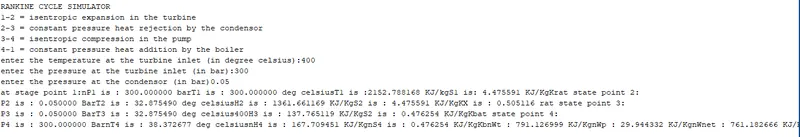

Command Window -
