Project - 2 - Meshing on the suspension Assembly

AIM - To show how meshing of suspension assembly is done.

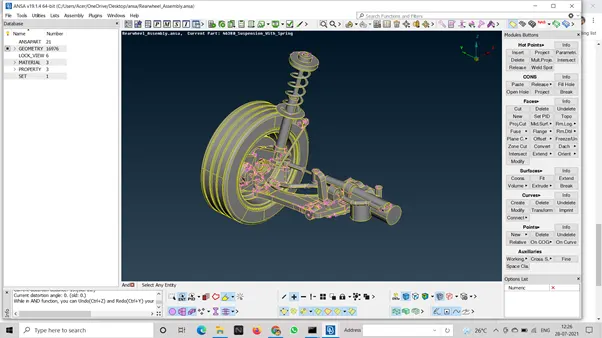

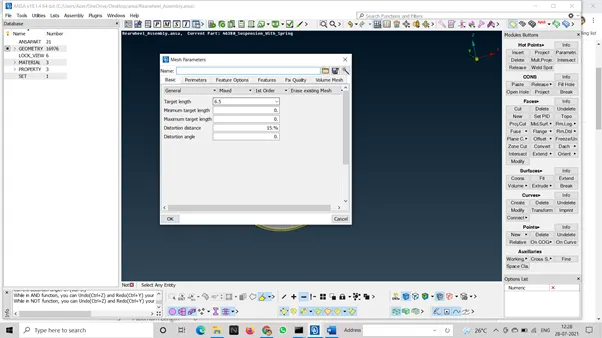

PROEDURE - 1 FIRST DO THE TOPO CLEAN UP AND STITCHED AAL THE SINGLE CONS THEN GO TO THE MESH MODULE IN MESH PARAMETERS< LENGTH = 4

2 IN THE QUESTION WE ARE GIVEN 2 DIFFERENT CRITERIA FOR THE RIM AND TYRE AND FOR REST OF THE CONNECTIONS

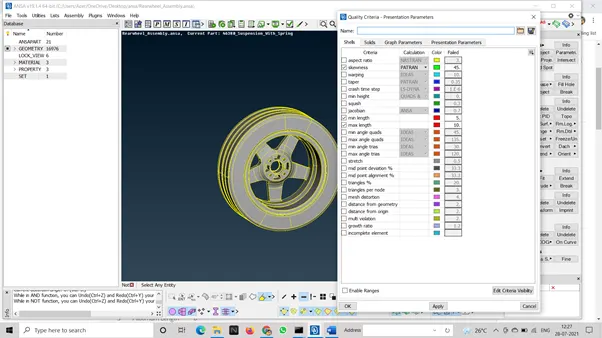

3 SEPERATE THE RIM AND TYRE WRITE THE QUALITY CRITERIA AND TARGET LENGTH AS GIVEN IN THE QUESTION

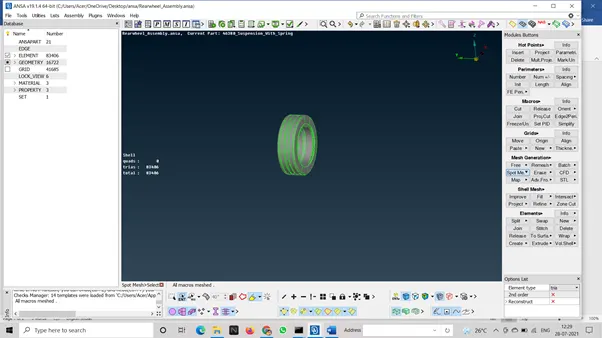

4 THEN GO TO THE MESH MODULE AND SELECT SPOT MESH AND MESH TYPE AS TRIA, AND MESH IT.

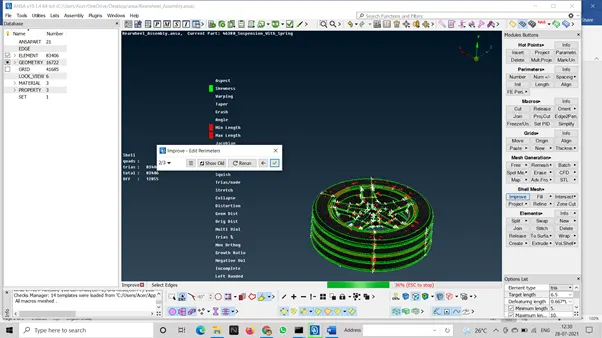

5 IMPROVE THE MESH WHERE THE QUALITY CRITERIA IS FAILING

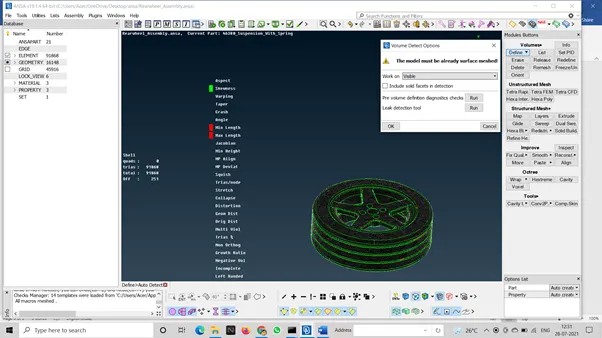

6 THEN GO TO THE VOLUMETRIC MESH AND DEFINE RIM SEPERATELY AND TYRE SEPERATELY

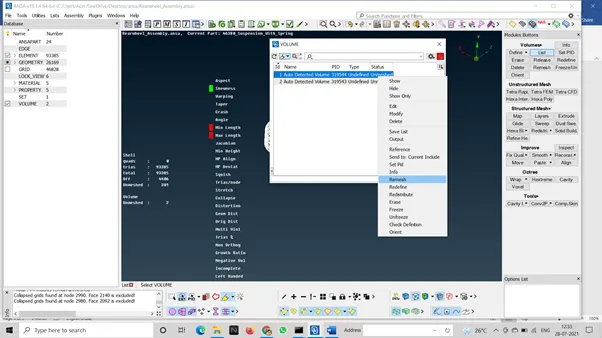

7 THE A DIALOGUE BOX WILL APPEAR WHERE YOU CAN REMESH THE SURFACE TO CREATE A VOLUME MESH.

8 YOU SHOULD DO THE SAME THING FOR THE OTHERS PARTS INSTEAD OF SOME PARTS WHERE THEY HAVE UNIFORM THIICKNESS

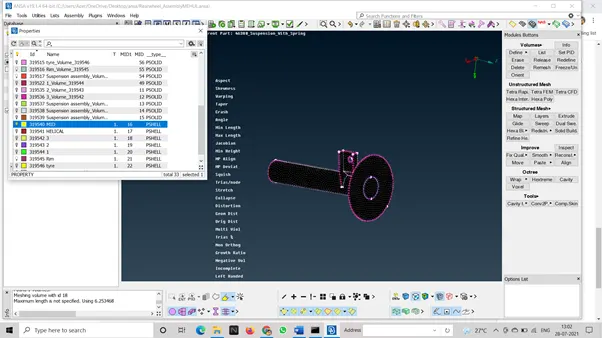

9 ONLY THREE PART WILL BE MID SURFACED

10 DO THE NECESSARY RBE2 CONNECTION WHERE EVER REQUIRED

11 DO THE CBAR CONNECTION ON THE HELICAL PART ON THE COMPONENT
