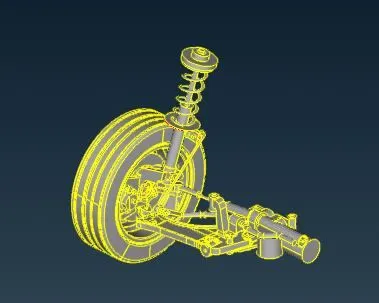

Project - 2 - Meshing on the suspension Assembly

Aim: To create the Volume mesh and mid surface and assemble the all the components with the RBE2 connections.

Working procedure:

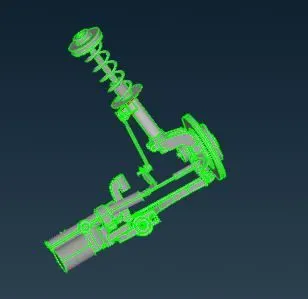

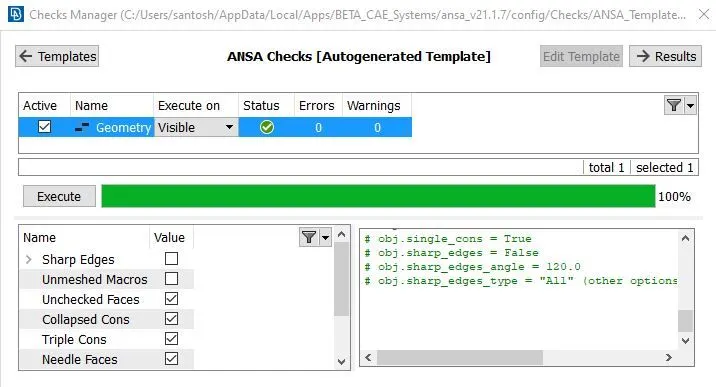

Step 1: Check the geometrical errors.

Step 2: Set the quality for all the operations.

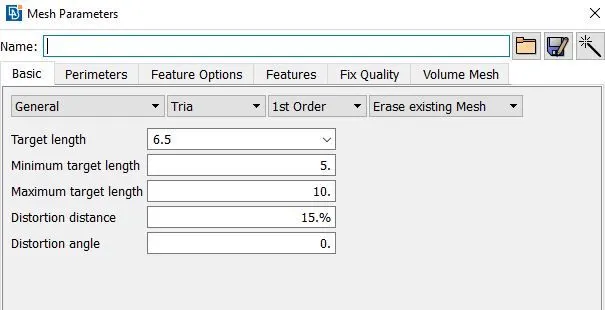

Quality Criteria for Surface Meshing of Tyre and Rim (Element type: Tria) :

S.No	Quality Criteria	Value
1	Target/Average length	6.5
2	Minimum Length	5
3	Maximum Length	10
4	Skewness	45

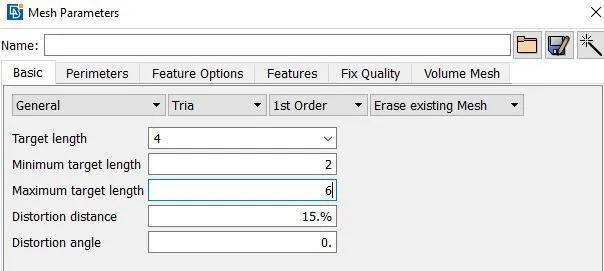

Quality criteria for Surface Meshing of Non Uniform thickness components other than Tyre and Rim (Element type: Tria) :

S.No	Quality Criteria	Value
1	Target/Average length	4
2	Minimum Length	2
3	Maximum Length	6
4	Skewness	45

Quality Criteria for Volume meshing of all Non Uniform thickness components (Element type: Tetra Elements):

S.No	Quality Criteria	Value
1	Tet-collapse	0.2

Quality criteria for Mid surfacing of Uniform thickness part which has thickness less than 5 mm (Element type: Mixed elements) :

S.No	Quality Criteria	Value
1	Target/Average length	4
2	Minimum Length	2
3	Maximum Length	6
4	Aspect	3
5	Warpage	15
6	Skewness	45
7	Jacobian	0.7
8	Minimum Quad Angle	45
9	Maximum Quad Angle	135
10	Minimum Tria Angle	30
11	Maximum Tria Angle	120

Step 3: Set the element target length for all operations.

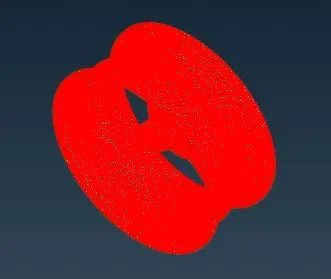

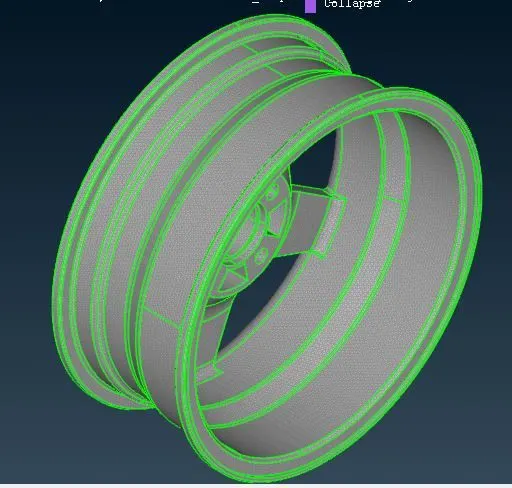

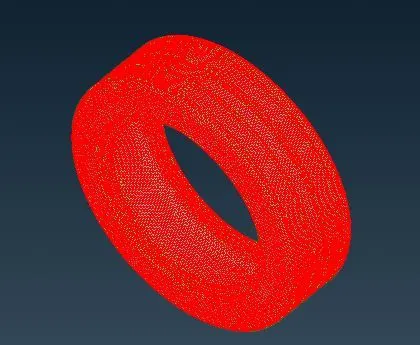

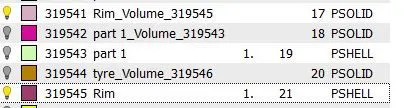

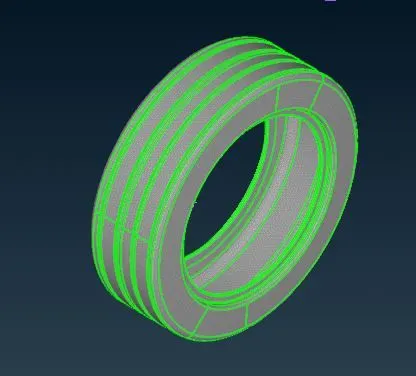

Step 4: Create the new PID for Tyre and Rim and then create the mesh(Best mesh). After this create the volume mesh and check the tet collapse.

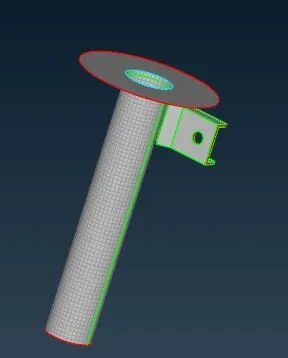

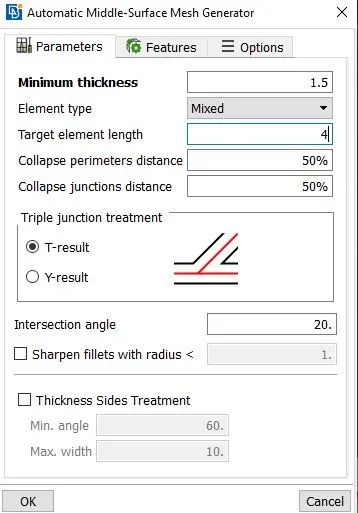

Step 5: Creating the mid surface for less than 5mm by using Casting operation.

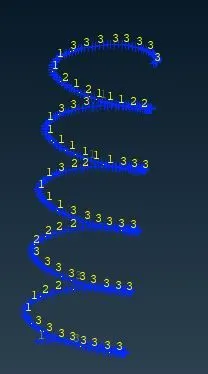

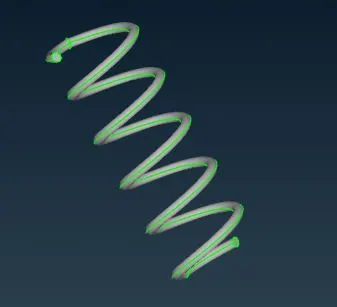

Step 6: Convert the Spring as a 1D Bar element. Here create the curve and Cog point and then perform the CBAR Operation and it will create the 1D bar element.

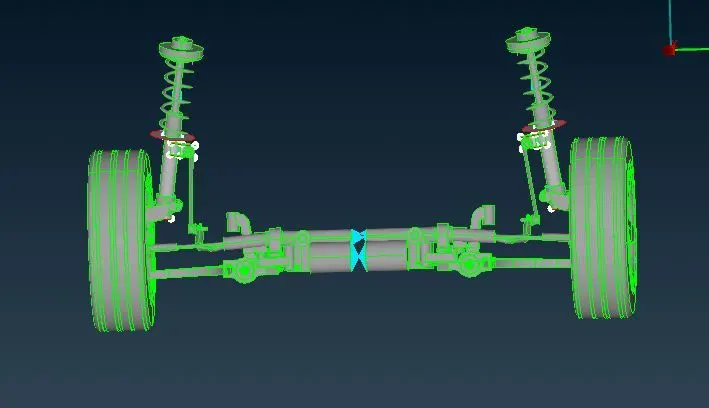

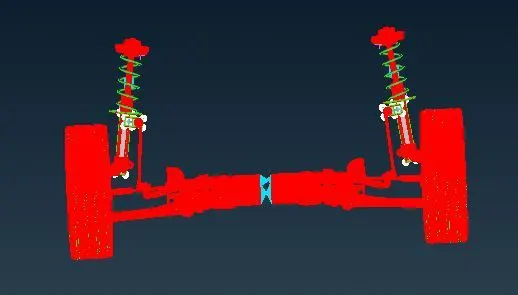

Step 7: Give the RBE2 connections. After all the operations Transform the model.

learning outcome: New concept learn and new commands and converting 1D bar element.

NOTE: The file is uploaded in a word document you can check it and evaluate.

Issue: While performing the Connection operation ANSA get crashing. So may be may not be some connections are improper or some connections will miss.

Conclusion: Here new concept i have learn and good results it gevin. In connection part Ansa is crashing.
