Project-2-Meshing of Door Inner Panel Challenge
1. AIM: Mesh the Plastic model in Hypermesh.
2. OBJECTIVES OF THE PROJECT:
Follow the Quality Criteria and mesh the following component and assign thickness:
Target Element Length = 4 Units
| S.N | Quality Criteria | Value |
| 1 | Aspect Ratio | 5 |
| 2 | Skewness | 45 |
| 3 | Warping | 15 |
| 4 | Taper | 0.5 |
| 5 | Min. Length | 2 Units |
| 6 | Max. Length | 6 Units |
| 7 | Min angle Quad | 45 |
| 8 | Max angle Quad | 135 |
| 9 | Min angle Tria | 20 |
| 10 | Max angle Tria | 120 |
| 10 | Tria % | 10 |
3. BODY OF THE CONTENT:
- COMPONENT VALIDATING

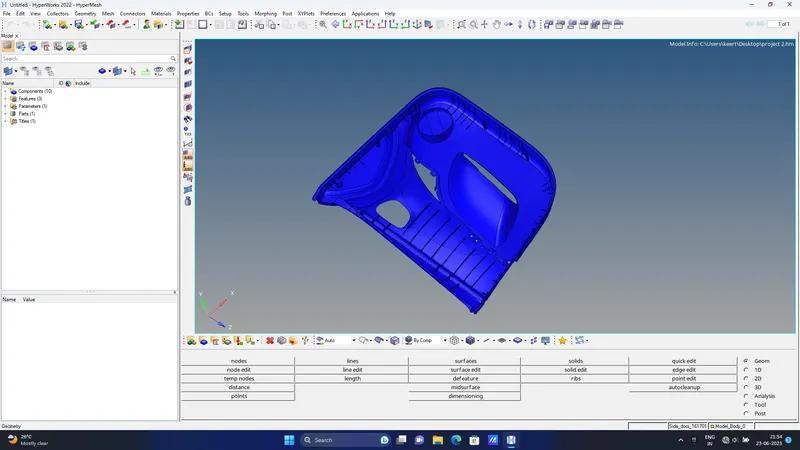

As a first step, We are going to import the model & then visualize it. So, as can see in the image, its looks like a solid body. So, Using a 'delete' command deleted it.
Now, I need to check whether there is a geometry defect or not. So, to check easily I changed its colour to 2D topo mode and wireframe geometry selected (see below image).
- MID-SURFACE GENERATION
After this we need to generate a mid-surface, so for that we have to choose a suitable method to generate mid-surface. So, as per the measurement of the model at the boundary of the model around 3 & 3.5 mm achieved, and at the rib & stiffener location I got 1.5 & 2 mm respectively. So, in conclusion it looks like a plastic component. So, there are three option for mid-surface generation. 'offset+planes+sweeps', 'offset-planes', offset.

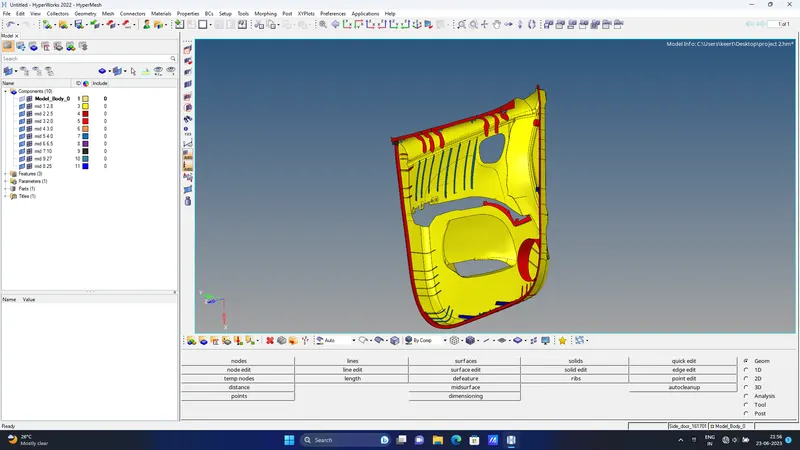

So, I tried the first 2 options & from the result, I will go with the 1st option. Because there is not much difference between. Can see the generated mid-surfaces as per below image.
- TOPO CLEANUP IN MID-SURFACE
After this, it required a topo cleanup. As per the min/max size(3/7) value some cons are suppressed and at the fillet location to capture the geometry and to avoid an element failure, some cons are created, can be seen in the below image.
- MESH GENERATION

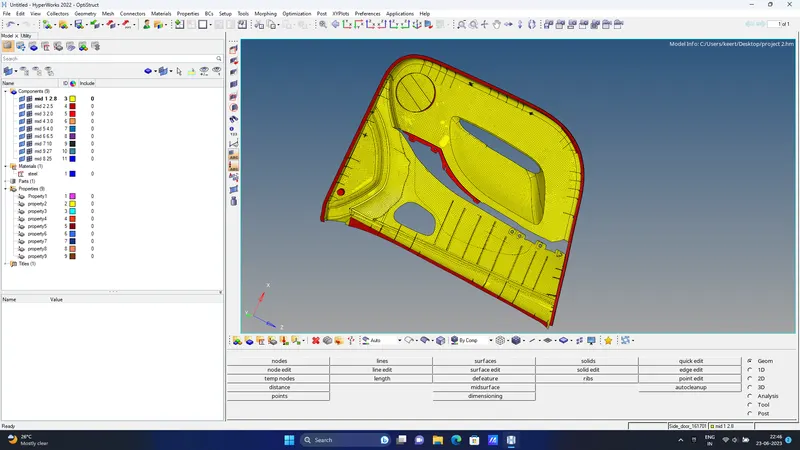

Now, it's time to generate a mesh, So, according to geometry I decided to generate a mesh of below area first then other. (see the image)

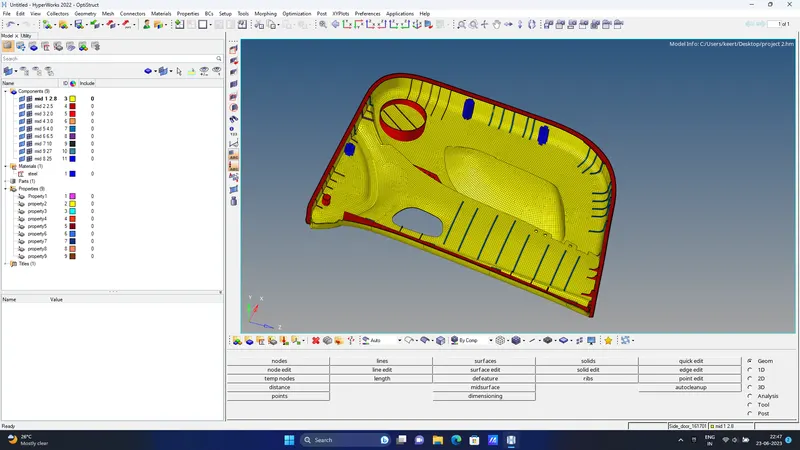

As you can see the mesh is generated using 'automesh' command, But only by one click it's not generating a perfect mesh, using a 'rebuild mesh', 'elem cleanup', 'quality index', 'translate', etc. commands are used to correct them.
4. CONCLUSION:
The Challenge is completed
