Project 2 - Measuring the distance of an object using ultrasonic sensor and also smoothen the sensor data using moving average filter

The implementation of code for “Measuring distance of an object using ultrasonic distance sensor (28015 Ping) and also smoothen the sensor data using moving average filter”.

CODE:

int trigPin = 11; // Trigger

int echoPin = 12; // Echo

long duration, cm, inches;

long sum=0;

long avg;

int i;

void setup()

{ Serial.begin (9600);//Serial Port begin

//Define inputs and outputs

pinMode(trigPin, OUTPUT);

pinMode(echoPin, INPUT);

}

void loop()

{

// The sensor is triggered by a HIGH pulse of 10 or more microseconds.

// Give a short LOW pulse beforehand to ensure a clean HIGH pulse:

digitalWrite(trigPin, LOW);

delayMicroseconds(5);

digitalWrite(trigPin, HIGH);

delayMicroseconds(10);

digitalWrite(trigPin, LOW);

// Read the signal from the sensor: a HIGH pulse whose

// duration is the time (in microseconds) from the sending

// of the ping to the reception of its echo off of an object.

pinMode(echoPin, INPUT);

duration = pulseIn(echoPin, HIGH);

// Convert the time into a distance

cm = (duration/2) / 29.1; // Divide by 29.1 or multiply by 0.0343

inches = (duration/2) / 74; // Divide by 74 or multiply by 0.0135

for (i=0; i<5; i++)

{

sum=sum+inches;

avg = sum/5;

}

Serial.print(avg);

Serial.print("Avg, ");

Serial.print(cm);

Serial.print("cm");

Serial.println();

Serial.print(inches);

Serial.print("in");

Serial.println();

delay(250);

}

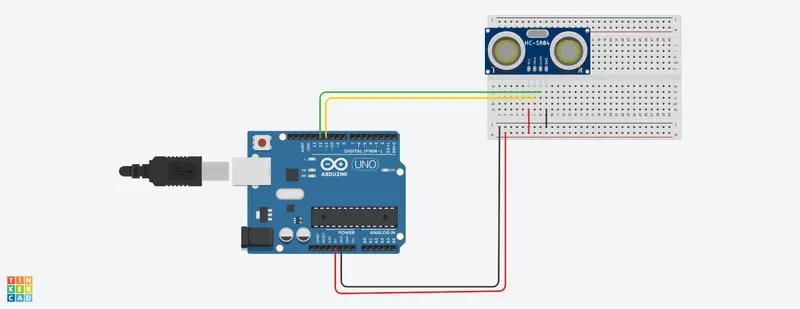

CIRCUIT DIAGRAM:
