Project 2 - Measuring the distance of an object using ultrasonic sensor and also smoothen the sensor data using moving average filter

AIM:-

In this project the implementation of code for “Measuring distance of an object using ultrasonic distance sensor (28015 Ping) and also smoothen the sensor data using moving average filter”.

COMPONENTS USED:-

• ARDUINO
• ULTRASONIC DISTANCE SENSOR
• LCD 16*2
• POTENTIOMETER
• RESISTOR
• CONNECTING WIRE

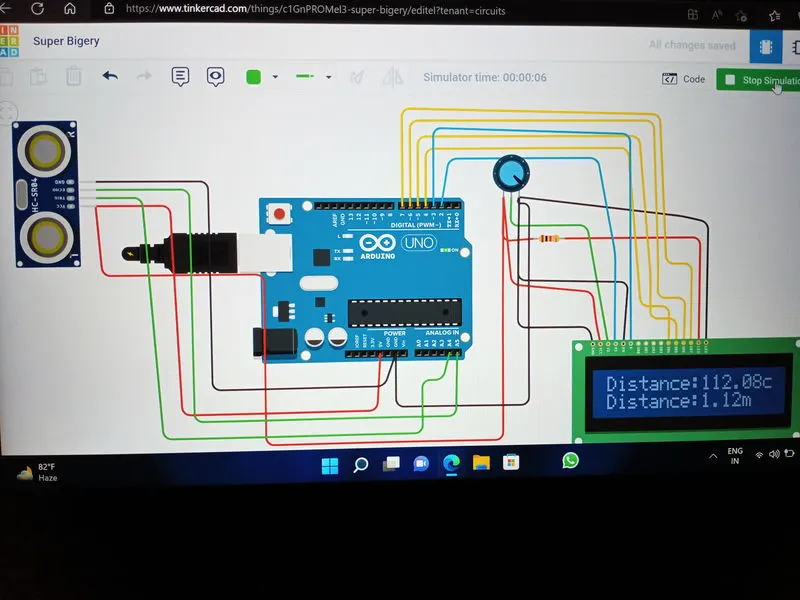

CIRCUIT DIAGRAM:-

PROGRAM CODE-

#include <LiquidCrystal.h>



#define trigger 18

#define echo 19



LiquidCrystal lcd(2,3,4,5,6,7);



float time=0,distance=0;



void setup()

{

 lcd.begin(16,2);

 pinMode(trigger,OUTPUT);

 pinMode(echo,INPUT);

 lcd.print(" Ultra sonic");

 lcd.setCursor(0,1);

 lcd.print("Distance Meter");

 delay(2000);

 lcd.clear();

 lcd.print(" Circuit Digest");

 delay(2000);

}



void loop()

{

 lcd.clear();

 digitalWrite(trigger,LOW);

 delayMicroseconds(2);

 digitalWrite(trigger,HIGH);

 delayMicroseconds(10);

 digitalWrite(trigger,LOW);

 delayMicroseconds(2);

 time=pulseIn(echo,HIGH);

 distance=time*340/20000;

 lcd.clear();

 lcd.print("Distance:");

 lcd.print(distance);

 lcd.print("cm");

 lcd.setCursor(0,1);

 lcd.print("Distance:");

 lcd.print(distance/100);

 lcd.print("m");

 delay(1000);

}
